IslandPath Analysis: Haloquadratum walsbyi DSM 16790

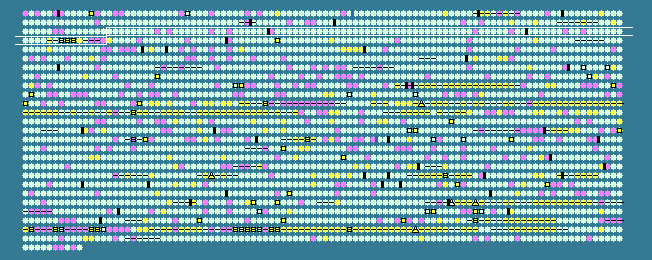

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
215	 48.37	0	310541..311092	+	183	110667191	-	HQ1221A	-	hypothetical protein
216	 50.57	0	311119..312087	-	322	110667192	-	HQ1222A	-	hypothetical protein
217	 50.54	0	312287..312658	+	123	110667193	-	HQ1223A	-	hypothetical protein
218	 46.04	0	312943..313548	+	201	110667194	-	HQ1224A	-	protease
219	 47.96	0	313928..314932	-	334	110667195	-	HQ1225A	-	sodium/arsenite symporter family protein
220	 47.44	0	315361..316629	-	422	110667196	-	HQ1226A	-	hypothetical protein
221	 49.39	0	316777..317766	-	329	110667197	tfbA	HQ1227A	-	transcription initiation factor TFB
222	 51.09	0	317977..318573	+	198	110667198	rnhA	HQ1228A	-	ribonuclease H I
223	 42.50	-1	319258..319617	-	119	110667199	padR	HQ1230A	-	transcription regulator
224	 46.25	0	319761..320294	+	177	110667200	ipp	HQ1231A	-	inorganic pyrophosphatase
225	 42.86	-1	320415..320561	+	48	110667201	-	HQ1232A	-	hypothetical protein
226	 49.95	0	320798..321718	+	306	110667202	-	HQ1233A	-	rhomboid family protein/GlpG-like protein
227	 47.40	0	321732..322577	+	281	110667203	nfi	HQ1234A	-	endonuclease V (deoxyinosine 3'endonuclease)
228	 48.48	0	322826..323683	+	285	110667204	-	HQ1235A	-	short chain dehydrogenase/ reductase
229	 50.63	0	323862..325127	-	421	110667205	arsA	HQ1236A	-	transport ATPase ( substrate arsenite)
230	 47.86	0	325208..326329	-	373	110667206	aspC	HQ1237A	-	PLP-dependent aminotransferase ( aspartate aminotransferase)
231	 49.90	0	326649..327167	+	172	110667207	cinA	HQ1238A	-	CinA-like domain-containing protein
232	 43.71	-1	327354..327941	+	195	110667208	-	HQ1239A	-	hypothetical protein
233	 46.47	0	328105..328911	-	268	110667209	-	HQ1240A	-	hypothetical protein
234	 48.12	0	329301..329753	-	150	110667210	nusG	HQ1241A	-	transcription antitermination protein NusG
235	 43.68	-1	329760..329933	-	57	110667211	secE	HQ1242A	-	preprotein translocase subunit SecE
236	 50.72	0	330405..331721	-	438	110667212	ftsZ	HQ1243A	-	cell division protein FtsZ
237	 48.63	0	331955..333529	-	524	110667213	-	HQ1244A	-	hypothetical protein
238	 48.23	0	333818..334636	+	272	110667214	aroE	HQ1245A	-	shikimate 5-dehydrogenase
239	 48.99	0	334956..335798	+	280	110667215	-	HQ1246A	-	hypothetical protein
240	 48.70	0	335795..336718	+	307	110667216	ilvE	HQ1247A	-	branched-chain amino acid aminotransferase
241	 45.69	0	336773..337201	+	142	110667217	-	HQ1248A	-	homolog to Rieske iron sulfur protein
242	 44.73	-1	337547..338020	-	157	110667218	-	HQ1249A	-	GtrA-like family protein, cell surface polysaccharide biosynthesis protein
243	 47.98	0	338023..339087	-	354	110667219	-	HQ1250A	-	glycosyl tranferase; dolichyl-phosphate beta-glucosyltransferase
244	 48.41	0	339376..341895	+	839	110667220	-	HQ1251A	-	hypothetical protein
245	 46.51	0	341900..342157	-	85	110667221	-	HQ1252A	-	hypothetical protein
246	 46.81	0	342278..342559	+	93	110667222	rpl44e	HQ1253A	-	50S ribosomal protein L44e
247	 47.81	0	342563..342790	+	75	110667223	rps27e	HQ1254A	-	30S ribosomal protein S27e
248	 46.69	0	342888..343688	+	266	110667224	tif2a	HQ1255A	-	translation initiation factor IF-2 subunit alpha
249	 45.36	0	343813..343995	+	60	110667225	-	HQ1256A	-	H/ACA RNA-protein complex component Nop10p
250	 48.62	0	344000..344758	+	252	110667226	-	HQ1257A	-	hypothetical protein
251	 48.43	0	345472..345948	+	158	110667227	-	HQ1258A	-	hypothetical protein
252	 47.90	0	346446..347399	-	317	110667228	phfZ	HQ1259A	-	phenazine biosynthesis protein
253	 46.93	0	347514..348278	+	254	110667229	prt	HQ1260A	-	phosphoribosyltransferase
254	 46.81	0	348291..349247	+	318	110667230	-	HQ1261A	-	transporter
255	 46.14	0	349950..350855	+	301	110667231	mtaP	HQ1262A	-	5'-methylthioadenosine phosphorylase MtaP
256	 47.94	0	350967..351911	-	314	110667232	-	HQ1263A	-	smc operon protein
257	 46.32	0	351904..355500	-	1198	110667233	smc	HQ1264A	-	chromosome partition protein
258	 47.22	0	355630..355953	-	107	110667234	-	HQ1265A	-	smc operon protein
259	 45.47	0	356333..357823	+	496	110667235	gatB	HQ1266A	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
260	 47.79	0	358124..360697	+	857	110667236	topA	HQ1267A	-	DNA topoisomerase I
261	 45.64	0	361003..361197	-	64	110667237	csp	HQ1268A	-	cold shock protein
262	 47.78	0	361607..362326	+	239	110667238	pcrB	HQ1269A	-	geranylgeranylglyceryl phosphate synthase-like protein
263	 47.13	0	362844..364148	+	434	110667239	aspC	HQ1270A	-	aspartyl-tRNA synthetase
264	 49.73	0	364149..365063	+	304	110667240	kin	HQ1271A	-	sugar kinase
265	 49.26	0	365924..366733	+	269	110667241	-	HQ1272A	-	hypothetical protein
266	 47.70	0	367414..368415	-	333	110667242	-	HQ1275A	-	glutathione S-transferase
267	 49.89	0	368587..369510	+	307	110667243	-	HQ1276A	-	ribulose-1,5-biphosphate synthetase
268	 47.20	0	369729..370673	-	314	110667244	-	HQ1277A	-	hypothetical protein
269	 47.83	0	370670..371290	-	206	110667245	dcd	HQ1278A	-	deoxycytidine triphosphate deaminase
270	 47.20	0	372020..372358	+	112	110667246	-	HQ1279A	-	peptidyl-tRNA hydrolase
271	 46.38	0	373020..374123	+	367	110667247	-	HQ1280A	-	signal-transducing histidine kinase/response regulator
272	 46.05	0	374402..375856	+	484	110667248	truD	HQ1281A	-	tRNA pseudouridine synthase D
273	 50.21	0	376496..377218	+	240	110667249	-	HQ1282A	-	hypothetical protein
274	 50.18	0	377461..377739	+	92	110667250	rpl37aR	HQ1283A	-	ribosomal protein L37a.eR
275	 45.93	0	377755..377889	+	44	110667251	rpoP	HQ1284A	-	DNA-directed RNA polymerase subunit P
276	 44.60	-1	378104..378520	+	138	110667252	-	HQ1285A	-	rpo operon protein
277	 51.03	0	378743..379132	+	129	110667253	pfdB	HQ1286A	-	prefoldin beta subunit
278	 48.07	0	379125..379409	+	94	110667254	-	HQ1287A	-	hypothetical protein
279	 47.90	0	379628..381535	-	635	110667255	-	HQ1288A	-	hypothetical protein
280	 50.27	0	381564..382118	-	184	110667256	guaAa	HQ1289A	-	GMP synthase subunit A
281	 48.79	0	382589..383248	-	219	110667257	-	HQ1290A	-	hypothetical protein
282	 44.72	-1	383599..383958	+	119	110667258	-	HQ1291A	-	hypothetical protein
283	 50.75	0	384154..385749	+	531	110667259	leuA	HQ1292A	-	(R)-citramalate synthase
284	 47.97	0	385877..386245	+	122	110667260	-	HQ1293A	-	hypothetical protein
285	 51.63	0	387006..387464	-	152	110667261	-	HQ1294A	-	hypothetical protein
286	 46.60	0	387564..388769	+	401	110667262	-	HQ1295A	-	ABC-type transport system, ATP-binding protein
287	 47.91	0	388766..389602	+	278	110667263	-	HQ1296A	-	ABC-type transport system, permease protein
288	 50.13	0	389711..390103	-	130	110667264	-	HQ1297A	-	hypothetical protein
289	 48.64	0	390242..391633	+	463	110667265	phr	HQ1298A	-	deoxyribodipyrimidine photolyase
290	 47.83	0	391786..392454	+	222	110667266	-	HQ1299A	-	F420-dependent NADP reductase
291	 44.55	-1	392726..393028	-	100	110667267	hisE	HQ1300A	-	phosphoribosyl-ATP pyrophosphatase
292	 49.19	0	393222..393839	-	205	110667268	hisH	HQ1301A	-	glutamine amidotransferase subunit PdxT
293	 46.06	0	393964..394128	-	54	110667269	secG	HQ1302A	-	preprotein translocase subunit SecG
294	 44.35	-1	395239..395583	+	114	110667270	-	HQ1303A	-	hypothetical protein
295	 46.05	0	395983..396627	-	214	110667271	-	HQ1304A	-	hypothetical protein
296	 48.13	0	396804..397310	+	168	110667272	-	HQ1305A	-	hypothetical protein
297	 49.45	0	397452..398723	-	423	110667273	dppF	HQ1306A	-	ABC-type dipeptide/oligopeptide/nickel transport system, ATPase protein II
298	 51.37	0	398720..400105	-	461	110667274	dppD	HQ1307A	-	ABC-type dipeptide/oligopeptide/nickel transport system, ATPase protein I
299	 50.05	0	400110..401132	-	340	110667275	dppC	HQ1308A	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease protein II
300	 50.10	0	401132..402139	-	335	110667276	dppB	HQ1309A	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease protein I
301	 50.21	0	402140..403792	-	550	110667277	dppA	HQ1310A	-	ABC-type dipeptide/oligopeptide/nickel transport system, substrate binding protein
302	 47.18	0	403949..404338	+	129	110667278	-	HQ1311A	-	hypothetical protein
303	 51.01	0	404910..405650	+	246	110667279	-	HQ1312A	-	hypothetical protein
304	 52.10	0	405778..407232	+	484	110667280	cat2	HQ1313A	-	cationic amino acid transport protein
305	 55.11	+1	407292..407957	+	221	110667281	trkA	HQ1314A	-	Trk-type potassium transport system, NAD-binding subunit
306	 51.16	0	408196..408885	+	229	110667282	asnC	HQ1315A	-	transcriptional regulator
307	 49.09	0	408949..409386	-	145	110667283	-	HQ1316A	-	IS200-type transposase
308	 53.90	+1	409406..410353	+	315	110667284	-	HQ1317A	-	IS1341-type transposase (nonfunctional,N-terminal part)
309	 54.50	+1	410354..410764	+	136	110667285	-	HQ1317B	-	IS1341-type transposase (nonfunctional,C-terminal part)
310	 52.61	0	411986..412426	-	146	110667286	act	HQ1319A	-	acyl-CoA thioester hydrolase
311	 45.35	0	413660..414283	-	207	110667287	-	HQ1321A	-	hypothetical protein
312	 44.83	-1	415018..415800	-	260	110667288	-	HQ1322A	-	hypothetical protein
313	 40.15	-2	416508..416771	+	87	110667289	trxA	HQ1323A	-	thioredoxin
314	 44.00	-1	417121..417270	+	49	110667290	rpl40e	HQ1324A	-	50S ribosomal protein L40e
48.79	MEAN

3.84	STD DEV
