IslandPath Analysis: Haloquadratum walsbyi DSM 16790

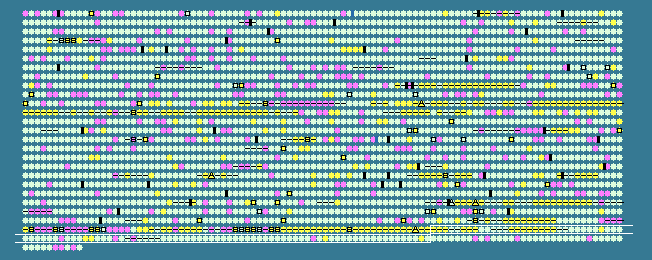

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2469	 56.78	+2	2961046..2961561	+	171	110669445	-	HQ3589A	-	hypothetical protein
2470	 52.42	0	2963680..2966670	+	996	110669446	repH	HQ3590A	-	plasmid replication protein repH
2471	 54.27	+1	2966814..2967047	-	77	110669447	-	HQ3591A	-	hypothetical protein
2472	 51.45	0	2967421..2968110	-	229	110669448	-	HQ3592A	-	hypothetical protein
2473	 47.92	0	2968256..2969407	+	383	110669449	-	HQ3593A	-	hypothetical protein
2474	 54.90	+1	2969852..2971177	+	441	110669450	-	HQ3594A	-	hypothetical protein
2475	 54.44	+1	2971214..2971393	-	59	110669451	-	HQ3595A	-	hypothetical protein
2476	 59.19	+2	2972992..2974422	+	476	110669452	-	HQ3596A	-	hypothetical protein
2477	 52.06	0	2975098..2975631	+	177	110669453	-	HQ3597A	-	hypothetical protein
2478	 49.51	0	2975624..2976130	+	168	110669454	-	HQ3598A	-	hypothetical protein
2479	 45.99	0	2976478..2976864	-	128	110669455	-	HQ3599A	-	hypothetical protein
2480	 49.22	0	2977220..2978434	+	404	110669456	-	HQ3600A	-	chitinase domain-containing protein
2481	 50.94	0	2978786..2981278	-	830	110669457	cbp	HQ3601A	-	cell surface calcium-binding acidic-repeat-containing protein
2482	 58.82	+2	2982954..2983259	+	101	110669458	bcp	HQ3602A	-	peroxiredoxin
2483	 58.06	+2	2983381..2983833	-	150	110669459	-	HQ3603A	-	hypothetical protein
2484	 59.30	+2	2983830..2984576	-	248	110669460	-	HQ3604A	-	hypothetical protein
2485	 60.36	+2	2984756..2986183	+	475	110669461	-	HQ3605A	-	hypothetical protein
2486	 61.88	+2	2986224..2986913	+	229	110669462	-	HQ3606A	-	hypothetical protein
2487	 62.17	+2	2986906..2987283	+	125	110669463	-	HQ3607A	-	hypothetical protein
2488	 56.75	+2	2988443..2988694	+	83	110669464	-	HQ3610A	-	hypothetical protein
2489	 55.74	+1	2990225..2990407	+	60	110669465	-	HQ3614A	-	hypothetical protein
2490	 46.07	0	2990569..2991267	-	232	110669466	urtE	HQ3615A	-	ABC-type urea transport systems, ATP-binding protein II
2491	 47.93	0	2991264..2992037	-	257	110669467	urtD	HQ3616A	-	ABC-type urea transport system, ATP-binding protein I
2492	 46.85	0	2992034..2993224	-	396	110669468	urtC	HQ3617A	-	ABC-type urea transport system, permease protein II
2493	 47.79	0	2993221..2994147	-	308	110669469	urtB	HQ3618A	-	ABC-type urea transport system, permease protein I
2494	 47.49	0	2994180..2995472	-	430	110669470	urtA	HQ3619A	-	ABC-type urea transport systems,substrate-binding protein
2495	 47.22	0	2996267..2996806	-	179	110669471	nikR	HQ3620A	-	transcriptional regulator
2496	 50.84	0	2996866..2997522	+	218	110669472	cbiM1	HQ3621A	-	ABC-type cobalt transport system, permease protein
2497	 52.29	0	2997519..2997824	+	101	110669473	cbiM2	HQ3622A	-	ABC-type cobalt transport system, permease protein
2498	 51.05	0	2997821..2998633	+	270	110669474	cbiQ	HQ3623A	-	ABC-type cobalt transport system, permease protein
2499	 46.94	0	2998621..2999421	+	266	110669475	cbiO	HQ3624A	-	ABC-type cobalt transport system, ATP binding protein
2500	 49.34	0	2999779..3000159	+	126	110669476	ureB	HQ3625A	-	urease subunit beta
2501	 49.39	0	3000156..3001868	+	570	110669477	ureC	HQ3626A	-	urease subunit alpha
2502	 45.87	0	3001865..3002191	+	108	110669478	ureA	HQ3627A	-	urease subunit gamma
2503	 47.67	0	3002191..3002811	+	206	110669479	ureG	HQ3628A	-	urease accessory protein
2504	 50.05	0	3002808..3003722	+	304	110669480	ureD	HQ3629A	-	urease accessory protein
2505	 45.80	0	3003722..3004483	+	253	110669481	ureE	HQ3630A	-	urease accessory protein UreE
2506	 48.82	0	3004483..3005205	+	240	110669482	ureF	HQ3631A	-	urease accessory protein
2507	 34.58	-2	3006515..3006754	+	79	110669483	-	HQ3632A	-	insertion element protein (ISH2)
2508	 47.00	0	3007237..3007953	-	238	110669484	-	HQ3633A	-	hypothetical protein
2509	 48.76	0	3008148..3010325	-	725	110669485	-	HQ3634A	-	cationic amino acids transporter/stress response protein
2510	 48.31	0	3010322..3010735	-	137	110669486	trkA	HQ3635A	-	TrkA-potassium uptake domain-containing protein
2511	 59.68	+2	3012082..3012525	-	147	110669487	arsC	HQ3636A	-	arsenate reductase (glutaredoxin); protein-tyrosine-phosphatase
2512	 57.29	+2	3013106..3013297	-	63	110669488	-	HQ3637A	-	hypothetical protein
2513	 51.29	0	3014225..3015232	+	335	110669489	-	HQ3639A	-	hypothetical protein
2514	 51.07	0	3015883..3016395	-	170	110669490	-	HQ3640A	-	phosphoesterase,metallo-phosphoesterase-calcineu rin-like
2515	 47.02	0	3016636..3017724	+	362	110669491	pepB	HQ3641A	-	leucyl aminopeptidase
2516	 44.23	-1	3017916..3018374	-	152	110669492	lrp	HQ3642A	-	AsnC family transcriptional regulator
2517	 47.13	0	3018502..3019878	+	458	110669493	glnA	HQ3643A	-	glutamate--ammonia ligase
2518	 47.51	0	3020024..3020968	-	314	110669494	-	HQ3644A	-	PAP2 family phosphatase
2519	 44.11	-1	3020976..3021578	-	200	110669495	-	HQ3645A	-	hypothetical protein
2520	 48.53	0	3021713..3022870	-	385	110669496	trm1	HQ3646A	-	N(2),N(2)-dimethylguanosine tRNA methyltransferase
2521	 46.42	0	3023062..3023802	+	246	110669497	-	HQ3647A	-	hypothetical protein
2522	 48.28	0	3023838..3024881	+	347	110669498	adh	HQ3648A	-	alcohol dehydrogenase, NAD dependent
2523	 48.52	0	3026435..3027448	+	337	110669499	-	HQ3649A	-	hypothetical protein
2524	 48.91	0	3027506..3028378	+	290	110669500	prsA	HQ3650A	-	ribose-phosphate pyrophosphokinase
2525	 48.97	0	3028540..3028974	+	144	110669501	hit	HQ3651A	-	histidine triad (HIT) hydrolase
2526	 50.78	0	3029134..3029901	-	255	110669502	minD	HQ3652A	-	cell division inhibitor
2527	 50.10	0	3030402..3030920	-	172	110669503	-	HQ3653A	-	hypothetical protein
2528	 50.58	0	3031084..3032028	+	314	110669504	tfbA	HQ3654A	-	transcription initiation factor TFB
2529	 47.31	0	3032047..3032547	-	166	110669505	fbp	HQ3655A	-	fructose-2,6-bisphosphatase
2530	 51.34	0	3033302..3034012	-	236	110669506	minD	HQ3656A	-	cell division inhibitor MinD-like (ATPase involved in chromosome partitioning)
2531	 46.63	0	3034015..3034977	-	320	110669507	-	HQ3657A	-	hypothetical protein
2532	 47.06	0	3035356..3036411	-	351	110669508	-	HQ3658A	-	hypothetical protein
2533	 48.67	0	3036408..3036746	-	112	110669509	-	HQ3659A	-	hypothetical protein
2534	 47.62	0	3037054..3037347	-	97	110669510	-	HQ3660A	-	hypothetical protein
2535	 45.45	0	3037722..3039338	-	538	110669511	csg	HQ3661A	-	cell surface glycoprotein precursor
2536	 47.08	0	3039898..3046548	-	2216	110669512	mcm	HQ3662A	-	ATP-dependent DNA helicase (intein-containing)
2537	 46.94	0	3046648..3047301	-	217	110669513	-	HQ3663A	-	hypothetical protein
2538	 47.42	0	3047438..3048019	+	193	110669514	bioY	HQ3664A	-	biotin synthesis protein
2539	 46.58	0	3048044..3048760	+	238	110669515	cbiO	HQ3665A	-	cobalt ABC transporter ATP-binding protein
2540	 49.16	0	3048818..3049531	+	237	110669516	cbiQ	HQ3666A	-	cobalt ABC transporter permease
2541	 47.66	0	3049665..3049985	-	106	110669517	ferB	HQ3667A	-	ferredoxin II
2542	 47.43	0	3050135..3050872	-	245	110669518	guaA	HQ3668A	-	guanosine monophosphate synthetase (glutamine-hydrolyzing) (GMP synthase)
2543	 49.24	0	3051037..3051828	-	263	110669519	est	HQ3669A	-	3-oxoadipate enol-lactonase
2544	 47.66	0	3052113..3054884	-	923	110669520	alaS	HQ3670A	-	alanyl-tRNA synthetase
2545	 48.21	0	3055162..3057111	-	649	110669521	rfcA	HQ3671A	-	replication factor C small subunit I
2546	 45.65	0	3057561..3058169	+	202	110669522	-	HQ3672A	-	acetyltransferase
2547	 50.51	0	3058162..3059535	-	457	110669523	pmm	HQ3673A	-	phosphohexomutase (phosphoglucomutase; phosphomannomutase)
2548	 47.52	0	3059730..3060032	+	100	110669524	-	HQ3674A	-	hypothetical protein
2549	 44.07	-1	3060082..3060351	-	89	110669525	-	HQ3675A	-	nuclease
2550	 49.41	0	3060465..3061316	-	283	110669526	surE	HQ3676A	-	acid phosphatase
2551	 56.67	+2	3061507..3061656	-	49	110669527	-	HQ3677A	-	hypothetical protein
2552	 47.62	0	3062164..3062331	+	55	110669528	-	HQ3678A	-	hypothetical protein
2553	 45.99	0	3063169..3063879	-	236	110669529	rpiA	HQ3679A	-	ribose-5-phosphate epimerase
2554	 45.51	0	3064066..3065190	-	374	110669530	cdc6	HQ3680A	-	cell division control protein 6
2555	 49.22	0	3065299..3067413	-	704	110669531	mutS3	HQ3681A	-	DNA mismatch repair protein MutS homolog, MutS3
2556	 47.40	0	3067536..3068651	+	371	110669532	trmU	HQ3682A	-	tRNA methyl transferase
2557	 47.45	0	3068696..3070048	-	450	110669533	tatC1	HQ3683A	-	sec-independent protein translocase component TatC1
2558	 47.14	0	3070709..3072967	+	752	110669534	tatC2	HQ3684A	-	sec-independent protein translocase component TatC2
2559	 47.21	0	3073673..3074443	-	256	110669535	ftsJ	HQ3685A	-	ribosomal RNA large subunit methyltransferase J
2560	 46.91	0	3074896..3075639	+	247	110669536	pcn	HQ3686A	-	DNA polymerase sliding clamp
2561	 50.98	0	3075797..3076408	-	203	110669537	-	HQ3687A	-	hypothetical protein
2562	 48.15	0	3076471..3077712	+	413	110669538	priB	HQ3688A	-	DNA primase large subunit
2563	 48.21	0	3077775..3077969	-	64	110669539	-	HQ3689A	-	transporter
2564	 46.67	0	3078122..3078586	-	154	110669540	hjc	HQ3690A	-	Holliday junction resolvase
2565	 49.28	0	3078682..3079026	-	114	110669541	-	HQ3691A	-	hypothetical protein
2566	 45.55	0	3079214..3079696	+	160	110669542	mtfK1	HQ3692A	-	FKBP-type peptidylprolyl isomerase 1
2567	 54.95	+1	3079950..3080060	+	36	110669543	-	HQ3693A	-	hypothetical protein
2568	 47.72	0	3080255..3082012	-	585	110669544	uvrC	HQ3694A	-	excinuclease ABC chain C
48.79	MEAN

3.84	STD DEV
