IslandPath Analysis: Haloquadratum walsbyi DSM 16790

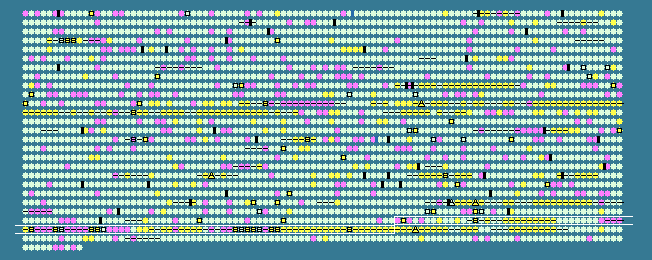

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2363	 43.66	-1	2849973..2851493	-	506	110669339	-	HQ3469A	-	cell surface glycoprotein
2364	 53.48	+1	2853023..2853712	+	229	110669340	-	HQ3472A	-	transposase
2365	 43.09	-1	2854534..2855661	+	375	110669341	-	HQ3473A	-	hypothetical protein
2366	 46.76	0	2855651..2856715	+	354	110669342	moxR	HQ3474A	-	MoxR-like ATPase (methanol dehydrogenase regulatory protein)
2367	 43.12	-1	2857167..2857442	+	91	110669343	-	HQ3475A	-	hypothetical protein
2368	 50.61	0	2857731..2858951	-	406	110669344	lolE	HQ3476A	-	ABC transporter permease
2369	 50.94	0	2858948..2860225	-	425	110669345	lolC	HQ3477A	-	ABC transporter permease
2370	 52.48	0	2860218..2860964	-	248	110669346	lolD	HQ3478A	-	ABC transporter ATP-binding protein LolDE
2371	 47.70	0	2861027..2863282	-	751	110669347	-	HQ3479A	-	extracellular mucin like protein
2372	 51.32	0	2863502..2865124	+	540	110669348	-	HQ3480A	-	hypothetical protein
2373	 53.23	+1	2865183..2865740	+	185	110669349	-	HQ3481A	-	hypothetical protein
2374	 48.19	0	2865737..2866759	+	340	110669350	-	HQ3482A	-	hypothetical protein
2375	 50.81	0	2867030..2867521	+	163	110669351	mutT	HQ3483A	-	Mut/nudix family protein
2376	 58.23	+2	2867762..2869006	-	414	110669352	-	HQ3484A	-	IS1341-type transposase
2377	 50.45	0	2870774..2871334	-	186	110669353	-	HQ3485A	-	hypothetical protein
2378	 52.72	+1	2871435..2871893	-	152	110669354	-	HQ3486A	-	hypothetical protein
2379	 47.26	0	2872011..2872448	-	145	110669355	-	HQ3487A	-	hypothetical protein
2380	 46.51	0	2872479..2872607	+	42	110669356	-	HQ3488A	-	hypothetical protein
2381	 55.30	+1	2873103..2873366	-	87	110669357	-	HQ3491A	-	transcription regulator
2382	 53.67	+1	2873708..2874007	-	99	110669358	-	HQ3493A	-	hypothetical protein
2383	 55.56	+1	2873994..2874686	-	230	110669359	-	HQ3494A	-	hypothetical protein
2384	 58.97	+2	2875560..2875832	+	90	110669360	-	HQ3496A	-	transcriptional regulator
2385	 57.99	+2	2875829..2876266	+	145	110669361	-	HQ3497A	-	hypothetical protein
2386	 57.42	+2	2877216..2877734	+	172	110669362	-	HQ3499A	-	hypothetical protein
2387	 57.81	+2	2877749..2878222	+	157	110669363	-	HQ3500A	-	hypothetical protein
2388	 62.83	+2	2878736..2879152	+	138	110669364	-	HQ3501A	-	hypothetical protein
2389	 55.56	+1	2879666..2879809	+	47	110669365	-	HQ3502A	-	hypothetical protein
2390	 50.16	0	2881247..2882488	+	413	110669366	-	HQ3503A	-	glycosyltransferase ( dolichyl-P-glucose synthetase)
2391	 46.41	0	2883567..2884025	+	152	110669367	-	HQ3505A	-	hypothetical protein
2392	 48.90	0	2884018..2884518	+	166	110669368	-	HQ3506A	-	hypothetical protein
2393	 48.02	0	2885196..2885951	-	251	110669369	graD	HQ3507A	-	sugar nucleotidyltransferase II ( glucose-1-phosphate thymidylyltransferase)
2394	 50.57	0	2886554..2887075	+	173	110669370	nudF	HQ3508A	-	ADP-ribose pyrophosphatase
2395	 50.69	0	2887551..2888570	-	339	110669371	galE	HQ3509A	-	nucleoside-diphosphate-sugar epimerase ( UDP-glucose 4-epimerase)
2396	 48.55	0	2888567..2889604	-	345	110669372	galE	HQ3510A	-	nucleoside-diphosphate-sugar epimerase ( UDP-glucose 4-epimerase)
2397	 38.19	-2	2889693..2890700	+	335	110669373	-	HQ3511A	-	hypothetical protein
2398	 35.98	-2	2890722..2891705	+	327	110669374	-	HQ3512A	-	SAM-dependent methyltransferase
2399	 44.38	-1	2891788..2892339	-	183	110669375	-	HQ3513A	-	hypothetical protein
2400	 43.94	-1	2892346..2892477	-	43	110669376	-	HQ3514A	-	hypothetical protein
2401	 59.46	+2	2893502..2893723	-	73	110669377	-	HQ3515A	-	hypothetical protein
2402	 53.08	+1	2893930..2894319	-	129	110669378	-	HQ3516A	-	ISH3-type transposase (fragment)
2403	 40.95	-2	2894825..2895415	-	196	110669379	gpmB	HQ3517A	-	fructose-2,6-bisphosphatase; phosphoglyceromutase,type 2
2404	 39.17	-2	2895420..2896139	-	239	110669380	neuA	HQ3518A	-	acylneuraminate cytidylyltransferase
2405	 40.90	-2	2896147..2897322	-	391	110669381	neuB	HQ3519A	-	sialic acid synthase (N-acetylneuraminate synthase) (N-acetylneuraminic acid synthase) (N-acetylneuraminate-9-phosphate synthase) (N-acetylneuraminic acid phosphate synthase)
2406	 52.69	+1	2897823..2898194	-	123	110669382	-	HQ3520A	-	transposase (ISH5)
2407	 49.12	0	2898266..2898436	-	56	110669383	-	HQ3521A	-	transposase (ISH5) (fragment)
2408	 33.12	-2	2898735..2899682	-	315	110669384	-	HQ3522A	-	hypothetical protein
2409	 43.95	-1	2901959..2903107	-	382	110669385	-	HQ3524A	-	protein transglucosylase
2410	 41.82	-1	2903292..2903621	-	109	110669386	-	HQ3525A	-	hypothetical protein
2411	 37.16	-2	2904305..2905141	-	278	110669387	bcbD	HQ3526A	-	capsular protein
2412	 58.47	+2	2905291..2905827	-	178	110669388	-	HQ3527A	-	ISH9-type transposase (nonfunctional, C-terminal part)
2413	 53.82	+1	2905828..2906115	-	95	110669389	-	HQ3527B	-	ISH9-type transposase (nonfunctional, N-terminal part)
2414	 51.67	0	2906609..2907862	+	417	110669390	-	HQ3528A	-	transposase (ISH8/ISH26)
2415	 38.06	-2	2908258..2908659	-	133	110669391	-	HQ3529A	-	sulfatase
2416	 39.98	-2	2908723..2909640	-	305	110669392	-	HQ3530A	-	hypothetical protein
2417	 38.16	-2	2910320..2911210	-	296	110669393	-	HQ3531A	-	hypothetical protein
2418	 43.19	-1	2911468..2912664	+	398	110669394	-	HQ3532A	-	hexosyltransferase; glycosyltransferase
2419	 47.31	0	2913009..2914811	+	600	110669395	-	HQ3533A	-	ABC-type multidrug/lipid transport system,permease and ATP-binding protein
2420	 55.88	+1	2915902..2916207	-	101	110669396	-	HQ3534A	-	hypothetical protein
2421	 52.45	0	2917032..2917910	+	292	110669397	-	HQ3536A	-	hypothetical protein
2422	 55.25	+1	2917911..2918672	+	253	110669398	-	HQ3537A	-	hypothetical protein
2423	 52.20	0	2918672..2919604	+	310	110669399	-	HQ3538A	-	hypothetical protein
2424	 53.83	+1	2919798..2920934	-	378	110669400	-	HQ3539A	-	hexosyltransferase; glycosyltransferase
2425	 54.18	+1	2921067..2922347	+	426	110669401	aslA	HQ3540A	-	arylsulfatase
2426	 39.32	-2	2922344..2922460	+	38	110669402	-	HQ3541A	-	hypothetical protein
2427	 54.93	+1	2922457..2922669	+	70	110669403	-	HQ3542A	-	hypothetical protein
2428	 61.51	+2	2922698..2923978	+	426	110669404	-	HQ3543A	-	arylsulfatase
2429	 62.67	+2	2924071..2925195	+	374	110669405	-	HQ3544A	-	hexosyltransferase; glycosyltransferase
2430	 56.58	+2	2925274..2926383	+	369	110669406	-	HQ3545A	-	arylsulfatase A-like
2431	 48.87	0	2926484..2928343	+	619	110669407	-	HQ3546A	-	hypothetical protein
2432	 41.40	-1	2928348..2929364	-	338	110669408	-	HQ3547A	-	hexosyltransferase; glycosyltransferase
2433	 46.43	0	2929361..2930284	-	307	110669409	-	HQ3548A	-	hypothetical protein
2434	 41.73	-1	2930368..2931546	-	392	110669410	-	HQ3549A	-	hexosyltransferase; glycosyltransferase
2435	 41.07	-2	2931564..2932274	-	236	110669411	-	HQ3550A	-	hypothetical protein
2436	 55.21	+1	2933102..2933773	-	223	110669412	-	HQ3551A	-	transposase homolog (ISHnew96)
2437	 50.84	0	2933897..2934370	+	157	110669413	-	HQ3552A	-	ISH4-type transposase
2438	 52.33	0	2934534..2934791	+	85	110669414	-	HQ3553A	-	transposase (ISH8/ISH26)
2439	 57.97	+2	2934800..2935006	+	68	110669415	-	HQ3554A	-	transposase (ISH8/ISH26)
2440	 51.13	0	2935496..2936737	+	413	110669416	-	HQ3555A	-	transposase (ISH8/ISH26)
2441	 39.12	-2	2936933..2938315	+	460	110669417	-	HQ3556A	-	sulfatase
2442	 55.75	+1	2938812..2939507	+	231	110669418	-	HQ3557A	-	ISRSO17-transposase
2443	 54.57	+1	2940331..2941206	+	291	110669419	-	HQ3558A	-	transposase (ISH11)
2444	 55.06	+1	2941236..2941502	-	88	110669420	-	HQ3559A	-	sulfatase (fragment)
2445	 59.12	+2	2942073..2942231	+	52	110669421	-	HQ3561A	-	hypothetical protein
2446	 58.42	+2	2943543..2943845	-	100	110669422	-	HQ3563A	-	hypothetical protein
2447	 60.34	+2	2944252..2944773	-	173	110669423	-	HQ3564A	-	hypothetical protein
2448	 59.92	+2	2945406..2945924	+	172	110669424	-	HQ3565A	-	hypothetical protein
2449	 62.34	+2	2946474..2946704	+	76	110669425	-	HQ3567A	-	hypothetical protein
2450	 57.86	+2	2946701..2947120	+	139	110669426	-	HQ3568A	-	hypothetical protein
2451	 59.23	+2	2948673..2949035	+	120	110669427	-	HQ3570A	-	hypothetical protein
2452	 59.65	+2	2949036..2949548	+	170	110669428	-	HQ3571A	-	hypothetical protein
2453	 61.84	+2	2949657..2949863	+	68	110669429	-	HQ3572A	-	hypothetical protein
2454	 58.78	+2	2949989..2950939	+	316	110669430	-	HQ3573A	-	hypothetical protein
2455	 59.70	+2	2951139..2952386	-	415	110669431	-	HQ3574A	-	IS1341-type transposase
2456	 56.72	+2	2952820..2953392	-	190	110669432	-	HQ3575A	-	hypothetical protein
2457	 62.21	+2	2953590..2954060	-	156	110669433	-	HQ3576A	-	hypothetical protein
2458	 60.23	+2	2954073..2954585	-	170	110669434	-	HQ3577A	-	hypothetical protein
2459	 60.82	+2	2954586..2954876	-	96	110669435	-	HQ3578A	-	hypothetical protein
2460	 64.58	+2	2955485..2955868	+	127	110669436	-	HQ3579D	-	hypothetical protein
2461	 58.56	+2	2955953..2956285	+	110	110669437	-	HQ3580A	-	hypothetical protein
2462	 58.33	+2	2956282..2956749	+	155	110669438	-	HQ3581A	-	hypothetical protein
48.79	MEAN

3.84	STD DEV
