IslandPath Analysis: Haloquadratum walsbyi DSM 16790

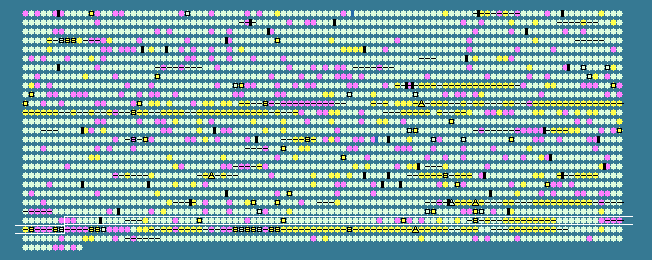

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2308	 45.10	0	2776154..2776714	+	186	110669284	tbpE	HQ3410A	-	transcription factor
2309	 43.90	-1	2777028..2777396	+	122	110669285	-	HQ3411A	-	hypothetical protein
2310	 50.00	0	2777565..2778410	-	281	110669286	hisG	HQ3412A	-	ATP phosphoribosyltransferase
2311	 47.37	0	2778667..2779998	+	443	110669287	trzA	HQ3413A	-	chlorohydrolase
2312	 48.88	0	2780406..2781704	+	432	110669288	achY	HQ3414A	-	S-adenosyl-L-homocysteine hydrolase
2313	 46.71	0	2781820..2783292	-	490	110669289	-	HQ3415A	-	sulfatase
2314	 47.31	0	2783782..2784339	-	185	110669290	-	HQ3416A	-	divalent cation transporter, subunit II, MgtE family protein
2315	 50.50	0	2784340..2784945	-	201	110669291	-	HQ3417A	-	divalent cation transporter, subunit I, MgtE family protein
2316	 51.18	0	2785076..2786476	-	466	110669292	srp54	HQ3418A	-	signal recognition particle 54K protein
2317	 46.70	0	2787177..2788418	-	413	110669293	ftsY	HQ3419A	-	signal recognition particle receptor SRalpha
2318	 46.88	0	2788450..2788914	-	154	110669294	pfdA	HQ3420A	-	prefoldin alpha subunit
2319	 51.85	0	2788914..2789129	-	71	110669295	rplX	HQ3421A	-	50S ribosomal protein LX
2320	 50.81	0	2790415..2791095	-	226	110669296	tif6	HQ3422A	-	translation initiation factor IF-6
2321	 54.84	+1	2791097..2791375	-	92	110669297	rpl31R	HQ3423A	-	50S ribosomal protein L31e
2322	 46.41	0	2791378..2791530	-	50	110669298	rpl39e	HQ3424A	-	50S ribosomal protein L39e
2323	 49.12	0	2791778..2792518	+	246	110669299	-	HQ3425A	-	TPR repeat-containing protein
2324	 46.24	0	2792515..2792979	+	154	110669300	-	HQ3426A	-	hypothetical protein
2325	 47.90	0	2793144..2794427	+	427	110669301	nifS	HQ3427A	-	cysteine desulfurase, class V aminotransferase
2326	 44.12	-1	2794571..2794987	+	138	110669302	nifU	HQ3428A	-	homolog to nitrogen fixation protein NifU
2327	 46.80	0	2795867..2796898	-	343	110669303	radA	HQ3429A	-	DNA repair and recombination protein RadA
2328	 49.83	0	2797297..2797902	-	201	110669304	-	HQ3430A	-	hypothetical protein
2329	 48.97	0	2797932..2798801	-	289	110669305	htpX	HQ3431A	-	heat shock protein HtpX
2330	 52.71	+1	2799525..2800391	+	288	110669306	-	HQ3432A	-	IS1341-type transposase (nonfunctional,N-terminal part)
2331	 47.82	0	2801969..2803114	+	381	110669307	-	HQ3435A	-	posible NMD protein affecting ribosome stability and mRNA decay
2332	 48.17	0	2804448..2806193	-	581	110669308	dinG	HQ3436A	-	Rad3-related DNA helicases DinG
2333	 48.53	0	2806303..2806506	-	67	110669309	-	HQ3437A	-	hypothetical protein
2334	 46.88	0	2806905..2807642	+	245	110669310	-	HQ3438A	-	hypothetical protein
2335	 47.49	0	2808107..2809102	+	331	110669311	-	HQ3439A	-	hypothetical protein
2336	 46.80	0	2809168..2809464	-	98	110669312	-	HQ3440A	-	hypothetical protein
2337	 49.39	0	2809588..2810403	+	271	110669313	-	HQ3441A	-	hypothetical protein
2338	 44.32	-1	2811415..2811933	-	172	110669314	-	HQ3442A	-	hypothetical protein
2339	 48.83	0	2812044..2813030	+	328	110669315	hemB	HQ3443A	-	delta-aminolevulinic acid dehydratase
2340	 50.18	0	2813317..2814729	+	470	110669316	amtB	HQ3444A	-	ammonium transporter
2341	 48.76	0	2814722..2815084	+	120	110669317	glnK	HQ3445A	-	nitrogen regulatory protein P-II
2342	 48.15	0	2815258..2815446	-	62	110669318	-	HQ3446A	-	hypothetical protein
2343	 48.40	0	2815728..2817068	+	446	110669319	hemL	HQ3447A	-	glutamate-1-semialdehyde 2,1-aminomutase
2344	 52.78	+1	2817230..2818129	+	299	110669320	-	HQ3448A	-	transposase
2345	 49.28	0	2818771..2819955	+	394	110669321	hemC	HQ3450A	-	hydroxymethylbilane synthase (porphobilinogen deaminase)
2346	 47.85	0	2819962..2820774	+	270	110669322	hemX	HQ3451A	-	uroporphyrin-III C-methyltransferase
2347	 50.25	0	2820843..2821628	+	261	110669323	hemD	HQ3452A	-	uroporphyrinogen-III synthase
2348	 48.07	0	2821708..2822121	+	137	110669324	-	HQ3453A	-	hypothetical protein
2349	 48.73	0	2822424..2823722	+	432	110669325	metY	HQ3454A	-	O-acetylhomoserine aminocarboxypropyltransferase; methionine synthase
2350	 48.27	0	2824064..2825221	+	385	110669326	pitA	HQ3455A	-	phosphate permease
2351	 48.92	0	2825660..2826076	+	138	110669327	fdx	HQ3457A	-	ferredoxin (2Fe-2S)
2352	 51.27	0	2826990..2827775	-	261	110669328	-	HQ3458A	-	hypothetical protein
2353	 50.22	0	2827927..2828838	+	303	110669329	mdhA	HQ3459A	-	malate dehydrogenase
2354	 48.57	0	2829663..2830082	+	139	110669330	-	HQ3460A	-	polA operon protein ( DNA-binding protein)
2355	 46.68	0	2830085..2836954	+	2289	110669331	polA2	HQ3461A	-	DNA polymerase II large subunit
2356	 50.45	0	2837301..2837411	+	36	110669332	-	HQ3462A	-	hypothetical protein
2357	 51.08	0	2837588..2838376	+	262	110669333	-	HQ3463A	-	phosphatase-like protein
2358	 49.78	0	2838513..2840117	-	534	110669334	aslA	HQ3464A	-	arylsulfatase; choline-sulfatase
2359	 51.61	0	2840453..2840824	-	123	110669335	-	HQ3465A	-	NifU domain-containing protein
2360	 44.15	-1	2840850..2841191	-	113	110669336	-	HQ3466A	-	hypothetical protein
2361	 48.29	0	2842067..2848306	-	2079	110669337	hmu3	HQ3467A	-	cell surface glycoprotein
2362	 47.64	0	2848443..2849924	-	493	110669338	-	HQ3468A	-	cell surface glycoprotein
2363	 43.66	-1	2849973..2851493	-	506	110669339	-	HQ3469A	-	cell surface glycoprotein
2364	 53.48	+1	2853023..2853712	+	229	110669340	-	HQ3472A	-	transposase
2365	 43.09	-1	2854534..2855661	+	375	110669341	-	HQ3473A	-	hypothetical protein
2366	 46.76	0	2855651..2856715	+	354	110669342	moxR	HQ3474A	-	MoxR-like ATPase (methanol dehydrogenase regulatory protein)
2367	 43.12	-1	2857167..2857442	+	91	110669343	-	HQ3475A	-	hypothetical protein
2368	 50.61	0	2857731..2858951	-	406	110669344	lolE	HQ3476A	-	ABC transporter permease
2369	 50.94	0	2858948..2860225	-	425	110669345	lolC	HQ3477A	-	ABC transporter permease
2370	 52.48	0	2860218..2860964	-	248	110669346	lolD	HQ3478A	-	ABC transporter ATP-binding protein LolDE
2371	 47.70	0	2861027..2863282	-	751	110669347	-	HQ3479A	-	extracellular mucin like protein
2372	 51.32	0	2863502..2865124	+	540	110669348	-	HQ3480A	-	hypothetical protein
2373	 53.23	+1	2865183..2865740	+	185	110669349	-	HQ3481A	-	hypothetical protein
2374	 48.19	0	2865737..2866759	+	340	110669350	-	HQ3482A	-	hypothetical protein
2375	 50.81	0	2867030..2867521	+	163	110669351	mutT	HQ3483A	-	Mut/nudix family protein
2376	 58.23	+2	2867762..2869006	-	414	110669352	-	HQ3484A	-	IS1341-type transposase
2377	 50.45	0	2870774..2871334	-	186	110669353	-	HQ3485A	-	hypothetical protein
2378	 52.72	+1	2871435..2871893	-	152	110669354	-	HQ3486A	-	hypothetical protein
2379	 47.26	0	2872011..2872448	-	145	110669355	-	HQ3487A	-	hypothetical protein
2380	 46.51	0	2872479..2872607	+	42	110669356	-	HQ3488A	-	hypothetical protein
2381	 55.30	+1	2873103..2873366	-	87	110669357	-	HQ3491A	-	transcription regulator
2382	 53.67	+1	2873708..2874007	-	99	110669358	-	HQ3493A	-	hypothetical protein
2383	 55.56	+1	2873994..2874686	-	230	110669359	-	HQ3494A	-	hypothetical protein
2384	 58.97	+2	2875560..2875832	+	90	110669360	-	HQ3496A	-	transcriptional regulator
2385	 57.99	+2	2875829..2876266	+	145	110669361	-	HQ3497A	-	hypothetical protein
2386	 57.42	+2	2877216..2877734	+	172	110669362	-	HQ3499A	-	hypothetical protein
2387	 57.81	+2	2877749..2878222	+	157	110669363	-	HQ3500A	-	hypothetical protein
2388	 62.83	+2	2878736..2879152	+	138	110669364	-	HQ3501A	-	hypothetical protein
2389	 55.56	+1	2879666..2879809	+	47	110669365	-	HQ3502A	-	hypothetical protein
2390	 50.16	0	2881247..2882488	+	413	110669366	-	HQ3503A	-	glycosyltransferase ( dolichyl-P-glucose synthetase)
2391	 46.41	0	2883567..2884025	+	152	110669367	-	HQ3505A	-	hypothetical protein
2392	 48.90	0	2884018..2884518	+	166	110669368	-	HQ3506A	-	hypothetical protein
2393	 48.02	0	2885196..2885951	-	251	110669369	graD	HQ3507A	-	sugar nucleotidyltransferase II ( glucose-1-phosphate thymidylyltransferase)
2394	 50.57	0	2886554..2887075	+	173	110669370	nudF	HQ3508A	-	ADP-ribose pyrophosphatase
2395	 50.69	0	2887551..2888570	-	339	110669371	galE	HQ3509A	-	nucleoside-diphosphate-sugar epimerase ( UDP-glucose 4-epimerase)
2396	 48.55	0	2888567..2889604	-	345	110669372	galE	HQ3510A	-	nucleoside-diphosphate-sugar epimerase ( UDP-glucose 4-epimerase)
2397	 38.19	-2	2889693..2890700	+	335	110669373	-	HQ3511A	-	hypothetical protein
2398	 35.98	-2	2890722..2891705	+	327	110669374	-	HQ3512A	-	SAM-dependent methyltransferase
2399	 44.38	-1	2891788..2892339	-	183	110669375	-	HQ3513A	-	hypothetical protein
2400	 43.94	-1	2892346..2892477	-	43	110669376	-	HQ3514A	-	hypothetical protein
2401	 59.46	+2	2893502..2893723	-	73	110669377	-	HQ3515A	-	hypothetical protein
2402	 53.08	+1	2893930..2894319	-	129	110669378	-	HQ3516A	-	ISH3-type transposase (fragment)
2403	 40.95	-2	2894825..2895415	-	196	110669379	gpmB	HQ3517A	-	fructose-2,6-bisphosphatase; phosphoglyceromutase,type 2
2404	 39.17	-2	2895420..2896139	-	239	110669380	neuA	HQ3518A	-	acylneuraminate cytidylyltransferase
2405	 40.90	-2	2896147..2897322	-	391	110669381	neuB	HQ3519A	-	sialic acid synthase (N-acetylneuraminate synthase) (N-acetylneuraminic acid synthase) (N-acetylneuraminate-9-phosphate synthase) (N-acetylneuraminic acid phosphate synthase)
2406	 52.69	+1	2897823..2898194	-	123	110669382	-	HQ3520A	-	transposase (ISH5)
2407	 49.12	0	2898266..2898436	-	56	110669383	-	HQ3521A	-	transposase (ISH5) (fragment)
48.79	MEAN

3.84	STD DEV
