IslandPath Analysis: Haloquadratum walsbyi DSM 16790

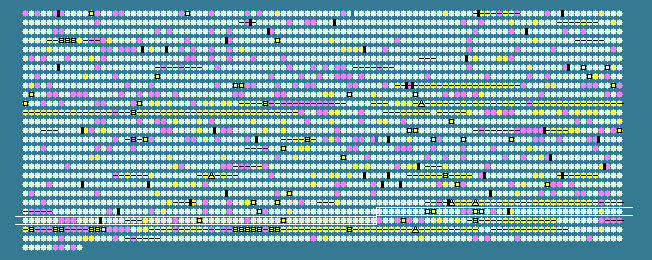

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2260	 49.44	0	2723249..2723782	-	177	110669236	-	HQ3361A	-	transcriptional regulator
2261	 50.57	0	2723842..2724456	-	204	110669237	pgsA	HQ3362A	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyl-transferase
2262	 47.37	0	2724511..2725023	-	170	110669238	-	HQ3363A	-	nucleotide kinase
2263	 49.34	0	2725020..2726150	-	376	110669239	hisC	HQ3364A	-	histidinol-phosphate aminotransferase
2264	 49.72	0	2726735..2728369	-	544	110669240	-	HQ3365A	-	oxidoreductase-like protein
2265	 47.57	0	2728362..2728979	-	205	110669241	-	HQ3366A	-	hypothetical protein
2266	 47.95	0	2729469..2730200	-	243	110669242	hcpE	HQ3367A	-	2-hydroxyhepta-2,4-diene-1,7-dioate isomerase
2267	 45.80	0	2730408..2731121	+	237	110669243	-	HQ3368A	-	hypothetical protein
2268	 48.41	0	2731860..2731985	-	41	110669244	-	HQ3369A	-	putative transposase
2269	 55.23	+1	2732267..2733079	-	270	110669245	-	HQ3370A	-	transposase homolog (ISHnew96)
2270	 46.62	0	2733465..2734277	-	270	110669246	pho	HQ3371A	-	sugar phosphatase
2271	 46.00	0	2734808..2735257	+	149	110669247	-	HQ3372A	-	hypothetical protein
2272	 47.31	0	2735919..2736383	-	154	110669248	cumB	HQ3374A	-	cytosine/adenosine deaminases
2273	 45.52	0	2736485..2737477	-	330	110669249	nuc	HQ3375A	-	endonuclease staphylococcal nuclease-like
2274	 41.67	-1	2737628..2737951	-	107	110669250	-	HQ3376A	-	hypothetical protein
2275	 42.19	-1	2738131..2738322	+	63	110669251	-	HQ3377A	-	hypothetical protein
2276	 53.70	+1	2738784..2738837	-	17	110669252	-	HQ3378C	-	IS1341-type transposase (nonfunctional, central part)
2277	 52.00	0	2739640..2739714	+	24	110669253	-	HQ3379B	-	IS200-type transposase (nonfunctional,C-terminal part)
2278	 47.45	0	2739788..2740609	-	273	110669254	potC	HQ3380A	-	ABC-type spermidine/putrescine transport system,permease protein II
2279	 44.55	-1	2740726..2741661	-	311	110669255	potB	HQ3381A	-	ABC-type spermidine/putrescine transport system,permease protein I
2280	 47.17	0	2741664..2742986	-	440	110669256	potA	HQ3382A	-	ABC-type spermidine/putrescine transport system,ATP-binding protein
2281	 48.31	0	2742989..2744050	-	353	110669257	potD	HQ3383A	-	ABC-type spermidine/putrescine transport system,substrate-binding protein
2282	 53.07	+1	2745094..2745402	-	102	110669258	rps10p	HQ3384A	-	30S ribosomal protein S10P
2283	 49.61	0	2745403..2746668	-	421	110669259	tef1a	HQ3385A	-	elongation factor 1-alpha
2284	 51.08	0	2746996..2747970	-	324	110669260	hom	HQ3386A	-	homoserine dehydrogenase
2285	 50.58	0	2747972..2748742	-	256	110669261	-	HQ3387A	-	allosteric regulator of homoserine dehydrogenase
2286	 48.81	0	2749060..2751249	-	729	110669262	tef2	HQ3388A	-	elongation factor EF-2
2287	 49.83	0	2751655..2752539	+	294	110669263	-	HQ3389A	-	hypothetical protein
2288	 46.78	0	2752662..2753345	-	227	110669264	rps7	HQ3390A	-	30S ribosomal protein S7P
2289	 49.18	0	2753347..2753775	-	142	110669265	rps12P	HQ3391A	-	30S ribosomal protein S12P
2290	 47.99	0	2754036..2754458	-	140	110669266	nusA	HQ3392A	-	transcription elongation factor NusA-like protein
2291	 48.01	0	2754613..2756526	-	637	110669267	rpoA2	HQ3393A	-	DNA-directed RNA polymerase subunit A'' (subunit C)
2292	 49.17	0	2756519..2759455	-	978	110669268	rpoA	HQ3394A	-	DNA-directed RNA polymerase subunit alpha
2293	 49.56	0	2759574..2761409	-	611	110669269	rpoB1	HQ3395A	-	DNA-directed RNA polymerase subunit B'
2294	 47.59	0	2761641..2763218	-	525	110669270	rpoB2	HQ3396A	-	DNA-directed RNA polymerase subunit beta''
2295	 48.25	0	2763215..2763442	-	75	110669271	rpoH	HQ3397A	-	DNA-directed RNA polymerase subunit H
2296	 48.48	0	2763671..2764720	-	349	110669272	-	HQ3398A	-	RIO-like serine/threonine protein kinase II
2297	 53.95	+1	2764717..2765007	-	96	110669273	tif1A1	HQ3399A	-	translation initiation factor IF-1A
2298	 46.81	0	2765505..2766506	-	333	110669274	tyrS	HQ3400A	-	tyrosyl-tRNA synthetase
2299	 46.06	0	2766673..2767002	+	109	110669275	-	HQ3401A	-	hypothetical protein
2300	 50.28	0	2767683..2769665	-	660	110669276	-	HQ3402A	-	hypothetical protein
2301	 49.53	0	2769993..2770949	-	318	110669277	elaC	HQ3403A	-	ribonuclease Z (RNase Z) (tRNA 3 endonuclease)
2302	 45.52	0	2771238..2771516	+	92	110669278	-	HQ3404A	-	hypothetical protein
2303	 48.71	0	2771553..2772677	+	374	110669279	rfcC	HQ3405A	-	replication factor C small subunit 2
2304	 47.33	0	2772688..2773323	+	211	110669280	psd	HQ3406A	-	phosphatidylserine decarboxylase
2305	 48.19	0	2773313..2774416	-	367	110669281	-	HQ3407A	-	RNA methylase
2306	 49.38	0	2774567..2775694	+	375	110669282	tfbA	HQ3408A	-	transcription initiation factor TFB
2307	 44.87	-1	2775691..2776080	+	129	110669283	-	HQ3409A	-	hypothetical protein
2308	 45.10	0	2776154..2776714	+	186	110669284	tbpE	HQ3410A	-	transcription factor
2309	 43.90	-1	2777028..2777396	+	122	110669285	-	HQ3411A	-	hypothetical protein
2310	 50.00	0	2777565..2778410	-	281	110669286	hisG	HQ3412A	-	ATP phosphoribosyltransferase
2311	 47.37	0	2778667..2779998	+	443	110669287	trzA	HQ3413A	-	chlorohydrolase
2312	 48.88	0	2780406..2781704	+	432	110669288	achY	HQ3414A	-	S-adenosyl-L-homocysteine hydrolase
2313	 46.71	0	2781820..2783292	-	490	110669289	-	HQ3415A	-	sulfatase
2314	 47.31	0	2783782..2784339	-	185	110669290	-	HQ3416A	-	divalent cation transporter, subunit II, MgtE family protein
2315	 50.50	0	2784340..2784945	-	201	110669291	-	HQ3417A	-	divalent cation transporter, subunit I, MgtE family protein
2316	 51.18	0	2785076..2786476	-	466	110669292	srp54	HQ3418A	-	signal recognition particle 54K protein
2317	 46.70	0	2787177..2788418	-	413	110669293	ftsY	HQ3419A	-	signal recognition particle receptor SRalpha
2318	 46.88	0	2788450..2788914	-	154	110669294	pfdA	HQ3420A	-	prefoldin alpha subunit
2319	 51.85	0	2788914..2789129	-	71	110669295	rplX	HQ3421A	-	50S ribosomal protein LX
2320	 50.81	0	2790415..2791095	-	226	110669296	tif6	HQ3422A	-	translation initiation factor IF-6
2321	 54.84	+1	2791097..2791375	-	92	110669297	rpl31R	HQ3423A	-	50S ribosomal protein L31e
2322	 46.41	0	2791378..2791530	-	50	110669298	rpl39e	HQ3424A	-	50S ribosomal protein L39e
2323	 49.12	0	2791778..2792518	+	246	110669299	-	HQ3425A	-	TPR repeat-containing protein
2324	 46.24	0	2792515..2792979	+	154	110669300	-	HQ3426A	-	hypothetical protein
2325	 47.90	0	2793144..2794427	+	427	110669301	nifS	HQ3427A	-	cysteine desulfurase, class V aminotransferase
2326	 44.12	-1	2794571..2794987	+	138	110669302	nifU	HQ3428A	-	homolog to nitrogen fixation protein NifU
2327	 46.80	0	2795867..2796898	-	343	110669303	radA	HQ3429A	-	DNA repair and recombination protein RadA
2328	 49.83	0	2797297..2797902	-	201	110669304	-	HQ3430A	-	hypothetical protein
2329	 48.97	0	2797932..2798801	-	289	110669305	htpX	HQ3431A	-	heat shock protein HtpX
2330	 52.71	+1	2799525..2800391	+	288	110669306	-	HQ3432A	-	IS1341-type transposase (nonfunctional,N-terminal part)
2331	 47.82	0	2801969..2803114	+	381	110669307	-	HQ3435A	-	posible NMD protein affecting ribosome stability and mRNA decay
2332	 48.17	0	2804448..2806193	-	581	110669308	dinG	HQ3436A	-	Rad3-related DNA helicases DinG
2333	 48.53	0	2806303..2806506	-	67	110669309	-	HQ3437A	-	hypothetical protein
2334	 46.88	0	2806905..2807642	+	245	110669310	-	HQ3438A	-	hypothetical protein
2335	 47.49	0	2808107..2809102	+	331	110669311	-	HQ3439A	-	hypothetical protein
2336	 46.80	0	2809168..2809464	-	98	110669312	-	HQ3440A	-	hypothetical protein
2337	 49.39	0	2809588..2810403	+	271	110669313	-	HQ3441A	-	hypothetical protein
2338	 44.32	-1	2811415..2811933	-	172	110669314	-	HQ3442A	-	hypothetical protein
2339	 48.83	0	2812044..2813030	+	328	110669315	hemB	HQ3443A	-	delta-aminolevulinic acid dehydratase
2340	 50.18	0	2813317..2814729	+	470	110669316	amtB	HQ3444A	-	ammonium transporter
2341	 48.76	0	2814722..2815084	+	120	110669317	glnK	HQ3445A	-	nitrogen regulatory protein P-II
2342	 48.15	0	2815258..2815446	-	62	110669318	-	HQ3446A	-	hypothetical protein
2343	 48.40	0	2815728..2817068	+	446	110669319	hemL	HQ3447A	-	glutamate-1-semialdehyde 2,1-aminomutase
2344	 52.78	+1	2817230..2818129	+	299	110669320	-	HQ3448A	-	transposase
2345	 49.28	0	2818771..2819955	+	394	110669321	hemC	HQ3450A	-	hydroxymethylbilane synthase (porphobilinogen deaminase)
2346	 47.85	0	2819962..2820774	+	270	110669322	hemX	HQ3451A	-	uroporphyrin-III C-methyltransferase
2347	 50.25	0	2820843..2821628	+	261	110669323	hemD	HQ3452A	-	uroporphyrinogen-III synthase
2348	 48.07	0	2821708..2822121	+	137	110669324	-	HQ3453A	-	hypothetical protein
2349	 48.73	0	2822424..2823722	+	432	110669325	metY	HQ3454A	-	O-acetylhomoserine aminocarboxypropyltransferase; methionine synthase
2350	 48.27	0	2824064..2825221	+	385	110669326	pitA	HQ3455A	-	phosphate permease
2351	 48.92	0	2825660..2826076	+	138	110669327	fdx	HQ3457A	-	ferredoxin (2Fe-2S)
2352	 51.27	0	2826990..2827775	-	261	110669328	-	HQ3458A	-	hypothetical protein
2353	 50.22	0	2827927..2828838	+	303	110669329	mdhA	HQ3459A	-	malate dehydrogenase
2354	 48.57	0	2829663..2830082	+	139	110669330	-	HQ3460A	-	polA operon protein ( DNA-binding protein)
2355	 46.68	0	2830085..2836954	+	2289	110669331	polA2	HQ3461A	-	DNA polymerase II large subunit
2356	 50.45	0	2837301..2837411	+	36	110669332	-	HQ3462A	-	hypothetical protein
2357	 51.08	0	2837588..2838376	+	262	110669333	-	HQ3463A	-	phosphatase-like protein
2358	 49.78	0	2838513..2840117	-	534	110669334	aslA	HQ3464A	-	arylsulfatase; choline-sulfatase
2359	 51.61	0	2840453..2840824	-	123	110669335	-	HQ3465A	-	NifU domain-containing protein
48.79	MEAN

3.84	STD DEV
