IslandPath Analysis: Haloquadratum walsbyi DSM 16790

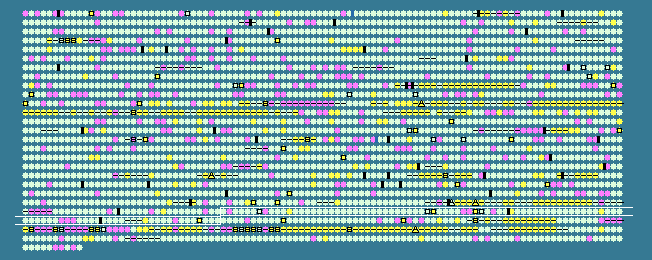

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2234	 50.52	0	2692129..2693082	-	317	110669210	uppS	HQ3332A	-	di-trans,poly-cis-decaprenylcistransferase
2235	 42.61	-1	2693294..2693692	+	132	110669211	-	HQ3333A	-	hypothetical protein
2236	 45.99	0	2693829..2694950	+	373	110669212	nirH	HQ3334A	-	heme biosynthesis protein nirH/G (nirL/nirD homolog)
2237	 51.19	0	2695051..2695722	+	223	110669213	cysG	HQ3335A	-	siroheme synthase
2238	 48.79	0	2695719..2697083	+	454	110669214	hemA	HQ3336A	-	glutamyl-tRNA reductase
2239	 48.15	0	2698501..2698635	-	44	110669215	-	HQ3339A	-	hypothetical protein
2240	 45.33	0	2698694..2698843	+	49	110669216	-	HQ3340A	-	IS200-type transposase (nonfunctional,N-terminal part)
2241	 42.75	-1	2699409..2699684	+	91	110669217	phhB	HQ3342A	-	pterin-4-alpha-carbinolamine dehydratase
2242	 47.83	0	2699727..2700464	+	245	110669218	pgp	HQ3343A	-	phosphatase
2243	 50.79	0	2700569..2702458	-	629	110669219	moeA	HQ3344A	-	molybdenum cofactor biosynthesis protein MoeA
2244	 50.37	0	2702455..2703804	-	449	110669220	moeA	HQ3345A	-	molybdenum cofactor biosynthesis protein MoeA
2245	 54.01	+1	2703998..2704384	+	128	110669221	hsp20	HQ3346A	-	hsp20 type chaperone
2246	 46.40	0	2704408..2706075	+	555	110669222	ubiB	HQ3347A	-	ubiquinone biosynthesis transmembrane protein
2247	 46.93	0	2706236..2706610	+	124	110669223	tif5A	HQ3348A	-	translation initiation factor IF-5A
2248	 50.12	0	2706625..2707452	+	275	110669224	speB	HQ3349A	-	agmatinase
2249	 50.50	0	2707844..2708641	-	265	110669225	surE	HQ3350A	-	acid phosphatase
2250	 47.49	0	2708857..2710488	-	543	110669226	-	HQ3351A	-	tyrA operon protein
2251	 50.19	0	2710485..2711255	-	256	110669227	tyrA	HQ3352A	-	prephenate dehydrogenase
2252	 46.78	0	2711454..2712695	-	413	110669228	pepQ	HQ3353A	-	Xaa-Pro aminopeptidase
2253	 47.09	0	2713064..2713492	-	142	110669229	lrp	HQ3354A	-	transcription regulator
2254	 46.86	0	2713574..2714512	-	312	110669230	porB	HQ3355A	-	pyruvate--ferredoxin oxidoreductase, beta subunit
2255	 48.34	0	2714515..2716413	-	632	110669231	porA	HQ3356A	-	pyruvate--ferredoxin oxidoreductase, alpha subunit
2256	 49.65	0	2716917..2718068	-	383	110669232	aroC	HQ3357A	-	chorismate synthase
2257	 49.27	0	2718330..2719628	-	432	110669233	aroA	HQ3358A	-	3-phosphoshikimate 1-carboxyvinyltransferase
2258	 49.85	0	2720967..2722304	+	445	110669234	polIVy	HQ3359A	-	DNA polymerase IV
2259	 49.92	0	2722461..2723105	-	214	110669235	tpiA	HQ3360A	-	triosephosphate isomerase
2260	 49.44	0	2723249..2723782	-	177	110669236	-	HQ3361A	-	transcriptional regulator
2261	 50.57	0	2723842..2724456	-	204	110669237	pgsA	HQ3362A	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyl-transferase
2262	 47.37	0	2724511..2725023	-	170	110669238	-	HQ3363A	-	nucleotide kinase
2263	 49.34	0	2725020..2726150	-	376	110669239	hisC	HQ3364A	-	histidinol-phosphate aminotransferase
2264	 49.72	0	2726735..2728369	-	544	110669240	-	HQ3365A	-	oxidoreductase-like protein
2265	 47.57	0	2728362..2728979	-	205	110669241	-	HQ3366A	-	hypothetical protein
2266	 47.95	0	2729469..2730200	-	243	110669242	hcpE	HQ3367A	-	2-hydroxyhepta-2,4-diene-1,7-dioate isomerase
2267	 45.80	0	2730408..2731121	+	237	110669243	-	HQ3368A	-	hypothetical protein
2268	 48.41	0	2731860..2731985	-	41	110669244	-	HQ3369A	-	putative transposase
2269	 55.23	+1	2732267..2733079	-	270	110669245	-	HQ3370A	-	transposase homolog (ISHnew96)
2270	 46.62	0	2733465..2734277	-	270	110669246	pho	HQ3371A	-	sugar phosphatase
2271	 46.00	0	2734808..2735257	+	149	110669247	-	HQ3372A	-	hypothetical protein
2272	 47.31	0	2735919..2736383	-	154	110669248	cumB	HQ3374A	-	cytosine/adenosine deaminases
2273	 45.52	0	2736485..2737477	-	330	110669249	nuc	HQ3375A	-	endonuclease staphylococcal nuclease-like
2274	 41.67	-1	2737628..2737951	-	107	110669250	-	HQ3376A	-	hypothetical protein
2275	 42.19	-1	2738131..2738322	+	63	110669251	-	HQ3377A	-	hypothetical protein
2276	 53.70	+1	2738784..2738837	-	17	110669252	-	HQ3378C	-	IS1341-type transposase (nonfunctional, central part)
2277	 52.00	0	2739640..2739714	+	24	110669253	-	HQ3379B	-	IS200-type transposase (nonfunctional,C-terminal part)
2278	 47.45	0	2739788..2740609	-	273	110669254	potC	HQ3380A	-	ABC-type spermidine/putrescine transport system,permease protein II
2279	 44.55	-1	2740726..2741661	-	311	110669255	potB	HQ3381A	-	ABC-type spermidine/putrescine transport system,permease protein I
2280	 47.17	0	2741664..2742986	-	440	110669256	potA	HQ3382A	-	ABC-type spermidine/putrescine transport system,ATP-binding protein
2281	 48.31	0	2742989..2744050	-	353	110669257	potD	HQ3383A	-	ABC-type spermidine/putrescine transport system,substrate-binding protein
2282	 53.07	+1	2745094..2745402	-	102	110669258	rps10p	HQ3384A	-	30S ribosomal protein S10P
2283	 49.61	0	2745403..2746668	-	421	110669259	tef1a	HQ3385A	-	elongation factor 1-alpha
2284	 51.08	0	2746996..2747970	-	324	110669260	hom	HQ3386A	-	homoserine dehydrogenase
2285	 50.58	0	2747972..2748742	-	256	110669261	-	HQ3387A	-	allosteric regulator of homoserine dehydrogenase
2286	 48.81	0	2749060..2751249	-	729	110669262	tef2	HQ3388A	-	elongation factor EF-2
2287	 49.83	0	2751655..2752539	+	294	110669263	-	HQ3389A	-	hypothetical protein
2288	 46.78	0	2752662..2753345	-	227	110669264	rps7	HQ3390A	-	30S ribosomal protein S7P
2289	 49.18	0	2753347..2753775	-	142	110669265	rps12P	HQ3391A	-	30S ribosomal protein S12P
2290	 47.99	0	2754036..2754458	-	140	110669266	nusA	HQ3392A	-	transcription elongation factor NusA-like protein
2291	 48.01	0	2754613..2756526	-	637	110669267	rpoA2	HQ3393A	-	DNA-directed RNA polymerase subunit A'' (subunit C)
2292	 49.17	0	2756519..2759455	-	978	110669268	rpoA	HQ3394A	-	DNA-directed RNA polymerase subunit alpha
2293	 49.56	0	2759574..2761409	-	611	110669269	rpoB1	HQ3395A	-	DNA-directed RNA polymerase subunit B'
2294	 47.59	0	2761641..2763218	-	525	110669270	rpoB2	HQ3396A	-	DNA-directed RNA polymerase subunit beta''
2295	 48.25	0	2763215..2763442	-	75	110669271	rpoH	HQ3397A	-	DNA-directed RNA polymerase subunit H
2296	 48.48	0	2763671..2764720	-	349	110669272	-	HQ3398A	-	RIO-like serine/threonine protein kinase II
2297	 53.95	+1	2764717..2765007	-	96	110669273	tif1A1	HQ3399A	-	translation initiation factor IF-1A
2298	 46.81	0	2765505..2766506	-	333	110669274	tyrS	HQ3400A	-	tyrosyl-tRNA synthetase
2299	 46.06	0	2766673..2767002	+	109	110669275	-	HQ3401A	-	hypothetical protein
2300	 50.28	0	2767683..2769665	-	660	110669276	-	HQ3402A	-	hypothetical protein
2301	 49.53	0	2769993..2770949	-	318	110669277	elaC	HQ3403A	-	ribonuclease Z (RNase Z) (tRNA 3 endonuclease)
2302	 45.52	0	2771238..2771516	+	92	110669278	-	HQ3404A	-	hypothetical protein
2303	 48.71	0	2771553..2772677	+	374	110669279	rfcC	HQ3405A	-	replication factor C small subunit 2
2304	 47.33	0	2772688..2773323	+	211	110669280	psd	HQ3406A	-	phosphatidylserine decarboxylase
2305	 48.19	0	2773313..2774416	-	367	110669281	-	HQ3407A	-	RNA methylase
2306	 49.38	0	2774567..2775694	+	375	110669282	tfbA	HQ3408A	-	transcription initiation factor TFB
2307	 44.87	-1	2775691..2776080	+	129	110669283	-	HQ3409A	-	hypothetical protein
2308	 45.10	0	2776154..2776714	+	186	110669284	tbpE	HQ3410A	-	transcription factor
2309	 43.90	-1	2777028..2777396	+	122	110669285	-	HQ3411A	-	hypothetical protein
2310	 50.00	0	2777565..2778410	-	281	110669286	hisG	HQ3412A	-	ATP phosphoribosyltransferase
2311	 47.37	0	2778667..2779998	+	443	110669287	trzA	HQ3413A	-	chlorohydrolase
2312	 48.88	0	2780406..2781704	+	432	110669288	achY	HQ3414A	-	S-adenosyl-L-homocysteine hydrolase
2313	 46.71	0	2781820..2783292	-	490	110669289	-	HQ3415A	-	sulfatase
2314	 47.31	0	2783782..2784339	-	185	110669290	-	HQ3416A	-	divalent cation transporter, subunit II, MgtE family protein
2315	 50.50	0	2784340..2784945	-	201	110669291	-	HQ3417A	-	divalent cation transporter, subunit I, MgtE family protein
2316	 51.18	0	2785076..2786476	-	466	110669292	srp54	HQ3418A	-	signal recognition particle 54K protein
2317	 46.70	0	2787177..2788418	-	413	110669293	ftsY	HQ3419A	-	signal recognition particle receptor SRalpha
2318	 46.88	0	2788450..2788914	-	154	110669294	pfdA	HQ3420A	-	prefoldin alpha subunit
2319	 51.85	0	2788914..2789129	-	71	110669295	rplX	HQ3421A	-	50S ribosomal protein LX
2320	 50.81	0	2790415..2791095	-	226	110669296	tif6	HQ3422A	-	translation initiation factor IF-6
2321	 54.84	+1	2791097..2791375	-	92	110669297	rpl31R	HQ3423A	-	50S ribosomal protein L31e
2322	 46.41	0	2791378..2791530	-	50	110669298	rpl39e	HQ3424A	-	50S ribosomal protein L39e
2323	 49.12	0	2791778..2792518	+	246	110669299	-	HQ3425A	-	TPR repeat-containing protein
2324	 46.24	0	2792515..2792979	+	154	110669300	-	HQ3426A	-	hypothetical protein
2325	 47.90	0	2793144..2794427	+	427	110669301	nifS	HQ3427A	-	cysteine desulfurase, class V aminotransferase
2326	 44.12	-1	2794571..2794987	+	138	110669302	nifU	HQ3428A	-	homolog to nitrogen fixation protein NifU
2327	 46.80	0	2795867..2796898	-	343	110669303	radA	HQ3429A	-	DNA repair and recombination protein RadA
2328	 49.83	0	2797297..2797902	-	201	110669304	-	HQ3430A	-	hypothetical protein
2329	 48.97	0	2797932..2798801	-	289	110669305	htpX	HQ3431A	-	heat shock protein HtpX
2330	 52.71	+1	2799525..2800391	+	288	110669306	-	HQ3432A	-	IS1341-type transposase (nonfunctional,N-terminal part)
2331	 47.82	0	2801969..2803114	+	381	110669307	-	HQ3435A	-	posible NMD protein affecting ribosome stability and mRNA decay
2332	 48.17	0	2804448..2806193	-	581	110669308	dinG	HQ3436A	-	Rad3-related DNA helicases DinG
2333	 48.53	0	2806303..2806506	-	67	110669309	-	HQ3437A	-	hypothetical protein
48.79	MEAN

3.84	STD DEV
