IslandPathversion 1.0

IslandPath Analysis: Haloquadratum walsbyi DSM 16790

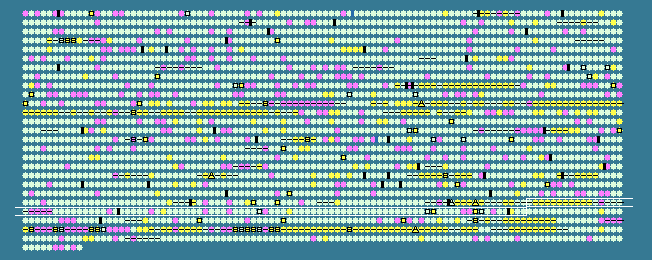

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2185	 48.56	0	2626854..2629604	-	916	110669161	-	HQ3280A	-	hypothetical protein
2186	 58.12	+2	2630461..2631957	-	498	110669162	-	HQ3281A	-	hypothetical protein
2187	 56.72	+2	2632395..2633450	-	351	110669163	-	HQ3282A	-	hypothetical protein
2188	 52.39	0	2633527..2634612	+	361	110669164	-	HQ3283A	-	hypothetical protein
2189	 54.55	+1	2634886..2635743	-	285	110669165	htpX	HQ3284A	-	protease HtpX
2190	 53.12	+1	2636491..2636970	-	159	110669166	-	HQ3285A	-	hypothetical protein
2191	 56.06	+1	2637051..2637578	-	175	110669167	-	HQ3286A	-	hypothetical protein
2192	 57.92	+2	2637849..2638088	+	79	110669168	-	HQ3287A	-	hypothetical protein
2193	 55.96	+1	2638145..2639218	+	357	110669169	-	HQ3288A	-	hypothetical protein
2194	 55.54	+1	2639211..2641349	+	712	110669170	trsE	HQ3289A	-	transfer complex protein
2195	 54.82	+1	2641346..2642299	+	317	110669171	-	HQ3290A	-	hypothetical protein
2196	 52.25	0	2642296..2644203	+	635	110669172	-	HQ3291A	-	conjugation protein
2197	 42.62	-1	2644502..2645341	+	279	110669173	-	HQ3292A	-	hypothetical protein
2198	 48.77	0	2645342..2645749	+	135	110669174	-	HQ3293A	-	hypothetical protein
2199	 50.34	0	2645754..2646494	-	246	110669175	-	HQ3294A	-	hypothetical protein
2200	 47.98	0	2647199..2648488	-	429	110669176	-	HQ3295A	-	hypothetical protein
2201	 46.35	0	2650476..2651789	+	437	110669177	-	HQ3297A	-	AAA-type ATPase (cell division control protein homolog)
2202	 44.09	-1	2651786..2653096	+	436	110669178	-	HQ3298A	-	hypothetical protein
2203	 44.91	-1	2655401..2656117	-	238	110669179	livF	HQ3299A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein II
2204	 45.30	0	2656114..2656890	-	258	110669180	livG	HQ3300A	-	ABC-type branched-chain amino acid transport systems, AT-binding protein I
2205	 45.30	0	2656887..2657747	-	286	110669181	livH	HQ3301A	-	ABC-type branched-chain amino acid transport system, permease protein I
2206	 48.12	0	2657749..2658708	-	319	110669182	livM	HQ3302A	-	ABC-type branched-chain amino acid transport system, permease protein II
2207	 50.93	0	2658821..2660167	-	448	110669183	livJ	HQ3303A	-	ABC-type branched-chain amino acid transport systems, substrate-binding protein
2208	 47.34	0	2661852..2662265	-	137	110669184	-	HQ3306A	-	hypothetical protein
2209	 47.05	0	2662918..2663595	-	225	110669185	phoU	HQ3307A	-	ABC transport system regulatory protein
2210	 46.41	0	2663962..2664963	+	333	110669186	phoU	HQ3308A	-	ABC transport system regulatory protein
2211	 45.50	0	2665297..2665674	-	125	110669187	rps8R	HQ3309A	-	30S ribosomal protein S8e
2212	 46.75	0	2665788..2666249	+	153	110669188	-	HQ3310A	-	hypothetical protein
2213	 49.31	0	2666753..2670019	-	1088	110669189	carB	HQ3311A	-	carbamoyl phosphate synthase large subunit
2214	 48.21	0	2670150..2670680	-	176	110669190	-	HQ3312A	-	hypothetical protein
2215	 42.46	-1	2670875..2671126	-	83	110669191	-	HQ3313A	-	hypothetical protein
2216	 45.57	0	2671184..2671510	-	108	110669192	-	HQ3314A	-	hypothetical protein
2217	 46.25	0	2671920..2672399	-	159	110669193	fxsA	HQ3315A	-	FxsA
2218	 49.04	0	2672528..2674246	+	572	110669194	-	HQ3316A	-	hypothetical protein
2219	 46.88	0	2674712..2675641	-	309	110669195	-	HQ3317A	-	GTP cyclohydrolase
2220	 48.98	0	2675836..2676327	-	163	110669196	-	HQ3318A	-	hypothetical protein
2221	 47.23	0	2676676..2677920	-	414	110669197	hcaD	HQ3319A	-	ferredoxin:NAD+ oxidoreductase
2222	 43.68	-1	2678204..2678812	+	202	110669198	-	HQ3320A	-	hypothetical protein
2223	 46.86	0	2679052..2680485	-	477	110669199	hemY	HQ3321A	-	hypothetical protein
2224	 52.95	+1	2680752..2681633	+	293	110669200	thrB	HQ3322A	-	homoserine kinase
2225	 51.05	0	2681986..2682894	-	302	110669201	pyroA	HQ3323A	-	pyridoxine biosynthesis protein
2226	 46.83	0	2683074..2683910	+	278	110669202	-	HQ3324A	-	hypothetical protein
2227	 46.12	0	2684111..2685064	-	317	110669203	-	HQ3325A	-	hypothetical protein
2228	 47.85	0	2685305..2686819	-	504	110669204	panF	HQ3326A	-	sodium/pantothenate symporter
2229	 51.19	0	2686812..2687063	-	83	110669205	-	HQ3327A	-	hypothetical protein
2230	 46.98	0	2687332..2689053	+	573	110669206	dnaG	HQ3328A	-	DNA primase
2231	 44.21	-1	2689456..2690025	-	189	110669207	-	HQ3329A	-	hypothetical protein
2232	 50.00	0	2690022..2691347	-	441	110669208	-	HQ3330A	-	hypothetical protein
2233	 47.13	0	2691487..2692095	+	202	110669209	uppS	HQ3331A	-	di-trans,poly-cis-decaprenylcistransferase
2234	 50.52	0	2692129..2693082	-	317	110669210	uppS	HQ3332A	-	di-trans,poly-cis-decaprenylcistransferase
2235	 42.61	-1	2693294..2693692	+	132	110669211	-	HQ3333A	-	hypothetical protein
2236	 45.99	0	2693829..2694950	+	373	110669212	nirH	HQ3334A	-	heme biosynthesis protein nirH/G (nirL/nirD homolog)
2237	 51.19	0	2695051..2695722	+	223	110669213	cysG	HQ3335A	-	siroheme synthase
2238	 48.79	0	2695719..2697083	+	454	110669214	hemA	HQ3336A	-	glutamyl-tRNA reductase
2239	 48.15	0	2698501..2698635	-	44	110669215	-	HQ3339A	-	hypothetical protein
2240	 45.33	0	2698694..2698843	+	49	110669216	-	HQ3340A	-	IS200-type transposase (nonfunctional,N-terminal part)
2241	 42.75	-1	2699409..2699684	+	91	110669217	phhB	HQ3342A	-	pterin-4-alpha-carbinolamine dehydratase
2242	 47.83	0	2699727..2700464	+	245	110669218	pgp	HQ3343A	-	phosphatase
2243	 50.79	0	2700569..2702458	-	629	110669219	moeA	HQ3344A	-	molybdenum cofactor biosynthesis protein MoeA
2244	 50.37	0	2702455..2703804	-	449	110669220	moeA	HQ3345A	-	molybdenum cofactor biosynthesis protein MoeA
2245	 54.01	+1	2703998..2704384	+	128	110669221	hsp20	HQ3346A	-	hsp20 type chaperone
2246	 46.40	0	2704408..2706075	+	555	110669222	ubiB	HQ3347A	-	ubiquinone biosynthesis transmembrane protein
2247	 46.93	0	2706236..2706610	+	124	110669223	tif5A	HQ3348A	-	translation initiation factor IF-5A
2248	 50.12	0	2706625..2707452	+	275	110669224	speB	HQ3349A	-	agmatinase
2249	 50.50	0	2707844..2708641	-	265	110669225	surE	HQ3350A	-	acid phosphatase
2250	 47.49	0	2708857..2710488	-	543	110669226	-	HQ3351A	-	tyrA operon protein
2251	 50.19	0	2710485..2711255	-	256	110669227	tyrA	HQ3352A	-	prephenate dehydrogenase
2252	 46.78	0	2711454..2712695	-	413	110669228	pepQ	HQ3353A	-	Xaa-Pro aminopeptidase
2253	 47.09	0	2713064..2713492	-	142	110669229	lrp	HQ3354A	-	transcription regulator
2254	 46.86	0	2713574..2714512	-	312	110669230	porB	HQ3355A	-	pyruvate--ferredoxin oxidoreductase, beta subunit
2255	 48.34	0	2714515..2716413	-	632	110669231	porA	HQ3356A	-	pyruvate--ferredoxin oxidoreductase, alpha subunit
2256	 49.65	0	2716917..2718068	-	383	110669232	aroC	HQ3357A	-	chorismate synthase
2257	 49.27	0	2718330..2719628	-	432	110669233	aroA	HQ3358A	-	3-phosphoshikimate 1-carboxyvinyltransferase
2258	 49.85	0	2720967..2722304	+	445	110669234	polIVy	HQ3359A	-	DNA polymerase IV
2259	 49.92	0	2722461..2723105	-	214	110669235	tpiA	HQ3360A	-	triosephosphate isomerase
2260	 49.44	0	2723249..2723782	-	177	110669236	-	HQ3361A	-	transcriptional regulator
2261	 50.57	0	2723842..2724456	-	204	110669237	pgsA	HQ3362A	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyl-transferase
2262	 47.37	0	2724511..2725023	-	170	110669238	-	HQ3363A	-	nucleotide kinase
2263	 49.34	0	2725020..2726150	-	376	110669239	hisC	HQ3364A	-	histidinol-phosphate aminotransferase
2264	 49.72	0	2726735..2728369	-	544	110669240	-	HQ3365A	-	oxidoreductase-like protein
2265	 47.57	0	2728362..2728979	-	205	110669241	-	HQ3366A	-	hypothetical protein
2266	 47.95	0	2729469..2730200	-	243	110669242	hcpE	HQ3367A	-	2-hydroxyhepta-2,4-diene-1,7-dioate isomerase
2267	 45.80	0	2730408..2731121	+	237	110669243	-	HQ3368A	-	hypothetical protein
2268	 48.41	0	2731860..2731985	-	41	110669244	-	HQ3369A	-	putative transposase
2269	 55.23	+1	2732267..2733079	-	270	110669245	-	HQ3370A	-	transposase homolog (ISHnew96)
2270	 46.62	0	2733465..2734277	-	270	110669246	pho	HQ3371A	-	sugar phosphatase
2271	 46.00	0	2734808..2735257	+	149	110669247	-	HQ3372A	-	hypothetical protein
2272	 47.31	0	2735919..2736383	-	154	110669248	cumB	HQ3374A	-	cytosine/adenosine deaminases
2273	 45.52	0	2736485..2737477	-	330	110669249	nuc	HQ3375A	-	endonuclease staphylococcal nuclease-like
2274	 41.67	-1	2737628..2737951	-	107	110669250	-	HQ3376A	-	hypothetical protein
2275	 42.19	-1	2738131..2738322	+	63	110669251	-	HQ3377A	-	hypothetical protein
2276	 53.70	+1	2738784..2738837	-	17	110669252	-	HQ3378C	-	IS1341-type transposase (nonfunctional, central part)
2277	 52.00	0	2739640..2739714	+	24	110669253	-	HQ3379B	-	IS200-type transposase (nonfunctional,C-terminal part)
2278	 47.45	0	2739788..2740609	-	273	110669254	potC	HQ3380A	-	ABC-type spermidine/putrescine transport system,permease protein II
2279	 44.55	-1	2740726..2741661	-	311	110669255	potB	HQ3381A	-	ABC-type spermidine/putrescine transport system,permease protein I
2280	 47.17	0	2741664..2742986	-	440	110669256	potA	HQ3382A	-	ABC-type spermidine/putrescine transport system,ATP-binding protein
2281	 48.31	0	2742989..2744050	-	353	110669257	potD	HQ3383A	-	ABC-type spermidine/putrescine transport system,substrate-binding protein
2282	 53.07	+1	2745094..2745402	-	102	110669258	rps10p	HQ3384A	-	30S ribosomal protein S10P
2283	 49.61	0	2745403..2746668	-	421	110669259	tef1a	HQ3385A	-	elongation factor 1-alpha
2284	 51.08	0	2746996..2747970	-	324	110669260	hom	HQ3386A	-	homoserine dehydrogenase
48.79	MEAN

3.84	STD DEV
