IslandPathversion 1.0

IslandPath Analysis: Haloquadratum walsbyi DSM 16790

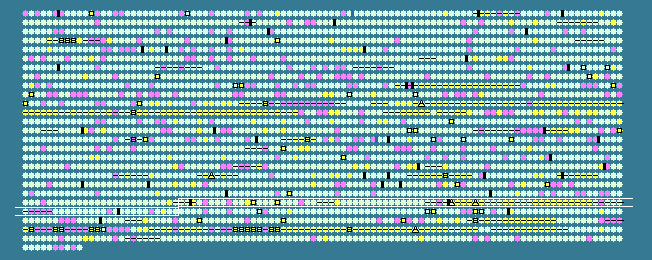

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2127	 49.52	0	2553709..2553918	-	69	110669103	-	HQ3220A	-	hypothetical protein
2128	 49.19	0	2554088..2554333	+	81	110669104	grx	HQ3221A	-	glutaredoxin
2129	 58.05	+2	2555160..2557388	+	742	110669105	-	HQ3223A	-	hypothetical protein
2130	 51.41	0	2557622..2557975	+	117	110669106	-	HQ3224A	-	hypothetical protein
2131	 43.43	-1	2558651..2559145	+	164	110669107	-	HQ3225A	-	hypothetical protein
2132	 47.52	0	2559221..2560672	-	483	110669108	-	HQ3226A	-	hypothetical protein
2133	 45.86	0	2560770..2562182	-	470	110669109	-	HQ3227A	-	transporter
2134	 47.08	0	2562262..2562981	-	239	110669110	apt	HQ3228A	-	adenine phosphoribosyltransferase
2135	 44.63	-1	2563109..2563657	-	182	110669111	pyrE	HQ3229A	-	orotate phosphoribosyltransferase
2136	 51.28	0	2563921..2564466	-	181	110669112	cdsA	HQ3230A	-	hypothetical protein
2137	 46.22	0	2565130..2565750	+	206	110669113	-	HQ3231A	-	hypothetical protein
2138	 55.07	+1	2566013..2566150	+	45	110669114	-	HQ3232A	-	hypothetical protein
2139	 56.44	+1	2566147..2567466	+	439	110669115	-	HQ3233A	-	IS1341-type transposase
2140	 45.59	0	2567612..2568541	-	309	110669116	ilvE	HQ3234A	-	branched-chain amino acid aminotransferase
2141	 46.99	0	2569416..2570147	-	243	110669117	ribB	HQ3235A	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
2142	 50.92	0	2570237..2570941	-	234	110669118	-	HQ3236A	-	riboflavin biosynthetic operon protein; transtriptional regulator
2143	 56.01	+1	2571289..2572527	-	412	110669119	-	HQ3237A	-	IS1341-type transposase
2144	 48.06	0	2572533..2572661	-	42	110669120	-	HQ3238A	-	hypothetical protein
2145	 48.24	0	2573538..2575328	+	596	110669121	argS	HQ3239A	-	arginine--tRNA ligase
2146	 46.84	0	2575743..2576993	+	416	110669122	erf1	HQ3241A	-	peptide chain release factor 1
2147	 44.92	-1	2577628..2578326	-	232	110669123	atpD	HQ3242A	-	V-type ATP synthase subunit D
2148	 47.27	0	2578587..2580014	-	475	110669124	atpB	HQ3243A	-	V-type ATP synthase subunit B
2149	 49.03	0	2580016..2581773	-	585	110669125	atpA	HQ3244A	-	V-type ATP synthase subunit A
2150	 49.70	0	2581797..2582126	-	109	110669126	atpF	HQ3245A	-	V-type ATP synthase subunit F
2151	 47.22	0	2582129..2583172	-	347	110669127	atpC	HQ3246A	-	V-type ATP synthase subunit C
2152	 47.42	0	2583169..2583750	-	193	110669128	atpE	HQ3247A	-	V-type ATP synthase subunit E
2153	 55.70	+1	2583772..2584008	-	78	110669129	atpK	HQ3248A	-	H(+)-transporting two-sector ATPase, subunit K (A-type ATP synthase)
2154	 47.71	0	2584217..2586553	-	778	110669130	atpI	HQ3249A	-	H(+)-transporting two-sector ATPase, subunit I (A-type ATP synthase)
2155	 50.15	0	2586540..2586872	-	110	110669131	atpH	HQ3250A	-	H(+)-transporting two-sector ATPase, subunit H (A-type ATP synthase)
2156	 46.23	0	2587083..2587772	+	229	110669132	menG	HQ3251A	-	menaquinone biosynthesis methyltransferase-like protein
2157	 50.00	0	2587858..2588415	-	185	110669133	-	HQ3252A	-	hypothetical protein
2158	 48.34	0	2588594..2589919	-	441	110669134	-	HQ3253A	-	hypothetical protein
2159	 49.40	0	2590046..2591638	+	530	110669135	-	HQ3254A	-	hypothetical protein
2160	 51.84	0	2591750..2592565	+	271	110669136	idsA	HQ3255A	-	multifunctional long-chain (E)-prenyl diphosphate synthase
2161	 50.35	0	2592624..2593763	-	379	110669137	-	HQ3256A	-	hypothetical protein
2162	 47.29	0	2594029..2595024	+	331	110669138	-	HQ3257A	-	hypothetical protein
2163	 46.83	0	2595089..2595844	-	251	110669139	-	HQ3258A	-	hypothetical protein
2164	 48.86	0	2595934..2596416	+	160	110669140	-	HQ3259A	-	hypothetical protein
2165	 48.44	0	2596590..2597198	+	202	110669141	tfx	HQ3260A	-	putative transcriptional regulator
2166	 47.87	0	2597255..2598403	-	382	110669142	manC	HQ3261A	-	mannose-1-phosphate guanylyltransferase
2167	 48.23	0	2598414..2598836	-	140	110669143	-	HQ3262A	-	hypothetical protein
2168	 48.45	0	2599263..2600195	+	310	110669144	-	HQ3263A	-	replication factor A
2169	 47.60	0	2600197..2600820	+	207	110669145	-	HQ3264A	-	hypothetical protein
2170	 44.60	-1	2601133..2601567	+	144	110669146	-	HQ3265A	-	hypothetical protein
2171	 46.27	0	2601914..2602369	-	151	110669147	-	HQ3266A	-	helicase
2172	 50.81	0	2602766..2603875	+	369	110669148	-	HQ3267A	-	putative phage integrase
2173	 57.86	+2	2604114..2604851	-	245	110669149	cdc6_	HQ3268A	-	cell division control protein cdc6-like protein
2174	 52.38	0	2605109..2606137	+	342	110669150	cdc6_	HQ3269A	-	cell division control protein cdc6-like protein
2175	 56.04	+1	2606123..2606536	-	137	110669151	-	HQ3270A	-	calcium binding
2176	 54.37	+1	2607018..2608253	-	411	110669152	int	HQ3271A	-	phage integrase
2177	 55.49	+1	2608586..2610535	-	649	110669153	-	HQ3272A	-	hypothetical protein
2178	 48.04	0	2610658..2611371	+	237	110669154	-	HQ3273A	-	hypothetical protein
2179	 51.46	0	2611501..2616792	-	1763	110669155	-	HQ3274A	-	helicase
2180	 47.04	0	2616845..2620900	-	1351	110669156	-	HQ3275A	-	type II restriction/modification enzyme
2181	 52.71	+1	2620897..2623776	-	959	110669157	hepA	HQ3276A	-	ATP-dependent helicase HepA
2182	 54.09	+1	2623995..2625362	-	455	110669158	-	HQ3277A	-	adenine-specific DNA methyltransferase
2183	 51.18	0	2625428..2626273	-	281	110669159	-	HQ3278A	-	hypothetical protein
2184	 49.56	0	2626426..2626653	-	75	110669160	-	HQ3279A	-	hypothetical protein
2185	 48.56	0	2626854..2629604	-	916	110669161	-	HQ3280A	-	hypothetical protein
2186	 58.12	+2	2630461..2631957	-	498	110669162	-	HQ3281A	-	hypothetical protein
2187	 56.72	+2	2632395..2633450	-	351	110669163	-	HQ3282A	-	hypothetical protein
2188	 52.39	0	2633527..2634612	+	361	110669164	-	HQ3283A	-	hypothetical protein
2189	 54.55	+1	2634886..2635743	-	285	110669165	htpX	HQ3284A	-	protease HtpX
2190	 53.12	+1	2636491..2636970	-	159	110669166	-	HQ3285A	-	hypothetical protein
2191	 56.06	+1	2637051..2637578	-	175	110669167	-	HQ3286A	-	hypothetical protein
2192	 57.92	+2	2637849..2638088	+	79	110669168	-	HQ3287A	-	hypothetical protein
2193	 55.96	+1	2638145..2639218	+	357	110669169	-	HQ3288A	-	hypothetical protein
2194	 55.54	+1	2639211..2641349	+	712	110669170	trsE	HQ3289A	-	transfer complex protein
2195	 54.82	+1	2641346..2642299	+	317	110669171	-	HQ3290A	-	hypothetical protein
2196	 52.25	0	2642296..2644203	+	635	110669172	-	HQ3291A	-	conjugation protein
2197	 42.62	-1	2644502..2645341	+	279	110669173	-	HQ3292A	-	hypothetical protein
2198	 48.77	0	2645342..2645749	+	135	110669174	-	HQ3293A	-	hypothetical protein
2199	 50.34	0	2645754..2646494	-	246	110669175	-	HQ3294A	-	hypothetical protein
2200	 47.98	0	2647199..2648488	-	429	110669176	-	HQ3295A	-	hypothetical protein
2201	 46.35	0	2650476..2651789	+	437	110669177	-	HQ3297A	-	AAA-type ATPase (cell division control protein homolog)
2202	 44.09	-1	2651786..2653096	+	436	110669178	-	HQ3298A	-	hypothetical protein
2203	 44.91	-1	2655401..2656117	-	238	110669179	livF	HQ3299A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein II
2204	 45.30	0	2656114..2656890	-	258	110669180	livG	HQ3300A	-	ABC-type branched-chain amino acid transport systems, AT-binding protein I
2205	 45.30	0	2656887..2657747	-	286	110669181	livH	HQ3301A	-	ABC-type branched-chain amino acid transport system, permease protein I
2206	 48.12	0	2657749..2658708	-	319	110669182	livM	HQ3302A	-	ABC-type branched-chain amino acid transport system, permease protein II
2207	 50.93	0	2658821..2660167	-	448	110669183	livJ	HQ3303A	-	ABC-type branched-chain amino acid transport systems, substrate-binding protein
2208	 47.34	0	2661852..2662265	-	137	110669184	-	HQ3306A	-	hypothetical protein
2209	 47.05	0	2662918..2663595	-	225	110669185	phoU	HQ3307A	-	ABC transport system regulatory protein
2210	 46.41	0	2663962..2664963	+	333	110669186	phoU	HQ3308A	-	ABC transport system regulatory protein
2211	 45.50	0	2665297..2665674	-	125	110669187	rps8R	HQ3309A	-	30S ribosomal protein S8e
2212	 46.75	0	2665788..2666249	+	153	110669188	-	HQ3310A	-	hypothetical protein
2213	 49.31	0	2666753..2670019	-	1088	110669189	carB	HQ3311A	-	carbamoyl phosphate synthase large subunit
2214	 48.21	0	2670150..2670680	-	176	110669190	-	HQ3312A	-	hypothetical protein
2215	 42.46	-1	2670875..2671126	-	83	110669191	-	HQ3313A	-	hypothetical protein
2216	 45.57	0	2671184..2671510	-	108	110669192	-	HQ3314A	-	hypothetical protein
2217	 46.25	0	2671920..2672399	-	159	110669193	fxsA	HQ3315A	-	FxsA
2218	 49.04	0	2672528..2674246	+	572	110669194	-	HQ3316A	-	hypothetical protein
2219	 46.88	0	2674712..2675641	-	309	110669195	-	HQ3317A	-	GTP cyclohydrolase
2220	 48.98	0	2675836..2676327	-	163	110669196	-	HQ3318A	-	hypothetical protein
2221	 47.23	0	2676676..2677920	-	414	110669197	hcaD	HQ3319A	-	ferredoxin:NAD+ oxidoreductase
2222	 43.68	-1	2678204..2678812	+	202	110669198	-	HQ3320A	-	hypothetical protein
2223	 46.86	0	2679052..2680485	-	477	110669199	hemY	HQ3321A	-	hypothetical protein
2224	 52.95	+1	2680752..2681633	+	293	110669200	thrB	HQ3322A	-	homoserine kinase
2225	 51.05	0	2681986..2682894	-	302	110669201	pyroA	HQ3323A	-	pyridoxine biosynthesis protein
2226	 46.83	0	2683074..2683910	+	278	110669202	-	HQ3324A	-	hypothetical protein
48.79	MEAN

3.84	STD DEV
