IslandPath Analysis: Haloquadratum walsbyi DSM 16790

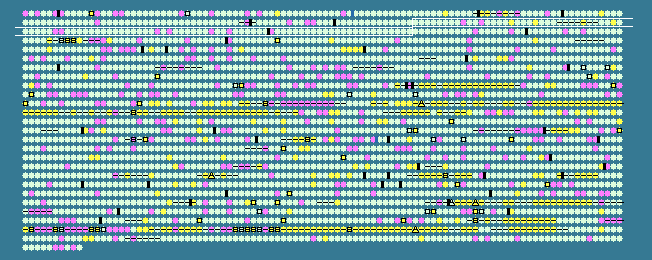

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
166	 46.97	0	230226..231017	-	263	110667142	-	HQ1168A	-	S-adenosylmethionine-dependent methyltransferase-like protein
167	 45.88	0	231252..231530	+	92	110667143	-	HQ1169A	-	transcription regulator, ArsR like
168	 46.40	0	231953..232771	+	272	110667144	-	HQ1170A	-	hydrolase
169	 48.05	0	232768..233739	+	323	110667145	-	HQ1171A	-	hypothetical protein
170	 47.62	0	233966..234364	+	132	110667146	-	HQ1172A	-	hypothetical protein
171	 49.17	0	234637..236373	-	578	110667147	-	HQ1173A	-	Fe-S oxidoreductase
172	 51.04	0	236789..237652	-	287	110667148	-	HQ1174A	-	hypothetical protein
173	 45.67	0	237971..238870	-	299	110667149	-	HQ1175A	-	transporter of the drug/metabolite transporter (DMT) superfamily
174	 44.03	-1	239126..239284	+	52	110667150	-	HQ1176A	-	hypothetical protein
175	 47.17	0	239281..239793	+	170	110667151	hsp20	HQ1177A	-	hsp20 type chaperone
176	 49.10	0	239967..240575	-	202	110667152	-	HQ1178A	-	nudix family protein
177	 44.39	-1	240789..241358	-	189	110667153	-	HQ1179A	-	hypothetical protein
178	 47.92	0	241580..242710	-	376	110667154	-	HQ1180A	-	glycosyltransferase-like protein
179	 47.86	0	243702..244892	-	396	110667155	-	HQ1182A	-	aldo/keto reductase family protein
180	 49.72	0	245027..245935	-	302	110667156	-	HQ1183A	-	sugar epimerase/dehydratase-like protein
181	 46.58	0	245935..246387	-	150	110667157	-	HQ1184A	-	hypothetical protein
182	 52.48	0	246563..249664	-	1033	110667158	-	HQ1185A	-	hypothetical protein
183	 50.47	0	249664..250515	-	283	110667159	-	HQ1186A	-	hypothetical protein
184	 47.00	0	250512..250994	-	160	110667160	-	HQ1187A	-	hypothetical protein
185	 47.68	0	250996..251490	-	164	110667161	-	HQ1188A	-	hypothetical protein
186	 53.70	+1	251653..253488	-	611	110667162	-	HQ1189A	-	hypothetical protein
187	 50.98	0	253488..255572	-	694	110667163	virB11	HQ1190A	-	type II/IV secretion system proteins VirB11/TadA ( ATPase)
188	 49.79	0	255657..256130	-	157	110667164	-	HQ1191A	-	hypothetical protein
189	 48.25	0	256127..256984	-	285	110667165	-	HQ1192A	-	dentin sialophosphoprotein precursor
190	 48.42	0	257398..261474	+	1358	110667166	-	HQ1193A	-	cell surface glycoprotein
191	 46.52	0	262266..263228	-	320	110667167	-	HQ1194A	-	hypothetical protein
192	 49.77	0	263292..264143	-	283	110667168	gp2	HQ1195A	-	glycoprotein gp2
193	 50.39	0	264219..264863	-	214	110667169	-	HQ1196A	-	cell surface glycoprotein
194	 56.78	+2	265518..274175	-	2885	110667170	hmu2	HQ1197A	-	cell surface glycoprotein
195	 46.84	0	275115..275795	-	226	110667171	-	HQ1199A	-	hypothetical protein
196	 50.00	0	276008..277237	-	409	110667172	sub	HQ1200A	-	subtilisin-like serine protease
197	 51.03	0	277625..278206	-	193	110667173	-	HQ1201A	-	hypothetical protein
198	 51.16	0	279015..279575	+	186	110667174	-	HQ1202A	-	hypothetical protein
199	 52.54	0	279700..280251	+	183	110667175	-	HQ1203A	-	hypothetical protein
200	 47.95	0	280697..280915	+	72	110667176	-	HQ1204A	-	hypothetical protein
201	 48.47	0	281001..285881	+	1626	110667177	-	HQ1205A	-	cell surface adhesin
202	 47.41	0	286783..290562	+	1259	110667178	csg	HQ1206A	-	cell surface glycoprotein precursor
203	 48.13	0	291388..294354	+	988	110667179	csg	HQ1207A	-	cell surface glycoprotein precursor
204	 46.94	0	295263..297122	+	619	110667180	sub	HQ1208A	-	subtilisin-like serine protease
205	 45.77	0	298589..298966	+	125	110667181	-	HQ1210A	-	hypothetical protein
206	 43.78	-1	298971..299219	+	82	110667182	-	HQ1211A	-	hypothetical protein
207	 42.36	-1	299341..299739	+	132	110667183	-	HQ1212A	-	hypothetical protein
208	 50.15	0	301206..302834	+	542	110667184	-	HQ1214A	-	hypothetical protein
209	 50.00	0	302839..305178	+	779	110667185	-	HQ1215A	-	RND superfamily multidrug efflux system protein
210	 48.80	0	305171..305668	+	165	110667186	-	HQ1216A	-	stress response protein
211	 47.56	0	305828..307177	-	449	110667187	-	HQ1217A	-	hypothetical protein
212	 49.90	0	307442..307960	+	172	110667188	-	HQ1218A	-	hypothetical protein
213	 51.70	0	308086..308586	+	166	110667189	-	HQ1219A	-	hypothetical protein
214	 50.89	0	308586..310373	+	595	110667190	polIVx	HQ1220A	-	family X DNA-dependent DNA polymerase
215	 48.37	0	310541..311092	+	183	110667191	-	HQ1221A	-	hypothetical protein
216	 50.57	0	311119..312087	-	322	110667192	-	HQ1222A	-	hypothetical protein
217	 50.54	0	312287..312658	+	123	110667193	-	HQ1223A	-	hypothetical protein
218	 46.04	0	312943..313548	+	201	110667194	-	HQ1224A	-	protease
219	 47.96	0	313928..314932	-	334	110667195	-	HQ1225A	-	sodium/arsenite symporter family protein
220	 47.44	0	315361..316629	-	422	110667196	-	HQ1226A	-	hypothetical protein
221	 49.39	0	316777..317766	-	329	110667197	tfbA	HQ1227A	-	transcription initiation factor TFB
222	 51.09	0	317977..318573	+	198	110667198	rnhA	HQ1228A	-	ribonuclease H I
223	 42.50	-1	319258..319617	-	119	110667199	padR	HQ1230A	-	transcription regulator
224	 46.25	0	319761..320294	+	177	110667200	ipp	HQ1231A	-	inorganic pyrophosphatase
225	 42.86	-1	320415..320561	+	48	110667201	-	HQ1232A	-	hypothetical protein
226	 49.95	0	320798..321718	+	306	110667202	-	HQ1233A	-	rhomboid family protein/GlpG-like protein
227	 47.40	0	321732..322577	+	281	110667203	nfi	HQ1234A	-	endonuclease V (deoxyinosine 3'endonuclease)
228	 48.48	0	322826..323683	+	285	110667204	-	HQ1235A	-	short chain dehydrogenase/ reductase
229	 50.63	0	323862..325127	-	421	110667205	arsA	HQ1236A	-	transport ATPase ( substrate arsenite)
230	 47.86	0	325208..326329	-	373	110667206	aspC	HQ1237A	-	PLP-dependent aminotransferase ( aspartate aminotransferase)
231	 49.90	0	326649..327167	+	172	110667207	cinA	HQ1238A	-	CinA-like domain-containing protein
232	 43.71	-1	327354..327941	+	195	110667208	-	HQ1239A	-	hypothetical protein
233	 46.47	0	328105..328911	-	268	110667209	-	HQ1240A	-	hypothetical protein
234	 48.12	0	329301..329753	-	150	110667210	nusG	HQ1241A	-	transcription antitermination protein NusG
235	 43.68	-1	329760..329933	-	57	110667211	secE	HQ1242A	-	preprotein translocase subunit SecE
236	 50.72	0	330405..331721	-	438	110667212	ftsZ	HQ1243A	-	cell division protein FtsZ
237	 48.63	0	331955..333529	-	524	110667213	-	HQ1244A	-	hypothetical protein
238	 48.23	0	333818..334636	+	272	110667214	aroE	HQ1245A	-	shikimate 5-dehydrogenase
239	 48.99	0	334956..335798	+	280	110667215	-	HQ1246A	-	hypothetical protein
240	 48.70	0	335795..336718	+	307	110667216	ilvE	HQ1247A	-	branched-chain amino acid aminotransferase
241	 45.69	0	336773..337201	+	142	110667217	-	HQ1248A	-	homolog to Rieske iron sulfur protein
242	 44.73	-1	337547..338020	-	157	110667218	-	HQ1249A	-	GtrA-like family protein, cell surface polysaccharide biosynthesis protein
243	 47.98	0	338023..339087	-	354	110667219	-	HQ1250A	-	glycosyl tranferase; dolichyl-phosphate beta-glucosyltransferase
244	 48.41	0	339376..341895	+	839	110667220	-	HQ1251A	-	hypothetical protein
245	 46.51	0	341900..342157	-	85	110667221	-	HQ1252A	-	hypothetical protein
246	 46.81	0	342278..342559	+	93	110667222	rpl44e	HQ1253A	-	50S ribosomal protein L44e
247	 47.81	0	342563..342790	+	75	110667223	rps27e	HQ1254A	-	30S ribosomal protein S27e
248	 46.69	0	342888..343688	+	266	110667224	tif2a	HQ1255A	-	translation initiation factor IF-2 subunit alpha
249	 45.36	0	343813..343995	+	60	110667225	-	HQ1256A	-	H/ACA RNA-protein complex component Nop10p
250	 48.62	0	344000..344758	+	252	110667226	-	HQ1257A	-	hypothetical protein
251	 48.43	0	345472..345948	+	158	110667227	-	HQ1258A	-	hypothetical protein
252	 47.90	0	346446..347399	-	317	110667228	phfZ	HQ1259A	-	phenazine biosynthesis protein
253	 46.93	0	347514..348278	+	254	110667229	prt	HQ1260A	-	phosphoribosyltransferase
254	 46.81	0	348291..349247	+	318	110667230	-	HQ1261A	-	transporter
255	 46.14	0	349950..350855	+	301	110667231	mtaP	HQ1262A	-	5'-methylthioadenosine phosphorylase MtaP
256	 47.94	0	350967..351911	-	314	110667232	-	HQ1263A	-	smc operon protein
257	 46.32	0	351904..355500	-	1198	110667233	smc	HQ1264A	-	chromosome partition protein
258	 47.22	0	355630..355953	-	107	110667234	-	HQ1265A	-	smc operon protein
259	 45.47	0	356333..357823	+	496	110667235	gatB	HQ1266A	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
260	 47.79	0	358124..360697	+	857	110667236	topA	HQ1267A	-	DNA topoisomerase I
261	 45.64	0	361003..361197	-	64	110667237	csp	HQ1268A	-	cold shock protein
262	 47.78	0	361607..362326	+	239	110667238	pcrB	HQ1269A	-	geranylgeranylglyceryl phosphate synthase-like protein
263	 47.13	0	362844..364148	+	434	110667239	aspC	HQ1270A	-	aspartyl-tRNA synthetase
264	 49.73	0	364149..365063	+	304	110667240	kin	HQ1271A	-	sugar kinase
265	 49.26	0	365924..366733	+	269	110667241	-	HQ1272A	-	hypothetical protein
48.79	MEAN

3.84	STD DEV
