IslandPath Analysis: Haloquadratum walsbyi DSM 16790

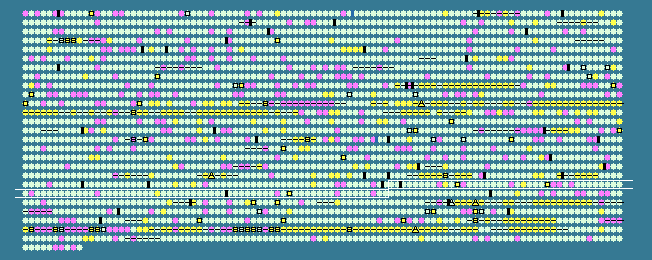

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1962	 46.95	0	2355340..2356125	+	261	110668938	-	HQ3050A	-	hypothetical protein
1963	 50.46	0	2356274..2356816	-	180	110668939	-	HQ3051A	-	putative RNA-processing protein
1964	 45.59	0	2358200..2358607	-	135	110668940	crcB	HQ3052A	-	protein crcB-like protein
1965	 47.95	0	2358604..2358945	-	113	110668941	crcB	HQ3053A	-	protein crcB-like protein
1966	 49.95	0	2359131..2360189	-	352	110668942	-	HQ3054A	-	hypothetical protein
1967	 47.24	0	2360265..2360717	+	150	110668943	-	HQ3055A	-	hypothetical protein
1968	 48.52	0	2361243..2362631	-	462	110668944	-	HQ3056A	-	hypothetical protein
1969	 49.59	0	2363076..2364053	+	325	110668945	-	HQ3058A	-	hypothetical protein
1970	 45.24	0	2364142..2364393	-	83	110668946	grx	HQ3059A	-	glutaredoxin
1971	 57.78	+2	2365450..2366619	-	389	110668947	-	HQ3060A	-	serine/threonine protein kinase related protein
1972	 47.85	0	2367096..2367653	-	185	110668948	-	HQ3061A	-	hypothetical protein
1973	 56.94	+2	2368672..2369946	+	424	110668949	-	HQ3062A	-	IS1341-type transposase
1974	 45.08	0	2370610..2371137	+	175	110668950	lrp	HQ3063A	-	transcription regulator
1975	 46.76	0	2371913..2372791	-	292	110668951	hop	HQ3064A	-	halorhodopsin
1976	 46.97	0	2373114..2375174	-	686	110668952	-	HQ3065A	-	superfamily II helicase
1977	 46.65	0	2375341..2376519	+	392	110668953	-	HQ3066A	-	metalloprotease
1978	 50.00	0	2376700..2377359	-	219	110668954	-	HQ3067A	-	hypothetical protein
1979	 48.83	0	2377585..2378862	+	425	110668955	-	HQ3068A	-	hypothetical protein
1980	 49.45	0	2379046..2379411	-	121	110668956	-	HQ3069A	-	hypothetical protein
1981	 47.39	0	2379509..2381464	+	651	110668957	-	HQ3070A	-	ATPase
1982	 43.10	-1	2381672..2382019	+	115	110668958	-	HQ3071A	-	hypothetical protein
1983	 46.78	0	2382915..2385971	+	1018	110668959	uvrA	HQ3072A	-	excinuclease ABC chain A
1984	 54.07	+1	2386114..2386494	+	126	110668960	-	HQ3073A	-	hypothetical protein
1985	 48.04	0	2388356..2390218	-	620	110668961	tif5B	HQ3074A	-	translation initiation factor IF-2
1986	 47.97	0	2390359..2390604	+	81	110668962	-	HQ3075A	-	hypothetical protein
1987	 49.89	0	2390625..2391083	+	152	110668963	-	HQ3076A	-	hypothetical protein
1988	 53.65	+1	2391511..2392824	+	437	110668964	-	HQ3077A	-	IS1341-type transposase
1989	 44.67	-1	2393247..2393996	-	249	110668965	-	HQ3078A	-	hypothetical protein
1990	 42.86	-1	2394260..2394595	-	111	110668966	-	HQ3079A	-	azlC associated membrane protein
1991	 48.57	0	2394595..2395329	-	244	110668967	azlC	HQ3080A	-	branched-chain amino acids ABC transporter permease,azaleucine resistance protein
1992	 43.69	-1	2396907..2397215	-	102	110668968	-	HQ3082A	-	hypothetical protein
1993	 48.41	0	2397253..2398068	-	271	110668969	-	HQ3083A	-	hypothetical protein
1994	 46.88	0	2398824..2399384	-	186	110668970	nudF	HQ3084A	-	ADP-ribose pyrophosphatase; Mut/nudix family protein
1995	 47.39	0	2400234..2401556	-	440	110668971	-	HQ3085A	-	hypothetical protein
1996	 45.52	0	2401653..2402054	-	133	110668972	gloA	HQ3086A	-	lactoylglutathione lyase
1997	 47.80	0	2402784..2403896	+	370	110668973	-	HQ3087A	-	hypothetical protein
1998	 50.00	0	2403985..2404530	-	181	110668974	-	HQ3088A	-	hypothetical protein
1999	 46.49	0	2404532..2405101	-	189	110668975	-	HQ3089A	-	hypothetical protein
2000	 50.05	0	2405312..2406346	-	344	110668976	-	HQ3090A	-	hypothetical protein
2001	 48.37	0	2406387..2407304	-	305	110668977	sppA	HQ3091A	-	protease IV; endopeptidase IV; signal peptide peptidase
2002	 42.12	-1	2407530..2408303	-	257	110668978	-	HQ3092A	-	ABC-type transport system, permease protein
2003	 47.74	0	2408306..2409256	-	316	110668979	-	HQ3093A	-	ABC-type transport system, ATP-binding protein
2004	 46.28	0	2409648..2410682	+	344	110668980	aceA	HQ3094A	-	isocitrate lyase
2005	 48.28	0	2411282..2412619	+	445	110668981	-	HQ3095A	-	hypothetical protein
2006	 49.57	0	2412791..2413486	+	231	110668982	rnhB	HQ3096A	-	ribonuclease HII
2007	 49.26	0	2413785..2415347	-	520	110668983	secD	HQ3097A	-	preprotein translocase subunit SecD
2008	 45.78	0	2415344..2416219	-	291	110668984	secF	HQ3098A	-	preprotein translocase subunit SecF
2009	 48.37	0	2416791..2417282	-	163	110668985	-	HQ3099A	-	hypothetical protein
2010	 48.89	0	2417457..2417996	-	179	110668986	-	HQ3100A	-	hypothetical protein
2011	 50.27	0	2418532..2419824	+	430	110668987	pgi	HQ3101A	-	glucose-6-phosphate isomerase
2012	 47.32	0	2419958..2421823	+	621	110668988	kefC	HQ3102A	-	potassium transport protein kefC
2013	 45.05	0	2421858..2422241	-	127	110668989	-	HQ3103A	-	hypothetical protein
2014	 48.78	0	2422751..2424226	+	491	110668990	-	HQ3104A	-	AAA-type ATPase
2015	 46.91	0	2424238..2425062	+	274	110668991	phnP	HQ3105A	-	PhnP-like protein
2016	 48.57	0	2425077..2425949	-	290	110668992	-	HQ3106A	-	hypothetical protein
2017	 47.99	0	2426341..2426763	-	140	110668993	nifUx	HQ3107A	-	NifU domain-containing protein
2018	 50.05	0	2426852..2427820	-	322	110668994	glcK	HQ3108A	-	glucokinase
2019	 47.24	0	2428096..2428476	-	126	110668995	-	HQ3109A	-	hypothetical protein
2020	 47.06	0	2428768..2429772	-	334	110668996	-	HQ3110A	-	hypothetical protein
2021	 49.33	0	2429977..2430276	+	99	110668997	-	HQ3111A	-	hypothetical protein
2022	 48.84	0	2430418..2431539	+	373	110668998	gcvT	HQ3112A	-	aminomethyltransferase, glycin cleavage system T protein
2023	 52.35	0	2432270..2433352	-	360	110668999	-	HQ3113A	-	electron-transferring-flavoprotein dehydrogenase / geranylgeranyl hydrogenase-like protein
2024	 47.73	0	2433415..2433921	-	168	110669000	pdaD	HQ3114A	-	pyruvoyl-dependent arginine decarboxylase
2025	 47.45	0	2434049..2435281	-	410	110669001	pan1	HQ3115A	-	proteasome-activating nucleotidase
2026	 49.37	0	2435356..2435829	-	157	110669002	dcd	HQ3116A	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
2027	 48.71	0	2436360..2438336	+	658	110669003	citB	HQ3117A	-	aconitate hydratase
2028	 47.56	0	2438406..2438897	+	163	110669004	rimI	HQ3118A	-	protein N-acetyltransferase
2029	 48.74	0	2439233..2440342	+	369	110669005	-	HQ3119A	-	NAD/FAD-dependent oxidoreductase
2030	 51.09	0	2440407..2441183	+	258	110669006	-	HQ3120A	-	hypothetical protein
2031	 46.22	0	2442501..2443571	-	356	110669007	nirD	HQ3121A	-	heme biosynthesis protein nirD/L (nirH/nirG homolog)
2032	 47.31	0	2444441..2445520	+	359	110669008	trpD	HQ3122A	-	anthranilate phosphoribosyltransferase
2033	 46.67	0	2445734..2446273	+	179	110669009	ppiA	HQ3123A	-	peptidylprolyl isomerase
2034	 47.40	0	2446361..2446744	+	127	110669010	-	HQ3124A	-	hypothetical protein
2035	 49.28	0	2447363..2448541	+	392	110669011	cofG	HQ3125A	-	FO synthase subunit 1
2036	 49.54	0	2448582..2449130	-	182	110669012	-	HQ3126A	-	hypothetical protein
2037	 47.35	0	2449342..2450754	-	470	110669013	thiH	HQ3127A	-	FO synthase subunit 2
2038	 46.20	0	2451791..2452870	+	359	110669014	purC	HQ3128A	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2039	 45.63	0	2453438..2454421	-	327	110669015	purU	HQ3129A	-	formyltetrahydrofolate deformylase
2040	 51.81	0	2454695..2454970	+	91	110669016	purS	HQ3130A	-	phosphoribosylformylglycinamidine synthase, PurS component
2041	 49.64	0	2454967..2455653	+	228	110669017	purQ	HQ3131A	-	phosphoribosylformylglycinamidine synthase component I
2042	 45.89	0	2455817..2456047	-	76	110669018	-	HQ3132A	-	hypothetical protein
2043	 42.69	-1	2456685..2456855	-	56	110669019	-	HQ3134A	-	hypothetical protein
2044	 49.59	0	2457222..2458439	+	405	110669020	-	HQ3135A	-	cell surface protein/ lipoprotein-putative microfilarial sheath protein
2045	 60.32	+2	2459882..2459944	-	20	110669021	-	HQ3136E	-	IS1341-type transposase (nonfunctional,N-terminal part)
2046	 47.28	0	2460134..2461051	-	305	110669022	-	HQ3137A	-	hydrolase ( hydroxyacylglutathione hydrolase)
2047	 47.72	0	2461328..2462710	+	460	110669023	serS	HQ3138A	-	seryl-tRNA synthetase
2048	 47.93	0	2462840..2463394	+	184	110669024	-	HQ3139A	-	hypothetical protein
2049	 47.59	0	2463699..2464673	+	324	110669025	-	HQ3140A	-	GTP-binding protein
2050	 49.93	0	2465137..2466546	-	469	110669026	-	HQ3141A	-	hypothetical protein
2051	 47.65	0	2466960..2467469	-	169	110669027	-	HQ3142A	-	hypothetical protein
2052	 46.78	0	2467575..2468258	-	227	110669028	trkA	HQ3143A	-	TrkA domain-containing protein
2053	 42.77	-1	2469001..2469318	+	105	110669029	-	HQ3144A	-	hypothetical protein
2054	 47.04	0	2469332..2469973	-	213	110669030	tdk	HQ3145A	-	thymidylate kinase
2055	 48.16	0	2470165..2471088	+	307	110669031	nolA	HQ3146A	-	NADH dehydrogenase 32K chain
2056	 46.56	0	2471510..2472688	+	392	110669032	ftsZ	HQ3147A	-	cell division protein ftsZ
2057	 47.74	0	2472700..2473497	+	265	110669033	-	HQ3148A	-	hypothetical protein
2058	 46.27	0	2473598..2474548	+	316	110669034	-	HQ3149A	-	hypothetical protein
2059	 44.93	-1	2474833..2475453	+	206	110669035	engB	HQ3150A	-	GTP-binding protein
2060	 45.87	0	2475446..2476051	-	201	110669036	-	HQ3151A	-	hypothetical protein
2061	 45.83	0	2476302..2476637	-	111	110669037	-	HQ3152A	-	homolog to thiosulfate sulfurtransferase
48.79	MEAN

3.84	STD DEV
