IslandPath Analysis: Haloquadratum walsbyi DSM 16790

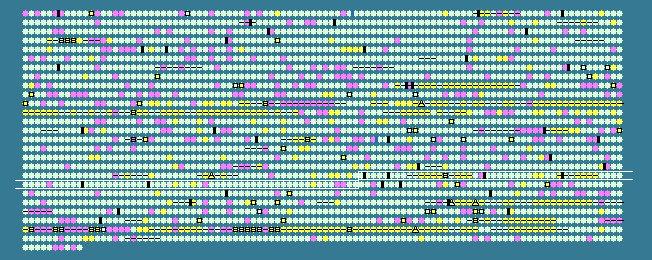

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1857	 49.57	0	2240406..2240756	-	116	110668833	rpl18R	HQ2940A	-	50S ribosomal protein L18e
1858	 50.06	0	2241206..2241994	-	262	110668834	rpoD	HQ2941A	-	DNA-directed RNA polymerase subunit D
1859	 51.26	0	2242001..2242396	-	131	110668835	rps11p	HQ2942A	-	30S ribosomal protein S11P
1860	 51.52	0	2242403..2242930	-	175	110668836	rps4p	HQ2943A	-	30S ribosomal protein S4
1861	 51.72	0	2242946..2243467	-	173	110668837	rps13p	HQ2944A	-	30S ribosomal protein S13P
1862	 49.83	0	2244015..2246123	+	702	110668838	stt3	HQ2945A	-	transmembrane oligosaccharyl transferase
1863	 46.77	0	2246301..2246501	+	66	110668839	-	HQ2946A	-	hypothetical protein
1864	 48.37	0	2246553..2247257	-	234	110668840	guaA	HQ2947A	-	guanosine monophosphate synthetase (glutamine-hydrolyzing) (GMP synthase)
1865	 49.69	0	2247532..2248503	-	323	110668841	moaA	HQ2948A	-	molybdenum cofactor biosynthesis protein A
1866	 51.01	0	2248648..2249688	+	346	110668842	mrp	HQ2949A	-	ATP-binding protein Mrp
1867	 60.26	+2	2250432..2250962	-	176	110668843	-	HQ2950A	-	hypothetical protein
1868	 56.23	+1	2251084..2251380	-	98	110668844	-	HQ2951A	-	hypothetical protein
1869	 52.28	0	2252574..2253122	+	182	110668845	cdc6_	HQ2952A	-	cell division control protein
1870	 52.82	+1	2253141..2253530	+	129	110668846	-	HQ2953A	-	cell division control protein cdc6-like protein
1871	 53.59	+1	2253892..2255130	+	412	110668847	-	HQ2954A	-	IS1341-type transposase
1872	 46.88	0	2255181..2255468	+	95	110668848	-	HQ2955A	-	cell division control protein cdc6-like protein
1873	 54.11	+1	2256429..2257049	+	206	110668849	-	HQ2956A	-	hypothetical protein
1874	 52.71	+1	2257354..2257611	+	85	110668850	-	HQ2957A	-	hypothetical protein
1875	 53.68	+1	2257657..2258064	+	135	110668851	-	HQ2958A	-	hypothetical protein
1876	 46.85	0	2258609..2259895	-	428	110668852	cdc6_	HQ2959A	-	cell division control protein cdc6-like protein
1877	 42.86	-1	2260719..2260970	-	83	110668853	-	HQ2960A	-	hypothetical protein
1878	 46.75	0	2261949..2262455	-	168	110668854	-	HQ2961A	-	protein N-acetyltransferase-like protein
1879	 48.51	0	2262733..2263839	+	368	110668855	livH	HQ2962A	-	ABC-type branched-chain amino acid transport system, permease protein I
1880	 48.54	0	2263836..2265269	+	477	110668856	livM	HQ2963A	-	ABC-type branched-chain amino acid transport system, permease protein II
1881	 51.10	0	2265262..2266122	+	286	110668857	livG	HQ2964A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein I
1882	 48.10	0	2266119..2266958	+	279	110668858	livF	HQ2965A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein II
1883	 51.52	0	2267538..2268296	-	252	110668859	-	HQ2966A	-	hypothetical protein
1884	 48.27	0	2268396..2269031	-	211	110668860	-	HQ2967A	-	hypothetical protein
1885	 48.37	0	2269232..2269384	+	50	110668861	-	HQ2968A	-	hypothetical protein
1886	 52.94	+1	2269647..2271023	-	458	110668862	livJ	HQ2969A	-	ABC-type branched-chain amino acid transport systems, substrate-binding protein
1887	 56.86	+2	2271344..2271649	-	101	110668863	-	HQ2971A	-	hypothetical protein
1888	 51.23	0	2272940..2273263	-	107	110668864	-	HQ2973A	-	hypothetical protein
1889	 48.99	0	2273668..2274753	+	361	110668865	-	HQ2974A	-	metal-dependent hydrolase of the TIM-barrel fold
1890	 52.47	0	2274759..2275547	+	262	110668866	-	HQ2975A	-	hypothetical protein
1891	 49.71	0	2276142..2276312	-	56	110668867	-	HQ2976A	-	hypothetical protein
1892	 51.47	0	2277617..2277820	-	67	110668868	-	HQ2977A	-	hypothetical protein
1893	 55.76	+1	2277866..2278186	-	106	110668869	-	HQ2978A	-	hypothetical protein
1894	 58.33	+2	2279551..2280054	-	167	110668870	-	HQ2980A	-	hypothetical protein
1895	 60.78	+2	2281451..2281705	-	84	110668871	-	HQ2982A	-	hypothetical protein
1896	 58.97	+2	2281983..2282216	-	77	110668872	-	HQ2983A	-	hypothetical protein
1897	 49.29	0	2282820..2284010	+	396	110668873	sqdB	HQ2984A	-	UDP-sulfoquinovose synthase
1898	 48.65	0	2284007..2285005	+	332	110668874	galE	HQ2985A	-	nucleoside-diphosphate-sugar epimerase ( UDP-glucose 4-epimerase)
1899	 50.00	0	2285002..2285991	+	329	110668875	galE	HQ2986A	-	nucleoside-diphosphate-sugar epimerase ( UDP-glucose 4-epimerase)
1900	 47.90	0	2286045..2286902	-	285	110668876	-	HQ2987A	-	transcriptional regulator
1901	 50.33	0	2287560..2288759	+	399	110668877	graD	HQ2989A	-	glucose-1-phosphate thymidylyltransferase
1902	 51.62	0	2288759..2290579	+	606	110668878	glmS	HQ2990A	-	glutamine--fructose-6-phosphate transaminase (isomerizing)
1903	 52.00	0	2290892..2291968	+	358	110668879	-	HQ2991A	-	hypothetical protein
1904	 51.24	0	2292439..2293650	+	403	110668880	graD	HQ2992A	-	glucose-1-phosphate thymidylyltransferase
1905	 45.27	0	2293711..2293953	-	80	110668881	-	HQ2993A	-	hypothetical protein
1906	 52.16	0	2294438..2296285	-	615	110668882	sdhA	HQ2994A	-	succinate dehydrogenase, subunit A (flavoprotein)
1907	 46.96	0	2296342..2297214	-	290	110668883	sdhB	HQ2995A	-	succinate dehydrogenase, subunit B (iron-sulfur protein)
1908	 52.15	0	2297381..2297752	-	123	110668884	sdhD	HQ2996A	-	succinate dehydrogenase, subunit D (membrane anchor protein)
1909	 51.01	0	2297752..2298147	-	131	110668885	sdhC	HQ2997A	-	succinate dehydrogenase, subunit C (cytochrome b-556)
1910	 47.14	0	2298460..2298843	-	127	110668886	-	HQ2998A	-	hypothetical protein
1911	 47.89	0	2299285..2299758	+	157	110668887	-	HQ2999A	-	hypothetical protein
1912	 48.46	0	2300501..2302516	-	671	110668888	spoVR	HQ3000A	-	spore cortext formation protein
1913	 49.52	0	2302744..2304084	-	446	110668889	-	HQ3001A	-	hypothetical protein
1914	 49.85	0	2304075..2306351	-	758	110668890	prkA	HQ3002A	-	serine protein kinase
1915	 47.97	0	2306695..2308764	-	689	110668891	prkA	HQ3003A	-	serine protein kinase
1916	 48.37	0	2309135..2309593	+	152	110668892	-	HQ3004A	-	hypothetical protein
1917	 49.57	0	2309689..2310507	-	272	110668893	-	HQ3005A	-	succinylglutamate desuccinylase-like protein
1918	 46.87	0	2310848..2311342	+	164	110668894	-	HQ3006A	-	hypothetical protein
1919	 48.77	0	2311546..2313003	+	485	110668895	-	HQ3007A	-	beta,beta-carotene 9',10'-dioxygenase 2
1920	 47.78	0	2313047..2313226	-	59	110668896	-	HQ3008A	-	hypothetical protein
1921	 50.68	0	2313260..2313703	-	147	110668897	-	HQ3009A	-	hypothetical protein
1922	 50.10	0	2314177..2315190	-	337	110668898	guaD	HQ3010A	-	nucleoside deaminase (cytosine deaminase, guanine deaminase)
1923	 49.35	0	2315382..2316617	-	411	110668899	-	HQ3011A	-	hypothetical protein
1924	 48.49	0	2316848..2317909	+	353	110668900	-	HQ3012A	-	LPPG:FO 2-phospho-L-lactate transferase
1925	 50.32	0	2317909..2318685	+	258	110668901	-	HQ3013A	-	tRNA-dihydrouridine synthase
1926	 53.15	+1	2318744..2319601	+	285	110668902	citG	HQ3014A	-	triphosphoribosyl-dephospho-CoA synthase
1927	 50.80	0	2319607..2320356	+	249	110668903	-	HQ3015A	-	hypothetical protein
1928	 46.08	0	2320407..2320610	+	67	110668904	rps17E	HQ3016A	-	30S ribosomal protein S17e
1929	 53.54	+1	2320921..2321217	-	98	110668905	-	HQ3017A	-	acc operon protein
1930	 47.00	0	2321223..2322773	-	516	110668906	accA	HQ3018A	-	acetyl-CoA carboxylase alpha subunit
1931	 41.78	-1	2323010..2323222	+	70	110668907	-	HQ3019A	-	hypothetical protein
1932	 52.26	0	2323415..2323900	+	161	110668908	bcp	HQ3020A	-	peroxiredoxin homolog, bacterioferritin comigrating protein
1933	 50.64	0	2324280..2326070	-	596	110668909	ilvD	HQ3021A	-	dihydroxy-acid dehydratase
1934	 49.33	0	2326145..2326819	-	224	110668910	moaB	HQ3022A	-	molybdenum cofactor biosynthesis protein B
1935	 46.19	0	2326904..2327914	-	336	110668911	-	HQ3023A	-	hypothetical protein
1936	 48.41	0	2328035..2329075	+	346	110668912	qor	HQ3024A	-	NADPH:quinone reductase
1937	 47.39	0	2329065..2329313	+	82	110668913	-	HQ3025A	-	hypothetical protein
1938	 46.44	0	2329537..2329887	+	116	110668914	-	HQ3026A	-	hypothetical protein
1939	 49.56	0	2330115..2331032	+	305	110668915	-	HQ3027A	-	hypothetical protein
1940	 50.96	0	2331246..2332856	-	536	110668916	-	HQ3028A	-	hypothetical protein
1941	 48.50	0	2333051..2333881	-	276	110668917	pspA	HQ3029A	-	stress response protein
1942	 45.68	0	2333935..2334582	+	215	110668918	-	HQ3030A	-	hypothetical protein
1943	 50.54	0	2334780..2335151	-	123	110668919	-	HQ3031A	-	cobalamin operon protein
1944	 49.96	0	2335166..2336422	-	418	110668920	cbiX	HQ3032A	-	cobalamin cluster protein CbiX ( ferredoxin-like iron-sulfur protein)
1945	 49.68	0	2336415..2337197	-	260	110668921	-	HQ3032B	-	cobalamin operon protein
1946	 48.97	0	2337357..2338424	-	355	110668922	cbiH2	HQ3033A	-	precorrin-3B C17-methyltransferase 2
1947	 50.17	0	2338458..2339318	-	286	110668923	cbiH1	HQ3034A	-	precorrin-3B C17-methyltransferase 1
1948	 51.08	0	2339315..2340283	-	322	110668924	cbiG	HQ3035A	-	cobalamin biosynthesis protein G, CbiG
1949	 54.18	+1	2340428..2341276	-	282	110668925	asnA	HQ3036A	-	asparaginase
1950	 49.61	0	2341452..2343116	-	554	110668926	-	HQ3037A	-	hypothetical protein
1951	 47.35	0	2343363..2343683	-	106	110668927	-	HQ3038A	-	hypothetical protein
1952	 47.41	0	2343807..2344211	+	134	110668928	-	HQ3039A	-	stress response protein
1953	 45.26	0	2344279..2345418	-	379	110668929	-	HQ3040A	-	hypothetical protein
1954	 45.11	0	2345573..2345920	-	115	110668930	-	HQ3041A	-	hypothetical protein
1955	 45.96	0	2346193..2346699	+	168	110668931	mobB	HQ3042A	-	molybdopterin-guanine dinucleotide biosynthesis protein B
1956	 47.75	0	2346928..2347794	-	288	110668932	-	HQ3043A	-	hypothetical protein
48.79	MEAN

3.84	STD DEV
