IslandPathversion 1.0

IslandPath Analysis: Haloquadratum walsbyi DSM 16790

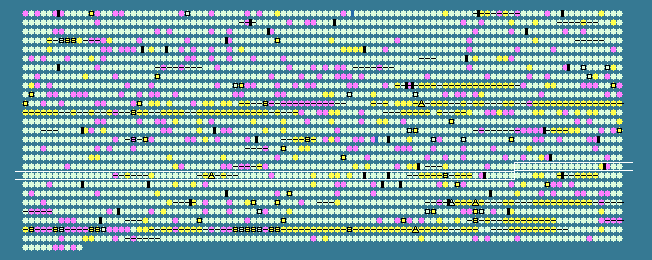

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1783	 47.47	0	2168848..2169696	-	282	110668759	-	HQ2861A	-	carotenoid biosynthesis protein
1784	 46.00	0	2169689..2170564	-	291	110668760	ubiA	HQ2862A	-	prenyltransferase
1785	 47.04	0	2170580..2172082	-	500	110668761	crtI	HQ2863A	-	phytoene dehydrogenase (phytoene desaturase)
1786	 46.32	0	2172438..2172845	+	135	110668762	-	HQ2864A	-	stress response protein
1787	 47.27	0	2173253..2173912	+	219	110668763	-	HQ2865A	-	hypothetical protein
1788	 48.30	0	2173937..2174791	+	284	110668764	-	HQ2866A	-	metalloenzyme, TatD related DNAse
1789	 46.77	0	2175279..2175866	+	195	110668765	-	HQ2867A	-	hypothetical protein
1790	 46.49	0	2176203..2177669	+	488	110668766	mvaB	HQ2868A	-	hydroxymethylglutaryl-CoA synthase
1791	 49.09	0	2178030..2178740	-	236	110668767	-	HQ2869A	-	transcriptional regulator
1792	 48.65	0	2178991..2179695	+	234	110668768	-	HQ2870A	-	hypothetical protein
1793	 46.63	0	2179800..2180393	+	197	110668769	-	HQ2871A	-	acetyltransferase
1794	 47.84	0	2180530..2181039	+	169	110668770	-	HQ2872A	-	hypothetical protein
1795	 49.07	0	2181109..2182347	-	412	110668771	alaS	HQ2873A	-	alanine--tRNA ligase
1796	 51.74	0	2182489..2183004	-	171	110668772	-	HQ2874A	-	transcriptional regulator
1797	 55.69	+1	2184972..2185226	-	84	110668773	-	HQ2876A	-	hypothetical protein
1798	 41.00	-2	2185884..2186444	+	186	110668774	-	HQ2877A	-	hypothetical protein
1799	 49.72	0	2186574..2187464	+	296	110668775	ksgA	HQ2878A	-	dimethyladenosine transferase
1800	 48.51	0	2187461..2188099	+	212	110668776	hemK	HQ2879A	-	protein methyltransferase
1801	 46.74	0	2188161..2189234	+	357	110668777	metE	HQ2880A	-	5-methyltetrahydropteroyltriglutamate--homocyste ine S-methyltransferase, methionine synthase II
1802	 47.76	0	2189234..2190328	+	364	110668778	metE	HQ2881A	-	methionine synthase
1803	 49.27	0	2190523..2190999	-	158	110668779	ndk	HQ2882A	-	nucleoside-diphosphate kinase
1804	 49.48	0	2190996..2191187	-	63	110668780	rpl24R	HQ2883A	-	ribosomal protein L24.eR
1805	 49.78	0	2191191..2191415	-	74	110668781	rps28e	HQ2884A	-	30S ribosomal protein S28e
1806	 48.76	0	2191422..2191784	-	120	110668782	rpl7ae	HQ2885A	-	50S ribosomal protein L7Ae
1807	 49.38	0	2192204..2192689	+	161	110668783	-	HQ2886A	-	hypothetical protein
1808	 50.54	0	2193132..2193776	-	214	110668784	-	HQ2887A	-	hypothetical protein
1809	 48.84	0	2193804..2195564	-	586	110668785	gltX	HQ2888A	-	glutamyl-tRNA synthetase
1810	 49.57	0	2195740..2196786	-	348	110668786	idsA	HQ2889A	-	trifunctional short-chain (E)-prenyl diphosphate synthase ( dimethylallyltransferase / geranyltranstransferase / farnesytranstransferase)
1811	 45.90	0	2196788..2198140	-	450	110668787	-	HQ2890A	-	hydrolase
1812	 46.58	0	2198718..2198951	+	77	110668788	-	HQ2891A	-	small nuclear ribonucleoprotein (snRNP)-like protein
1813	 46.89	0	2198948..2199124	+	58	110668789	rpl37e	HQ2892A	-	50S ribosomal protein L37e
1814	 49.24	0	2199832..2201811	+	659	110668790	purF	HQ2893A	-	amidophosphoribosyltransferase
1815	 46.97	0	2201952..2202677	-	241	110668791	-	HQ2894A	-	hypothetical protein
1816	 43.70	-1	2202711..2203067	-	118	110668792	rpoF	HQ2895A	-	DNA-directed RNA polymerase subunit F
1817	 48.80	0	2203180..2203470	-	96	110668793	rpl21R	HQ2896A	-	50S ribosomal protein L21e
1818	 53.26	+1	2203593..2203868	+	91	110668794	-	HQ2897A	-	hypothetical protein
1819	 51.31	0	2204049..2204315	-	88	110668795	ef1B	HQ2898A	-	elongation factor 1-beta
1820	 48.89	0	2204318..2204497	-	59	110668796	-	HQ2899A	-	Zn-ribbon RNA-binding protein
1821	 51.99	0	2204680..2206035	-	451	110668797	-	HQ2900A	-	hypothetical protein
1822	 52.46	0	2206263..2206607	-	114	110668798	rpl12p	HQ2901A	-	50S ribosomal protein L12P
1823	 49.81	0	2206719..2207798	-	359	110668799	rplP0	HQ2902A	-	acidic ribosomal protein P0
1824	 51.33	0	2207795..2208433	-	212	110668800	rpl1P	HQ2903A	-	50S ribosomal protein L1P
1825	 49.48	0	2208732..2209022	+	96	110668801	-	HQ2904A	-	hypothetical protein
1826	 48.72	0	2209325..2210299	-	324	110668802	birA	HQ2905A	-	biotin--[acetyl-CoA-carboxylase] ligase
1827	 49.65	0	2210482..2212326	-	614	110668803	accA2	HQ2906A	-	biotin carboxylase 1, acyl-CoA carboxylase, alpha subunit 2
1828	 49.37	0	2212609..2213643	+	344	110668804	asd	HQ2908A	-	aspartate-semialdehyde dehydrogenase
1829	 49.02	0	2213853..2214872	-	339	110668805	serA	HQ2909A	-	phosphoglycerate dehydrogenase
1830	 50.07	0	2215021..2216454	+	477	110668806	fixC	HQ2910A	-	electron-transferring-flavoprotein dehydrogenase
1831	 52.67	+1	2217345..2217587	+	80	110668807	-	HQ2911A	-	hypothetical protein
1832	 57.03	+2	2217584..2217967	+	127	110668808	-	HQ2912A	-	integrase/recombinase
1833	 51.07	0	2218223..2218549	-	108	110668809	-	HQ2913A	-	hypothetical protein
1834	 52.33	0	2218555..2218854	-	99	110668810	-	HQ2914A	-	hypothetical protein
1835	 50.72	0	2219174..2219662	+	162	110668811	-	HQ2915A	-	cell surface glycoprotein
1836	 47.59	0	2219756..2220253	-	165	110668812	-	HQ2916A	-	hypothetical protein
1837	 50.12	0	2220379..2220807	-	142	110668813	-	HQ2917A	-	hypothetical protein
1838	 46.85	0	2221406..2222515	-	369	110668814	agxT	HQ2919A	-	aminotransferase class V (Serine--pyruvate aminotransferase 2; alanine--glyoxylate aminotransferase 2)
1839	 50.00	0	2222731..2223192	+	153	110668815	msrB	HQ2921A	-	peptide methionine sulfoxide reductase (R-form specific)
1840	 48.52	0	2223449..2223922	-	157	110668816	rpl11p	HQ2922A	-	50S ribosomal protein L11P
1841	 51.07	0	2224058..2225128	-	356	110668817	celM	HQ2923A	-	cellulase; endo-1,3(4)-beta-glucanase
1842	 41.41	-1	2225135..2225332	-	65	110668818	-	HQ2924A	-	hypothetical protein
1843	 52.11	0	2225360..2226376	+	338	110668819	mvk	HQ2925A	-	mevalonate kinase
1844	 48.93	0	2226379..2227269	+	296	110668820	-	HQ2926A	-	amino acid kinase
1845	 48.14	0	2227335..2228192	-	285	110668821	elaC	HQ2927A	-	ribonuclease Z (RNase Z) (tRNA 3 endonuclease)
1846	 48.51	0	2228324..2231209	+	961	110668822	lhr	HQ2928A	-	ATP-dependent helicase
1847	 50.09	0	2231412..2234234	-	940	110668823	dna2	HQ2930A	-	DNA2-like DNA replication helicase
1848	 50.00	0	2234374..2234949	+	191	110668824	-	HQ2931A	-	hypothetical protein
1849	 52.44	0	2235081..2235326	+	81	110668825	-	HQ2932A	-	hypothetical protein
1850	 49.90	0	2235450..2236457	-	335	110668826	-	HQ2933A	-	hypothetical protein
1851	 50.48	0	2236677..2237516	-	279	110668827	rps2P	HQ2934A	-	30S ribosomal protein S2
1852	 52.32	0	2237513..2238718	-	401	110668828	eno	HQ2935A	-	phosphopyruvate hydratase
1853	 52.53	0	2238721..2238918	-	65	110668829	rpoK	HQ2936A	-	DNA-directed RNA polymerase subunit K
1854	 49.23	0	2239373..2239567	-	64	110668830	rpoN	HQ2937A	-	DNA-directed RNA polymerase subunit N
1855	 52.88	+1	2239580..2239978	-	132	110668831	rps9p	HQ2938A	-	30S ribosomal protein S9P
1856	 49.77	0	2239972..2240409	-	145	110668832	rpl13p	HQ2939A	-	50S ribosomal protein L13P
1857	 49.57	0	2240406..2240756	-	116	110668833	rpl18R	HQ2940A	-	50S ribosomal protein L18e
1858	 50.06	0	2241206..2241994	-	262	110668834	rpoD	HQ2941A	-	DNA-directed RNA polymerase subunit D
1859	 51.26	0	2242001..2242396	-	131	110668835	rps11p	HQ2942A	-	30S ribosomal protein S11P
1860	 51.52	0	2242403..2242930	-	175	110668836	rps4p	HQ2943A	-	30S ribosomal protein S4
1861	 51.72	0	2242946..2243467	-	173	110668837	rps13p	HQ2944A	-	30S ribosomal protein S13P
1862	 49.83	0	2244015..2246123	+	702	110668838	stt3	HQ2945A	-	transmembrane oligosaccharyl transferase
1863	 46.77	0	2246301..2246501	+	66	110668839	-	HQ2946A	-	hypothetical protein
1864	 48.37	0	2246553..2247257	-	234	110668840	guaA	HQ2947A	-	guanosine monophosphate synthetase (glutamine-hydrolyzing) (GMP synthase)
1865	 49.69	0	2247532..2248503	-	323	110668841	moaA	HQ2948A	-	molybdenum cofactor biosynthesis protein A
1866	 51.01	0	2248648..2249688	+	346	110668842	mrp	HQ2949A	-	ATP-binding protein Mrp
1867	 60.26	+2	2250432..2250962	-	176	110668843	-	HQ2950A	-	hypothetical protein
1868	 56.23	+1	2251084..2251380	-	98	110668844	-	HQ2951A	-	hypothetical protein
1869	 52.28	0	2252574..2253122	+	182	110668845	cdc6_	HQ2952A	-	cell division control protein
1870	 52.82	+1	2253141..2253530	+	129	110668846	-	HQ2953A	-	cell division control protein cdc6-like protein
1871	 53.59	+1	2253892..2255130	+	412	110668847	-	HQ2954A	-	IS1341-type transposase
1872	 46.88	0	2255181..2255468	+	95	110668848	-	HQ2955A	-	cell division control protein cdc6-like protein
1873	 54.11	+1	2256429..2257049	+	206	110668849	-	HQ2956A	-	hypothetical protein
1874	 52.71	+1	2257354..2257611	+	85	110668850	-	HQ2957A	-	hypothetical protein
1875	 53.68	+1	2257657..2258064	+	135	110668851	-	HQ2958A	-	hypothetical protein
1876	 46.85	0	2258609..2259895	-	428	110668852	cdc6_	HQ2959A	-	cell division control protein cdc6-like protein
1877	 42.86	-1	2260719..2260970	-	83	110668853	-	HQ2960A	-	hypothetical protein
1878	 46.75	0	2261949..2262455	-	168	110668854	-	HQ2961A	-	protein N-acetyltransferase-like protein
1879	 48.51	0	2262733..2263839	+	368	110668855	livH	HQ2962A	-	ABC-type branched-chain amino acid transport system, permease protein I
1880	 48.54	0	2263836..2265269	+	477	110668856	livM	HQ2963A	-	ABC-type branched-chain amino acid transport system, permease protein II
1881	 51.10	0	2265262..2266122	+	286	110668857	livG	HQ2964A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein I
1882	 48.10	0	2266119..2266958	+	279	110668858	livF	HQ2965A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein II
48.79	MEAN

3.84	STD DEV
