IslandPath Analysis: Haloquadratum walsbyi DSM 16790

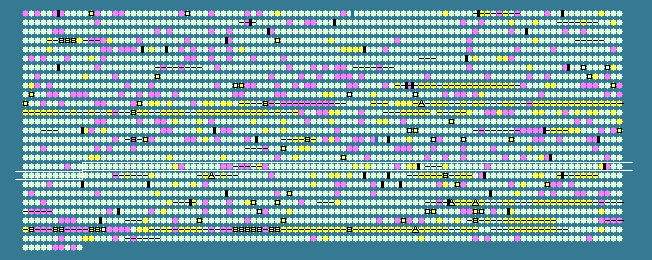

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1711	 48.23	0	2093505..2094068	+	187	110668687	-	HQ2788A	-	phosphoglycolate phosphatase
1712	 50.22	0	2094285..2094734	+	149	110668688	-	HQ2789A	-	hypothetical protein
1713	 47.01	0	2094906..2095841	-	311	110668689	folD	HQ2790A	-	methylenetetrahydrofolate dehydrogenase; methenyltetrahydrofolate cyclohydrolase
1714	 49.52	0	2095993..2097240	-	415	110668690	glyA	HQ2791A	-	glycine hydroxymethyltransferase
1715	 45.45	0	2097630..2098454	+	274	110668691	-	HQ2792A	-	hypothetical protein
1716	 51.00	0	2098502..2100295	+	597	110668692	-	HQ2793A	-	hypothetical protein
1717	 47.82	0	2100441..2101586	-	381	110668693	-	HQ2794A	-	hypothetical protein
1718	 50.00	0	2101811..2102620	-	269	110668694	suhB	HQ2795A	-	inositol-1(or 4)-monophosphatase/ fructose-1,6-bisphosphatase, type
1719	 46.71	0	2102607..2103047	-	146	110668695	uspA	HQ2796A	-	stress response protein
1720	 49.72	0	2103188..2103547	+	119	110668696	-	HQ2797A	-	hypothetical protein
1721	 48.14	0	2103801..2104739	+	312	110668697	mch	HQ2798A	-	N(5),N(10)-methenyltetrahydromethanopterin cyclohydrolase
1722	 48.48	0	2104900..2106246	-	448	110668698	caaX	HQ2799A	-	CAAX prenyl proteinase / zinc metalloproteinase
1723	 51.20	0	2106602..2108230	-	542	110668699	-	HQ2800A	-	translation elongation factor aEF-1 alpha subunit-like protein
1724	 50.87	0	2108901..2109419	-	172	110668700	dnaJ	HQ2801A	-	chaperone protein dnaJ
1725	 51.98	0	2109764..2111002	+	412	110668701	-	HQ2802A	-	hypothetical protein
1726	 52.86	+1	2111152..2111361	+	69	110668702	-	HQ2803A	-	hypothetical protein
1727	 42.22	-1	2112830..2113009	+	59	110668703	-	HQ2804A	-	hypothetical protein
1728	 45.34	0	2113045..2113752	-	235	110668704	livF	HQ2805A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein I
1729	 47.09	0	2113754..2114785	-	343	110668705	livG	HQ2806A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein II
1730	 47.57	0	2114782..2116656	-	624	110668706	livM	HQ2807A	-	ABC-type branched-chain amino acid transport system, permease protein II
1731	 47.53	0	2116659..2118116	-	485	110668707	livH	HQ2808A	-	ABC-type branched-chain amino acid transport system, permease protein I
1732	 48.30	0	2118220..2119575	+	451	110668708	livJ	HQ2809A	-	ABC-type branched-chain amino acid transport systems, substrate-binding protein
1733	 48.34	0	2119942..2121240	+	432	110668709	-	HQ2810A	-	hypothetical protein
1734	 41.96	-1	2121378..2121632	-	84	110668710	-	HQ2811A	-	hypothetical protein
1735	 44.98	0	2121737..2122045	-	102	110668711	-	HQ2812A	-	hypothetical protein
1736	 45.48	0	2122263..2122682	+	139	110668712	-	HQ2813A	-	hypothetical protein
1737	 43.10	-1	2122710..2123723	-	337	110668713	-	HQ2814A	-	signal-transducing histidine kinase
1738	 40.21	-2	2124237..2124527	-	96	110668714	-	HQ2815A	-	hypothetical protein
1739	 48.52	0	2125317..2125553	+	78	110668715	-	HQ2816A	-	hypothetical protein
1740	 55.46	+1	2125671..2126036	-	121	110668716	-	HQ2817A	-	hypothetical protein
1741	 43.04	-1	2126475..2126711	+	78	110668717	-	HQ2818A	-	hypothetical protein
1742	 49.39	0	2126989..2128458	-	489	110668718	secY	HQ2819A	-	preprotein translocase subunit SecY
1743	 48.48	0	2128474..2128968	-	164	110668719	rpl15p	HQ2820A	-	50S ribosomal protein L15P
1744	 50.54	0	2128965..2129429	-	154	110668720	rpl30p	HQ2821A	-	50S ribosomal protein L30P
1745	 50.91	0	2129429..2130088	-	219	110668721	rps5p	HQ2822A	-	30S ribosomal protein S5P
1746	 52.27	0	2130085..2130702	-	205	110668722	rpl18p	HQ2823A	-	50S ribosomal protein L18P
1747	 51.52	0	2130702..2131163	-	153	110668723	rpl19e	HQ2824A	-	50S ribosomal protein L19e
1748	 51.99	0	2131160..2132113	-	317	110668724	rpl32R	HQ2825A	-	50S ribosomal protein L32e
1749	 49.73	0	2132115..2132663	-	182	110668725	rpl6p	HQ2826A	-	50S ribosomal protein L6P
1750	 47.84	0	2132668..2133060	-	130	110668726	rps8p	HQ2827A	-	30S ribosomal protein S8P
1751	 48.59	0	2133063..2133239	-	58	110668727	rps14P	HQ2828A	-	30S ribosomal protein S14P
1752	 50.00	0	2133246..2133803	-	185	110668728	rpl5p	HQ2829A	-	50S ribosomal protein L5P
1753	 47.49	0	2133800..2134597	-	265	110668729	rps4R	HQ2830A	-	30S ribosomal protein S4e
1754	 49.17	0	2134594..2134953	-	119	110668730	rpl24p	HQ2831A	-	50S ribosomal protein L24P
1755	 51.88	0	2134963..2135361	-	132	110668731	rpl14p	HQ2832A	-	50S ribosomal protein L14P
1756	 56.16	+1	2135361..2135693	-	110	110668732	rps17p	HQ2833A	-	30S ribosomal protein S17P
1757	 49.34	0	2135684..2136370	-	228	110668733	rnpA	HQ2834A	-	ribonuclease P protein component 1 (RNase P component 1)
1758	 53.07	+1	2136395..2136622	-	75	110668734	rpl29	HQ2835A	-	50S ribosomal protein L29
1759	 49.69	0	2136623..2137594	-	323	110668735	rps3p	HQ2836A	-	30S ribosomal protein S3P
1760	 47.17	0	2137594..2138070	-	158	110668736	rpl22p	HQ2837A	-	50S ribosomal protein L22P
1761	 48.94	0	2138097..2138519	-	140	110668737	rps19p	HQ2838A	-	30S ribosomal protein S19P
1762	 51.64	0	2138664..2139395	-	243	110668738	rpl2p	HQ2839A	-	50S ribosomal protein L2P
1763	 38.82	-2	2139399..2139653	-	84	110668739	rplW	HQ2840A	-	50S ribosomal protein L23
1764	 51.67	0	2139650..2140396	-	248	110668740	rpl4lp	HQ2841A	-	50S ribosomal protein L4P
1765	 53.10	+1	2140403..2141419	-	338	110668741	rpl3p	HQ2842A	-	50S ribosomal protein L3P
1766	 55.37	+1	2141424..2142335	-	303	110668742	-	HQ2843A	-	rpl operon protein
1767	 48.06	0	2143012..2143758	+	248	110668743	-	HQ2844A	-	hypothetical protein
1768	 50.00	0	2143835..2144392	-	185	110668744	-	HQ2845A	-	hypothetical protein
1769	 48.48	0	2144396..2144923	-	175	110668745	-	HQ2846A	-	hypothetical protein
1770	 50.37	0	2145407..2146609	-	400	110668746	idiB	HQ2847A	-	isopentenyl-diphosphate delta-isomerase
1771	 57.30	+2	2147598..2149754	+	718	110668747	capA	HQ2849A	-	poly-gamma-glutamate biosynthesis/capsule biosynthesis protein
1772	 48.20	0	2150200..2150811	-	203	110668748	-	HQ2850A	-	translation initiation factor IF-2 subunit beta
1773	 45.45	0	2151392..2151622	-	76	110668749	-	HQ2851A	-	hypothetical protein
1774	 48.98	0	2151812..2152936	-	374	110668750	dhs	HQ2852A	-	putative deoxyhypusine synthase
1775	 46.82	0	2153558..2154328	-	256	110668751	nif3	HQ2853A	-	hypothetical protein
1776	 48.00	0	2154525..2156276	-	583	110668752	-	HQ2854A	-	hypothetical protein
1777	 46.83	0	2156386..2156637	-	83	110668753	-	HQ2855A	-	hypothetical protein
1778	 44.68	-1	2156640..2157767	-	375	110668754	-	HQ2856A	-	hypothetical protein
1779	 47.93	0	2158212..2159081	-	289	110668755	sucD	HQ2857A	-	succinate--CoA ligase, alpha subunit (ADP-forming)
1780	 47.38	0	2159078..2160223	-	381	110668756	sucC	HQ2858A	-	succinate--CoA ligase beta subunit (ADP-forming)
1781	 47.87	0	2160650..2166379	+	1909	110668757	nrdA	HQ2859A	-	ribonucleoside-diphosphate reductase alpha subunit (intein-containing)
1782	 49.47	0	2167497..2168537	+	346	110668758	crtB	HQ2860A	-	geranylgeranyl-diphosphate geranylgeranyltransferase (phytoene synthase)
1783	 47.47	0	2168848..2169696	-	282	110668759	-	HQ2861A	-	carotenoid biosynthesis protein
1784	 46.00	0	2169689..2170564	-	291	110668760	ubiA	HQ2862A	-	prenyltransferase
1785	 47.04	0	2170580..2172082	-	500	110668761	crtI	HQ2863A	-	phytoene dehydrogenase (phytoene desaturase)
1786	 46.32	0	2172438..2172845	+	135	110668762	-	HQ2864A	-	stress response protein
1787	 47.27	0	2173253..2173912	+	219	110668763	-	HQ2865A	-	hypothetical protein
1788	 48.30	0	2173937..2174791	+	284	110668764	-	HQ2866A	-	metalloenzyme, TatD related DNAse
1789	 46.77	0	2175279..2175866	+	195	110668765	-	HQ2867A	-	hypothetical protein
1790	 46.49	0	2176203..2177669	+	488	110668766	mvaB	HQ2868A	-	hydroxymethylglutaryl-CoA synthase
1791	 49.09	0	2178030..2178740	-	236	110668767	-	HQ2869A	-	transcriptional regulator
1792	 48.65	0	2178991..2179695	+	234	110668768	-	HQ2870A	-	hypothetical protein
1793	 46.63	0	2179800..2180393	+	197	110668769	-	HQ2871A	-	acetyltransferase
1794	 47.84	0	2180530..2181039	+	169	110668770	-	HQ2872A	-	hypothetical protein
1795	 49.07	0	2181109..2182347	-	412	110668771	alaS	HQ2873A	-	alanine--tRNA ligase
1796	 51.74	0	2182489..2183004	-	171	110668772	-	HQ2874A	-	transcriptional regulator
1797	 55.69	+1	2184972..2185226	-	84	110668773	-	HQ2876A	-	hypothetical protein
1798	 41.00	-2	2185884..2186444	+	186	110668774	-	HQ2877A	-	hypothetical protein
1799	 49.72	0	2186574..2187464	+	296	110668775	ksgA	HQ2878A	-	dimethyladenosine transferase
1800	 48.51	0	2187461..2188099	+	212	110668776	hemK	HQ2879A	-	protein methyltransferase
1801	 46.74	0	2188161..2189234	+	357	110668777	metE	HQ2880A	-	5-methyltetrahydropteroyltriglutamate--homocyste ine S-methyltransferase, methionine synthase II
1802	 47.76	0	2189234..2190328	+	364	110668778	metE	HQ2881A	-	methionine synthase
1803	 49.27	0	2190523..2190999	-	158	110668779	ndk	HQ2882A	-	nucleoside-diphosphate kinase
1804	 49.48	0	2190996..2191187	-	63	110668780	rpl24R	HQ2883A	-	ribosomal protein L24.eR
1805	 49.78	0	2191191..2191415	-	74	110668781	rps28e	HQ2884A	-	30S ribosomal protein S28e
1806	 48.76	0	2191422..2191784	-	120	110668782	rpl7ae	HQ2885A	-	50S ribosomal protein L7Ae
1807	 49.38	0	2192204..2192689	+	161	110668783	-	HQ2886A	-	hypothetical protein
1808	 50.54	0	2193132..2193776	-	214	110668784	-	HQ2887A	-	hypothetical protein
1809	 48.84	0	2193804..2195564	-	586	110668785	gltX	HQ2888A	-	glutamyl-tRNA synthetase
1810	 49.57	0	2195740..2196786	-	348	110668786	idsA	HQ2889A	-	trifunctional short-chain (E)-prenyl diphosphate synthase ( dimethylallyltransferase / geranyltranstransferase / farnesytranstransferase)
48.79	MEAN

3.84	STD DEV
