IslandPath Analysis: Haloquadratum walsbyi DSM 16790

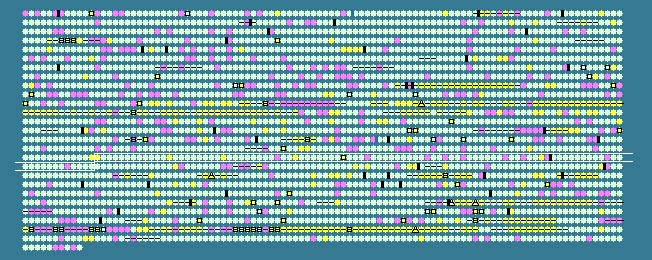

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1613	 54.71	+1	1974992..1975978	-	328	110668589	galE	HQ2683A	-	nucleoside-diphosphate-sugar epimerase 1 ( UDP-glucose 4-epimerase)
1614	 47.18	0	1977742..1978557	+	271	110668590	-	HQ2685A	-	hypothetical protein
1615	 49.66	0	1978601..1979641	-	346	110668591	-	HQ2686A	-	hexosyltransferase; glycosyltransferase
1616	 46.34	0	1979745..1981328	+	527	110668592	-	HQ2687A	-	polysaccharide biosynthesis transporter
1617	 51.25	0	1981359..1982357	+	332	110668593	-	HQ2688A	-	hypothetical protein
1618	 51.52	0	1984182..1985633	+	483	110668594	aslA	HQ2690A	-	arylsulfatase
1619	 47.92	0	1985738..1986889	-	383	110668595	-	HQ2691A	-	hexosyltransferase; glycosyltransferase
1620	 51.95	0	1987643..1988641	-	332	110668596	-	HQ2692A	-	glycosyltransferase
1621	 49.50	0	1989499..1990698	+	399	110668597	gtl	HQ2694A	-	glycosyltransferase ( dolichyl-phosphate beta-D-mannosyltransferase)
1622	 50.15	0	1990887..1991213	-	108	110668598	-	HQ2695A	-	hypothetical protein
1623	 47.42	0	1991662..1991874	+	70	110668599	-	HQ2696A	-	hypothetical protein
1624	 50.77	0	1992174..1992563	-	129	110668600	-	HQ2697A	-	hypothetical protein
1625	 52.36	0	1992782..1993480	-	232	110668601	-	HQ2698A	-	hypothetical protein
1626	 49.49	0	1993740..1994036	-	98	110668602	-	HQ2699A	-	hypothetical protein
1627	 48.71	0	1995698..1996354	+	218	110668603	-	HQ2701A	-	hypothetical protein
1628	 51.17	0	1996400..1998199	+	599	110668604	ilvB	HQ2702A	-	acetolactate synthase large subunit
1629	 49.74	0	1998196..1998969	+	257	110668605	ilvN	HQ2703A	-	acetolactate synthase, small subunit
1630	 49.51	0	1998966..2000084	+	372	110668606	ilvC	HQ2704A	-	ketol-acid reductoisomerase
1631	 48.26	0	2000103..2001569	+	488	110668607	leuC	HQ2705A	-	isopropylmalate isomerase large subunit
1632	 47.13	0	2001569..2002177	+	202	110668608	leuD	HQ2706A	-	3-isopropylmalate dehydratase small subunit
1633	 49.25	0	2002181..2003185	+	334	110668609	leuB	HQ2707A	-	3-isopropylmalate dehydrogenase
1634	 54.44	+1	2003517..2003786	+	89	110668610	hpr	HQ2708A	-	phosphocarrier protein Hpr
1635	 51.63	0	2003791..2005512	+	573	110668611	ptsI	HQ2709A	-	phosphoenolpyruvate-protein phosphotransferase (phosphotransferase system, enzyme I)
1636	 46.93	0	2005617..2006609	+	330	110668612	gatY	HQ2710A	-	fructose/tagatose-1,6-bisphosphate aldolase
1637	 50.00	0	2006918..2007403	+	161	110668613	-	HQ2711A	-	acetyltransferase
1638	 47.57	0	2007494..2008378	+	294	110668614	-	HQ2712A	-	hypothetical protein
1639	 46.76	0	2008415..2009263	-	282	110668615	tif2Ba	HQ2713A	-	translation initiation factor 2B alpha chain
1640	 47.20	0	2009325..2010038	-	237	110668616	-	HQ2714A	-	peptidoglycan binding protein
1641	 47.39	0	2010234..2010482	+	82	110668617	-	HQ2715A	-	hypothetical protein
1642	 50.27	0	2010479..2012740	+	753	110668618	-	HQ2716A	-	AAA-type ATPase (transitional ATPase homolog)
1643	 45.22	0	2012830..2013300	-	156	110668619	bcp	HQ2717A	-	peroxiredoxin (thioredoxin-dependent hydroperoxide peroxidase)
1644	 48.70	0	2013348..2014772	-	474	110668620	-	HQ2718A	-	primase operon protein
1645	 48.70	0	2015096..2016253	-	385	110668621	priA	HQ2719A	-	DNA primase small subunit
1646	 52.58	0	2016966..2018378	+	470	110668622	hisD	HQ2720A	-	histidinol dehydrogenase
1647	 48.91	0	2018705..2019070	+	121	110668623	-	HQ2721A	-	hesB/IscA family protein
1648	 49.59	0	2019416..2019778	+	120	110668624	-	HQ2722A	-	hypothetical protein
1649	 48.10	0	2020055..2021476	+	473	110668625	ushA	HQ2723A	-	5'-nucleotidase; 2',3'-cyclic-nucleotide 2'-phosphodiesterase; UDP-sugar hydrolase
1650	 46.86	0	2021776..2022189	+	137	110668626	-	HQ2724A	-	hypothetical protein
1651	 45.38	0	2022521..2023666	-	381	110668627	msc	HQ2725A	-	mechanosensitive ion channel
1652	 48.49	0	2024062..2025123	+	353	110668628	trmB	HQ2726A	-	sugar-specific transcriptional regulator TrmB
1653	 49.42	0	2025210..2025638	+	142	110668629	-	HQ2727A	-	hypothetical protein
1654	 54.57	+1	2025878..2027158	+	426	110668630	-	HQ2728A	-	IS1341-type transposase
1655	 50.48	0	2027483..2029033	+	516	110668631	rfcB	HQ2729A	-	replication factor C large subunit
1656	 46.26	0	2029134..2029868	-	244	110668632	glnQ	HQ2730A	-	ABC-type glutamine/glutamate/polar amino acids transport system, ATP-binding protein
1657	 46.78	0	2029861..2030715	-	284	110668633	glnP	HQ2731A	-	ABC-type glutamine/glutamate/polar amino acids transport system, permease protein
1658	 44.85	-1	2030803..2031705	-	300	110668634	glnH	HQ2732A	-	ABC-type glutamine/glutamate/polar amino acids transport system, substrate-binding protein
1659	 50.06	0	2032136..2032972	-	278	110668635	ctaA	HQ2733A	-	cytochrome-c-aa3 oxidase assembly factor CtaA
1660	 49.01	0	2033484..2034593	+	369	110668636	-	HQ2735A	-	metallopeptidase
1661	 47.17	0	2034710..2036956	+	748	110668637	mdh	HQ2736A	-	malic enzyme
1662	 51.46	0	2037807..2038595	-	262	110668638	-	HQ2737A	-	hypothetical protein
1663	 49.25	0	2038881..2039816	+	311	110668639	rhaT	HQ2738A	-	DMT superfamily drug/metabolite transporter
1664	 46.57	0	2040524..2040931	-	135	110668640	-	HQ2739A	-	hypothetical protein
1665	 49.92	0	2041078..2041692	-	204	110668641	cmk	HQ2740A	-	cytidylate kinase
1666	 45.91	0	2041924..2042583	+	219	110668642	-	HQ2741A	-	hypothetical protein
1667	 49.31	0	2042747..2042890	+	47	110668643	-	HQ2742A	-	hypothetical protein
1668	 45.05	0	2042986..2043318	+	110	110668644	-	HQ2743A	-	ribosomal protein S10-like protein
1669	 49.30	0	2043374..2044726	+	450	110668645	-	HQ2744A	-	indole-3-acetyl-L-aspartic acid hydrolase
1670	 50.00	0	2045619..2045810	-	63	110668646	-	HQ2745A	-	hypothetical protein
1671	 43.70	-1	2045858..2046889	-	343	110668647	phoU	HQ2746A	-	transport system regulatory protein
1672	 50.95	0	2046939..2048039	-	366	110668648	-	HQ2747A	-	hypothetical protein
1673	 50.31	0	2048682..2048840	-	52	110668649	-	HQ2748A	-	hypothetical protein
1674	 42.80	-1	2049242..2050477	+	411	110668650	-	HQ2749A	-	signal-transducing histidine kinase
1675	 46.19	0	2051100..2053013	+	637	110668651	bat	HQ2750A	-	bacterio-opsin activator
1676	 46.12	0	2053234..2053671	-	145	110668652	-	HQ2751A	-	response regulator / transcription regulator
1677	 49.63	0	2055077..2057935	+	952	110668653	lhr	HQ2752A	-	Lhr-like helicase
1678	 49.91	0	2058037..2060334	-	765	110668654	cdc48	HQ2753A	-	AAA-type ATPase (transitional ATPase homolog)
1679	 48.10	0	2060447..2061787	+	446	110668655	livJ	HQ2754A	-	ABC-type branched-chain amino acid transport system, substrate-binding protein
1680	 46.10	0	2061803..2062687	+	294	110668656	livH	HQ2755A	-	ABC-type branched-chain amino acid transport system, permease protein I
1681	 45.13	0	2062687..2063754	+	355	110668657	livM	HQ2756A	-	ABC-type branched-chain amino acid transport systems, permease protein II
1682	 45.72	0	2063813..2064595	+	260	110668658	livG	HQ2757A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein I
1683	 45.61	0	2064588..2065328	+	246	110668659	livF	HQ2758A	-	ABC-type branched-chain amino acid transport systems, ATP-binding protein II
1684	 40.58	-2	2065444..2065581	+	45	110668660	-	HQ2759A	-	C2H2 zinc finger DNA-binding protein
1685	 47.71	0	2065735..2066193	-	152	110668661	-	HQ2760A	-	hypothetical protein
1686	 49.40	0	2067018..2067185	-	55	110668662	-	HQ2761A	-	hypothetical protein
1687	 52.83	+1	2067252..2068169	+	305	110668663	aroK	HQ2762A	-	shikimate kinase
1688	 44.80	-1	2068249..2068623	+	124	110668664	pheA	HQ2763A	-	chorismate mutase
1689	 50.20	0	2069406..2070425	-	339	110668665	truB	HQ2764A	-	H/ACA RNA-protein complex component Cbf5p
1690	 48.53	0	2070440..2071018	-	192	110668666	cmk	HQ2765A	-	cytidylate kinase
1691	 46.28	0	2071580..2072506	-	308	110668667	-	HQ2766A	-	hypothetical protein
1692	 48.28	0	2073328..2073996	-	222	110668668	adk	HQ2767A	-	adenylate kinase
1693	 48.12	0	2074147..2074545	+	132	110668669	-	HQ2768A	-	hypothetical protein
1694	 48.37	0	2074775..2075725	+	316	110668670	ephA	HQ2769A	-	epoxide hydrolase-related protein
1695	 52.17	0	2077049..2077186	-	45	110668671	-	HQ2770A	-	hypothetical protein
1696	 48.85	0	2077362..2078102	-	246	110668672	-	HQ2771A	-	3-oxoacyl-[acyl-carrier-protein] reductase (3-ketoacyl-acyl carrier protein reductase)
1697	 47.18	0	2078252..2078836	-	194	110668673	idiA	HQ2772A	-	isopentenyl-diphosphate delta-isomerase
1698	 43.90	-1	2079097..2079522	-	141	110668674	lrp	HQ2773A	-	transcription regulator
1699	 49.41	0	2079620..2080720	+	366	110668675	carA	HQ2774A	-	carbamoyl phosphate synthase small subunit
1700	 50.94	0	2081121..2082188	-	355	110668676	-	HQ2775A	-	protein N-acetyltransferase
1701	 49.36	0	2082219..2083547	-	442	110668677	gatD	HQ2776A	-	glutamyl-tRNA(Gln) amidotransferase subunit D
1702	 47.19	0	2084285..2084818	+	177	110668678	-	HQ2778A	-	hypothetical protein
1703	 48.26	0	2084924..2085727	-	267	110668679	-	HQ2779A	-	transcription regulator
1704	 47.11	0	2085778..2086503	-	241	110668680	-	HQ2780A	-	hypothetical protein
1705	 47.99	0	2086829..2088343	+	504	110668681	gpmA	HQ2781A	-	phosphoglyceromutase
1706	 48.58	0	2088361..2089029	-	222	110668682	-	HQ2782A	-	hypothetical protein
1707	 48.07	0	2089098..2089538	+	146	110668683	-	HQ2783A	-	hypothetical protein
1708	 42.53	-1	2089533..2089880	-	115	110668684	-	HQ2784A	-	hypothetical protein
1709	 46.82	0	2091351..2092373	-	340	110668685	-	HQ2786A	-	hypothetical protein
1710	 48.53	0	2092366..2093352	-	328	110668686	sppA	HQ2787A	-	protease IV; endopeptidase IV; signal peptide peptidase
1711	 48.23	0	2093505..2094068	+	187	110668687	-	HQ2788A	-	phosphoglycolate phosphatase
1712	 50.22	0	2094285..2094734	+	149	110668688	-	HQ2789A	-	hypothetical protein
48.79	MEAN

3.84	STD DEV
