IslandPath Analysis: Haloquadratum walsbyi DSM 16790

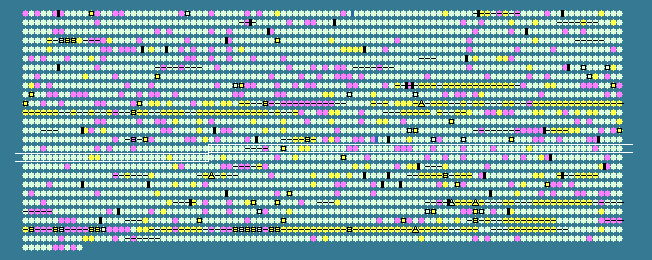

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1532	 50.00	0	1874205..1875356	+	383	110668508	phnI	HQ2601A	-	phosphonate metabolism protein PhnI
1533	 47.54	0	1875349..1876467	+	372	110668509	phnJ	HQ2602A	-	phosphonate metabolism protein PhnJ
1534	 47.07	0	1876464..1877300	+	278	110668510	phnK	HQ2603A	-	phosphonate ABC transporter ATP-binding protein
1535	 47.30	0	1877304..1878248	+	314	110668511	phnL	HQ2604A	-	phosphonate ABC transporter ATP-binding protein
1536	 49.84	0	1878245..1879504	+	419	110668512	phnM	HQ2605A	-	phosphonate metabolism protein PhnM
1537	 46.02	0	1879501..1880304	+	267	110668513	-	HQ2606A	-	hypothetical protein
1538	 51.63	0	1880624..1881022	-	132	110668514	arsR	HQ2607A	-	arsenical resistance operon repressor (transcription regulator)
1539	 48.21	0	1881336..1881671	+	111	110668515	arsD	HQ2608A	-	arsenical resistance operon trans-acting repressor ArsD (transcriptional regulator)
1540	 51.19	0	1881668..1883599	+	643	110668516	arsA	HQ2609A	-	arsenite efflux ATPase
1541	 45.26	0	1883596..1883964	+	122	110668517	-	HQ2610A	-	hypothetical protein
1542	 51.42	0	1884754..1885704	-	316	110668518	-	HQ2611A	-	hypothetical protein
1543	 50.13	0	1885701..1886081	-	126	110668519	arsR	HQ2612A	-	ArsR family transcriptional regulator
1544	 56.00	+1	1886558..1887082	+	174	110668520	-	HQ2613A	-	transposase (ISHnew91)
1545	 48.64	0	1887673..1888776	-	367	110668521	xerC	HQ2614A	-	tyrosine recombinase xerC
1546	 49.38	0	1888776..1889261	-	161	110668522	-	HQ2615A	-	hypothetical protein
1547	 54.97	+1	1892317..1893060	-	247	110668523	-	HQ2617A	-	hypothetical protein
1548	 53.73	+1	1893569..1894867	+	432	110668524	-	HQ2618A	-	hypothetical protein
1549	 46.96	0	1895085..1895561	+	158	110668525	lrp	HQ2619A	-	transcription regulator
1550	 49.46	0	1895661..1896677	-	338	110668526	guaD	HQ2620A	-	nucleoside deaminase (cytosine deaminase, guanine deaminase)
1551	 45.68	0	1897634..1899220	+	528	110668527	nuoL	HQ2621A	-	homolog to NADH dehydrogenase, subunit L (ubiquinone)
1552	 46.82	0	1899210..1902005	+	931	110668528	-	HQ2622A	-	hypothetical protein
1553	 48.66	0	1902202..1902945	-	247	110668529	-	HQ2623A	-	hypothetical protein
1554	 47.07	0	1903162..1903947	+	261	110668530	-	HQ2624A	-	hypothetical protein
1555	 45.30	0	1904000..1904701	+	233	110668531	-	HQ2625A	-	glycosyltransferase-like protein
1556	 44.44	-1	1904694..1904891	-	65	110668532	-	HQ2626A	-	hypothetical protein
1557	 48.17	0	1904993..1905895	+	300	110668533	-	HQ2627A	-	hypothetical protein
1558	 49.36	0	1905956..1907128	+	390	110668534	gbp	HQ2628A	-	translation-associated GTPase
1559	 49.47	0	1907177..1908298	-	373	110668535	aspC	HQ2629A	-	PLP-dependent aminotransferase ( aspartate aminotransferase )
1560	 49.45	0	1908602..1909687	+	361	110668536	ssuA	HQ2630A	-	ABC-type nitrate/sulfonate/bicarbonate transport systems, periplasmic component; putative aliphatic sulfonate binding protein
1561	 47.13	0	1909684..1910589	+	301	110668537	ssuC	HQ2631A	-	sulfonate ABC transporter permease
1562	 49.10	0	1910673..1911395	+	240	110668538	ssuB	HQ2632A	-	ABC-type nitrate/sulfonate/bicarbonate transport system ATPase component; sulfonate ABC transporter ATP binding protein
1563	 43.23	-1	1911476..1911667	-	63	110668539	-	HQ2633A	-	hypothetical protein
1564	 44.97	0	1911794..1913116	+	440	110668540	rad25	HQ2634A	-	DNA repair protein Rad25
1565	 41.62	-1	1913123..1914631	+	502	110668541	-	HQ2635A	-	hypothetical protein
1566	 48.47	0	1914787..1915308	-	173	110668542	-	HQ2636A	-	hypothetical protein
1567	 46.65	0	1915305..1916243	-	312	110668543	sun	HQ2637A	-	tRNA and rRNA cytosine-C5-methylases
1568	 47.66	0	1916403..1917149	+	248	110668544	-	HQ2638A	-	hypothetical protein
1569	 44.69	-1	1917250..1918059	+	269	110668545	grpE	HQ2639A	-	dnaJ/dnaK ATPase stimulator grpE
1570	 50.36	0	1918232..1920157	+	641	110668546	dnaK	HQ2640A	-	dnaK-type molecular chaperone hsp70
1571	 50.52	0	1920782..1921945	+	387	110668547	dnaJ	HQ2641A	-	chaperone protein DnaJ
1572	 46.99	0	1922078..1922875	+	265	110668548	-	HQ2642A	-	hypothetical protein
1573	 46.83	0	1923027..1923626	+	199	110668549	-	HQ2643A	-	homolog to acetyltransferases
1574	 42.90	-1	1923997..1924362	-	121	110668550	-	HQ2644A	-	hypothetical protein
1575	 47.46	0	1924467..1924919	-	150	110668551	-	HQ2645A	-	hypothetical protein
1576	 48.20	0	1925680..1926096	+	138	110668552	cdd	HQ2646A	-	cytidine deaminase
1577	 48.00	0	1926380..1927204	+	274	110668553	udp	HQ2647A	-	uridine phosphorylase
1578	 48.29	0	1927412..1928608	+	398	110668554	ndh	HQ2648A	-	NADH dehydrogenase
1579	 44.38	-1	1928907..1929440	-	177	110668555	-	HQ2649A	-	transcriptional regulator
1580	 45.42	0	1929522..1930439	+	305	110668556	galE	HQ2650A	-	nucleoside-diphosphate-sugar epimerase ( UDP-glucose 4-epimerase)
1581	 47.61	0	1930621..1933191	-	856	110668557	gyrA	HQ2651A	-	DNA gyrase / DNA topoisomerase II subunit A
1582	 46.31	0	1933191..1935749	-	852	110668558	gyrB	HQ2652A	-	DNA gyrase / DNA topoisomerase II subunit B
1583	 48.33	0	1935925..1939839	+	1304	110668559	top6B	HQ2653A	-	DNA topoisomerase VI subunit B
1584	 45.75	0	1940145..1941239	+	364	110668560	top6A	HQ2654A	-	DNA topoisomerase VI subunit A
1585	 53.42	+1	1941481..1942152	+	223	110668561	thiE	HQ2655A	-	thiamine-phosphate pyrophosphorylase
1586	 51.56	0	1942152..1943018	+	288	110668562	thiM	HQ2656A	-	hydroxyethylthiazole kinase
1587	 48.66	0	1943205..1944026	+	273	110668563	thiD	HQ2657A	-	phosphomethylpyrimidine kinase
1588	 46.58	0	1944138..1944854	-	238	110668564	-	HQ2658A	-	hypothetical protein
1589	 47.23	0	1945051..1946907	-	618	110668565	ligB	HQ2659A	-	DNA ligase (ATP)
1590	 49.90	0	1947109..1948641	+	510	110668566	-	HQ2660A	-	hypothetical protein
1591	 47.54	0	1948976..1949707	-	243	110668567	psmB	HQ2661A	-	proteasome beta subunit
1592	 48.33	0	1949962..1950201	-	79	110668568	-	HQ2662A	-	hypothetical protein
1593	 48.18	0	1950495..1950851	+	118	110668569	-	HQ2663A	-	hypothetical protein
1594	 50.37	0	1951055..1951600	+	181	110668570	-	HQ2664A	-	transcriptional regulator
1595	 48.40	0	1951759..1952787	-	342	110668571	purM	HQ2665A	-	phosphoribosylaminoimidazole synthetase
1596	 41.37	-1	1953139..1953387	+	82	110668572	-	HQ2666A	-	hypothetical protein
1597	 48.59	0	1953537..1954211	-	224	110668573	-	HQ2667A	-	membrane metallopeptidase
1598	 50.39	0	1954454..1956118	-	554	110668574	traB	HQ2668A	-	plasmid transfer protein
1599	 49.53	0	1956410..1956946	+	178	110668575	-	HQ2669A	-	hypothetical protein
1600	 46.58	0	1957078..1957545	+	155	110668576	-	HQ2670A	-	hypothetical protein
1601	 49.59	0	1957785..1960964	+	1059	110668577	ileS	HQ2671A	-	isoleucyl-tRNA synthetase
1602	 50.79	0	1961159..1962166	+	335	110668578	dhaK1	HQ2672A	-	dihydroxyacetone kinase
1603	 49.33	0	1962159..1962902	+	247	110668579	dhaK2	HQ2673A	-	dihydroxyacetone kinase
1604	 50.44	0	1962902..1963357	+	151	110668580	dhaM	HQ2674A	-	phosphoenolpyruvate-protein phosphoryltransferase
1605	 49.44	0	1963756..1965009	+	417	110668581	gpdA	HQ2675A	-	glycerol-3-phosphate dehydrogenase, subunit A
1606	 51.42	0	1965172..1965873	+	233	110668582	-	HQ2676A	-	hypothetical protein
1607	 48.61	0	1965988..1966203	-	71	110668583	-	HQ2677A	-	hypothetical protein
1608	 48.54	0	1966494..1967144	+	216	110668584	-	HQ2678A	-	S-adenosylmethionine-dependent methyltransferase-like protein
1609	 52.13	0	1967756..1968739	-	327	110668585	-	HQ2679A	-	hypothetical protein
1610	 50.30	0	1968893..1970218	-	441	110668586	ugd	HQ2680A	-	UDP-glucose 6-dehydrogenase
1611	 49.17	0	1970496..1973804	-	1102	110668587	stt3	HQ2681A	-	transmembrane oligosaccharyl transferase
1612	 55.33	+1	1974242..1974991	+	249	110668588	graD	HQ2682A	-	sugar nucleotidyltransferase II ( glucose-1-phosphate thymidylyltransferase)
1613	 54.71	+1	1974992..1975978	-	328	110668589	galE	HQ2683A	-	nucleoside-diphosphate-sugar epimerase 1 ( UDP-glucose 4-epimerase)
1614	 47.18	0	1977742..1978557	+	271	110668590	-	HQ2685A	-	hypothetical protein
1615	 49.66	0	1978601..1979641	-	346	110668591	-	HQ2686A	-	hexosyltransferase; glycosyltransferase
1616	 46.34	0	1979745..1981328	+	527	110668592	-	HQ2687A	-	polysaccharide biosynthesis transporter
1617	 51.25	0	1981359..1982357	+	332	110668593	-	HQ2688A	-	hypothetical protein
1618	 51.52	0	1984182..1985633	+	483	110668594	aslA	HQ2690A	-	arylsulfatase
1619	 47.92	0	1985738..1986889	-	383	110668595	-	HQ2691A	-	hexosyltransferase; glycosyltransferase
1620	 51.95	0	1987643..1988641	-	332	110668596	-	HQ2692A	-	glycosyltransferase
1621	 49.50	0	1989499..1990698	+	399	110668597	gtl	HQ2694A	-	glycosyltransferase ( dolichyl-phosphate beta-D-mannosyltransferase)
1622	 50.15	0	1990887..1991213	-	108	110668598	-	HQ2695A	-	hypothetical protein
1623	 47.42	0	1991662..1991874	+	70	110668599	-	HQ2696A	-	hypothetical protein
1624	 50.77	0	1992174..1992563	-	129	110668600	-	HQ2697A	-	hypothetical protein
1625	 52.36	0	1992782..1993480	-	232	110668601	-	HQ2698A	-	hypothetical protein
1626	 49.49	0	1993740..1994036	-	98	110668602	-	HQ2699A	-	hypothetical protein
1627	 48.71	0	1995698..1996354	+	218	110668603	-	HQ2701A	-	hypothetical protein
1628	 51.17	0	1996400..1998199	+	599	110668604	ilvB	HQ2702A	-	acetolactate synthase large subunit
1629	 49.74	0	1998196..1998969	+	257	110668605	ilvN	HQ2703A	-	acetolactate synthase, small subunit
1630	 49.51	0	1998966..2000084	+	372	110668606	ilvC	HQ2704A	-	ketol-acid reductoisomerase
1631	 48.26	0	2000103..2001569	+	488	110668607	leuC	HQ2705A	-	isopropylmalate isomerase large subunit
48.79	MEAN

3.84	STD DEV
