IslandPathversion 1.0

IslandPath Analysis: Haloquadratum walsbyi DSM 16790

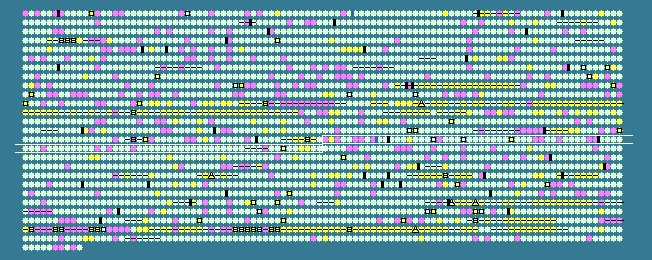

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1451	 38.02	-2	1760453..1760857	+	134	110668427	-	HQ2518A	-	hypothetical protein
1452	 52.34	0	1761085..1761405	-	106	110668428	-	HQ2519A	-	TP rich cell surface protein viral Tpx
1453	 42.51	-1	1761679..1762713	-	344	110668429	-	HQ2520A	-	hypothetical protein
1454	 46.85	0	1763175..1764491	+	438	110668430	-	HQ2521A	-	major facilitator superfamily transporter quinolone resistance protein
1455	 47.55	0	1764769..1765401	+	210	110668431	-	HQ2522A	-	protein N-acetyltransferase-like protein
1456	 43.16	-1	1765487..1766188	+	233	110668432	pssA	HQ2523A	-	CDP-diacylglycerol--serine O-phosphatidyltransferase (phosphatidylserine synthase)
1457	 43.79	-1	1766380..1767144	+	254	110668433	-	HQ2524A	-	hypothetical protein
1458	 45.64	0	1767258..1767647	+	129	110668434	-	HQ2525A	-	hypothetical protein
1459	 44.96	0	1767644..1768417	+	257	110668435	-	HQ2526A	-	hypothetical protein
1460	 46.35	0	1775266..1775826	+	186	110668436	tbpE	HQ2527A	-	transcription factor
1461	 47.81	0	1776036..1778114	+	692	110668437	rhl	HQ2528A	-	DNA repair helicase
1462	 51.62	0	1778375..1778899	-	174	110668438	-	HQ2529A	-	hypothetical protein
1463	 47.11	0	1780738..1781100	-	120	110668439	-	HQ2530A	-	hypothetical protein
1464	 49.70	0	1782244..1782915	-	223	110668440	btpA	HQ2531A	-	photosystem I biogenesis protein
1465	 54.17	+1	1783035..1783346	-	103	110668441	-	HQ2532A	-	hypothetical protein
1466	 47.08	0	1783667..1784299	-	210	110668442	lysE	HQ2533A	-	LysE family transporter
1467	 47.02	0	1784609..1785748	+	379	110668443	-	HQ2534A	-	hypothetical protein
1468	 45.49	0	1785849..1787189	-	446	110668444	-	HQ2535A	-	hypothetical protein
1469	 51.29	0	1787751..1788953	+	400	110668445	-	HQ2536A	-	IS1341-type transposase
1470	 44.80	-1	1789084..1789554	-	156	110668446	ferA_5	HQ2537A	-	ferredoxin
1471	 45.62	0	1790353..1790832	-	159	110668447	-	HQ2538A	-	hypothetical protein
1472	 49.67	0	1790912..1795459	-	1515	110668448	sga1	HQ2539A	-	glucoamylase
1473	 48.06	0	1795553..1797691	+	712	110668449	amyA	HQ2540A	-	glucan 1,4-alpha-maltohydrolase
1474	 45.74	0	1798375..1798632	+	85	110668450	-	HQ2541A	-	transposase (fragment)
1475	 47.49	0	1798795..1801161	-	788	110668451	-	HQ2542A	-	membrane protein
1476	 48.21	0	1801197..1802507	-	436	110668452	sfuC	HQ2543A	-	ABC-type spermidine/putrescine/iron transport system, ATP-binding protein
1477	 48.65	0	1802545..1804170	-	541	110668453	sfuB	HQ2544A	-	ABC-type iron(III) transport system, permease protein
1478	 47.84	0	1804268..1805473	-	401	110668454	sfuA	HQ2545A	-	ABC-type iron(III) transport system,substrate-binding protein
1479	 46.33	0	1805611..1806795	-	394	110668455	-	HQ2546A	-	hypothetical protein
1480	 47.28	0	1806944..1807366	+	140	110668456	-	HQ2547A	-	hypothetical protein
1481	 49.90	0	1807505..1808011	+	168	110668457	-	HQ2548A	-	endonuclease associated protein
1482	 54.18	+1	1808238..1809518	+	426	110668458	-	HQ2549A	-	IS1341-type transposase
1483	 47.48	0	1809992..1813102	-	1036	110668459	glcD	HQ2550A	-	oxidoreductase ( glycolate oxidase iron-sulfur subunit)
1484	 47.11	0	1813451..1815229	+	592	110668460	lctP	HQ2551A	-	L-lactate permease
1485	 49.91	0	1816101..1817162	+	353	110668461	-	HQ2552A	-	hypothetical protein
1486	 42.76	-1	1817159..1817773	+	204	110668462	-	HQ2553A	-	hypothetical protein
1487	 42.19	-1	1818137..1818565	+	142	110668463	-	HQ2554A	-	hypothetical protein
1488	 48.95	0	1818692..1819120	+	142	110668464	-	HQ2555A	-	hypothetical protein
1489	 50.40	0	1820617..1821747	-	376	110668465	cysK	HQ2556A	-	cysteine synthase
1490	 43.85	-1	1823206..1823595	+	129	110668466	trxA	HQ2557A	-	thioredoxin
1491	 49.15	0	1823706..1823882	+	58	110668467	-	HQ2558A	-	hypothetical protein
1492	 48.42	0	1824108..1826414	-	768	110668468	-	HQ2559A	-	thioredoxin domain-containing protein
1493	 49.27	0	1826647..1827951	+	434	110668469	purD	HQ2560A	-	phosphoribosylamine--glycine ligase
1494	 46.82	0	1828170..1828688	+	172	110668470	-	HQ2561A	-	acetyltransferase-like protein
1495	 44.91	-1	1829767..1830561	-	264	110668471	msc	HQ2562A	-	mechanosensitive ion channel
1496	 43.26	-1	1830573..1831388	-	271	110668472	-	HQ2563A	-	hypothetical protein
1497	 48.54	0	1832060..1832368	+	102	110668473	tfbA	HQ2564A	-	transcription initiation factor TFB
1498	 50.29	0	1832927..1833439	-	170	110668474	ppaT	HQ2565A	-	phosphopantetheine adenylyltransferase
1499	 49.36	0	1833619..1834710	-	363	110668475	gcs2	HQ2566A	-	carboxylate-amine ligase
1500	 47.99	0	1834976..1835623	-	215	110668476	flpA	HQ2567A	-	fibrillarin
1501	 49.18	0	1835620..1836477	-	285	110668477	nop56	HQ2568A	-	pre-rRNA-processing protein nop56
1502	 47.65	0	1836887..1837375	+	162	110668478	-	HQ2569A	-	hypothetical protein
1503	 49.57	0	1839108..1840148	+	346	110668479	tfbA	HQ2571A	-	transcription initiation factor TFB
1504	 42.74	-1	1840290..1840406	-	38	110668480	-	HQ2572A	-	hypothetical protein
1505	 49.02	0	1840827..1841081	-	84	110668481	tif2b	HQ2573A	-	translation initiation factor aIF-2 beta subunit
1506	 49.37	0	1841291..1841527	+	78	110668482	-	HQ2574A	-	hypothetical protein
1507	 46.75	0	1842597..1843073	-	158	110668483	-	HQ2576A	-	hypothetical protein
1508	 48.13	0	1843103..1844116	-	337	110668484	ogg	HQ2577A	-	DNA N-glycosylase / DNA lyase
1509	 47.13	0	1844406..1846028	-	540	110668485	malQ	HQ2578A	-	4-alpha-glucanotransferase
1510	 45.36	0	1846532..1848460	+	642	110668486	thrS	HQ2579A	-	threonine--tRNA ligase
1511	 47.98	0	1848565..1850250	-	561	110668487	nadE	HQ2580A	-	NAD(+) synthase (glutamine-hydrolyzing)
1512	 47.49	0	1850529..1851983	+	484	110668488	-	HQ2581A	-	NAD-binding protein ( Kef-type transporter subunit)
1513	 45.21	0	1852285..1852587	-	100	110668489	-	HQ2582A	-	hypothetical protein
1514	 50.21	0	1852862..1853335	-	157	110668490	-	HQ2583A	-	hypothetical protein
1515	 44.61	-1	1854059..1855264	-	401	110668491	metK	HQ2584A	-	S-adenosylmethionine synthetase
1516	 46.01	0	1855346..1855921	-	191	110668492	cyaB	HQ2585A	-	adenylate cyclase
1517	 49.10	0	1856221..1857273	+	350	110668493	mtfK2	HQ2586A	-	FKBP-type peptidylprolyl isomerase 2
1518	 49.27	0	1858011..1858625	-	204	110668494	minD	HQ2587A	-	cell division inhibitor MinD-like (ATPase involved in chromosome partitioning)
1519	 44.44	-1	1858773..1859150	-	125	110668495	-	HQ2588A	-	hypothetical protein
1520	 45.68	0	1859364..1860902	+	512	110668496	-	HQ2589A	-	hypothetical protein
1521	 47.55	0	1861634..1862674	+	346	110668497	dph2	HQ2590A	-	diphthamide synthase subunit DPH2
1522	 45.49	0	1862931..1863794	+	287	110668498	-	HQ2591A	-	hypothetical protein
1523	 45.79	0	1864631..1865569	+	312	110668499	-	HQ2592A	-	hypothetical protein
1524	 45.72	0	1866704..1867720	-	338	110668500	phoU	HQ2593A	-	phosphate uptake regulator / ABC transport system regulatory protein
1525	 46.44	0	1868023..1869060	+	345	110668501	-	HQ2594A	-	phosphate transport system regulator related protein
1526	 49.84	0	1869242..1869883	-	213	110668502	pat	HQ2595A	-	acetyltransferase protein
1527	 45.54	0	1869890..1870897	-	335	110668503	phnE	HQ2596A	-	ABC-type phosphate/phosphonate transport system,permease protein
1528	 45.39	0	1870894..1871739	-	281	110668504	phnC	HQ2597A	-	ABC-type phosphate/phosphonate transport system,ATPase protein
1529	 47.38	0	1871784..1872815	-	343	110668505	phnD	HQ2598A	-	ABC-type phosphate/phosphonate transport system,substrate-binding protein
1530	 45.56	0	1873085..1873534	+	149	110668506	phnG	HQ2599A	-	phosphonate metabolism protein PhnG
1531	 48.15	0	1873531..1874205	+	224	110668507	phnH	HQ2600A	-	phosphonate metabolism protein PhnH
1532	 50.00	0	1874205..1875356	+	383	110668508	phnI	HQ2601A	-	phosphonate metabolism protein PhnI
1533	 47.54	0	1875349..1876467	+	372	110668509	phnJ	HQ2602A	-	phosphonate metabolism protein PhnJ
1534	 47.07	0	1876464..1877300	+	278	110668510	phnK	HQ2603A	-	phosphonate ABC transporter ATP-binding protein
1535	 47.30	0	1877304..1878248	+	314	110668511	phnL	HQ2604A	-	phosphonate ABC transporter ATP-binding protein
1536	 49.84	0	1878245..1879504	+	419	110668512	phnM	HQ2605A	-	phosphonate metabolism protein PhnM
1537	 46.02	0	1879501..1880304	+	267	110668513	-	HQ2606A	-	hypothetical protein
1538	 51.63	0	1880624..1881022	-	132	110668514	arsR	HQ2607A	-	arsenical resistance operon repressor (transcription regulator)
1539	 48.21	0	1881336..1881671	+	111	110668515	arsD	HQ2608A	-	arsenical resistance operon trans-acting repressor ArsD (transcriptional regulator)
1540	 51.19	0	1881668..1883599	+	643	110668516	arsA	HQ2609A	-	arsenite efflux ATPase
1541	 45.26	0	1883596..1883964	+	122	110668517	-	HQ2610A	-	hypothetical protein
1542	 51.42	0	1884754..1885704	-	316	110668518	-	HQ2611A	-	hypothetical protein
1543	 50.13	0	1885701..1886081	-	126	110668519	arsR	HQ2612A	-	ArsR family transcriptional regulator
1544	 56.00	+1	1886558..1887082	+	174	110668520	-	HQ2613A	-	transposase (ISHnew91)
1545	 48.64	0	1887673..1888776	-	367	110668521	xerC	HQ2614A	-	tyrosine recombinase xerC
1546	 49.38	0	1888776..1889261	-	161	110668522	-	HQ2615A	-	hypothetical protein
1547	 54.97	+1	1892317..1893060	-	247	110668523	-	HQ2617A	-	hypothetical protein
1548	 53.73	+1	1893569..1894867	+	432	110668524	-	HQ2618A	-	hypothetical protein
1549	 46.96	0	1895085..1895561	+	158	110668525	lrp	HQ2619A	-	transcription regulator
1550	 49.46	0	1895661..1896677	-	338	110668526	guaD	HQ2620A	-	nucleoside deaminase (cytosine deaminase, guanine deaminase)
48.79	MEAN

3.84	STD DEV
