IslandPath Analysis: Haloquadratum walsbyi DSM 16790

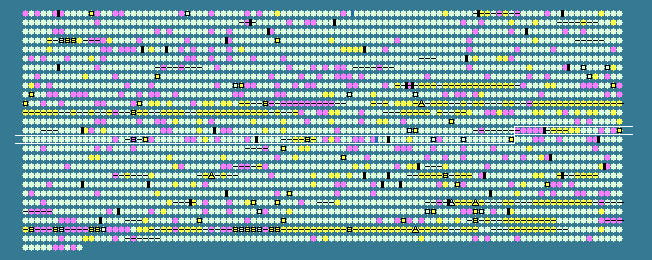

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1383	 43.00	-1	1684767..1685273	+	168	110668359	-	HQ2442A	-	hypothetical protein
1384	 44.29	-1	1685367..1685585	-	72	110668360	-	HQ2443A	-	hypothetical protein
1385	 36.84	-2	1685849..1685962	-	37	110668361	-	HQ2444A	-	hypothetical protein
1386	 45.18	0	1686902..1687492	-	196	110668362	trxB	HQ2445A	-	thioredoxin reductase-like protein
1387	 43.58	-1	1688692..1689345	-	217	110668363	-	HQ2447A	-	hypothetical protein
1388	 50.40	0	1689858..1690607	+	249	110668364	oxr	HQ2448A	-	oxidoreductase
1389	 57.33	+2	1690758..1691057	-	99	110668365	-	HQ2449A	-	hypothetical protein
1390	 57.76	+2	1691094..1692227	+	377	110668366	rbsB	HQ2450A	-	ABC-type transport system, substrate-binding protein
1391	 57.91	+2	1692289..1693887	+	532	110668367	rbsA	HQ2451A	-	ABC-type ribose transport system, ATP-binding protein
1392	 58.06	+2	1694022..1695113	+	363	110668368	rbsC1	HQ2452A	-	ABC-type ribose transport system, permease protein
1393	 58.20	+2	1695106..1696227	+	373	110668369	rbsC2	HQ2453A	-	ABC-type ribose transport system, permease protein
1394	 49.73	0	1697898..1698641	-	247	110668370	psmA2	HQ2454A	-	proteasome subunit alpha
1395	 49.15	0	1698901..1699488	-	195	110668371	folA	HQ2455A	-	dihydrofolate reductase
1396	 49.16	0	1699488..1700498	-	336	110668372	thyA	HQ2456A	-	thymidylate synthase
1397	 43.23	-1	1700692..1701267	+	191	110668373	-	HQ2457A	-	hydrolase
1398	 48.84	0	1701675..1701977	-	100	110668374	-	HQ2458A	-	hypothetical protein
1399	 42.95	-1	1703123..1703278	+	51	110668375	-	HQ2459A	-	hypothetical protein
1400	 53.04	+1	1704193..1705623	-	476	110668376	-	HQ2460A	-	Tn5-like transposase
1401	 50.17	0	1706234..1706833	-	199	110668377	sod	HQ2461A	-	superoxide dismutase
1402	 51.52	0	1707009..1707437	+	142	110668378	-	HQ2462A	-	hypothetical protein
1403	 47.46	0	1708553..1709989	-	478	110668379	phr	HQ2463A	-	deoxyribodipyrimidine photolyase
1404	 47.42	0	1710015..1710731	-	238	110668380	-	HQ2464A	-	hypothetical protein
1405	 47.64	0	1710904..1712112	-	402	110668381	folP	HQ2465A	-	dihydropteroate synthase
1406	 47.69	0	1712703..1713287	+	194	110668382	-	HQ2466A	-	hypothetical protein
1407	 45.45	0	1713297..1714295	+	332	110668383	-	HQ2467A	-	tRNA/rRNA methyltransferase
1408	 49.33	0	1714357..1716282	-	641	110668384	gatE	HQ2468A	-	glutamyl-tRNA(Gln) amidotransferase subunit E
1409	 47.63	0	1717175..1718629	-	484	110668385	fumC	HQ2471A	-	fumarate hydratase
1410	 48.89	0	1719104..1719373	-	89	110668386	bolA	HQ2473A	-	morphology/transcription regulator BolA  family protein
1411	 49.72	0	1719517..1719870	-	117	110668387	-	HQ2474A	-	hypothetical protein
1412	 49.09	0	1720301..1721239	-	312	110668388	dppC	HQ2475A	-	ABC-type dipeptide/oligopeptide/nickel transport systems, permease protein
1413	 45.69	0	1721392..1722435	-	347	110668389	dppB	HQ2476A	-	ABC-type dipeptide/oligopeptide/nickel transport systems, permease protein
1414	 47.86	0	1722578..1724305	-	575	110668390	dppA	HQ2477A	-	ABC-type dipeptide/oligopeptide/nickel transport system, substrate-binding protein
1415	 46.88	0	1724472..1727054	-	860	110668391	dppDF	HQ2478A	-	ABC-type dipeptide/oligopeptide/nickel transport systems, ATP-binding protein I & II
1416	 43.65	-1	1727252..1727881	+	209	110668392	-	HQ2479A	-	hypothetical protein
1417	 49.16	0	1728073..1728489	-	138	110668393	-	HQ2480A	-	hypothetical protein
1418	 47.44	0	1728652..1729665	+	337	110668394	mutY	HQ2481A	-	A/G-specific adenine glycosylase
1419	 44.67	-1	1730318..1730467	-	49	110668395	-	HQ2483A	-	IS200-type transposase (nonfunctional,N-terminal part)
1420	 48.15	0	1730527..1730661	+	44	110668396	-	HQ2484A	-	hypothetical protein
1421	 55.86	+1	1730658..1731980	+	440	110668397	-	HQ2485A	-	IS1341-type transposase
1422	 42.98	-1	1732347..1732460	+	37	110668398	-	HQ2486A	-	hypothetical protein
1423	 50.00	0	1733261..1733968	-	235	110668399	cinA	HQ2488A	-	CinA-like domain-containing protein
1424	 47.71	0	1734060..1734866	-	268	110668400	-	HQ2489A	-	hypothetical protein
1425	 45.60	0	1735000..1735920	-	306	110668401	-	HQ2490A	-	hypothetical protein
1426	 46.89	0	1735920..1736450	-	176	110668402	tfeA	HQ2491A	-	transcription initiation factor IIE alpha subunit-like protein
1427	 47.25	0	1736621..1737202	-	193	110668403	-	HQ2492A	-	tRNA 2'-O-methylase
1428	 44.01	-1	1737440..1738525	+	361	110668404	dadA	HQ2493A	-	glycine/D-amino acid oxidases (deaminating)
1429	 44.93	-1	1738612..1739637	+	341	110668405	galE	HQ2494A	-	nucleoside-diphosphate-sugar epimerase ( UDP-glucose 4-epimerase)
1430	 45.75	0	1740203..1741096	+	297	110668406	-	HQ2496A	-	hypothetical protein
1431	 57.34	+2	1741307..1741810	+	167	110668407	-	HQ2497A	-	glycine-rich protein
1432	 46.71	0	1742112..1743098	-	328	110668408	iunH	HQ2498A	-	inosine-uridine preferring nucleoside hydrolase
1433	 45.22	0	1743308..1744603	-	431	110668409	-	HQ2499A	-	hexosyltransferase
1434	 45.78	0	1744704..1745948	-	414	110668410	-	HQ2500A	-	hexosyltransferase 1
1435	 50.18	0	1746121..1746399	+	92	110668411	rnp4	HQ2501A	-	ribonuclease P protein component 4
1436	 48.41	0	1746491..1746742	+	83	110668412	-	HQ2502A	-	hypothetical protein
1437	 46.36	0	1746739..1747659	+	306	110668413	mscS	HQ2503A	-	mechanosensitive channel
1438	 43.96	-1	1747654..1748472	-	272	110668414	-	HQ2504A	-	hypothetical protein
1439	 46.95	0	1749569..1749847	+	92	110668415	tatA	HQ2505A	-	sec-independent protein translocase component TatA
1440	 46.88	0	1750546..1752051	+	501	110668416	norM	HQ2506A	-	sodium-driven multidrug efflux pump
1441	 47.47	0	1752273..1752767	+	164	110668417	-	HQ2507A	-	hypothetical protein
1442	 48.33	0	1752805..1753851	-	348	110668418	-	HQ2508A	-	LPS glycosyltransferase
1443	 47.68	0	1755475..1756164	+	229	110668419	ribG	HQ2510A	-	hypothetical protein
1444	 45.72	0	1756249..1756587	+	112	110668420	trxA	HQ2511A	-	thioredoxin
1445	 50.92	0	1757468..1757740	+	90	110668421	-	HQ2512A	-	hypothetical protein
1446	 54.26	+1	1757733..1758296	+	187	110668422	-	HQ2513A	-	hypothetical protein
1447	 53.21	+1	1758352..1758663	+	103	110668423	-	HQ2514A	-	hypothetical protein
1448	 59.00	+2	1758828..1759088	+	86	110668424	-	HQ2515A	-	IS1341-type transposase-like protein
1449	 59.15	+2	1759219..1759431	+	70	110668425	-	HQ2516A	-	hypothetical protein
1450	 47.52	0	1759535..1760260	+	241	110668426	-	HQ2517A	-	putative RNA-associated protein
1451	 38.02	-2	1760453..1760857	+	134	110668427	-	HQ2518A	-	hypothetical protein
1452	 52.34	0	1761085..1761405	-	106	110668428	-	HQ2519A	-	TP rich cell surface protein viral Tpx
1453	 42.51	-1	1761679..1762713	-	344	110668429	-	HQ2520A	-	hypothetical protein
1454	 46.85	0	1763175..1764491	+	438	110668430	-	HQ2521A	-	major facilitator superfamily transporter quinolone resistance protein
1455	 47.55	0	1764769..1765401	+	210	110668431	-	HQ2522A	-	protein N-acetyltransferase-like protein
1456	 43.16	-1	1765487..1766188	+	233	110668432	pssA	HQ2523A	-	CDP-diacylglycerol--serine O-phosphatidyltransferase (phosphatidylserine synthase)
1457	 43.79	-1	1766380..1767144	+	254	110668433	-	HQ2524A	-	hypothetical protein
1458	 45.64	0	1767258..1767647	+	129	110668434	-	HQ2525A	-	hypothetical protein
1459	 44.96	0	1767644..1768417	+	257	110668435	-	HQ2526A	-	hypothetical protein
1460	 46.35	0	1775266..1775826	+	186	110668436	tbpE	HQ2527A	-	transcription factor
1461	 47.81	0	1776036..1778114	+	692	110668437	rhl	HQ2528A	-	DNA repair helicase
1462	 51.62	0	1778375..1778899	-	174	110668438	-	HQ2529A	-	hypothetical protein
1463	 47.11	0	1780738..1781100	-	120	110668439	-	HQ2530A	-	hypothetical protein
1464	 49.70	0	1782244..1782915	-	223	110668440	btpA	HQ2531A	-	photosystem I biogenesis protein
1465	 54.17	+1	1783035..1783346	-	103	110668441	-	HQ2532A	-	hypothetical protein
1466	 47.08	0	1783667..1784299	-	210	110668442	lysE	HQ2533A	-	LysE family transporter
1467	 47.02	0	1784609..1785748	+	379	110668443	-	HQ2534A	-	hypothetical protein
1468	 45.49	0	1785849..1787189	-	446	110668444	-	HQ2535A	-	hypothetical protein
1469	 51.29	0	1787751..1788953	+	400	110668445	-	HQ2536A	-	IS1341-type transposase
1470	 44.80	-1	1789084..1789554	-	156	110668446	ferA_5	HQ2537A	-	ferredoxin
1471	 45.62	0	1790353..1790832	-	159	110668447	-	HQ2538A	-	hypothetical protein
1472	 49.67	0	1790912..1795459	-	1515	110668448	sga1	HQ2539A	-	glucoamylase
1473	 48.06	0	1795553..1797691	+	712	110668449	amyA	HQ2540A	-	glucan 1,4-alpha-maltohydrolase
1474	 45.74	0	1798375..1798632	+	85	110668450	-	HQ2541A	-	transposase (fragment)
1475	 47.49	0	1798795..1801161	-	788	110668451	-	HQ2542A	-	membrane protein
1476	 48.21	0	1801197..1802507	-	436	110668452	sfuC	HQ2543A	-	ABC-type spermidine/putrescine/iron transport system, ATP-binding protein
1477	 48.65	0	1802545..1804170	-	541	110668453	sfuB	HQ2544A	-	ABC-type iron(III) transport system, permease protein
1478	 47.84	0	1804268..1805473	-	401	110668454	sfuA	HQ2545A	-	ABC-type iron(III) transport system,substrate-binding protein
1479	 46.33	0	1805611..1806795	-	394	110668455	-	HQ2546A	-	hypothetical protein
1480	 47.28	0	1806944..1807366	+	140	110668456	-	HQ2547A	-	hypothetical protein
1481	 49.90	0	1807505..1808011	+	168	110668457	-	HQ2548A	-	endonuclease associated protein
1482	 54.18	+1	1808238..1809518	+	426	110668458	-	HQ2549A	-	IS1341-type transposase
48.79	MEAN

3.84	STD DEV
