IslandPath Analysis: Haloquadratum walsbyi DSM 16790

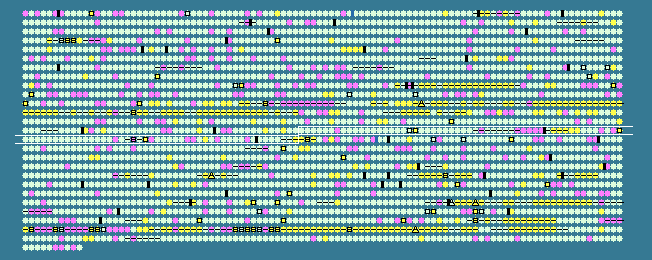

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1347	 47.44	0	1643093..1643482	+	129	110668323	glo	HQ2401A	-	lyase / dioxygenase ( lactoylglutathione lyase, aromatic compounds dioxygenase)
1348	 50.62	0	1644079..1645599	+	506	110668324	menE	HQ2402A	-	O-succinylbenzoic acid--CoA ligase
1349	 49.13	0	1645871..1646731	-	286	110668325	-	HQ2403A	-	phosphoesterase
1350	 47.61	0	1646909..1648954	-	681	110668326	-	HQ2404A	-	hypothetical protein
1351	 49.88	0	1648951..1650237	-	428	110668327	rpa	HQ2405A	-	replication factor A
1352	 46.09	0	1650391..1651644	+	417	110668328	-	HQ2406A	-	permease
1353	 43.20	-1	1651718..1652011	-	97	110668329	padR	HQ2407A	-	transcription regulator
1354	 47.51	0	1652536..1653318	+	260	110668330	-	HQ2408A	-	hypothetical protein
1355	 49.96	0	1653579..1654769	-	396	110668331	-	HQ2409A	-	hypothetical protein
1356	 46.67	0	1654888..1655337	-	149	110668332	-	HQ2410A	-	hypothetical protein
1357	 46.78	0	1655524..1656981	+	485	110668333	-	HQ2411A	-	hypothetical protein
1358	 49.07	0	1657146..1658384	+	412	110668334	rspA	HQ2412A	-	molecular chaperone P45
1359	 48.03	0	1658549..1659283	-	244	110668335	-	HQ2413A	-	hypothetical protein
1360	 49.07	0	1659556..1659879	-	107	110668336	fer	HQ2414A	-	ferredoxin
1361	 47.75	0	1660201..1660623	-	140	110668337	-	HQ2415A	-	hypothetical protein
1362	 48.94	0	1660863..1661381	-	172	110668338	ubiE	HQ2416A	-	menaquinone biosynthesis methyltransferase UbiE
1363	 50.81	0	1661692..1662366	+	224	110668339	-	HQ2417A	-	hypothetical protein
1364	 48.22	0	1662685..1663665	+	326	110668340	rad2	HQ2418A	-	flap endonuclease-1
1365	 52.08	0	1664962..1665105	-	47	110668341	-	HQ2419A	-	IS1341-type transposase
1366	 53.04	+1	1665203..1665679	-	158	110668342	-	HQ2420A	-	IS1341-type transposase
1367	 46.41	0	1665781..1666086	+	101	110668343	-	HQ2421A	-	hypothetical protein
1368	 47.96	0	1666284..1667192	-	302	110668344	-	HQ2422A	-	hypothetical protein
1369	 46.17	0	1667195..1667599	-	134	110668345	ptpS	HQ2423A	-	6-pyruvoyltetrahydropterin synthase
1370	 48.14	0	1667860..1668933	-	357	110668346	tdh	HQ2425A	-	oxidoreductase ( Zn-dependent dehydrogenases, threonine 3-dehydrogenase)
1371	 49.71	0	1669136..1669996	-	286	110668347	gch3	HQ2427A	-	GTP cyclohydrolase III
1372	 48.22	0	1670319..1671749	+	476	110668348	aslA	HQ2428A	-	arylsulfatase
1373	 46.25	0	1671867..1672106	-	79	110668349	-	HQ2429A	-	hypothetical protein
1374	 47.82	0	1672322..1673260	-	312	110668350	arsA	HQ2430A	-	transport ATPase ( substrate arsenite)
1375	 46.72	0	1673583..1675151	-	522	110668351	-	HQ2431A	-	deoxyribodipyrimidine photolyase-related protein
1376	 49.85	0	1675429..1676094	-	221	110668352	rnhA	HQ2432A	-	ribonuclease H I
1377	 43.66	-1	1676308..1676820	+	170	110668353	-	HQ2434A	-	transcription regulator
1378	 45.67	0	1677324..1677623	+	99	110668354	-	HQ2435A	-	hypothetical protein
1379	 52.08	0	1678517..1678996	-	159	110668355	-	HQ2437A	-	hypothetical protein
1380	 50.56	0	1680193..1681452	+	419	110668356	-	HQ2439A	-	major facilitator superfamily transporter
1381	 47.83	0	1681753..1682649	+	298	110668357	-	HQ2440A	-	transporter of the drug/metabolite transporter (DMT) superfamily
1382	 49.03	0	1682728..1684536	-	602	110668358	sdhA	HQ2441A	-	succinate dehydrogenase, subunit A (flavoprotein)
1383	 43.00	-1	1684767..1685273	+	168	110668359	-	HQ2442A	-	hypothetical protein
1384	 44.29	-1	1685367..1685585	-	72	110668360	-	HQ2443A	-	hypothetical protein
1385	 36.84	-2	1685849..1685962	-	37	110668361	-	HQ2444A	-	hypothetical protein
1386	 45.18	0	1686902..1687492	-	196	110668362	trxB	HQ2445A	-	thioredoxin reductase-like protein
1387	 43.58	-1	1688692..1689345	-	217	110668363	-	HQ2447A	-	hypothetical protein
1388	 50.40	0	1689858..1690607	+	249	110668364	oxr	HQ2448A	-	oxidoreductase
1389	 57.33	+2	1690758..1691057	-	99	110668365	-	HQ2449A	-	hypothetical protein
1390	 57.76	+2	1691094..1692227	+	377	110668366	rbsB	HQ2450A	-	ABC-type transport system, substrate-binding protein
1391	 57.91	+2	1692289..1693887	+	532	110668367	rbsA	HQ2451A	-	ABC-type ribose transport system, ATP-binding protein
1392	 58.06	+2	1694022..1695113	+	363	110668368	rbsC1	HQ2452A	-	ABC-type ribose transport system, permease protein
1393	 58.20	+2	1695106..1696227	+	373	110668369	rbsC2	HQ2453A	-	ABC-type ribose transport system, permease protein
1394	 49.73	0	1697898..1698641	-	247	110668370	psmA2	HQ2454A	-	proteasome subunit alpha
1395	 49.15	0	1698901..1699488	-	195	110668371	folA	HQ2455A	-	dihydrofolate reductase
1396	 49.16	0	1699488..1700498	-	336	110668372	thyA	HQ2456A	-	thymidylate synthase
1397	 43.23	-1	1700692..1701267	+	191	110668373	-	HQ2457A	-	hydrolase
1398	 48.84	0	1701675..1701977	-	100	110668374	-	HQ2458A	-	hypothetical protein
1399	 42.95	-1	1703123..1703278	+	51	110668375	-	HQ2459A	-	hypothetical protein
1400	 53.04	+1	1704193..1705623	-	476	110668376	-	HQ2460A	-	Tn5-like transposase
1401	 50.17	0	1706234..1706833	-	199	110668377	sod	HQ2461A	-	superoxide dismutase
1402	 51.52	0	1707009..1707437	+	142	110668378	-	HQ2462A	-	hypothetical protein
1403	 47.46	0	1708553..1709989	-	478	110668379	phr	HQ2463A	-	deoxyribodipyrimidine photolyase
1404	 47.42	0	1710015..1710731	-	238	110668380	-	HQ2464A	-	hypothetical protein
1405	 47.64	0	1710904..1712112	-	402	110668381	folP	HQ2465A	-	dihydropteroate synthase
1406	 47.69	0	1712703..1713287	+	194	110668382	-	HQ2466A	-	hypothetical protein
1407	 45.45	0	1713297..1714295	+	332	110668383	-	HQ2467A	-	tRNA/rRNA methyltransferase
1408	 49.33	0	1714357..1716282	-	641	110668384	gatE	HQ2468A	-	glutamyl-tRNA(Gln) amidotransferase subunit E
1409	 47.63	0	1717175..1718629	-	484	110668385	fumC	HQ2471A	-	fumarate hydratase
1410	 48.89	0	1719104..1719373	-	89	110668386	bolA	HQ2473A	-	morphology/transcription regulator BolA  family protein
1411	 49.72	0	1719517..1719870	-	117	110668387	-	HQ2474A	-	hypothetical protein
1412	 49.09	0	1720301..1721239	-	312	110668388	dppC	HQ2475A	-	ABC-type dipeptide/oligopeptide/nickel transport systems, permease protein
1413	 45.69	0	1721392..1722435	-	347	110668389	dppB	HQ2476A	-	ABC-type dipeptide/oligopeptide/nickel transport systems, permease protein
1414	 47.86	0	1722578..1724305	-	575	110668390	dppA	HQ2477A	-	ABC-type dipeptide/oligopeptide/nickel transport system, substrate-binding protein
1415	 46.88	0	1724472..1727054	-	860	110668391	dppDF	HQ2478A	-	ABC-type dipeptide/oligopeptide/nickel transport systems, ATP-binding protein I & II
1416	 43.65	-1	1727252..1727881	+	209	110668392	-	HQ2479A	-	hypothetical protein
1417	 49.16	0	1728073..1728489	-	138	110668393	-	HQ2480A	-	hypothetical protein
1418	 47.44	0	1728652..1729665	+	337	110668394	mutY	HQ2481A	-	A/G-specific adenine glycosylase
1419	 44.67	-1	1730318..1730467	-	49	110668395	-	HQ2483A	-	IS200-type transposase (nonfunctional,N-terminal part)
1420	 48.15	0	1730527..1730661	+	44	110668396	-	HQ2484A	-	hypothetical protein
1421	 55.86	+1	1730658..1731980	+	440	110668397	-	HQ2485A	-	IS1341-type transposase
1422	 42.98	-1	1732347..1732460	+	37	110668398	-	HQ2486A	-	hypothetical protein
1423	 50.00	0	1733261..1733968	-	235	110668399	cinA	HQ2488A	-	CinA-like domain-containing protein
1424	 47.71	0	1734060..1734866	-	268	110668400	-	HQ2489A	-	hypothetical protein
1425	 45.60	0	1735000..1735920	-	306	110668401	-	HQ2490A	-	hypothetical protein
1426	 46.89	0	1735920..1736450	-	176	110668402	tfeA	HQ2491A	-	transcription initiation factor IIE alpha subunit-like protein
1427	 47.25	0	1736621..1737202	-	193	110668403	-	HQ2492A	-	tRNA 2'-O-methylase
1428	 44.01	-1	1737440..1738525	+	361	110668404	dadA	HQ2493A	-	glycine/D-amino acid oxidases (deaminating)
1429	 44.93	-1	1738612..1739637	+	341	110668405	galE	HQ2494A	-	nucleoside-diphosphate-sugar epimerase ( UDP-glucose 4-epimerase)
1430	 45.75	0	1740203..1741096	+	297	110668406	-	HQ2496A	-	hypothetical protein
1431	 57.34	+2	1741307..1741810	+	167	110668407	-	HQ2497A	-	glycine-rich protein
1432	 46.71	0	1742112..1743098	-	328	110668408	iunH	HQ2498A	-	inosine-uridine preferring nucleoside hydrolase
1433	 45.22	0	1743308..1744603	-	431	110668409	-	HQ2499A	-	hexosyltransferase
1434	 45.78	0	1744704..1745948	-	414	110668410	-	HQ2500A	-	hexosyltransferase 1
1435	 50.18	0	1746121..1746399	+	92	110668411	rnp4	HQ2501A	-	ribonuclease P protein component 4
1436	 48.41	0	1746491..1746742	+	83	110668412	-	HQ2502A	-	hypothetical protein
1437	 46.36	0	1746739..1747659	+	306	110668413	mscS	HQ2503A	-	mechanosensitive channel
1438	 43.96	-1	1747654..1748472	-	272	110668414	-	HQ2504A	-	hypothetical protein
1439	 46.95	0	1749569..1749847	+	92	110668415	tatA	HQ2505A	-	sec-independent protein translocase component TatA
1440	 46.88	0	1750546..1752051	+	501	110668416	norM	HQ2506A	-	sodium-driven multidrug efflux pump
1441	 47.47	0	1752273..1752767	+	164	110668417	-	HQ2507A	-	hypothetical protein
1442	 48.33	0	1752805..1753851	-	348	110668418	-	HQ2508A	-	LPS glycosyltransferase
1443	 47.68	0	1755475..1756164	+	229	110668419	ribG	HQ2510A	-	hypothetical protein
1444	 45.72	0	1756249..1756587	+	112	110668420	trxA	HQ2511A	-	thioredoxin
1445	 50.92	0	1757468..1757740	+	90	110668421	-	HQ2512A	-	hypothetical protein
1446	 54.26	+1	1757733..1758296	+	187	110668422	-	HQ2513A	-	hypothetical protein
48.79	MEAN

3.84	STD DEV
