IslandPath Analysis: Haloquadratum walsbyi DSM 16790

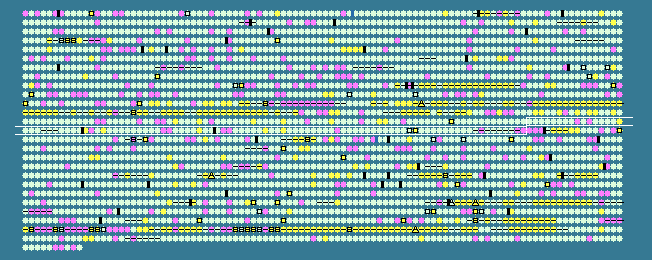

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1285	 48.47	0	1580958..1581842	+	294	110668261	-	HQ2335A	-	nucleoside diphosphate sugar epimerase
1286	 49.59	0	1581955..1582440	+	161	110668262	ferA	HQ2336A	-	ferredoxin I
1287	 50.25	0	1582462..1582662	+	66	110668263	-	HQ2337A	-	hypothetical protein
1288	 47.45	0	1582732..1583064	-	110	110668264	-	HQ2338A	-	hypothetical protein
1289	 47.92	0	1583381..1585066	+	561	110668265	hflX	HQ2339A	-	GTP-binding protein
1290	 45.37	0	1585096..1585635	-	179	110668266	moaC	HQ2340A	-	putative molybdenum cofactor biosynthesis protein C
1291	 49.83	0	1585628..1587130	-	500	110668267	-	HQ2341A	-	sugar kinase
1292	 50.30	0	1587375..1588559	+	394	110668268	-	HQ2342A	-	major facilitator superfamily transporter
1293	 44.29	-1	1588644..1588862	-	72	110668269	-	HQ2343A	-	hypothetical protein
1294	 46.38	0	1589489..1590178	+	229	110668270	nqrF	HQ2344A	-	FAD/NAD binding oxidoreductase; Na+-transporting NADH:ubiquinone oxidoreductase, subunit NqrF
1295	 41.79	-1	1590277..1590666	-	129	110668271	-	HQ2345A	-	hypothetical protein
1296	 49.55	0	1590912..1591355	+	147	110668272	usp	HQ2346A	-	stress response protein
1297	 45.80	0	1591470..1592303	+	277	110668273	-	HQ2347A	-	hypothetical protein
1298	 51.02	0	1592383..1592529	-	48	110668274	-	HQ2348A	-	hypothetical protein
1299	 45.92	0	1592811..1593263	-	150	110668275	-	HQ2349A	-	hypothetical protein
1300	 55.11	+1	1593376..1593600	-	74	110668276	-	HQ2350A	-	hypothetical protein
1301	 47.23	0	1594053..1595714	+	553	110668277	kchA	HQ2351A	-	Kef-type potassium channel protein
1302	 48.20	0	1595725..1596585	-	286	110668278	coxC	HQ2352A	-	cytochrome-c-like terminal oxidase, subunit III
1303	 49.35	0	1596734..1597807	-	357	110668279	fdfT	HQ2353A	-	farnesyl-diphosphate farnesyltransferase (squalene synthase)
1304	 49.29	0	1598602..1598883	+	93	110668280	-	HQ2355A	-	hypothetical protein
1305	 50.93	0	1599017..1599715	-	232	110668281	pssA	HQ2356A	-	CDP-diacylglycerol--serine O-phosphatidyltransferase (phosphatidylserine synthase)
1306	 48.43	0	1599872..1600348	+	158	110668282	hcpH	HQ2357A	-	halocyanin hcpH
1307	 47.57	0	1600430..1601068	-	212	110668283	rps3aR	HQ2358A	-	30S ribosomal protein S3Ae
1308	 49.20	0	1601061..1601684	-	207	110668284	-	HQ2359A	-	rps operon protein
1309	 48.92	0	1601695..1603356	-	553	110668285	-	HQ2360A	-	rps operon protein
1310	 50.52	0	1603537..1604013	-	158	110668286	rps15p	HQ2361A	-	30S ribosomal protein S15P
1311	 55.36	+1	1605155..1605499	+	114	110668287	panD	HQ2363A	-	aspartate 1-decarboxylase precursor (aspartate alpha-decarboxylase)
1312	 45.24	0	1605908..1606327	+	139	110668288	-	HQ2364A	-	hypothetical protein
1313	 49.17	0	1606603..1607511	+	302	110668289	dapA	HQ2365A	-	dihydrodipicolinate synthase
1314	 52.83	+1	1607579..1608604	+	341	110668290	adh	HQ2366A	-	alcohol dehydrogenase
1315	 45.45	0	1609371..1609799	-	142	110668291	-	HQ2368A	-	homolog to lyase/ dioxygenase
1316	 48.50	0	1610035..1610700	+	221	110668292	tenA	HQ2369A	-	transcription regulator
1317	 48.85	0	1610789..1612360	+	523	110668293	putP	HQ2370A	-	sodium/proline symporter
1318	 47.89	0	1613028..1613597	+	189	110668294	-	HQ2371A	-	hypothetical protein
1319	 48.04	0	1613836..1614345	-	169	110668295	uspA	HQ2372A	-	stress response protein
1320	 48.08	0	1614971..1615648	+	225	110668296	-	HQ2373A	-	regulatory protein PrrC
1321	 48.06	0	1615645..1616262	+	205	110668297	trxA	HQ2374A	-	thioredoxin
1322	 48.07	0	1616393..1617091	+	232	110668298	ccdA	HQ2375A	-	cytochrome C biogenesis protein/thiol-disulfide transporter
1323	 45.91	0	1618138..1618773	+	211	110668299	mobA	HQ2376A	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1324	 40.79	-2	1619635..1619862	-	75	110668300	-	HQ2377A	-	hypothetical protein
1325	 43.30	-1	1620084..1620404	+	106	110668301	-	HQ2378A	-	hypothetical protein
1326	 47.92	0	1620441..1621160	-	239	110668302	ugpQ	HQ2379A	-	glycerophosphodiester phosphodiesterase
1327	 51.79	0	1621281..1621979	-	232	110668303	-	HQ2380A	-	short chanin dehydrogenase/ reductase
1328	 48.90	0	1622028..1623485	-	485	110668304	-	HQ2381A	-	beta,beta-carotene 15,15'-monooxygenase; beta-carotene dioxygenase 1
1329	 50.40	0	1623675..1625174	-	499	110668305	guaB	HQ2382A	-	IMP dehydrogenase 1
1330	 54.31	+1	1625365..1625631	+	88	110668306	-	HQ2383A	-	hypothetical protein
1331	 51.20	0	1625638..1626555	+	305	110668307	-	HQ2384A	-	hypothetical protein
1332	 48.29	0	1626801..1627034	+	77	110668308	-	HQ2385A	-	hypothetical protein
1333	 46.53	0	1627477..1627620	+	47	110668309	-	HQ2386A	-	hypothetical protein
1334	 43.60	-1	1627672..1628226	-	184	110668310	-	HQ2387A	-	hypothetical protein
1335	 42.02	-1	1628532..1629176	-	214	110668311	-	HQ2388A	-	hypothetical protein
1336	 46.75	0	1630545..1631699	-	384	110668312	acd	HQ2389A	-	acyl-CoA dehydrogenase
1337	 47.79	0	1632082..1633575	+	497	110668313	-	HQ2390A	-	transport protein ( polysaccharide biosynthesis transport protein)
1338	 48.05	0	1633915..1634376	+	153	110668314	apa	HQ2391A	-	bis(5'-nucleosyl)-tetraphosphatase (asymmetrical) (diadenosine tetraphosphatase)
1339	 49.65	0	1634627..1635895	+	422	110668315	-	HQ2392A	-	hypothetical protein
1340	 46.84	0	1636027..1636707	-	226	110668316	-	HQ2393A	-	hypothetical protein
1341	 52.77	+1	1636937..1637713	+	258	110668317	fadA	HQ2394A	-	enoyl-CoA hydratase I
1342	 45.99	0	1638359..1638682	+	107	110668318	rpoM1	HQ2396A	-	DNA-directed RNA polymerase subunit M1
1343	 46.95	0	1638765..1639337	+	190	110668319	-	HQ2397A	-	hypothetical protein
1344	 52.80	+1	1639469..1640218	-	249	110668320	-	HQ2398A	-	methyltransferase
1345	 50.53	0	1640215..1640592	-	125	110668321	nac	HQ2399A	-	nascent polypeptide-associated complex protein
1346	 46.98	0	1640831..1642501	+	556	110668322	mcmA	HQ2400A	-	methylmalonyl-CoA mutase, subunit A
1347	 47.44	0	1643093..1643482	+	129	110668323	glo	HQ2401A	-	lyase / dioxygenase ( lactoylglutathione lyase, aromatic compounds dioxygenase)
1348	 50.62	0	1644079..1645599	+	506	110668324	menE	HQ2402A	-	O-succinylbenzoic acid--CoA ligase
1349	 49.13	0	1645871..1646731	-	286	110668325	-	HQ2403A	-	phosphoesterase
1350	 47.61	0	1646909..1648954	-	681	110668326	-	HQ2404A	-	hypothetical protein
1351	 49.88	0	1648951..1650237	-	428	110668327	rpa	HQ2405A	-	replication factor A
1352	 46.09	0	1650391..1651644	+	417	110668328	-	HQ2406A	-	permease
1353	 43.20	-1	1651718..1652011	-	97	110668329	padR	HQ2407A	-	transcription regulator
1354	 47.51	0	1652536..1653318	+	260	110668330	-	HQ2408A	-	hypothetical protein
1355	 49.96	0	1653579..1654769	-	396	110668331	-	HQ2409A	-	hypothetical protein
1356	 46.67	0	1654888..1655337	-	149	110668332	-	HQ2410A	-	hypothetical protein
1357	 46.78	0	1655524..1656981	+	485	110668333	-	HQ2411A	-	hypothetical protein
1358	 49.07	0	1657146..1658384	+	412	110668334	rspA	HQ2412A	-	molecular chaperone P45
1359	 48.03	0	1658549..1659283	-	244	110668335	-	HQ2413A	-	hypothetical protein
1360	 49.07	0	1659556..1659879	-	107	110668336	fer	HQ2414A	-	ferredoxin
1361	 47.75	0	1660201..1660623	-	140	110668337	-	HQ2415A	-	hypothetical protein
1362	 48.94	0	1660863..1661381	-	172	110668338	ubiE	HQ2416A	-	menaquinone biosynthesis methyltransferase UbiE
1363	 50.81	0	1661692..1662366	+	224	110668339	-	HQ2417A	-	hypothetical protein
1364	 48.22	0	1662685..1663665	+	326	110668340	rad2	HQ2418A	-	flap endonuclease-1
1365	 52.08	0	1664962..1665105	-	47	110668341	-	HQ2419A	-	IS1341-type transposase
1366	 53.04	+1	1665203..1665679	-	158	110668342	-	HQ2420A	-	IS1341-type transposase
1367	 46.41	0	1665781..1666086	+	101	110668343	-	HQ2421A	-	hypothetical protein
1368	 47.96	0	1666284..1667192	-	302	110668344	-	HQ2422A	-	hypothetical protein
1369	 46.17	0	1667195..1667599	-	134	110668345	ptpS	HQ2423A	-	6-pyruvoyltetrahydropterin synthase
1370	 48.14	0	1667860..1668933	-	357	110668346	tdh	HQ2425A	-	oxidoreductase ( Zn-dependent dehydrogenases, threonine 3-dehydrogenase)
1371	 49.71	0	1669136..1669996	-	286	110668347	gch3	HQ2427A	-	GTP cyclohydrolase III
1372	 48.22	0	1670319..1671749	+	476	110668348	aslA	HQ2428A	-	arylsulfatase
1373	 46.25	0	1671867..1672106	-	79	110668349	-	HQ2429A	-	hypothetical protein
1374	 47.82	0	1672322..1673260	-	312	110668350	arsA	HQ2430A	-	transport ATPase ( substrate arsenite)
1375	 46.72	0	1673583..1675151	-	522	110668351	-	HQ2431A	-	deoxyribodipyrimidine photolyase-related protein
1376	 49.85	0	1675429..1676094	-	221	110668352	rnhA	HQ2432A	-	ribonuclease H I
1377	 43.66	-1	1676308..1676820	+	170	110668353	-	HQ2434A	-	transcription regulator
1378	 45.67	0	1677324..1677623	+	99	110668354	-	HQ2435A	-	hypothetical protein
1379	 52.08	0	1678517..1678996	-	159	110668355	-	HQ2437A	-	hypothetical protein
1380	 50.56	0	1680193..1681452	+	419	110668356	-	HQ2439A	-	major facilitator superfamily transporter
1381	 47.83	0	1681753..1682649	+	298	110668357	-	HQ2440A	-	transporter of the drug/metabolite transporter (DMT) superfamily
1382	 49.03	0	1682728..1684536	-	602	110668358	sdhA	HQ2441A	-	succinate dehydrogenase, subunit A (flavoprotein)
1383	 43.00	-1	1684767..1685273	+	168	110668359	-	HQ2442A	-	hypothetical protein
1384	 44.29	-1	1685367..1685585	-	72	110668360	-	HQ2443A	-	hypothetical protein
48.79	MEAN

3.84	STD DEV
