IslandPathversion 1.0

IslandPath Analysis: Haloquadratum walsbyi DSM 16790

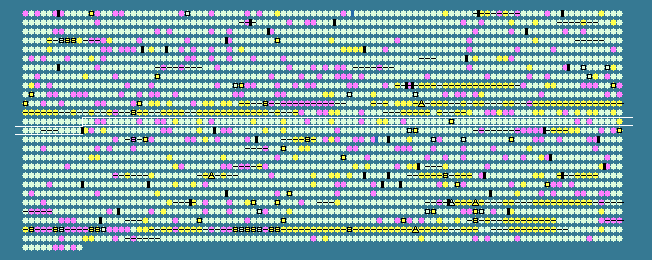

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1211	 46.75	0	1487955..1488185	+	76	110668187	-	HQ2251A	-	hypothetical protein
1212	 46.95	0	1488975..1491560	-	861	110668188	cadA	HQ2252A	-	cadmium-transporting ATPase
1213	 45.26	0	1492093..1492419	-	108	110668189	-	HQ2253A	-	hypothetical protein
1214	 44.30	-1	1492698..1493153	+	151	110668190	-	HQ2254A	-	hypothetical protein
1215	 48.86	0	1493502..1496432	+	976	110668191	-	HQ2255A	-	hypothetical protein
1216	 49.03	0	1496429..1497148	+	239	110668192	-	HQ2256A	-	hypothetical protein
1217	 50.67	0	1497157..1498506	+	449	110668193	-	HQ2257A	-	hypothetical protein
1218	 49.45	0	1498503..1500059	+	518	110668194	-	HQ2258A	-	hypothetical protein
1219	 48.41	0	1500183..1501157	-	324	110668195	moxR	HQ2259A	-	MoxR-like ATPase
1220	 44.44	-1	1501671..1502039	-	122	110668196	-	HQ2260A	-	hypothetical protein
1221	 48.37	0	1502221..1502619	-	132	110668197	-	HQ2261A	-	hypothetical protein
1222	 48.40	0	1502667..1503197	-	176	110668198	-	HQ2262A	-	hypothetical protein
1223	 44.39	-1	1503197..1503847	-	216	110668199	-	HQ2263A	-	hypothetical protein
1224	 44.81	-1	1504347..1504808	+	153	110668200	-	HQ2264A	-	hypothetical protein
1225	 45.34	0	1504980..1505462	-	160	110668201	-	HQ2265A	-	pyridoxamine 5'-phosphate oxidase
1226	 52.78	+1	1505704..1505847	-	47	110668202	-	HQ2266A	-	periplasmic serine proteinase (fragment)
1227	 47.83	0	1506295..1506846	+	183	110668203	-	HQ2268A	-	hypothetical protein
1228	 49.21	0	1508228..1509298	-	356	110668204	-	HQ2269A	-	CBS domain-containing protein
1229	 49.87	0	1509408..1510199	-	263	110668205	nagD	HQ2270A	-	putative N-acetyl-glucosamine catabolism protein
1230	 58.42	+2	1510607..1512364	+	585	110668206	-	HQ2271A	-	ferredoxin domain-containing protein
1231	 49.00	0	1513504..1514256	-	250	110668207	-	HQ2273A	-	hypothetical protein
1232	 44.96	0	1514491..1515393	+	300	110668208	-	HQ2274A	-	hypothetical protein
1233	 49.95	0	1516225..1518114	+	629	110668209	dap2	HQ2276A	-	dipeptidyl aminopeptidases/acylaminoacyl-peptidases
1234	 49.81	0	1519249..1519509	+	86	110668210	-	HQ2277A	-	hypothetical protein
1235	 46.35	0	1519653..1519844	+	63	110668211	-	HQ2278A	-	hypothetical protein
1236	 50.30	0	1520382..1521206	+	274	110668212	-	HQ2279A	-	hypothetical protein
1237	 48.01	0	1521210..1521761	+	183	110668213	entB	HQ2280A	-	isochorismatase
1238	 48.86	0	1522447..1523103	+	218	110668214	-	HQ2281A	-	hypothetical protein
1239	 54.48	+1	1523413..1524585	+	390	110668215	-	HQ2282A	-	hypothetical protein
1240	 51.27	0	1525231..1526016	-	261	110668216	-	HQ2283A	-	hypothetical protein
1241	 46.03	0	1526013..1526327	-	104	110668217	-	HQ2284A	-	hypothetical protein
1242	 50.54	0	1526428..1527822	-	464	110668218	-	HQ2285A	-	major facilitator superfamily transporter
1243	 49.61	0	1530353..1530991	-	212	110668219	-	HQ2287A	-	hypothetical protein
1244	 55.38	+1	1531271..1532404	+	377	110668220	-	HQ2288A	-	thiosulfate sulfurtransferase
1245	 50.53	0	1532517..1533272	+	251	110668221	-	HQ2289A	-	hypothetical protein
1246	 46.49	0	1534346..1534573	+	75	110668222	-	HQ2290A	-	hypothetical protein
1247	 49.10	0	1534835..1536058	-	407	110668223	oxlT	HQ2291A	-	oxalate/formate antiporter
1248	 45.28	0	1536710..1537069	+	119	110668224	-	HQ2293A	-	hypothetical protein
1249	 46.79	0	1537280..1537606	-	108	110668225	-	HQ2294A	-	hypothetical protein
1250	 49.80	0	1538024..1540312	-	762	110668226	chlID	HQ2295A	-	magnesium chelatase (protoporphyrin IX magnesium-chelatase)
1251	 50.42	0	1540356..1544288	+	1310	110668227	cobN	HQ2296A	-	cobalt chelatase
1252	 53.21	+1	1544278..1545057	+	259	110668228	cbiC	HQ2297A	-	precorrin-8X methylmutase
1253	 50.83	0	1545054..1545836	+	260	110668229	cbiE	HQ2298A	-	cobalt-precorrin-6Y C(5)-methyltransferase
1254	 46.93	0	1546227..1546763	+	178	110668230	-	HQ2299A	-	atp-binding cobalamin adenosyltransferase
1255	 47.45	0	1546860..1548134	-	424	110668231	argK	HQ2300A	-	transport ATPase, component for LAO/AO transport systems
1256	 47.72	0	1548131..1548547	-	138	110668232	mcmB	HQ2301A	-	methylmalonyl-CoA mutase, subunit B (cobalamin-binding subunit)
1257	 44.79	-1	1548839..1549702	+	287	110668233	hbd	HQ2302A	-	3-hydroxyacyl-CoA dehydrogenase
1258	 51.02	0	1550372..1551208	-	278	110668234	cbiO	HQ2303A	-	ABC-type cobalt transport system, ATP-binding protein
1259	 51.72	0	1551205..1552020	-	271	110668235	cbiQ	HQ2304A	-	ABC-type cobalt transport system, permease protein II
1260	 56.39	+1	1552026..1552346	-	106	110668236	-	HQ2305A	-	cobalamin transport operon protein
1261	 53.30	+1	1552346..1553026	-	226	110668237	cbiM	HQ2306A	-	ABC-type cobalt transport system, permease protein I
1262	 50.90	0	1553181..1554347	+	388	110668238	acaB	HQ2307A	-	acetyl-CoA C-acyltransferase
1263	 48.58	0	1554344..1554730	+	128	110668239	-	HQ2308A	-	hypothetical protein
1264	 44.62	-1	1554896..1555639	-	247	110668240	phaB	HQ2309A	-	3-oxoacyl-[acyl-carrier-protein] reductase (3-ketoacyl-acyl carrier protein reductase) PhaB
1265	 46.12	0	1555807..1557222	-	471	110668241	phaC	HQ2310A	-	Poly-beta-hydroxybutyrate polymerase polyhydroxyalkanoic acid synthase PhaC
1266	 49.55	0	1557219..1557773	-	184	110668242	-	HQ2311A	-	phbC-phbA intergenic region protein
1267	 49.25	0	1557952..1558416	-	154	110668243	-	HQ2312A	-	hypothetical protein
1268	 48.91	0	1558422..1558787	-	121	110668244	-	HQ2313A	-	hypothetical protein
1269	 48.08	0	1558909..1559586	+	225	110668245	maoC	HQ2315A	-	enoyl-CoA hydratase
1270	 46.83	0	1559676..1560431	+	251	110668246	-	HQ2316A	-	hypothetical protein
1271	 49.16	0	1561085..1563808	-	907	110668247	leuS	HQ2317A	-	leucyl-tRNA synthetase
1272	 53.33	+1	1566363..1566887	+	174	110668248	-	HQ2319A	-	transposase homolog (ISHnew96)
1273	 47.12	0	1569129..1569527	+	132	110668249	-	HQ2323A	-	hypothetical protein
1274	 45.63	0	1569664..1570281	-	205	110668250	msrA	HQ2324A	-	peptide methionine sulfoxide reductase (S-form specific)
1275	 50.42	0	1570386..1571801	+	471	110668251	-	HQ2325A	-	oxidoreductase, oxygen dependent,FAD-dependent protein
1276	 45.65	0	1572203..1573201	-	332	110668252	epf	HQ2326A	-	mRNA cleavage and polyadenylation specificity factor-like protein
1277	 48.68	0	1573339..1575195	-	618	110668253	ligB	HQ2327A	-	DNA ligase (ATP)
1278	 46.71	0	1575312..1575737	-	141	110668254	-	HQ2328A	-	hypothetical protein
1279	 50.43	0	1575812..1576501	-	229	110668255	glpG	HQ2329A	-	rhomboid family protein
1280	 47.42	0	1576734..1577024	-	96	110668256	-	HQ2330A	-	hypothetical protein
1281	 50.63	0	1577137..1577928	+	263	110668257	-	HQ2331A	-	hypothetical protein
1282	 49.49	0	1578154..1578846	+	230	110668258	-	HQ2332A	-	S-adenosylmethionine-dependent methyltransferase
1283	 46.26	0	1579266..1579412	-	48	110668259	-	HQ2333A	-	hypothetical protein
1284	 46.63	0	1579731..1580768	-	345	110668260	nce	HQ2334A	-	Na+/Ca2+-antiporter
1285	 48.47	0	1580958..1581842	+	294	110668261	-	HQ2335A	-	nucleoside diphosphate sugar epimerase
1286	 49.59	0	1581955..1582440	+	161	110668262	ferA	HQ2336A	-	ferredoxin I
1287	 50.25	0	1582462..1582662	+	66	110668263	-	HQ2337A	-	hypothetical protein
1288	 47.45	0	1582732..1583064	-	110	110668264	-	HQ2338A	-	hypothetical protein
1289	 47.92	0	1583381..1585066	+	561	110668265	hflX	HQ2339A	-	GTP-binding protein
1290	 45.37	0	1585096..1585635	-	179	110668266	moaC	HQ2340A	-	putative molybdenum cofactor biosynthesis protein C
1291	 49.83	0	1585628..1587130	-	500	110668267	-	HQ2341A	-	sugar kinase
1292	 50.30	0	1587375..1588559	+	394	110668268	-	HQ2342A	-	major facilitator superfamily transporter
1293	 44.29	-1	1588644..1588862	-	72	110668269	-	HQ2343A	-	hypothetical protein
1294	 46.38	0	1589489..1590178	+	229	110668270	nqrF	HQ2344A	-	FAD/NAD binding oxidoreductase; Na+-transporting NADH:ubiquinone oxidoreductase, subunit NqrF
1295	 41.79	-1	1590277..1590666	-	129	110668271	-	HQ2345A	-	hypothetical protein
1296	 49.55	0	1590912..1591355	+	147	110668272	usp	HQ2346A	-	stress response protein
1297	 45.80	0	1591470..1592303	+	277	110668273	-	HQ2347A	-	hypothetical protein
1298	 51.02	0	1592383..1592529	-	48	110668274	-	HQ2348A	-	hypothetical protein
1299	 45.92	0	1592811..1593263	-	150	110668275	-	HQ2349A	-	hypothetical protein
1300	 55.11	+1	1593376..1593600	-	74	110668276	-	HQ2350A	-	hypothetical protein
1301	 47.23	0	1594053..1595714	+	553	110668277	kchA	HQ2351A	-	Kef-type potassium channel protein
1302	 48.20	0	1595725..1596585	-	286	110668278	coxC	HQ2352A	-	cytochrome-c-like terminal oxidase, subunit III
1303	 49.35	0	1596734..1597807	-	357	110668279	fdfT	HQ2353A	-	farnesyl-diphosphate farnesyltransferase (squalene synthase)
1304	 49.29	0	1598602..1598883	+	93	110668280	-	HQ2355A	-	hypothetical protein
1305	 50.93	0	1599017..1599715	-	232	110668281	pssA	HQ2356A	-	CDP-diacylglycerol--serine O-phosphatidyltransferase (phosphatidylserine synthase)
1306	 48.43	0	1599872..1600348	+	158	110668282	hcpH	HQ2357A	-	halocyanin hcpH
1307	 47.57	0	1600430..1601068	-	212	110668283	rps3aR	HQ2358A	-	30S ribosomal protein S3Ae
1308	 49.20	0	1601061..1601684	-	207	110668284	-	HQ2359A	-	rps operon protein
1309	 48.92	0	1601695..1603356	-	553	110668285	-	HQ2360A	-	rps operon protein
1310	 50.52	0	1603537..1604013	-	158	110668286	rps15p	HQ2361A	-	30S ribosomal protein S15P
48.79	MEAN

3.84	STD DEV
