IslandPath Analysis: Haloquadratum walsbyi DSM 16790

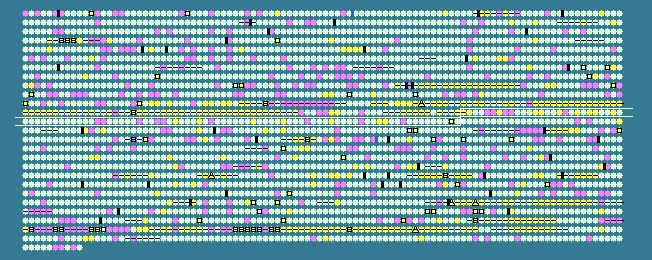

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1174	 53.15	+1	1439683..1441458	+	591	110668150	nirA	HQ2212A	-	ferredoxin--nitrite reductase
1175	 56.54	+2	1441591..1443714	+	707	110668151	narB	HQ2213A	-	nitrate reductase, catalytic subunit
1176	 49.65	0	1443736..1444017	+	93	110668152	-	HQ2214A	-	hypothetical protein
1177	 47.58	0	1444721..1445443	-	240	110668153	-	HQ2215A	-	hypothetical protein
1178	 44.57	-1	1445981..1447066	+	361	110668154	-	HQ2216A	-	hypothetical protein
1179	 43.93	-1	1447456..1448163	+	235	110668155	-	HQ2217A	-	hypothetical protein
1180	 54.11	+1	1449026..1449646	-	206	110668156	gufA	HQ2218A	-	divalent heavy-metal cations transporter
1181	 44.85	-1	1450116..1450523	+	135	110668157	-	HQ2219A	-	hypothetical protein
1182	 43.86	-1	1451383..1451724	-	113	110668158	-	HQ2220A	-	hypothetical protein
1183	 46.39	0	1451915..1452343	+	142	110668159	nikR	HQ2221A	-	putative nickel responsive regulator
1184	 47.75	0	1452513..1453580	-	355	110668160	-	HQ2222A	-	hypothetical protein
1185	 47.58	0	1454403..1455125	+	240	110668161	-	HQ2223A	-	hypothetical protein
1186	 57.58	+2	1456637..1456801	+	54	110668162	-	HQ2224A	-	hypothetical protein
1187	 52.69	+1	1457275..1457646	-	123	110668163	-	HQ2225A	-	transcription regulator
1188	 50.63	0	1458405..1459115	+	236	110668164	pncA	HQ2226A	-	isochorismatase
1189	 45.87	0	1459757..1460131	+	124	110668165	-	HQ2227A	-	hypothetical protein
1190	 52.33	0	1460338..1460853	+	171	110668166	-	HQ2228A	-	hypothetical protein
1191	 43.28	-1	1461238..1462323	+	361	110668167	-	HQ2229A	-	hypothetical protein
1192	 46.60	0	1462503..1462826	-	107	110668168	sugE	HQ2230A	-	small multidrug export protein
1193	 56.37	+1	1463309..1464541	+	410	110668169	-	HQ2231A	-	major facilitator superfamily transporter
1194	 49.23	0	1465132..1466496	+	454	110668170	-	HQ2232A	-	restriction system mrr-like protein
1195	 52.57	0	1466625..1468085	+	486	110668171	cat	HQ2233A	-	cationic amino acid transport protein
1196	 54.03	+1	1468178..1468897	+	239	110668172	-	HQ2234A	-	hypothetical protein
1197	 47.58	0	1468903..1469667	+	254	110668173	-	HQ2235A	-	hypothetical protein
1198	 51.17	0	1469920..1472223	-	767	110668174	metE	HQ2236A	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1199	 56.02	+1	1473218..1474297	-	359	110668175	ocd	HQ2237A	-	ornithine cyclodeaminase
1200	 50.47	0	1474617..1475579	-	320	110668176	gufA	HQ2238A	-	divalent heavy-metal cations transporter
1201	 48.09	0	1475808..1475990	+	60	110668177	-	HQ2239A	-	hypothetical protein
1202	 46.92	0	1476441..1478288	-	615	110668178	hyuB	HQ2241A	-	N-methylhydantoinase B (ATP-hydrolyzing)
1203	 48.98	0	1478347..1480404	-	685	110668179	hyuA	HQ2242A	-	N-methylhydantoinase A (ATP-hydrolyzing)
1204	 48.37	0	1481158..1481403	-	81	110668180	-	HQ2243A	-	hypothetical protein
1205	 48.82	0	1481727..1482746	-	339	110668181	cysA	HQ2244A	-	ABC-type sulfate/molybdate transport systems,ATP-binding protein
1206	 46.02	0	1482747..1483763	-	338	110668182	cysT	HQ2245A	-	ABC-type sulfate/molybdate transport system,permease protein
1207	 48.13	0	1483760..1484773	-	337	110668183	cysU	HQ2246A	-	ABC-type sulfate/molybdate transport systems,permease protein
1208	 49.15	0	1484779..1485948	-	389	110668184	-	HQ2247A	-	sulfate/molybdate ABC transporter periplasmic substrate-binding protein
1209	 48.12	0	1486463..1487260	-	265	110668185	-	HQ2249A	-	hypothetical protein
1210	 46.33	0	1487597..1487773	+	58	110668186	-	HQ2250A	-	hypothetical protein
1211	 46.75	0	1487955..1488185	+	76	110668187	-	HQ2251A	-	hypothetical protein
1212	 46.95	0	1488975..1491560	-	861	110668188	cadA	HQ2252A	-	cadmium-transporting ATPase
1213	 45.26	0	1492093..1492419	-	108	110668189	-	HQ2253A	-	hypothetical protein
1214	 44.30	-1	1492698..1493153	+	151	110668190	-	HQ2254A	-	hypothetical protein
1215	 48.86	0	1493502..1496432	+	976	110668191	-	HQ2255A	-	hypothetical protein
1216	 49.03	0	1496429..1497148	+	239	110668192	-	HQ2256A	-	hypothetical protein
1217	 50.67	0	1497157..1498506	+	449	110668193	-	HQ2257A	-	hypothetical protein
1218	 49.45	0	1498503..1500059	+	518	110668194	-	HQ2258A	-	hypothetical protein
1219	 48.41	0	1500183..1501157	-	324	110668195	moxR	HQ2259A	-	MoxR-like ATPase
1220	 44.44	-1	1501671..1502039	-	122	110668196	-	HQ2260A	-	hypothetical protein
1221	 48.37	0	1502221..1502619	-	132	110668197	-	HQ2261A	-	hypothetical protein
1222	 48.40	0	1502667..1503197	-	176	110668198	-	HQ2262A	-	hypothetical protein
1223	 44.39	-1	1503197..1503847	-	216	110668199	-	HQ2263A	-	hypothetical protein
1224	 44.81	-1	1504347..1504808	+	153	110668200	-	HQ2264A	-	hypothetical protein
1225	 45.34	0	1504980..1505462	-	160	110668201	-	HQ2265A	-	pyridoxamine 5'-phosphate oxidase
1226	 52.78	+1	1505704..1505847	-	47	110668202	-	HQ2266A	-	periplasmic serine proteinase (fragment)
1227	 47.83	0	1506295..1506846	+	183	110668203	-	HQ2268A	-	hypothetical protein
1228	 49.21	0	1508228..1509298	-	356	110668204	-	HQ2269A	-	CBS domain-containing protein
1229	 49.87	0	1509408..1510199	-	263	110668205	nagD	HQ2270A	-	putative N-acetyl-glucosamine catabolism protein
1230	 58.42	+2	1510607..1512364	+	585	110668206	-	HQ2271A	-	ferredoxin domain-containing protein
1231	 49.00	0	1513504..1514256	-	250	110668207	-	HQ2273A	-	hypothetical protein
1232	 44.96	0	1514491..1515393	+	300	110668208	-	HQ2274A	-	hypothetical protein
1233	 49.95	0	1516225..1518114	+	629	110668209	dap2	HQ2276A	-	dipeptidyl aminopeptidases/acylaminoacyl-peptidases
1234	 49.81	0	1519249..1519509	+	86	110668210	-	HQ2277A	-	hypothetical protein
1235	 46.35	0	1519653..1519844	+	63	110668211	-	HQ2278A	-	hypothetical protein
1236	 50.30	0	1520382..1521206	+	274	110668212	-	HQ2279A	-	hypothetical protein
1237	 48.01	0	1521210..1521761	+	183	110668213	entB	HQ2280A	-	isochorismatase
1238	 48.86	0	1522447..1523103	+	218	110668214	-	HQ2281A	-	hypothetical protein
1239	 54.48	+1	1523413..1524585	+	390	110668215	-	HQ2282A	-	hypothetical protein
1240	 51.27	0	1525231..1526016	-	261	110668216	-	HQ2283A	-	hypothetical protein
1241	 46.03	0	1526013..1526327	-	104	110668217	-	HQ2284A	-	hypothetical protein
1242	 50.54	0	1526428..1527822	-	464	110668218	-	HQ2285A	-	major facilitator superfamily transporter
1243	 49.61	0	1530353..1530991	-	212	110668219	-	HQ2287A	-	hypothetical protein
1244	 55.38	+1	1531271..1532404	+	377	110668220	-	HQ2288A	-	thiosulfate sulfurtransferase
1245	 50.53	0	1532517..1533272	+	251	110668221	-	HQ2289A	-	hypothetical protein
1246	 46.49	0	1534346..1534573	+	75	110668222	-	HQ2290A	-	hypothetical protein
1247	 49.10	0	1534835..1536058	-	407	110668223	oxlT	HQ2291A	-	oxalate/formate antiporter
1248	 45.28	0	1536710..1537069	+	119	110668224	-	HQ2293A	-	hypothetical protein
1249	 46.79	0	1537280..1537606	-	108	110668225	-	HQ2294A	-	hypothetical protein
1250	 49.80	0	1538024..1540312	-	762	110668226	chlID	HQ2295A	-	magnesium chelatase (protoporphyrin IX magnesium-chelatase)
1251	 50.42	0	1540356..1544288	+	1310	110668227	cobN	HQ2296A	-	cobalt chelatase
1252	 53.21	+1	1544278..1545057	+	259	110668228	cbiC	HQ2297A	-	precorrin-8X methylmutase
1253	 50.83	0	1545054..1545836	+	260	110668229	cbiE	HQ2298A	-	cobalt-precorrin-6Y C(5)-methyltransferase
1254	 46.93	0	1546227..1546763	+	178	110668230	-	HQ2299A	-	atp-binding cobalamin adenosyltransferase
1255	 47.45	0	1546860..1548134	-	424	110668231	argK	HQ2300A	-	transport ATPase, component for LAO/AO transport systems
1256	 47.72	0	1548131..1548547	-	138	110668232	mcmB	HQ2301A	-	methylmalonyl-CoA mutase, subunit B (cobalamin-binding subunit)
1257	 44.79	-1	1548839..1549702	+	287	110668233	hbd	HQ2302A	-	3-hydroxyacyl-CoA dehydrogenase
1258	 51.02	0	1550372..1551208	-	278	110668234	cbiO	HQ2303A	-	ABC-type cobalt transport system, ATP-binding protein
1259	 51.72	0	1551205..1552020	-	271	110668235	cbiQ	HQ2304A	-	ABC-type cobalt transport system, permease protein II
1260	 56.39	+1	1552026..1552346	-	106	110668236	-	HQ2305A	-	cobalamin transport operon protein
1261	 53.30	+1	1552346..1553026	-	226	110668237	cbiM	HQ2306A	-	ABC-type cobalt transport system, permease protein I
1262	 50.90	0	1553181..1554347	+	388	110668238	acaB	HQ2307A	-	acetyl-CoA C-acyltransferase
1263	 48.58	0	1554344..1554730	+	128	110668239	-	HQ2308A	-	hypothetical protein
1264	 44.62	-1	1554896..1555639	-	247	110668240	phaB	HQ2309A	-	3-oxoacyl-[acyl-carrier-protein] reductase (3-ketoacyl-acyl carrier protein reductase) PhaB
1265	 46.12	0	1555807..1557222	-	471	110668241	phaC	HQ2310A	-	Poly-beta-hydroxybutyrate polymerase polyhydroxyalkanoic acid synthase PhaC
1266	 49.55	0	1557219..1557773	-	184	110668242	-	HQ2311A	-	phbC-phbA intergenic region protein
1267	 49.25	0	1557952..1558416	-	154	110668243	-	HQ2312A	-	hypothetical protein
1268	 48.91	0	1558422..1558787	-	121	110668244	-	HQ2313A	-	hypothetical protein
1269	 48.08	0	1558909..1559586	+	225	110668245	maoC	HQ2315A	-	enoyl-CoA hydratase
1270	 46.83	0	1559676..1560431	+	251	110668246	-	HQ2316A	-	hypothetical protein
1271	 49.16	0	1561085..1563808	-	907	110668247	leuS	HQ2317A	-	leucyl-tRNA synthetase
1272	 53.33	+1	1566363..1566887	+	174	110668248	-	HQ2319A	-	transposase homolog (ISHnew96)
1273	 47.12	0	1569129..1569527	+	132	110668249	-	HQ2323A	-	hypothetical protein
48.79	MEAN

3.84	STD DEV
