IslandPath Analysis: Haloquadratum walsbyi DSM 16790

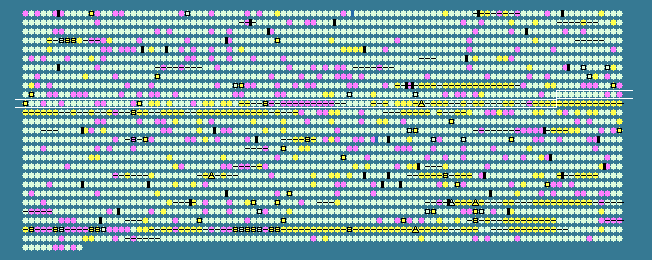

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.79 STD DEV: 3.84
Haloquadratum walsbyi DSM 16790, complete genome - 1..3132494
2610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
990	 49.86	0	1231971..1232696	+	241	110667966	salX	HQ2018A	-	peptide ABC transporter ATP-binding protein
991	 48.28	0	1232725..1233828	+	367	110667967	salY	HQ2019A	-	peptide ABC transporter permease
992	 48.07	0	1234053..1235477	-	474	110667968	-	HQ2020A	-	beta,beta-carotene 9',10'-dioxygenase 2
993	 49.29	0	1237785..1238204	-	139	110667969	uspA	HQ2022A	-	universal stress protein
994	 50.69	0	1238500..1239957	+	485	110667970	mntH	HQ2023A	-	manganese transporter NRAMP
995	 52.19	0	1240690..1242057	-	455	110667971	ppsA2	HQ2024A	-	pyruvate, water dikinase (phosphoenolpyruvate synthase)
996	 51.46	0	1242068..1243060	-	330	110667972	gapB	HQ2025A	-	glyceraldehyde-3-phosphate dehydrogenase
997	 48.04	0	1244425..1245138	+	237	110667973	-	HQ2026A	-	phosphotransferase domain-containing protein
998	 42.66	-1	1245338..1247224	+	628	110667974	-	HQ2027A	-	ATP/GTP-binding protein
999	 47.84	0	1247592..1247984	-	130	110667975	nudF	HQ2028A	-	ADP-ribose pyrophosphatase
1000	 44.35	-1	1248221..1248565	+	114	110667976	cad	HQ2029A	-	pterin-4a-carbinolamine dehydratase
1001	 56.64	+2	1248719..1249546	-	275	110667977	-	HQ2030A	-	ISH9-type transposase
1002	 47.02	0	1250232..1252466	-	744	110667978	amyA	HQ2031A	-	alpha amylase
1003	 45.54	0	1252820..1253032	-	70	110667979	xseAs	HQ2032A	-	exonuclease VII small subunit
1004	 44.19	-1	1253029..1254207	-	392	110667980	xseAl	HQ2033A	-	exodeoxyribonuclease VII large subunit
1005	 47.69	0	1254523..1255539	+	338	110667981	-	HQ2034A	-	hypothetical protein
1006	 47.70	0	1255536..1256579	+	347	110667982	-	HQ2035A	-	mandelate racemase/muconate lactonizing enzyme family protein
1007	 45.14	0	1257198..1258112	+	304	110667983	elaC	HQ2036A	-	ribonuclease Z (RNase Z) (tRNA 3 endonuclease)
1008	 48.11	0	1258376..1260148	-	590	110667984	-	HQ2037A	-	hypothetical protein
1009	 47.74	0	1260394..1261323	-	309	110667985	cysA	HQ2038A	-	thiosulfate sulfurtransferase
1010	 49.07	0	1261454..1261828	-	124	110667986	-	HQ2039A	-	hypothetical protein
1011	 48.02	0	1261925..1262884	-	319	110667987	sppA	HQ2040A	-	signal peptide peptidase
1012	 47.35	0	1264711..1265466	+	251	110667988	cinA	HQ2043A	-	CinA-like domain-containing protein
1013	 45.19	0	1265675..1266610	+	311	110667989	-	HQ2044A	-	hypothetical protein
1014	 42.70	-1	1266813..1267538	-	241	110667990	-	HQ2045A	-	phosphoesterase
1015	 45.62	0	1267848..1268441	-	197	110667991	cynT	HQ2046A	-	carbonic anhydrase
1016	 51.82	0	1268610..1268912	-	100	110667992	trzA	HQ2047A	-	Atrazine chlorohydrolase
1017	 49.73	0	1268958..1269140	-	60	110667993	trzA	HQ2048A	-	N-ethylammeline chlorohydrolase (S-triazine hydrolase )
1018	 49.21	0	1269425..1270759	+	444	110667994	guaD	HQ2049A	-	N-ethylammeline chlorohydrolase
1019	 45.05	0	1270976..1271521	+	181	110667995	apt	HQ2050A	-	adenine phosphoribosyltransferase
1020	 56.03	+1	1272280..1273605	+	441	110667996	-	HQ2051A	-	IS1341-type transposase
1021	 50.36	0	1273688..1274932	-	414	110667997	pitA	HQ2052A	-	phosphate permease-like protein
1022	 53.95	+1	1275420..1276229	-	269	110667998	-	HQ2053A	-	signal-transducing histidine kinase/response regulator
1023	 54.30	+1	1276307..1277155	-	282	110667999	-	HQ2054A	-	signal-transducing histidine kinase
1024	 48.76	0	1277657..1278019	+	120	110668000	-	HQ2055A	-	hypothetical protein
1025	 53.49	+1	1279161..1279676	+	171	110668001	-	HQ2056A	-	hypothetical protein
1026	 48.21	0	1281026..1281415	-	129	110668002	-	HQ2057A	-	hypothetical protein
1027	 46.02	0	1281749..1282339	+	196	110668003	-	HQ2058A	-	hypothetical protein
1028	 46.50	0	1282509..1283123	+	204	110668004	-	HQ2059A	-	hypothetical protein
1029	 43.37	-1	1283490..1283768	+	92	110668005	-	HQ2060A	-	hypothetical protein
1030	 51.79	0	1284055..1284249	-	64	110668006	-	HQ2061A	-	hypothetical protein
1031	 56.05	+1	1284236..1284970	-	244	110668007	ldcA	HQ2062A	-	LD-carboxypeptidase
1032	 55.32	+1	1284995..1285135	-	46	110668008	-	HQ2063A	-	hypothetical protein
1033	 49.53	0	1285457..1286098	-	213	110668009	rhtB	HQ2064A	-	threonine/homoserine/homoserine lactone efflux protein
1034	 52.69	+1	1286435..1286713	-	92	110668010	-	HQ2065A	-	hypothetical protein
1035	 52.49	0	1287546..1288610	+	354	110668011	serA	HQ2066A	-	phosphoglycerate dehydrogenase
1036	 47.38	0	1288822..1289241	-	139	110668012	-	HQ2067A	-	hypothetical protein
1037	 56.78	+2	1289698..1290324	+	208	110668013	-	HQ2068A	-	hypothetical protein
1038	 57.98	+2	1290364..1290720	+	118	110668014	-	HQ2069A	-	hypothetical protein
1039	 46.83	0	1290858..1291109	+	83	110668015	-	HQ2070A	-	hypothetical protein
1040	 51.08	0	1291268..1291639	-	123	110668016	-	HQ2071A	-	hypothetical protein
1041	 55.26	+1	1291769..1293118	-	449	110668017	-	HQ2072A	-	IS1341-type transposase
1042	 41.59	-1	1294080..1294406	+	108	110668018	-	HQ2073A	-	hypothetical protein
1043	 45.86	0	1294597..1295067	-	156	110668019	-	HQ2074A	-	hypothetical protein
1044	 44.66	-1	1295061..1297064	-	667	110668020	rad	HQ2075A	-	ATPase invovled in DNA repair
1045	 38.10	-2	1297064..1297231	-	55	110668021	-	HQ2076A	-	hypothetical protein
1046	 43.34	-1	1297541..1300507	-	988	110668022	-	HQ2077A	-	site-specific DNA-methyltransferase
1047	 43.39	-1	1300720..1302270	+	516	110668023	-	HQ2078A	-	site-specific DNA-methyltransferase
1048	 43.30	-1	1302340..1304355	+	671	110668024	-	HQ2079A	-	DNA repair helicase
1049	 39.24	-2	1304491..1306554	+	687	110668025	smc	HQ2080A	-	chromosome segregation protein
1050	 42.58	-1	1306551..1306961	+	136	110668026	-	HQ2081A	-	hypothetical protein
1051	 43.69	-1	1306980..1308080	+	366	110668027	-	HQ2082A	-	hypothetical protein
1052	 41.49	-1	1308202..1309218	+	338	110668028	-	HQ2083A	-	haloviral protein
1053	 50.00	0	1309908..1310237	-	109	110668029	-	HQ2084A	-	hypothetical protein
1054	 50.14	0	1310427..1310789	-	120	110668030	-	HQ2085A	-	hypothetical protein
1055	 46.26	0	1310987..1312819	-	610	110668031	-	HQ2086A	-	hypothetical protein
1056	 45.69	0	1312816..1316328	-	1170	110668032	-	HQ2087A	-	helicase family protein
1057	 46.52	0	1316321..1318489	-	722	110668033	-	HQ2088A	-	hypothetical protein
1058	 49.81	0	1319217..1319744	-	175	110668034	-	HQ2089A	-	hypothetical protein
1059	 53.33	+1	1319775..1320164	+	129	110668035	-	HQ2090A	-	hypothetical protein
1060	 51.02	0	1320228..1320815	+	195	110668036	-	HQ2091A	-	hypothetical protein
1061	 54.55	+1	1321023..1321253	+	76	110668037	-	HQ2092A	-	hypothetical protein
1062	 51.52	0	1321270..1321764	+	164	110668038	-	HQ2093A	-	hypothetical protein
1063	 53.07	+1	1322014..1322631	-	205	110668039	-	HQ2094A	-	hypothetical protein
1064	 54.65	+1	1322887..1323477	-	196	110668040	-	HQ2095A	-	hypothetical protein
1065	 52.43	0	1324537..1325913	-	458	110668041	uraA	HQ2096A	-	xanthine/uracil permeases
1066	 56.06	+1	1326351..1327076	+	241	110668042	-	HQ2097A	-	hypothetical protein
1067	 62.79	+2	1327295..1327423	-	42	110668043	-	HQ2098A	-	integrase (PhiCh1 Int1-like)
1068	 49.22	0	1328083..1328592	+	169	110668044	-	HQ2099A	-	hypothetical protein
1069	 52.34	0	1328781..1329143	-	120	110668045	-	HQ2100A	-	hypothetical protein
1070	 61.90	+2	1329588..1329986	+	132	110668046	-	HQ2101A	-	hypothetical protein
1071	 61.24	+2	1330001..1330387	+	128	110668047	-	HQ2102A	-	hypothetical protein
1072	 47.74	0	1330491..1330844	-	117	110668048	-	HQ2103A	-	hypothetical protein
1073	 48.40	0	1331682..1332212	+	176	110668049	-	HQ2104A	-	hypothetical protein
1074	 58.33	+2	1332428..1333135	+	235	110668050	-	HQ2105A	-	hypothetical protein
1075	 47.37	0	1333860..1334315	+	151	110668051	-	HQ2106A	-	hypothetical protein
1076	 52.59	0	1335173..1336081	+	302	110668052	-	HQ2107A	-	hypothetical protein
1077	 53.97	+1	1336297..1336737	+	146	110668053	-	HQ2108A	-	hypothetical protein
1078	 47.99	0	1337118..1337390	-	90	110668054	-	HQ2109A	-	hypothetical protein
1079	 48.01	0	1337749..1338075	-	108	110668055	-	HQ2110A	-	hypothetical protein
1080	 45.43	0	1339542..1339979	-	145	110668056	-	HQ2111A	-	hypothetical protein
1081	 52.80	+1	1341040..1342272	-	410	110668057	-	HQ2112A	-	hypothetical protein
1082	 56.49	+2	1342584..1343192	+	202	110668058	-	HQ2113A	-	hypothetical protein
1083	 49.49	0	1343774..1344262	-	162	110668059	-	HQ2114A	-	pentapeptide repeat-containing protein
1084	 45.43	0	1344712..1345050	-	112	110668060	-	HQ2115A	-	hypothetical protein
1085	 42.90	-1	1345329..1345673	-	114	110668061	-	HQ2116A	-	hypothetical protein
1086	 57.28	+2	1347051..1348520	+	489	110668062	-	HQ2117A	-	hypothetical protein
1087	 56.85	+2	1351161..1351832	+	223	110668063	ugpQ	HQ2118A	-	glycerophosphodiester phosphodiesterase
1088	 58.33	+2	1353480..1353839	+	119	110668064	-	HQ2121A	-	hypothetical protein
1089	 59.85	+2	1353836..1354099	+	87	110668065	-	HQ2122A	-	hypothetical protein
48.79	MEAN

3.84	STD DEV
