IslandPathversion 1.0

IslandPath Analysis: Haemophilus somnus 129PT

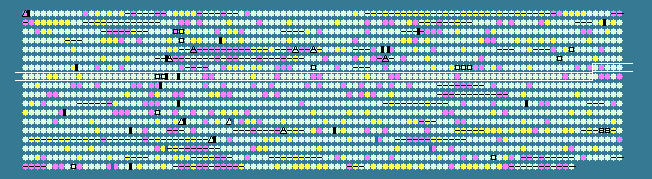

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48
Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
696	 39.04	0	733485..734237	-	250	113460834	tonB	HS_0689	-	TonB protein
697	 33.58	-1	734237..734635	-	132	113460835	exbD	HS_0690	-	biopolymer transport protein
698	 33.99	0	734628..735083	-	151	113460836	exbB	HS_0691	-	biopolymer transport protein
699	 38.79	0	735477..736850	-	457	113460837	argH	HS_0692	-	argininosuccinate lyase
700	 34.60	0	737288..738154	+	288	113460838	rbn	HS_0693	-	ribonuclease BN
701	 39.54	0	738151..738585	+	144	113460839	dtd	HS_0694	-	D-tyrosyl-tRNA deacylase
702	 36.86	0	738633..739511	-	292	113460840	nanA	HS_0695	-	N-acetylneuraminate lyase
703	 36.21	0	739544..740413	-	289	113460841	-	HS_0696	-	RpiR family transcriptional regulator
704	 34.61	0	740448..740918	-	156	113460842	-	HS_0697	-	hypothetical protein
705	 43.34	+1	740934..741812	-	292	113460843	nanK	HS_0698	-	N-acetylmannosamine kinase
706	 44.01	+1	741829..742521	-	230	113460844	nanE	HS_0699	-	N-acetylmannosamine-6-phosphate 2-epimerase
707	 35.03	0	742567..743157	-	196	113460845	neuA	HS_0700	-	N-acylneuraminate cytidylyltransferase
708	 36.75	0	743326..744378	+	350	113460846	dctP	HS_0701	-	TRAP dicarboxylate transporter, periplasmic component
709	 38.64	0	744433..746298	+	621	113460847	dctQ	HS_0702	-	TRAP dicarboxylate transporter, permease component
710	 41.36	+1	746649..748790	+	713	113460848	pnp	HS_0703	-	polynucleotide phosphorylase/polyadenylase
711	 40.42	0	749193..750998	+	601	113460849	deaD	HS_0704	-	ATP-dependent RNA helicase
712	 35.16	0	751060..751278	-	72	113460850	infA	HS_0705	-	translation initiation factor IF-1
713	 36.25	0	751489..752037	+	182	113460851	neuA	HS_0706	-	CMP-N-acetylneuraminic acid synthetase
714	 37.25	0	752266..753285	+	339	113460852	rmlB	HS_0707	-	dTDP-glucose 4,6-dehydratase
715	 36.85	0	753459..755138	+	559	113460853	lctP	HS_0708	-	L-lactate permease
716	 35.93	0	755218..755949	+	243	113460854	-	HS_0709	-	hypothetical protein
717	 38.08	0	755951..757363	+	470	113460855	-	HS_0710	-	hypothetical protein
718	 36.89	0	757444..758061	+	205	113460856	-	HS_0711	-	hypothetical protein
719	 36.54	0	758136..759848	-	570	113460857	dipZ	HS_0712	-	thiol:disulfide interchange protein precursor
720	 35.15	0	760056..760772	+	238	113460858	arcA	HS_0713	-	two-component response regulator
721	 34.96	0	760954..761934	-	326	113460859	rluC	HS_0714	-	23S rRNA pseudouridylate synthase C
722	 37.96	0	762353..765181	+	942	113460860	rne	HS_0715	-	ribonuclease E
723	 37.58	0	765404..765898	+	164	113460861	-	HS_0716	-	transposase
724	 39.85	0	765882..766541	+	219	113460862	-	HS_0717	-	transposase
725	 36.66	0	767061..769916	-	951	113460863	polA	HS_0718	-	DNA polymerase I
726	 35.47	0	770124..772136	+	670	113460864	rep	HS_0719	-	ATP-dependent DNA helicase Rep
727	 36.40	0	776536..777057	-	173	113460865	hugZ	HS_0722	-	heme binding protein
728	 38.18	0	777075..777569	-	164	113460866	hugX	HS_0723	-	heme utilization protein HuvX
729	 38.73	0	777773..778402	+	209	113460867	rrmJ	HS_0724	-	23S rRNA methyltransferase J
730	 39.15	0	778524..780362	+	612	113460868	ftsH	HS_0725	-	FtsH peptidase
731	 26.67	-2	780444..780668	+	74	113460869	-	HS_0726	-	hypothetical protein
732	 28.77	-2	780724..781380	+	218	113460870	licD	HS_0727	-	lipopolysaccharide cholinephosphotransferase
733	 37.14	0	782166..783110	-	314	113460871	hemR	HS_0728	-	hemin receptor, outer membrane protein
734	 37.80	0	783368..784195	+	275	113460872	folP	HS_0729	-	dihydropteroate synthase
735	 40.67	0	784286..785620	+	444	113460873	mrsA	HS_0730	-	phosphoglucosamine mutase
736	 38.46	0	785556..786101	+	181	113460874	sixA	HS_0731	-	phosphohistidine phosphatase
737	 36.46	0	786106..787065	+	319	113460875	-	HS_0732	-	permease
738	 38.17	0	787193..789115	+	640	113460876	dinG	HS_0733	-	ATP-dependent DNA helicase
739	 41.56	+1	789120..789836	+	238	113460877	-	HS_0734	-	glycoprotease family protein
740	 37.31	0	790062..791744	+	560	113460878	fadD	HS_0735	-	long-chain-fatty-acid--CoA ligase
741	 36.65	0	791850..792995	+	381	113460879	rnd	HS_0736	-	ribonuclease D
742	 35.71	0	793113..793700	-	195	113460880	-	HS_0737	-	hypothetical protein
743	 32.48	-1	793762..794346	-	194	113460881	-	HS_0738	-	phosphoheptose isomerase
744	 39.67	0	794352..794714	-	120	113460882	-	HS_0739	-	hypothetical protein
745	 34.16	0	794725..796539	-	604	113460883	lppC	HS_0740	-	LppC precursor
746	 38.42	0	796556..797401	+	281	113460884	-	HS_0741	-	methyltransferase
747	 38.30	0	797478..798101	+	207	113460885	-	HS_0742	-	translation factor SUA5
748	 39.98	0	798231..799208	+	325	113460886	rluB	HS_0743	-	ribosomal large subunit pseudouridine synthase B
749	 30.00	-2	799472..799891	-	139	113460887	-	HS_0744	-	hypothetical protein
750	 30.56	-1	799904..800155	-	83	113460888	-	HS_0745	-	hypothetical protein
751	 36.00	0	800661..802046	-	461	113460889	-	HS_0746	-	outer membrane protein
752	 34.70	0	802177..802908	-	243	113460890	deoR	HS_0747	-	deoxyribose operon repressor
753	 35.85	0	802933..803607	-	224	113460891	deoC	HS_0748	-	deoxyribose-phosphate aldolase
754	 36.16	0	803777..804697	+	306	113460892	rbsK	HS_0749	-	ribokinase
755	 34.90	0	804726..806000	+	424	113460893	fucP	HS_0750	-	fucose permease
756	 37.28	0	806002..807015	+	337	113460894	-	HS_0751	-	hypothetical protein
757	 40.56	0	807284..807712	+	142	113460895	rplM	HS_0752	-	50S ribosomal protein L13
758	 43.77	+1	807729..808121	+	130	113460896	rpsI	HS_0753	-	30S ribosomal protein S9
759	 34.74	0	808266..808904	+	212	113460897	sspA	HS_0754	-	stringent starvation protein A
760	 34.21	0	808912..809367	+	151	113460898	sspB	HS_0755	-	ClpXP protease specificity-enhancing factor
761	 38.82	0	809440..810843	-	467	113460899	asnC	HS_0756	-	asparaginyl-tRNA synthetase
762	 32.43	-1	811046..812263	+	405	113460900	mlc	HS_0757	-	NagC-like transcriptional regulator
763	 33.21	-1	812399..813187	-	262	113460901	-	HS_0758	-	IclR family transcriptional regulator
764	 38.04	0	813410..814408	+	332	113460902	mdh	HS_0759	-	2,3-diketo-L-gulonate reductase
765	 34.16	0	814506..814988	+	160	113460903	-	HS_0760	-	tripartite ATP-independent periplasmic transporter DctQ
766	 37.86	0	814985..816265	+	426	113460904	-	HS_0761	-	DedA family integral membrane protein
767	 36.78	0	816285..817271	+	328	113460905	-	HS_0762	-	C4-dicarboxylate transport system, periplasmic component
768	 39.79	0	817351..818868	+	505	113460906	rbsA	HS_0763	-	ribose ABC transporter, ATP-binding protein
769	 39.43	0	818911..819960	+	349	113460907	rbsC	HS_0764	-	ribose ABC transporter, permease
770	 38.56	0	820001..821110	+	369	113460908	rbsB	HS_0765	-	ABC-type sugar-binding periplasmic protein
771	 36.26	0	821173..822060	+	295	113460909	-	HS_0766	-	gluconolactonase
772	 34.82	0	822127..823065	-	312	113460910	-	HS_0767	-	sugar ABC transporter, periplasmic sugar-binding protein
773	 32.53	-1	823280..824770	+	496	113460911	rbsA	HS_0768	-	ribose ABC transporter, ATP-binding protein
774	 34.50	0	824779..825807	+	342	113460912	rbsC	HS_0769	-	ribose transport system permease
775	 37.87	0	825909..827363	+	484	113460913	sgbK	HS_0770	-	L-xylulose kinase
776	 37.50	0	827374..828021	+	215	113460914	ulaD	HS_0771	-	3-keto-L-gulonate-6-phosphate decarboxylase
777	 37.46	0	828038..828910	+	290	113460915	sgbU	HS_0772	-	putative L-xylulose 5-phosphate 3-epimerase
778	 38.94	0	828904..829599	+	231	113460916	sgbE	HS_0773	-	L-ribulose-5-phosphate 4-epimerase
779	 37.10	0	829642..830463	-	273	113460917	-	HS_0774	-	HAD superfamily hydrolase
780	 35.74	0	830702..831658	+	318	113460918	pldB	HS_0775	-	lysophospholipase L2
781	 33.85	0	831636..832019	-	127	113460919	crcB	HS_0776	-	camphor resistance protein CrcB
782	 36.26	0	832039..832857	-	272	113460920	-	HS_0777	-	HAD superfamily hydrolase
783	 37.56	0	832895..833557	-	220	113460921	frxA	HS_0778	-	NAD(P)H nitroreductase
784	 36.70	0	833578..833874	-	98	113460922	-	HS_0779	-	hypothetical protein
785	 39.19	0	833899..835110	-	403	113460923	tyrP	HS_0780	-	tyrosine-specific transport protein
786	 34.57	0	835204..836253	-	349	113460924	fbpC	HS_0781	-	iron(III) ABC transporter, ATP-binding protein
787	 34.59	0	836253..837920	-	555	113460925	fbpB	HS_0782	-	iron-uptake permease inner membrane protein
788	 35.50	0	838077..839093	-	338	113460926	fbpA	HS_0783	-	periplasmic iron-binding protein
789	 37.17	0	839284..840975	-	563	113460927	dld	HS_0784	-	D-lactate dehydrogenase
790	 39.49	0	841187..842014	+	275	113460928	dapD	HS_0785	-	2,3,4,5-tetrahydropyridine-2,6-dicarboxylate N-succinyltransferase
791	 32.97	-1	842072..842908	-	278	113460929	purU	HS_0786	-	formyltetrahydrofolate deformylase
792	 36.05	0	842970..843374	-	134	113460930	hns	HS_0787	-	DNA-binding protein H-NS
793	 39.08	0	843815..845362	+	515	113460931	-	HS_0788	-	Na(+)/H(+) antiporter
794	 35.89	0	845481..846497	+	338	113460932	galE	HS_0789	-	UDP-galactose 4-epimerase
795	 39.58	0	847130..858892	+	3920	113460933	-	HS_0790	-	large adhesin
37.21	MEAN

3.48	STD DEV
