IslandPath Analysis: Haemophilus somnus 129PT

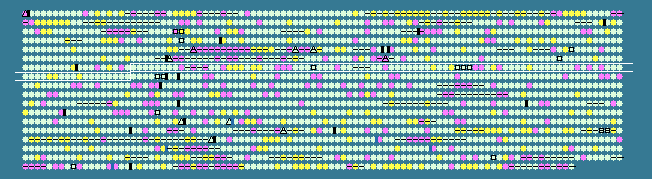

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48
Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
619	 37.12	0	654297..655406	+	369	113460757	hisC	HS_0612	-	histidinol-phosphate aminotransferase
620	 39.41	0	655469..656767	+	432	113460758	aroA	HS_0613	-	3-phosphoshikimate 1-carboxyvinyltransferase
621	 38.02	0	657001..658215	+	404	113460759	-	HS_0614	-	membrane fusion protein
622	 37.60	0	658237..661353	+	1038	113460760	acrB	HS_0615	-	cation/multidrug efflux protein
623	 35.57	0	661379..662137	-	252	113460761	-	HS_0616	-	acyl-CoA thioester hydrolase YfbB
624	 39.78	0	662150..663856	-	568	113460762	menD	HS_0617	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
625	 34.35	0	663862..665145	-	427	113460763	menF	HS_0618	-	isochorismate synthase
626	 36.38	0	665297..666511	+	404	113460764	-	HS_0619	-	aminotransferase AlaT
627	 30.49	-1	667230..667616	-	128	113460765	-	HS_0620	-	transcriptional regulator
628	 34.96	0	667778..668578	+	266	113460766	-	HS_0621	-	hypothetical protein
629	 30.54	-1	668613..669866	+	417	113460767	-	HS_0622	-	hypothetical protein
630	 36.11	0	669927..670646	-	239	113460768	fadR	HS_0623	-	fatty acid metabolism regulator
631	 31.88	-1	670750..671370	+	206	113460769	dshB	HS_0624	-	disulfide bond formation protein B
632	 38.61	0	672127..673131	+	334	113460770	terC	HS_0625	-	membrane protein
633	 36.64	0	673133..673495	+	120	113460771	-	HS_0626	-	hypothetical protein
634	 28.11	-2	673507..674157	+	216	113460772	-	HS_0627	-	hypothetical protein
635	 41.31	+1	674167..674805	+	212	113460773	-	HS_0628	-	hypothetical protein
636	 41.30	+1	674853..675530	+	225	113460774	-	HS_0629	-	hypothetical protein
637	 42.73	+1	675539..676570	+	343	113460775	-	HS_0630	-	hypothetical protein
638	 39.39	0	676573..678123	+	516	113460776	-	HS_0631	-	hypothetical protein
639	 43.42	+1	678116..679612	+	498	113460777	-	HS_0632	-	serine/threonine kinase-like protein
640	 43.18	+1	679642..680220	+	192	113460778	terD	HS_0633	-	stress response protein
641	 38.55	0	680223..680969	+	248	113460779	terE	HS_0634	-	stress response protein
642	 38.14	0	680979..681560	+	193	113460780	terZ	HS_0635	-	stress response protein
643	 30.23	-2	682438..683502	-	354	113460781	lob2d	HS_0636	-	glycosyltransferase family 8 lipopolysaccharide biosynthesis protein
644	 26.00	-2	683679..684155	-	158	113460782	lob2A	HS_0637	-	lipooligosaccharide biosynthesis protein
645	 31.21	-1	684277..685170	+	297	113460783	lob1	HS_0638	-	Lob1 protein
646	 35.52	0	685341..686390	-	349	113460784	fbpC	HS_0639	-	ferric transporter ATP-binding subunit
647	 35.57	0	686457..688514	-	685	113460785	afuB	HS_0640	-	Fe3+ ABC transporter, permease
648	 36.53	0	688536..689567	-	343	113460786	afuA	HS_0641	-	Fe3+ ABC transporter, iron-binding protein
649	 37.46	0	689621..690274	-	217	113460787	-	HS_0642	-	insertion element IS1016 transposase
650	 36.22	0	690316..691356	-	346	113460788	afuA	HS_0643	-	Fe3+ ABC transporter, iron-binding protein
651	 35.51	0	691560..692201	+	213	113460789	udk	HS_0644	-	uridine kinase
652	 39.49	0	692211..692795	+	194	113460790	dcd	HS_0645	-	deoxycytidine triphosphate deaminase
653	 33.08	-1	692810..694003	+	397	113460791	-	HS_0646	-	hypothetical protein
654	 34.43	0	694283..695284	+	333	113460792	-	HS_0647	-	sodium-dependent transporter
655	 37.98	0	695374..696018	+	214	113460793	adk	HS_0648	-	adenylate kinase
656	 37.41	0	696104..696691	-	195	113460794	grpE	HS_0649	-	GrpE protein
657	 35.51	0	696834..697751	+	305	113460795	ppnK	HS_0650	-	inorganic polyphosphate/ATP-NAD kinase
658	 35.89	0	697829..699508	+	559	113460796	recN	HS_0651	-	DNA repair protein
659	 34.55	0	699699..701009	-	436	113460797	nhaP	HS_0652	-	Na+/H+ antiporter
660	 35.61	0	701338..701688	-	116	113460798	-	HS_0653	-	translation inhibitor of mRNA
661	 31.54	-1	701799..702521	+	240	113460799	-	HS_0654	-	hypothetical protein
662	 37.67	0	702536..703435	+	299	113460800	rimK	HS_0655	-	SSU ribosomal protein S6P modification protein
663	 37.05	0	703554..704549	+	331	113460801	lpxK	HS_0656	-	tetraacyldisaccharide 4'-kinase
664	 35.86	0	704546..704743	+	65	113460802	-	HS_0657	-	hypothetical protein
665	 38.65	0	704758..705528	+	256	113460803	kdsB	HS_0658	-	3-deoxy-manno-octulosonate cytidylyltransferase
666	 37.21	0	705521..707350	+	609	113460804	uvrC	HS_0659	-	excinuclease ABC subunit C
667	 35.14	0	707416..707802	-	128	113460805	-	HS_0660	-	hypothetical protein
668	 37.17	0	707927..709906	-	659	113460806	rnb	HS_0661	-	exoribonuclease II
669	 42.46	+1	709971..710759	-	262	113460807	fabI	HS_0662	-	enoyl-[acyl-carrier-protein] reductase [NADH]
670	 38.89	0	710850..711605	-	251	113460808	-	HS_0663	-	hypothetical protein
671	 37.47	0	711629..713659	-	676	113460809	mnmC	HS_0664	-	5-methylaminomethyl-2-thiouridine methyltransferase
672	 42.34	+1	713814..715034	+	406	113460810	fabB	HS_0665	-	3-oxoacyl-(acyl carrier protein) synthase I
673	 36.73	0	715124..715564	-	146	113460811	-	HS_0666	-	transposase
674	 37.53	0	715676..716080	+	134	113460812	-	HS_0667	-	transposase
675	 40.09	0	716028..716723	+	231	113460813	-	HS_0668	-	transposase
676	 33.54	-1	716869..717360	-	163	113460814	-	HS_0669	-	hypothetical protein
677	 31.54	-1	717522..717911	+	129	113460815	-	HS_0670	-	transcriptional regulator
678	 35.38	0	718191..719315	-	374	113460816	tyrA	HS_0671	-	bifunctional chorismate mutase/prephenate dehydrogenase
679	 41.57	+1	719516..720013	+	165	113460817	purE	HS_0672	-	phosphoribosylaminoimidazole carboxylase (AIR carboxylase)
680	 33.70	-1	720224..721033	-	269	113460818	srlR	HS_0673	-	DNA-bindng transcriptional repressor SrlR
681	 34.26	0	721076..721723	-	215	113460819	-	HS_0674	-	phosphatase
682	 34.96	0	721798..722166	-	122	113460820	gutM	HS_0675	-	DNA-binding transcriptional activator GutM
683	 38.66	0	722221..723009	-	262	113460821	srlD	HS_0676	-	sorbitol-6-phosphate dehydrogenase
684	 38.52	0	723056..723421	-	121	113460822	srlB	HS_0677	-	glucitol/sorbitol-specific PTS system component IIA
685	 41.27	+1	723482..724477	-	331	113460823	srlE	HS_0678	-	PTS system, glucitol/sorbitol-specific IIBC component
686	 38.20	0	724514..725068	-	184	113460824	srlA	HS_0679	-	PTS system, glucitol/sorbitol-specific IIC2 component
687	 37.24	0	725395..726570	-	391	113460825	visC	HS_0680	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
688	 40.17	0	726597..727796	-	399	113460826	ubiH	HS_0681	-	2-octaprenyl-6-methoxyphenol hydroxylase / 2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
689	 36.52	0	727824..729143	-	439	113460827	pepP	HS_0682	-	aminopeptidase P
690	 34.59	0	729310..729867	-	185	113460828	-	HS_0683	-	hypothetical protein
691	 34.33	0	730010..730309	+	99	113460829	-	HS_0684	-	cell division protein ZapA
692	 35.10	0	730605..731171	+	188	113460830	-	HS_0685	-	5-formyltetrahydrofolate cyclo-ligase
693	 32.47	-1	731160..731858	-	232	113460831	aphA	HS_0686	-	aphA-like regulator
694	 35.12	0	731926..732879	+	317	113460832	serB	HS_0687	-	phosphoserine phosphatase
695	 33.54	-1	732896..733387	+	163	113460833	-	HS_0688	-	nucleotide-binding protein
696	 39.04	0	733485..734237	-	250	113460834	tonB	HS_0689	-	TonB protein
697	 33.58	-1	734237..734635	-	132	113460835	exbD	HS_0690	-	biopolymer transport protein
698	 33.99	0	734628..735083	-	151	113460836	exbB	HS_0691	-	biopolymer transport protein
699	 38.79	0	735477..736850	-	457	113460837	argH	HS_0692	-	argininosuccinate lyase
700	 34.60	0	737288..738154	+	288	113460838	rbn	HS_0693	-	ribonuclease BN
701	 39.54	0	738151..738585	+	144	113460839	dtd	HS_0694	-	D-tyrosyl-tRNA deacylase
702	 36.86	0	738633..739511	-	292	113460840	nanA	HS_0695	-	N-acetylneuraminate lyase
703	 36.21	0	739544..740413	-	289	113460841	-	HS_0696	-	RpiR family transcriptional regulator
704	 34.61	0	740448..740918	-	156	113460842	-	HS_0697	-	hypothetical protein
705	 43.34	+1	740934..741812	-	292	113460843	nanK	HS_0698	-	N-acetylmannosamine kinase
706	 44.01	+1	741829..742521	-	230	113460844	nanE	HS_0699	-	N-acetylmannosamine-6-phosphate 2-epimerase
707	 35.03	0	742567..743157	-	196	113460845	neuA	HS_0700	-	N-acylneuraminate cytidylyltransferase
708	 36.75	0	743326..744378	+	350	113460846	dctP	HS_0701	-	TRAP dicarboxylate transporter, periplasmic component
709	 38.64	0	744433..746298	+	621	113460847	dctQ	HS_0702	-	TRAP dicarboxylate transporter, permease component
710	 41.36	+1	746649..748790	+	713	113460848	pnp	HS_0703	-	polynucleotide phosphorylase/polyadenylase
711	 40.42	0	749193..750998	+	601	113460849	deaD	HS_0704	-	ATP-dependent RNA helicase
712	 35.16	0	751060..751278	-	72	113460850	infA	HS_0705	-	translation initiation factor IF-1
713	 36.25	0	751489..752037	+	182	113460851	neuA	HS_0706	-	CMP-N-acetylneuraminic acid synthetase
714	 37.25	0	752266..753285	+	339	113460852	rmlB	HS_0707	-	dTDP-glucose 4,6-dehydratase
715	 36.85	0	753459..755138	+	559	113460853	lctP	HS_0708	-	L-lactate permease
716	 35.93	0	755218..755949	+	243	113460854	-	HS_0709	-	hypothetical protein
717	 38.08	0	755951..757363	+	470	113460855	-	HS_0710	-	hypothetical protein
718	 36.89	0	757444..758061	+	205	113460856	-	HS_0711	-	hypothetical protein
37.21	MEAN

3.48	STD DEV
