IslandPath Analysis: Haemophilus somnus 129PT

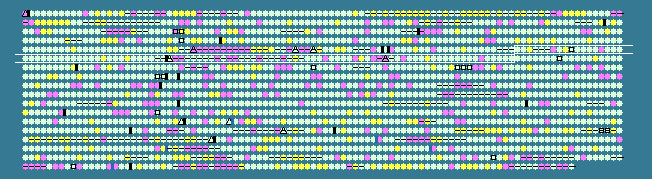

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48
Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
483	 36.67	0	508639..508908	-	89	113460622	rpsO	HS_0477	-	30S ribosomal protein S15
484	 38.35	0	509163..517718	-	2851	113460623	-	HS_0478	-	cell-surface large adhesin
485	 46.93	+2	518592..520658	+	688	113460624	glyS	HS_0479	-	glycyl-tRNA synthetase subunit beta
486	 39.06	0	520757..521140	-	127	113460625	-	HS_0480	-	autonomous glycyl radical cofactor GrcA
487	 40.03	0	521400..522071	+	223	113460626	ung	HS_0481	-	uracil-DNA glycosylase
488	 36.04	0	522087..522863	+	258	113460627	-	HS_0482	-	hypothetical protein
489	 33.33	-1	522860..523414	+	184	113460628	-	HS_0483	-	hypothetical protein
490	 34.89	0	523429..524325	+	298	113460629	-	HS_0484	-	cation efflux protein
491	 40.99	+1	524438..525403	+	321	113460630	pfkA	HS_0485	-	6-phosphofructokinase
492	 39.92	0	525674..526720	+	348	113460631	-	HS_0486	-	transposase
493	 40.38	0	527119..528381	+	420	113460632	hflK	HS_0487	-	HflK protein
494	 37.73	0	528381..529268	+	295	113460633	hflC	HS_0488	-	HflC protein
495	 37.06	0	529557..531968	+	803	113460634	lon	HS_0489	-	Lon-A peptidase
496	 34.57	0	532146..532550	+	134	113460635	holD	HS_0490	-	DNA polymerase III subunit psi
497	 33.33	-1	532554..533000	+	148	113460636	rimI	HS_0491	-	ribosomal-protein-alanine N-acetyltransferase
498	 38.91	0	533075..533971	-	298	113460637	dapA	HS_0492	-	dihydrodipicolinate synthase
499	 34.59	0	534081..534557	+	158	113460638	bcp	HS_0493	-	thioredoxin-dependent thiol peroxidase
500	 39.61	0	534638..535657	-	339	113460639	ilvE	HS_0494	-	branched-chain amino acid aminotransferase
501	 33.89	0	536097..537002	+	301	113460640	gcvA	HS_0495	-	DNA-binding transcriptional activator GcvA
502	 38.03	0	536995..538080	+	361	113460641	-	HS_0496	-	putative RNA 2'-O-ribose methyltransferase
503	 38.33	0	538228..540408	+	726	113460642	uvrD	HS_0497	-	DNA-dependent helicase II
504	 35.32	0	540474..541178	-	234	113460643	lpxH	HS_0498	-	UDP-2,3-diacylglucosamine hydrolase
505	 38.02	0	541289..542014	+	241	113460644	plsC	HS_0499	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
506	 37.18	0	542030..543433	+	467	113460645	sufI	HS_0500	-	cell division protein SufI
507	 38.20	0	543483..544139	-	218	113460646	rnt	HS_0501	-	ribonuclease T
508	 36.74	0	544227..544637	-	136	113460647	gloA	HS_0502	-	lactoylglutathione lyase (glyoxalase I)
509	 40.11	0	544887..545978	-	363	113460648	engD	HS_0503	-	translation-associated GTPase
510	 38.12	0	546045..546629	-	194	113460649	pth	HS_0504	-	peptidyl-tRNA hydrolase
511	 35.80	0	546715..547242	+	175	113460650	-	HS_0505	-	hypothetical protein
512	 34.53	0	547235..547567	+	110	113460651	-	HS_0506	-	hypothetical protein
513	 37.09	0	547721..548173	+	150	113460652	ntpA	HS_0507	-	dATP pyrophosphohydrolase
514	 41.70	+1	548175..548915	+	246	113460653	-	HS_0508	-	hypothetical protein
515	 39.12	0	549074..549643	+	189	113460654	ruvC	HS_0509	-	Holliday junction resolvase
516	 34.99	0	549723..550808	-	361	113460655	glpQ	HS_0510	-	glycerophosphodiester phosphodiesterase
517	 39.70	0	550922..552367	-	481	113460656	glpT	HS_0511	-	glycerol 3-phosphate transporter
518	 41.62	+1	552693..554381	+	562	113460657	glpA	HS_0512	-	sn-glycerol-3-phosphate dehydrogenase subunit A
519	 37.41	0	554371..555669	+	432	113460658	glpB	HS_0513	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
520	 36.87	0	555680..556951	+	423	113460659	glpC	HS_0514	-	sn-glycerol-3-phosphate dehydrogenase subunit C
521	 36.10	0	557001..557759	-	252	113460660	glpR	HS_0515	-	glycerol-3-phosphate regulon repressor (glp operon repressor)
522	 37.50	0	558033..559520	-	495	113460661	pepA	HS_0516	-	leucyl aminopeptidase
523	 35.51	0	559639..560742	+	367	113460662	-	HS_0517	-	permease
524	 35.67	0	560755..561825	+	356	113460663	-	HS_0518	-	permease
525	 36.63	0	562270..563574	+	434	113460664	intA	HS_0519	-	phage integrase
526	 31.75	-1	564106..564357	+	83	113460665	-	HS_0520	-	hypothetical protein
527	 31.38	-1	564367..564879	+	170	113460666	-	HS_0521	-	hypothetical protein
528	 38.29	0	565047..565268	+	73	113460667	-	HS_0522	-	phage transcriptional regulator
529	 40.24	0	565278..565523	+	81	113460668	-	HS_0523	-	hypothetical protein
530	 35.42	0	565524..565763	+	79	113460669	-	HS_0524	-	hypothetical protein
531	 40.58	0	565777..566259	+	160	113460670	-	HS_0525	-	hypothetical protein
532	 37.78	0	566252..566476	+	74	113460671	-	HS_0526	-	hypothetical protein
533	 33.72	-1	566469..566729	+	86	113460672	-	HS_0527	-	hypothetical protein
534	 37.80	0	566868..567359	+	163	113460673	-	HS_0528	-	hypothetical protein
535	 31.20	-1	567352..567585	+	77	113460674	-	HS_0529	-	hypothetical protein
536	 33.33	-1	567578..567829	+	83	113460675	-	HS_0530	-	hypothetical protein
537	 34.68	0	567813..568184	+	123	113460676	-	HS_0531	-	hypothetical protein
538	 38.45	0	568181..568708	+	175	113460677	-	HS_0532	-	hypothetical protein
539	 36.79	0	568711..570621	+	636	113460678	-	HS_0533	-	phage DNA primase-like protein
540	 30.85	-1	571152..571433	+	93	113460679	-	HS_0534	-	hypothetical protein
541	 36.87	0	571469..571864	+	131	113460680	-	HS_0535	-	transcriptional regulator
542	 34.69	0	572003..572296	+	97	113460681	-	HS_0536	-	hypothetical protein
543	 35.54	0	572309..572896	+	195	113460682	-	HS_0537	-	hypothetical protein
544	 33.11	-1	572889..573335	+	148	113460683	-	HS_0538	-	hypothetical protein
545	 39.22	0	573579..573782	+	67	113460684	-	HS_0539	-	hypothetical protein
546	 46.10	+2	574743..575204	-	153	113460685	-	HS_0540	-	hypothetical protein
547	 35.02	0	575341..576051	-	236	113460686	-	HS_0541	-	hypothetical protein
548	 37.53	0	576234..577019	+	261	113460687	ubiE	HS_0542	-	2-octaprenyl-6-methoxy-1,4-benzoquinone methylase / demethylmenaquinone methyltransferase
549	 35.69	0	577028..577663	+	211	113460688	-	HS_0543	-	hypothetical protein
550	 35.66	0	577663..579297	+	544	113460689	ubiB	HS_0544	-	2-octaprenylphenol hydroxylase
551	 33.33	-1	579402..579623	+	73	113460690	tatA	HS_0545	-	Sec-independent protein translocase
552	 38.92	0	579627..580181	+	184	113460691	tatB	HS_0546	-	Sec-independent protein translocase TatB
553	 38.08	0	580178..580915	+	245	113460692	tatC	HS_0547	-	Sec-independent protein translocase TatC
554	 39.30	0	580981..582003	+	340	113460693	hemB	HS_0548	-	delta-aminolevulinic acid dehydratase
555	 40.52	0	582060..583241	-	393	113460694	purT	HS_0549	-	phosphoribosylglycinamide formyltransferase 2
556	 33.73	-1	583282..583788	-	168	113460695	luxS	HS_0550	-	S-ribosylhomocysteinase
557	 41.33	+1	584087..586075	+	662	113460696	tktB	HS_0551	-	transketolase
558	 38.77	0	586239..587930	+	563	113460697	pyrG	HS_0552	-	CTP synthetase
559	 32.05	-1	587978..589612	-	544	113460698	-	HS_0553	-	acetyltransferase
560	 32.09	-1	589932..590333	+	133	113460699	-	HS_0554	-	hypothetical protein
561	 33.23	-1	590355..591281	+	308	113460700	-	HS_0555	-	phage integrase
562	 34.60	0	591294..591845	-	183	113460701	hsdS	HS_0556	-	type I restriction enzyme, specificity subunit
563	 34.67	0	592009..592530	-	173	113460702	-	HS_0557	-	phage P1-related protein
564	 28.61	-2	592523..593221	-	232	113460703	rlfA	HS_0558	-	hypothetical protein
565	 39.61	0	593223..596423	-	1066	113460704	hsdR	HS_0559	-	type I site-specific deoxyribonuclease, restriction subunit
566	 33.85	0	596416..596994	-	192	113460705	hsdS	HS_0560	-	type I restriction enzyme, specificity subunit
567	 40.40	0	597234..598535	+	433	113460706	eno	HS_0561	-	phosphopyruvate hydratase
568	 41.94	+1	598843..599679	+	278	113460707	menB	HS_0562	-	naphthoate synthase
569	 38.64	0	599893..600891	+	332	113460708	menC	HS_0563	-	O-succinylbenzoate synthase
570	 35.02	0	600940..601236	-	98	113460709	fis	HS_0564	-	DNA-binding protein Fis
571	 36.59	0	601230..602213	-	327	113460710	dusB	HS_0565	-	tRNA-dihydrouridine synthase B
572	 39.62	0	602400..603290	-	296	113460711	prmA	HS_0566	-	ribosomal protein L11 methyltransferase
573	 36.94	0	603291..604733	-	480	113460712	panF	HS_0567	-	sodium/panthothenate symporter
574	 34.60	0	604730..604966	-	78	113461939	-	HS_0567a	-	hypothetical protein
575	 39.35	0	605038..606384	-	448	113460713	accC	HS_0568	-	acetyl-CoA carboxylase biotin carboxylase subunit
576	 39.39	0	606445..606906	-	153	113460714	accB	HS_0569	-	biotin carboxyl carrier protein
577	 33.11	-1	607095..607547	-	150	113460715	aroQ	HS_0570	-	3-dehydroquinate dehydratase
578	 38.11	0	607825..608745	+	306	113460716	-	HS_0571	-	SPFH domain-containing protein/band 7 family protein
579	 38.06	0	608792..609235	+	147	113460717	-	HS_0572	-	regulator of membrane protease activity
580	 34.14	0	609245..609865	+	206	113460718	-	HS_0573	-	quinone family NAD(P)H dehydrogenase
581	 34.24	0	609877..610425	+	182	113460719	-	HS_0574	-	oxidoreductase component
582	 35.46	0	610451..611389	-	312	113460720	htrB	HS_0575	-	lipid A biosynthesis lauroyl acyltransferase
37.21	MEAN

3.48	STD DEV
