IslandPathversion 1.0

IslandPath Analysis: Haemophilus somnus 129PT

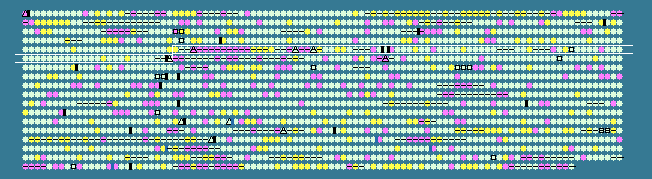

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48
Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
426	 42.88	+1	449845..451416	+	523	113460567	guaA	HS_0421	-	bifunctional GMP synthase/glutamine amidotransferase protein
427	 35.15	0	451591..452031	-	146	113460568	-	HS_0422	-	transcriptional regulator
428	 33.76	0	452273..452509	+	78	113460569	-	HS_0423	-	phage-related protein
429	 32.53	-1	452512..453636	+	374	113460570	-	HS_0424	-	phage integrase
430	 30.03	-2	453626..453988	+	120	113460571	-	HS_0425	-	hypothetical protein
431	 29.39	-2	454096..455007	+	303	113460572	-	HS_0426	-	phage DNA-polymerase or DNA-primase
432	 33.26	-1	454967..456397	+	476	113460573	virE	HS_0427	-	virulence-associated protein E
433	 30.70	-1	456719..457060	+	113	113460574	-	HS_0428	-	hypothetical protein
434	 29.81	-2	457204..457629	+	141	113460575	-	HS_0429	-	hypothetical protein
435	 31.76	-1	457622..459592	+	656	113460576	bcgIA	HS_0430	-	restriction enzyme, alpha subunit
436	 26.74	-2	459573..460649	+	358	113460577	bcgIB	HS_0431	-	restriction enzyme, beta subunit
437	 28.65	-2	460618..461151	+	177	113460578	bcgIB	HS_0432	-	restriction enzyme, beta subunit
438	 30.87	-1	461158..462090	+	310	113460579	-	HS_0433	-	hypothetical protein
439	 45.38	+2	463494..464132	+	212	113460580	alfA	HS_0435	-	alpha-L-fucosidase
440	 44.66	+2	464154..464462	+	102	113460581	-	HS_0436	-	hypothetical protein
441	 41.24	+1	464465..465805	+	446	113460582	-	HS_0437	-	PTS system, cellobiose-specific IIC component
442	 43.33	+1	465880..466239	+	119	113460583	rusA	HS_0438	-	ribosomal small subunit pseudouridine synthase A
443	 37.61	0	466559..466792	+	77	113460584	-	HS_0439	-	hypothetical protein
444	 37.30	0	466802..467053	+	83	113460585	-	HS_0440	-	hypothetical protein
445	 31.53	-1	467055..468053	+	332	113460586	-	HS_0441	-	cell filamentation-like protein
446	 35.59	0	468080..468301	-	73	113460587	-	HS_0442	-	resolvase/integrase-like protein
447	 33.48	-1	468440..469108	+	222	113460588	-	HS_0443	-	ParA-like protein
448	 30.63	-1	469110..469553	+	147	113460589	-	HS_0444	-	hypothetical protein
449	 35.75	0	469567..470145	-	192	113460590	-	HS_0445	-	resolvase/integrase-like protein
450	 45.54	+2	470536..471993	+	485	113460591	-	HS_0446	-	hypothetical protein
451	 36.94	0	472432..472653	-	73	113460592	-	HS_0447	-	hypothetical protein
452	 39.89	0	472874..473056	-	60	113461937	-	HS_0447a	-	hypothetical protein
453	 43.82	+1	473089..475053	+	654	113460593	tbpB	HS_0448	-	transferrin-binding protein
454	 47.26	+2	475187..478165	+	992	113460594	tbpA	HS_0449	-	transferrin-binding protein A
455	 37.16	0	478475..480355	+	626	113460595	htpG	HS_0450	-	heat shock protein 90
456	 36.55	0	481084..482853	+	589	113460596	-	HS_0451	-	hypothetical protein
457	 35.65	0	482850..483539	+	229	113460597	-	HS_0452	-	hypothetical protein
458	 38.02	0	483539..484348	+	269	113460598	-	HS_0453	-	hypothetical protein
459	 29.22	-2	485040..485282	+	80	113460599	-	HS_0454	-	hypothetical protein
460	 35.65	0	485279..486055	+	258	113460600	-	HS_0455	-	4'-phosphopantetheinyl transferase family protein
461	 39.02	0	486393..487835	-	480	113460601	gltX	HS_0456	-	glutamyl-tRNA synthetase
462	 31.29	-1	488524..489744	+	406	113460602	pilC	HS_0457	-	protein transport protein
463	 35.03	0	489741..490448	+	235	113460603	pilD	HS_0458	-	prepilin peptidase
464	 35.34	0	490468..491115	+	215	113460604	coaE	HS_0459	-	dephospho-CoA kinase
465	 35.38	0	491112..491306	+	64	113460605	-	HS_0460	-	hypothetical protein
466	 46.91	+2	491479..491640	+	53	113461938	-	HS_0460a	-	hypothetical protein
467	 36.24	0	491711..493087	+	458	113460606	-	HS_0461	-	D-alanine glycine permease
468	 35.22	0	493323..493640	+	105	113460607	-	HS_0462	-	sigma 54 modulation protein / SSU ribosomal protein S30P
469	 32.41	-1	493844..494383	+	179	113460608	hpt	HS_0463	-	hypoxanthine phosphoribosyltransferase
470	 37.94	0	494512..495141	-	209	113460609	sodA	HS_0464	-	superoxide dismutase, manganese
471	 39.77	0	495280..497547	-	755	113460610	mdh	HS_0465	-	malic enzyme
472	 36.58	0	497743..499158	-	471	161486693	aspA	HS_0466	-	aspartate ammonia-lyase
473	 37.11	0	499396..499686	+	96	113460612	groES	HS_0467	-	co-chaperonin GroES
474	 41.61	+1	499717..501360	+	547	113460613	groEL	HS_0468	-	chaperonin GroEL
475	 36.79	0	501532..501849	+	105	113460614	metJ	HS_0469	-	transcriptional repressor protein MetJ
476	 34.42	0	501891..502535	+	214	113460615	-	HS_0470	-	hypothetical protein
477	 34.01	0	502539..502982	+	147	113460616	-	HS_0471	-	hypothetical protein
478	 35.75	0	502983..504350	+	455	113460617	hemN	HS_0472	-	coproporphyrinogen III oxidase
479	 36.65	0	504384..504866	-	160	113460618	smpB	HS_0473	-	SsrA-binding protein
480	 38.96	0	504994..506469	+	491	113460619	ubiD	HS_0474	-	3-octaprenyl-4hydroxybenzoate decarboxylase
481	 37.87	0	506509..507699	-	396	113460620	metC	HS_0475	-	cystathionine beta-lyase
482	 38.81	0	507852..508454	+	200	113460621	tsaA	HS_0476	-	AhpC/TSA family protein
483	 36.67	0	508639..508908	-	89	113460622	rpsO	HS_0477	-	30S ribosomal protein S15
484	 38.35	0	509163..517718	-	2851	113460623	-	HS_0478	-	cell-surface large adhesin
485	 46.93	+2	518592..520658	+	688	113460624	glyS	HS_0479	-	glycyl-tRNA synthetase subunit beta
486	 39.06	0	520757..521140	-	127	113460625	-	HS_0480	-	autonomous glycyl radical cofactor GrcA
487	 40.03	0	521400..522071	+	223	113460626	ung	HS_0481	-	uracil-DNA glycosylase
488	 36.04	0	522087..522863	+	258	113460627	-	HS_0482	-	hypothetical protein
489	 33.33	-1	522860..523414	+	184	113460628	-	HS_0483	-	hypothetical protein
490	 34.89	0	523429..524325	+	298	113460629	-	HS_0484	-	cation efflux protein
491	 40.99	+1	524438..525403	+	321	113460630	pfkA	HS_0485	-	6-phosphofructokinase
492	 39.92	0	525674..526720	+	348	113460631	-	HS_0486	-	transposase
493	 40.38	0	527119..528381	+	420	113460632	hflK	HS_0487	-	HflK protein
494	 37.73	0	528381..529268	+	295	113460633	hflC	HS_0488	-	HflC protein
495	 37.06	0	529557..531968	+	803	113460634	lon	HS_0489	-	Lon-A peptidase
496	 34.57	0	532146..532550	+	134	113460635	holD	HS_0490	-	DNA polymerase III subunit psi
497	 33.33	-1	532554..533000	+	148	113460636	rimI	HS_0491	-	ribosomal-protein-alanine N-acetyltransferase
498	 38.91	0	533075..533971	-	298	113460637	dapA	HS_0492	-	dihydrodipicolinate synthase
499	 34.59	0	534081..534557	+	158	113460638	bcp	HS_0493	-	thioredoxin-dependent thiol peroxidase
500	 39.61	0	534638..535657	-	339	113460639	ilvE	HS_0494	-	branched-chain amino acid aminotransferase
501	 33.89	0	536097..537002	+	301	113460640	gcvA	HS_0495	-	DNA-binding transcriptional activator GcvA
502	 38.03	0	536995..538080	+	361	113460641	-	HS_0496	-	putative RNA 2'-O-ribose methyltransferase
503	 38.33	0	538228..540408	+	726	113460642	uvrD	HS_0497	-	DNA-dependent helicase II
504	 35.32	0	540474..541178	-	234	113460643	lpxH	HS_0498	-	UDP-2,3-diacylglucosamine hydrolase
505	 38.02	0	541289..542014	+	241	113460644	plsC	HS_0499	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
506	 37.18	0	542030..543433	+	467	113460645	sufI	HS_0500	-	cell division protein SufI
507	 38.20	0	543483..544139	-	218	113460646	rnt	HS_0501	-	ribonuclease T
508	 36.74	0	544227..544637	-	136	113460647	gloA	HS_0502	-	lactoylglutathione lyase (glyoxalase I)
509	 40.11	0	544887..545978	-	363	113460648	engD	HS_0503	-	translation-associated GTPase
510	 38.12	0	546045..546629	-	194	113460649	pth	HS_0504	-	peptidyl-tRNA hydrolase
511	 35.80	0	546715..547242	+	175	113460650	-	HS_0505	-	hypothetical protein
512	 34.53	0	547235..547567	+	110	113460651	-	HS_0506	-	hypothetical protein
513	 37.09	0	547721..548173	+	150	113460652	ntpA	HS_0507	-	dATP pyrophosphohydrolase
514	 41.70	+1	548175..548915	+	246	113460653	-	HS_0508	-	hypothetical protein
515	 39.12	0	549074..549643	+	189	113460654	ruvC	HS_0509	-	Holliday junction resolvase
516	 34.99	0	549723..550808	-	361	113460655	glpQ	HS_0510	-	glycerophosphodiester phosphodiesterase
517	 39.70	0	550922..552367	-	481	113460656	glpT	HS_0511	-	glycerol 3-phosphate transporter
518	 41.62	+1	552693..554381	+	562	113460657	glpA	HS_0512	-	sn-glycerol-3-phosphate dehydrogenase subunit A
519	 37.41	0	554371..555669	+	432	113460658	glpB	HS_0513	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
520	 36.87	0	555680..556951	+	423	113460659	glpC	HS_0514	-	sn-glycerol-3-phosphate dehydrogenase subunit C
521	 36.10	0	557001..557759	-	252	113460660	glpR	HS_0515	-	glycerol-3-phosphate regulon repressor (glp operon repressor)
522	 37.50	0	558033..559520	-	495	113460661	pepA	HS_0516	-	leucyl aminopeptidase
523	 35.51	0	559639..560742	+	367	113460662	-	HS_0517	-	permease
524	 35.67	0	560755..561825	+	356	113460663	-	HS_0518	-	permease
525	 36.63	0	562270..563574	+	434	113460664	intA	HS_0519	-	phage integrase
37.21	MEAN

3.48	STD DEV
