IslandPath Analysis: Haemophilus somnus 129PT

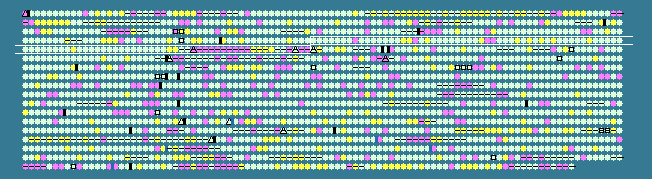

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48
Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
349	 36.66	0	349291..350403	+	370	113460491	-	HS_0345	-	PhoH-like ATP-binding protein
350	 37.20	0	350425..350889	+	154	113460492	-	HS_0346	-	metal-dependent hydrolase
351	 36.46	0	350879..352831	+	650	113460493	-	HS_0347	-	acetyltransferase
352	 38.51	0	352864..353037	+	57	113461936	-	HS_0347a	-	hypothetical protein
353	 38.51	0	353182..354765	+	527	113460494	cstA	HS_0348	-	carbon starvation protein A
354	 38.13	0	354994..355452	+	152	113460495	mraZ	HS_0349	-	cell division protein MraZ
355	 38.75	0	355570..356529	+	319	113460496	mraW	HS_0350	-	S-adenosyl-methyltransferase MraW
356	 32.40	-1	356529..356849	+	106	113460497	ftsL	HS_0351	-	cell division protein
357	 36.61	0	356874..358673	+	599	113460498	ftsI	HS_0352	-	peptidoglycan synthetase FtsI
358	 38.84	0	358689..360176	+	495	113460499	murE	HS_0353	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
359	 37.71	0	360257..361651	+	464	113460500	murF	HS_0354	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
360	 38.03	0	361645..362730	+	361	113460501	mraY	HS_0355	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
361	 38.98	0	362739..364049	+	436	113460502	murD	HS_0356	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
362	 35.95	0	364063..365247	+	394	113460503	ftsW	HS_0357	-	cell division protein
363	 38.92	0	365263..366336	+	357	113460504	murG	HS_0358	-	N-acetylglucosaminyl transferase
364	 41.16	+1	366390..367820	+	476	113460505	murC	HS_0359	-	UDP-N-acetylmuramate--L-alanine ligase
365	 40.78	+1	367865..368791	+	308	113460506	ddl	HS_0360	-	D-alanine--D-alanine ligase
366	 32.43	-1	368792..369565	+	257	113460507	ftsQ	HS_0361	-	cell division protein
367	 37.65	0	369596..370870	+	424	113460508	fstA	HS_0362	-	cell division protein FtsA
368	 41.13	+1	371056..372171	+	371	113460509	ftsZ	HS_0363	-	cell division protein FtsZ
369	 36.60	0	372212..373129	+	305	113460510	lpxC	HS_0364	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
370	 34.72	0	373254..374411	+	385	113460511	pheA	HS_0365	-	chorismate mutase / prephenate dehydratase
371	 38.78	0	374473..375261	-	262	113460512	comL	HS_0366	-	DNA uptake lipoprotein
372	 39.54	0	375371..376336	+	321	113460513	rluD	HS_0367	-	23S rRNA pseudouridine synthase D
373	 40.22	0	376338..377078	+	246	113460514	-	HS_0368	-	hypothetical protein
374	 40.48	0	377132..378082	-	316	113460515	cysK	HS_0369	-	cysteine synthase
375	 35.66	0	378200..378973	-	257	113460516	cysZ	HS_0370	-	putative sulfate transport protein CysZ
376	 35.91	0	379133..380140	+	335	113460517	zipA	HS_0371	-	cell division protein ZipA
377	 41.95	+1	380653..382323	+	556	113460518	-	HS_0372	-	putative ABC transporter ATP-binding protein
378	 33.33	-1	382622..382969	+	115	113460519	-	HS_0373	-	hypothetical protein
379	 30.00	-2	383108..383317	+	69	113460520	-	HS_0374	-	hypothetical protein
380	 36.80	0	383505..384167	+	220	113460521	ktrA	HS_0375	-	K+ transporter
381	 35.91	0	384157..385476	+	439	113460522	ktrB	HS_0376	-	cation transport protein
382	 39.37	0	385592..387613	-	673	113460523	ligA	HS_0377	-	NAD-dependent DNA ligase LigA
383	 40.82	+1	387723..389057	-	444	113460524	gntP	HS_0378	-	gluconate permease
384	 38.73	0	389391..389909	+	172	113460525	glk	HS_0379	-	gluconate kinase
385	 41.98	+1	390391..391419	+	342	113460526	-	HS_0380	-	periplasmic-binding protein
386	 40.22	0	391450..391914	+	154	113460527	-	HS_0381	-	hypothetical protein
387	 43.60	+1	391907..393883	+	658	113460528	-	HS_0382	-	integral membrane protein
388	 38.63	0	394115..406831	-	4238	113460529	-	HS_0383	-	large adhesin
389	 41.75	+1	407469..409049	+	526	113460530	prfC	HS_0384	-	peptide chain release factor 3
390	 37.27	0	409166..411601	-	811	113460531	plsB	HS_0385	-	glycerol-3-phosphate acyltransferase
391	 39.02	0	411763..412395	+	210	113460532	lexA	HS_0386	-	LexA repressor
392	 35.68	0	412482..412907	-	141	113460533	ndk	HS_0387	-	nucleoside diphosphate kinase
393	 38.80	0	412919..414217	-	432	113460534	pepB	HS_0388	-	aminopeptidase B
394	 35.99	0	414327..414929	-	200	113460535	leuD	HS_0389	-	isopropylmalate isomerase small subunit
395	 41.84	+1	414939..416348	-	469	113460536	leuC	HS_0390	-	isopropylmalate isomerase large subunit
396	 40.02	0	416449..417525	-	358	113460537	leuB	HS_0391	-	3-isopropylmalate dehydrogenase
397	 39.25	0	417549..419102	-	517	113460538	leuA	HS_0392	-	2-isopropylmalate synthase
398	 37.00	0	419699..420352	+	217	113460539	ccmA	HS_0393	-	cytochrome c biogenesis protein CcmA
399	 39.49	0	420349..421014	+	221	113460540	ccmB	HS_0394	-	heme ABC transporter, permease (heme exporter protein B)
400	 37.98	0	421064..421795	+	243	113460541	ccmC	HS_0395	-	heme ABC transporter, permease (heme exporter protein C)
401	 35.21	0	421805..422017	+	70	113460542	ccmD	HS_0396	-	heme ABC transporter, substrate-binding protein (heme exporter protein D)
402	 37.90	0	422014..422538	+	174	113460543	ccmE	HS_0397	-	cytochrome c-type biogenesis protein CcmE
403	 39.28	0	422535..424484	+	649	113460544	ccmF	HS_0398	-	cytochrome c-type biogenesis protein F
404	 35.35	0	424488..425033	+	181	113460545	dsbE	HS_0399	-	cytochrome c-type biogenesis protein G
405	 36.09	0	425030..425500	+	156	113460546	ccmH	HS_0400	-	cytochrome c-type biogenesis protein H
406	 33.90	0	425504..426388	+	294	113460547	-	HS_0401	-	TPR repeat-containing cytochrome c-type biogenesis protein
407	 34.84	0	426401..428257	+	618	113460548	arcB	HS_0402	-	sensor histidine kinase
408	 36.47	0	428344..429300	+	318	113460549	-	HS_0403	-	hypothetical protein
409	 41.19	+1	429307..430413	+	368	113460550	ispG	HS_0404	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
410	 39.05	0	430426..431703	+	425	113460551	hisS	HS_0405	-	histidyl-tRNA synthetase
411	 35.95	0	431714..432325	+	203	113460552	-	HS_0406	-	hypothetical protein
412	 39.43	0	432401..433828	+	475	113460553	attK	HS_0407	-	succinate semialdehyde dehydrogenase
413	 38.90	0	433984..435240	-	418	113460554	proA	HS_0408	-	gamma-glutamyl phosphate reductase
414	 37.95	0	435250..435921	-	223	113460555	-	HS_0409	-	hypothetical protein
415	 34.01	0	436082..436669	-	195	113460556	tdk	HS_0410	-	thymidine kinase
416	 40.62	0	436731..437759	-	342	113460557	gcp	HS_0411	-	O-sialoglycoprotein endopeptidase
417	 38.39	0	437995..439101	+	368	113460558	dprA	HS_0412	-	DNA processing chain A
418	 34.99	0	439084..439686	-	200	113460559	-	HS_0413	-	methylase
419	 38.39	0	439750..441093	+	447	113460560	ftsY	HS_0414	-	signal recognition particle-docking protein FtsY
420	 37.44	0	441256..442812	-	518	113460561	mviN	HS_0415	-	virulence factor
421	 39.77	0	443105..443368	+	87	113460562	rpsT	HS_0416	-	30S ribosomal protein S20
422	 40.30	0	443430..445280	-	616	113460563	typA	HS_0417	-	GTP-binding protein
423	 39.53	0	445523..446941	+	472	113460564	glnA	HS_0418	-	L-glutamine synthetase
424	 34.08	0	447166..448098	-	310	113460565	birA	HS_0419	-	biotin--protein ligase
425	 43.51	+1	448262..449725	+	487	113460566	guaB	HS_0420	-	inositol-5-monophosphate dehydrogenase
426	 42.88	+1	449845..451416	+	523	113460567	guaA	HS_0421	-	bifunctional GMP synthase/glutamine amidotransferase protein
427	 35.15	0	451591..452031	-	146	113460568	-	HS_0422	-	transcriptional regulator
428	 33.76	0	452273..452509	+	78	113460569	-	HS_0423	-	phage-related protein
429	 32.53	-1	452512..453636	+	374	113460570	-	HS_0424	-	phage integrase
430	 30.03	-2	453626..453988	+	120	113460571	-	HS_0425	-	hypothetical protein
431	 29.39	-2	454096..455007	+	303	113460572	-	HS_0426	-	phage DNA-polymerase or DNA-primase
432	 33.26	-1	454967..456397	+	476	113460573	virE	HS_0427	-	virulence-associated protein E
433	 30.70	-1	456719..457060	+	113	113460574	-	HS_0428	-	hypothetical protein
434	 29.81	-2	457204..457629	+	141	113460575	-	HS_0429	-	hypothetical protein
435	 31.76	-1	457622..459592	+	656	113460576	bcgIA	HS_0430	-	restriction enzyme, alpha subunit
436	 26.74	-2	459573..460649	+	358	113460577	bcgIB	HS_0431	-	restriction enzyme, beta subunit
437	 28.65	-2	460618..461151	+	177	113460578	bcgIB	HS_0432	-	restriction enzyme, beta subunit
438	 30.87	-1	461158..462090	+	310	113460579	-	HS_0433	-	hypothetical protein
439	 45.38	+2	463494..464132	+	212	113460580	alfA	HS_0435	-	alpha-L-fucosidase
440	 44.66	+2	464154..464462	+	102	113460581	-	HS_0436	-	hypothetical protein
441	 41.24	+1	464465..465805	+	446	113460582	-	HS_0437	-	PTS system, cellobiose-specific IIC component
442	 43.33	+1	465880..466239	+	119	113460583	rusA	HS_0438	-	ribosomal small subunit pseudouridine synthase A
443	 37.61	0	466559..466792	+	77	113460584	-	HS_0439	-	hypothetical protein
444	 37.30	0	466802..467053	+	83	113460585	-	HS_0440	-	hypothetical protein
445	 31.53	-1	467055..468053	+	332	113460586	-	HS_0441	-	cell filamentation-like protein
446	 35.59	0	468080..468301	-	73	113460587	-	HS_0442	-	resolvase/integrase-like protein
447	 33.48	-1	468440..469108	+	222	113460588	-	HS_0443	-	ParA-like protein
448	 30.63	-1	469110..469553	+	147	113460589	-	HS_0444	-	hypothetical protein
37.21	MEAN

3.48	STD DEV
