IslandPath Analysis: Haemophilus somnus 129PT

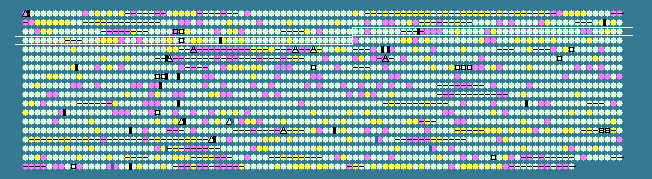

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48
Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
256	 38.69	0	251196..251867	+	223	113460399	artQ	HS_0253	-	arginine transporter permease subunit ArtQ
257	 34.36	0	251878..252561	+	227	113460400	artM	HS_0254	-	arginine transporter permease subunit ArtM
258	 33.68	-1	252667..252954	-	95	113460401	-	HS_0255	-	hypothetical protein
259	 37.99	0	253414..254979	+	521	113460402	cydA	HS_0256	-	cytochrome D ubiquinol oxidase, subunit I
260	 37.82	0	254994..256130	+	378	113460403	cydB	HS_0257	-	cytochrome D ubiquinol oxidase, subunit II
261	 35.68	0	256504..256929	+	141	113460404	-	HS_0258	-	thioesterase
262	 36.26	0	256926..257609	+	227	113460405	tolQ	HS_0259	-	biopolymer transport protein
263	 35.46	0	257677..258099	+	140	113460406	tolR	HS_0260	-	colicin uptake protein TolR
264	 37.78	0	258118..259173	+	351	113460407	tolA	HS_0261	-	cell envelope integrity inner membrane protein TolA
265	 38.54	0	259201..260505	+	434	113460408	tolB	HS_0262	-	translocation protein TolB
266	 38.48	0	260563..260970	+	135	113460409	pal	HS_0263	-	peptidoglycan-associated outer membrane lipoprotein (outer membrane protein P6)
267	 31.06	-1	261644..262171	+	175	113460410	pulG	HS_0264	-	type II secretory pathway, pseudopilin
268	 33.33	-1	262220..262897	+	225	113460411	-	HS_0265	-	hypothetical protein
269	 32.45	-1	262900..263580	+	226	113460412	-	HS_0266	-	hypothetical protein
270	 30.50	-1	263561..263878	+	105	113460413	-	HS_0267	-	hypothetical protein
271	 34.32	0	263931..267365	+	1144	113460414	recC	HS_0268	-	DNA helicase/exodeoxyribonuclease V, gamma subunit
272	 36.10	0	267444..268058	+	204	113460415	ruvA	HS_0269	-	Holliday junction DNA helicase motor protein
273	 41.27	+1	268069..269076	+	335	113460416	ruvB	HS_0270	-	Holliday junction DNA helicase B
274	 38.81	0	269211..270416	-	401	113460417	-	HS_0271	-	hypothetical protein
275	 39.96	0	270419..271384	-	321	113460418	-	HS_0272	-	S-adenosylmethionine-dependent methyltransferase
276	 38.68	0	271387..272901	-	504	113460419	putP	HS_0273	-	sodium/proline symporter
277	 37.60	0	273032..274507	+	491	113460420	rng	HS_0274	-	ribonuclease G
278	 31.03	-1	274562..275341	+	259	113460421	-	HS_0275	-	glycosyltransferase
279	 41.13	+1	275479..276927	+	482	113460422	tldD	HS_0276	-	microcin-processing peptidase 2
280	 37.06	0	277139..278587	+	482	113460423	-	HS_0277	-	SAM-dependent methyltransferase
281	 39.90	0	278668..279474	-	268	113460424	suhB	HS_0278	-	inositol-1(or 4)-monophosphatase
282	 36.30	0	279646..280386	+	246	113460425	-	HS_0279	-	tRNA/rRNA methyltransferase
283	 38.24	0	280440..280847	+	135	113460426	-	HS_0280	-	BadM/Rrf2 family transcriptional regulator
284	 39.18	0	280926..282140	+	404	113460427	nifS	HS_0281	-	cysteine desulfurase
285	 38.28	0	282216..282599	+	127	113460428	iscU	HS_0282	-	scaffold protein
286	 36.11	0	282765..283088	+	107	113460429	-	HS_0283	-	HesB-family protein
287	 33.91	0	283097..283615	+	172	113460430	hscB	HS_0284	-	co-chaperone HscB
288	 40.03	0	283657..285507	+	616	113460431	hscA	HS_0285	-	chaperone protein HscA
289	 40.64	0	285519..285860	+	113	113460432	fdx	HS_0286	-	ferredoxin
290	 37.91	0	285995..288268	+	757	113460433	gshA	HS_0287	-	bifunctional glutamate--cysteine ligase/glutathione synthetase
291	 39.61	0	288437..289153	-	238	113460434	deoD	HS_0288	-	purine nucleoside phosphorylase
292	 40.16	0	289282..290541	-	419	113460435	-	HS_0289	-	transport system permease
293	 35.06	0	290717..291352	+	211	113460436	-	HS_0290	-	hypothetical protein
294	 33.33	-1	291438..292208	+	256	113460437	lgtF	HS_0291	-	UDP-glucose--lipooligosaccharide beta 1-4 glucosyltransferase
295	 31.04	-1	292198..293244	+	348	113460438	-	HS_0292	-	glycosyltransferase
296	 40.56	0	293372..293620	+	82	113460439	rpsP	HS_0293	-	30S ribosomal protein S16
297	 36.74	0	293647..294174	+	175	113460440	rimM	HS_0294	-	16S rRNA-processing protein
298	 41.46	+1	294228..294965	+	245	113460441	trmD	HS_0295	-	tRNA (guanine-N(1)-)-methyltransferase
299	 38.75	0	295001..295351	+	116	113460442	rplS	HS_0296	-	50S ribosomal protein L19
300	 35.04	0	295486..296304	-	272	113460443	-	HS_0297	-	hydrolase
301	 37.82	0	296341..297342	-	333	113460444	gntR	HS_0298	-	gluconate utilization operon repressor
302	 38.17	0	297351..298445	-	364	113460445	-	HS_0299	-	tRNA/rRNA methyltransferase
303	 34.87	0	298569..299936	+	455	113460446	pssA	HS_0300	-	phosphatidylserine synthase
304	 34.46	0	299966..300676	-	236	113460447	dnaQ	HS_0301	-	DNA polymerase III, epsilon subunit
305	 36.06	0	300673..302619	-	648	113460448	-	HS_0302	-	signal-transduction protein
306	 40.55	0	302655..304565	-	636	113460449	iolC	HS_0303	-	myo-inositol catabolism protein
307	 35.94	0	304808..305650	+	280	113460450	-	HS_0304	-	transcriptional regulator
308	 41.18	+1	305687..306451	-	254	113460451	-	HS_0305	-	SAM-dependent methyltransferase
309	 35.25	0	306427..307626	-	399	113460452	trmA	HS_0306	-	tRNA (uracil-5-)-methyltransferase
310	 40.30	0	307592..307921	-	109	113460453	-	HS_0307	-	hypothetical protein
311	 33.83	0	307975..308583	-	202	113460454	dsbA	HS_0308	-	protein disulfide-isomerase (thiol:disulfide interchange protein)
312	 34.46	0	308593..308859	-	88	113460455	-	HS_0309	-	hypothetical protein
313	 37.41	0	308926..309513	+	195	113460456	mobA	HS_0310	-	molybdopterin-guanine dinucleotide biosynthesis protein A
314	 41.60	+1	309632..311638	+	668	113460457	-	HS_0311	-	integral membrane protein
315	 43.45	+1	311761..312432	-	223	113460458	-	HS_0312	-	TPR repeat-containing protein
316	 44.01	+1	312490..313248	-	252	113460459	-	HS_0313	-	TPR repeat-containing protein
317	 30.30	-1	313269..313532	-	87	113460460	-	HS_0314	-	hypothetical protein
318	 39.26	0	313770..314714	-	314	113460461	lipA	HS_0315	-	lipoyl synthase
319	 37.60	0	314750..315406	-	218	113460462	lipB	HS_0316	-	lipoyltransferase
320	 32.66	-1	315415..315711	-	98	113460463	-	HS_0317	-	hypothetical protein
321	 34.88	0	315766..316932	-	388	113460464	dacA	HS_0318	-	penicillin-binding protein
322	 35.12	0	317042..317602	-	186	113460465	rlpA	HS_0319	-	rare lipoprotein A
323	 36.02	0	317645..318760	-	371	113460466	mrdB	HS_0320	-	rod shape-determining protein
324	 38.35	0	318760..320673	-	637	113460467	mrdA	HS_0321	-	peptidoglycan glycosyltransferase
325	 41.24	+1	320690..321157	-	155	113460468	-	HS_0322	-	SPOUT methyltransferase superfamily protein
326	 37.69	0	321161..321481	-	106	113460469	-	HS_0323	-	hypothetical protein
327	 37.46	0	321635..322288	-	217	113460470	-	HS_0324	-	IS1016C2 transposase
328	 39.50	0	322555..323397	-	280	113460471	yfeD	HS_0325	-	chelated iron ABC transporter, permease
329	 40.74	+1	323390..324280	-	296	113460472	yfeC	HS_0326	-	chelated iron ABC transporter, permease
330	 41.11	+1	324285..325043	-	252	113460473	yfeB	HS_0327	-	iron ABC transporter, ATP-binding protein
331	 38.21	0	325053..325913	-	286	113460474	yfeA	HS_0328	-	chelated iron ABC transporter, periplasmic-binding protein
332	 35.45	0	326040..326369	-	109	113460475	-	HS_0329	-	sulfite reductase-like protein
333	 35.29	0	326447..327109	-	220	113460476	-	HS_0330	-	integral membrane protein
334	 41.57	+1	327531..329060	-	509	113460477	comM	HS_0331	-	competence-related protein
335	 37.64	0	329162..329857	-	231	113460478	engB	HS_0332	-	GTPase EngB
336	 38.47	0	329778..331139	-	453	113460479	glmU	HS_0333	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
337	 41.00	+1	331242..332363	+	373	113460480	anmK	HS_0334	-	anhydro-N-acetylmuramic acid kinase
338	 40.13	0	332366..333277	+	303	113460481	murQ	HS_0335	-	N-acetylmuramic acid-6-phosphate etherase
339	 35.48	0	333498..334103	+	201	113460482	kefF	HS_0336	-	NAD(P)H dehydrogenase (quinone)
340	 39.45	0	334320..335087	+	255	113460483	-	HS_0337	-	hypothetical protein
341	 36.94	0	335169..336857	-	562	113460484	-	HS_0338	-	putative symporter YidK
342	 37.35	0	337178..338944	+	588	113460485	-	HS_0339	-	outer membrane protein
343	 34.75	0	338955..342479	+	1174	113460486	-	HS_0340	-	hypothetical protein
344	 37.07	0	342482..344032	+	516	113460487	ppx	HS_0341	-	exopolyphosphatase
345	 42.86	+1	344205..346040	+	611	113460488	ilvD	HS_0342	-	dihydroxy-acid dehydratase
346	 38.71	0	346369..346554	-	61	113461935	-	HS_0342a	-	hypothetical protein
347	 38.77	0	347041..348198	+	385	113460489	chaA	HS_0343	-	calcium/proton antiporter
348	 36.71	0	348297..349274	+	325	113460490	-	HS_0344	-	hypothetical protein
349	 36.66	0	349291..350403	+	370	113460491	-	HS_0345	-	PhoH-like ATP-binding protein
350	 37.20	0	350425..350889	+	154	113460492	-	HS_0346	-	metal-dependent hydrolase
351	 36.46	0	350879..352831	+	650	113460493	-	HS_0347	-	acetyltransferase
352	 38.51	0	352864..353037	+	57	113461936	-	HS_0347a	-	hypothetical protein
353	 38.51	0	353182..354765	+	527	113460494	cstA	HS_0348	-	carbon starvation protein A
354	 38.13	0	354994..355452	+	152	113460495	mraZ	HS_0349	-	cell division protein MraZ
355	 38.75	0	355570..356529	+	319	113460496	mraW	HS_0350	-	S-adenosyl-methyltransferase MraW
37.21	MEAN

3.48	STD DEV
