IslandPath Analysis: Haemophilus somnus 129PT

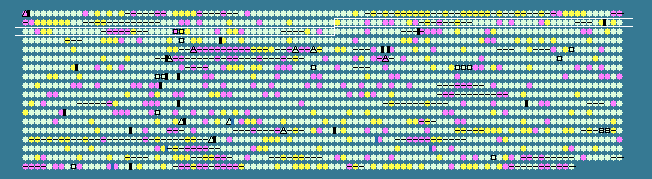

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48
Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
153	 41.46	+1	137231..137968	+	245	113460298	-	HS_0152	-	23S rRNA (guanosine-2'-O-)-methyltransferase
154	 38.28	0	138109..138654	-	181	113460299	-	HS_0153	-	TPR repeat-containing protein
155	 40.23	0	138698..139495	-	265	113460300	cysE	HS_0154	-	serine acetyltransferase
156	 39.63	0	139497..140513	-	338	113460301	gpsA	HS_0155	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
157	 35.85	0	140580..141095	-	171	113460302	secB	HS_0156	-	preprotein translocase subunit SecB
158	 33.11	-1	141106..141552	-	148	113460303	-	HS_0157	-	hypothetical protein
159	 39.51	0	141796..143106	+	436	113460304	dcuB	HS_0158	-	anaerobic C4-dicarboxylate transporter
160	 35.42	0	143179..144039	-	286	113460305	ubiA	HS_0159	-	4-hydroxybenzoate octaprenyltransferase
161	 33.12	-1	144024..144500	+	158	113460306	glpE	HS_0160	-	thiosulfate sulfurtransferase
162	 32.15	-1	144524..144862	-	112	113460307	-	HS_0161	-	hypothetical protein
163	 34.60	0	144882..145751	+	289	113460308	glpG	HS_0162	-	rhomboid family GlpG protein
164	 39.43	0	145978..146502	+	174	113460309	-	HS_0163	-	hypothetical protein
165	 41.52	+1	146520..146690	+	56	113461933	rpmF	HS_0163a	-	50S ribosomal protein L32
166	 33.33	-1	146757..147089	+	110	113460310	plsX	HS_0164	-	fatty acid/phospholipid synthesis protein
167	 39.22	0	147142..148092	+	316	113460311	fabH	HS_0165	-	3-oxoacyl-(acyl carrier protein) synthase III
168	 41.11	+1	148136..149074	+	312	113460312	fabD	HS_0166	-	[Acyl-carrier-protein] S-malonyltransferase
169	 39.94	0	149128..149853	+	241	113460313	fabG	HS_0167	-	3-ketoacyl-(acyl-carrier-protein) reductase
170	 30.74	-1	150107..150337	+	76	113460314	acpP	HS_0168	-	acyl carrier protein
171	 39.86	0	150486..150914	+	142	113460315	rplK	HS_0169	-	50S ribosomal protein L11
172	 39.42	0	150919..151608	+	229	113460316	rplA	HS_0170	-	50S ribosomal protein L1
173	 42.28	+1	151892..152383	+	163	113460317	rplJ	HS_0171	-	50S ribosomal protein L10
174	 39.57	0	152435..152803	+	122	113460318	rplL	HS_0172	-	50S ribosomal protein L7/L12
175	 39.00	0	153043..154242	-	399	113460319	rho	HS_0173	-	transcription termination factor Rho
176	 36.67	0	154500..155759	+	419	113460320	rhlB	HS_0174	-	ATP-dependent RNA helicase RhlB
177	 36.97	0	155873..156559	+	228	113460321	rpe	HS_0175	-	ribulose-phosphate 3-epimerase
178	 34.96	0	156556..157230	+	224	113460322	gph	HS_0176	-	phosphoglycolate phosphatase
179	 37.43	0	157240..158241	+	333	113460323	trpS	HS_0177	-	tryptophanyl-tRNA synthetase
180	 31.52	-1	158460..158900	-	146	113460324	-	HS_0178	-	hypothetical protein
181	 37.81	0	158953..159555	+	200	113460325	-	HS_0179	-	phosphatase
182	 25.69	-2	159556..159843	-	95	113460326	-	HS_0180	-	hypothetical protein
183	 38.17	0	159934..162681	-	915	113460327	-	HS_0181	-	TonB-dependent outer membrane receptor
184	 38.51	0	162913..163530	-	205	113460328	-	HS_0182	-	hypothetical protein
185	 38.74	0	163772..165307	+	511	113460329	ilvA	HS_0183	-	threonine dehydratase
186	 40.30	0	165383..166315	-	310	113460330	ispH	HS_0184	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
187	 33.53	-1	166327..166824	-	165	113460331	lspA	HS_0185	-	lipoprotein signal peptidase
188	 42.08	+1	166899..169712	-	937	113460332	ileS	HS_0186	-	isoleucyl-tRNA synthetase
189	 34.43	0	169731..170279	-	182	113460333	-	HS_0187	-	hypothetical protein
190	 36.61	0	170377..171321	-	314	113460334	ribF	HS_0188	-	bifunctional riboflavin kinase/FMN adenylyltransferase
191	 36.21	0	171407..171892	-	161	113460335	folA	HS_0189	-	dihydrofolate reductase
192	 38.54	0	171945..172424	-	159	113460336	-	HS_0190	-	hypothetical protein
193	 36.38	0	172412..173200	-	262	113460337	-	HS_0191	-	hypothetical protein
194	 40.16	0	173358..174470	+	370	113460338	proB	HS_0192	-	gamma-glutamyl kinase
195	 40.54	0	174631..175185	-	184	113460339	nusG	HS_0193	-	transcription antitermination protein NusG
196	 35.05	0	175187..175594	-	135	113460340	secE	HS_0194	-	preprotein translocase subunit SecE
197	 43.21	+1	175770..176954	-	394	113460341	tufA	HS_0195	-	elongation factor Tu
198	 34.07	0	177659..178612	+	317	113460342	coaA	HS_0196	-	pantothenate kinase
199	 40.78	+1	178666..179874	-	402	113460343	gltS	HS_0197	-	sodium/glutamate symporter (glutamate permease)
200	 39.49	0	180055..183531	-	1158	113460344	dnaE	HS_0198	-	DNA polymerase III subunit alpha
201	 39.95	0	183692..186262	-	856	113460345	clpB	HS_0199	-	ATP-dependent Clp protease, subunit B
202	 38.10	0	186446..186907	-	153	113460346	-	HS_0200	-	hypothetical protein
203	 33.72	-1	187091..187348	+	85	113460347	oadG	HS_0201	-	oxaloacetate decarboxylase subunit gamma
204	 41.39	+1	187361..189160	+	599	113460348	oadA	HS_0202	-	pyruvate carboxylase subunit B
205	 42.73	+1	189212..190477	+	421	113460349	oadB	HS_0203	-	oxaloacetate decarboxylase beta subunit
206	 37.11	0	190550..191503	-	317	113460350	tal	HS_0204	-	transaldolase B
207	 36.32	0	191691..194036	+	781	113460351	imp	HS_0205	-	organic solvent tolerance protein
208	 40.56	0	194113..195192	-	359	113460352	fba	HS_0206	-	fructose-bisphosphate aldolase
209	 40.69	0	195284..196438	-	384	113460353	pgk	HS_0207	-	phosphoglycerate kinase
210	 37.93	0	196692..196952	+	86	113460354	fdx	HS_0208	-	ferredoxin
211	 40.60	0	197001..212432	-	5143	113460355	hsf	HS_0209	-	large adhesin
212	 37.33	0	212868..213617	-	249	113460356	-	HS_0210	-	polar amino acid ABC transporter, ATP-binding protein
213	 39.75	0	213631..214347	-	238	113460357	-	HS_0211	-	amino acid ABC transporter, permease
214	 38.95	0	214337..215119	-	260	113460358	-	HS_0212	-	amino acid ABC transporter, substrate-binding
215	 28.55	-2	215433..215996	-	187	113460359	-	HS_0213	-	hypothetical protein
216	 26.30	-2	216015..216398	-	127	113460360	-	HS_0214	-	hypothetical protein
217	 27.78	-2	216401..216868	-	155	113460361	-	HS_0215	-	hypothetical protein
218	 33.33	-1	217020..218141	-	373	113460362	mloA	HS_0216	-	hypothetical protein
219	 45.99	+2	218189..218512	-	107	113460363	-	HS_0217	-	hypothetical protein
220	 34.38	0	219081..219368	+	95	113460364	-	HS_0218	-	hypothetical protein
221	 37.58	0	219532..220920	-	462	113460365	-	HS_0219	-	NadC family transporter
222	 39.32	0	221104..221604	-	166	113460366	rraA	HS_0220	-	ribonuclease activity regulator protein RraA
223	 36.61	0	221651..222565	-	304	113460367	menA	HS_0221	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
224	 40.66	0	222663..223385	+	240	113460368	-	HS_0222	-	hypothetical protein
225	 37.38	0	223545..223964	+	139	113460369	rbsD	HS_0223	-	D-ribose pyranase
226	 30.65	-1	224095..224280	+	61	113460370	-	HS_0224	-	putative transposase
227	 42.92	+1	224451..224690	+	79	113461934	-	HS_0224a	-	transposase
228	 41.51	+1	224788..225741	+	317	113460371	rbsK	HS_0225	-	ribokinase
229	 39.86	0	225762..226772	+	336	113460372	rbsR	HS_0226	-	LacI family transcription regulator
230	 35.66	0	226801..227187	-	128	113460373	smpA	HS_0227	-	small protein A
231	 34.52	0	227282..228295	-	337	113460374	ndpA	HS_0228	-	nucleoid-associated protein NdpA
232	 33.78	0	228413..228634	+	73	113460375	-	HS_0229	-	hypothetical protein
233	 32.99	-1	228636..230378	+	580	113460376	-	HS_0230	-	hypothetical protein
234	 37.38	0	230592..231308	-	238	113460377	sfsA	HS_0231	-	sugar fermentation stimulation protein A
235	 41.42	+1	231517..233049	+	510	113460378	pntA	HS_0232	-	NAD(P) transhydrogenase subunit alpha
236	 41.68	+1	233062..234522	+	486	113460379	pntB	HS_0233	-	pyridine nucleotide transhydrogenase
237	 32.24	-1	234603..236252	+	549	113460380	-	HS_0234	-	phosphoglycerol transferase
238	 38.52	0	236311..236580	+	89	113460381	galK	HS_0235	-	galactokinase
239	 38.22	0	236574..237617	+	347	113460382	galM	HS_0236	-	aldose 1-epimerase
240	 36.13	0	237772..238665	+	297	113460383	corC	HS_0237	-	magnesium and cobalt efflux protein
241	 36.92	0	238662..240194	+	510	113460384	lnt	HS_0238	-	apolipoprotein N-acyltransferase
242	 37.98	0	240202..240933	-	243	113460385	-	HS_0239	-	TatD family deoxyribonuclease
243	 36.93	0	241113..241613	+	166	113460386	-	HS_0240	-	hypothetical protein
244	 35.29	0	241185..241694	-	169	113460387	ppiB	HS_0241	-	peptidylprolyl isomerase (peptidyl-prolyl cis-trans isomerase)
245	 38.70	0	241833..243212	+	459	113460388	cysS	HS_0242	-	cysteinyl-tRNA synthetase
246	 37.84	0	243264..243995	-	243	113460389	-	HS_0243	-	hypothetical protein
247	 37.82	0	244128..245108	-	326	113460390	ispB	HS_0244	-	octaprenyl-diphosphate synthase
248	 43.27	+1	245340..245651	+	103	113460391	rplU	HS_0245	-	50S ribosomal protein L21
249	 40.31	0	245672..245929	+	85	113460392	rpmA	HS_0246	-	50S ribosomal protein L27
250	 32.46	-1	246065..246985	+	306	113460393	-	HS_0247	-	hypothetical protein
251	 40.03	0	246995..248173	+	392	113460394	obgE	HS_0248	-	GTPase ObgE
252	 36.49	0	248415..248984	-	189	113460395	ampD	HS_0249	-	N-acetyl-anhydromuranmyl-L-alanine amidase
37.21	MEAN

3.48	STD DEV
