IslandPath Analysis: Haemophilus somnus 129PT

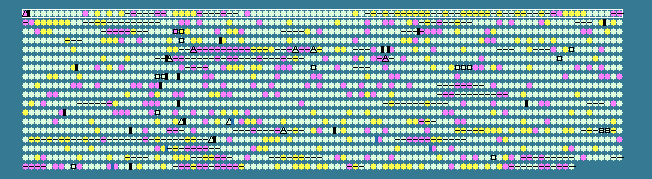

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).

A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48

Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 28.82	-2	384..1181	+	265	113460150	-	HS_0001	-	integrase
2	 36.41	0	1927..3324	+	465	113460151	pncB	HS_0002	-	putative nicotinate phosphoribosyltransferase
3	 38.28	0	3401..3865	-	154	113460152	gptA	HS_0003	-	xanthine-guanine phosphoribosyltransferase
4	 37.58	0	3990..5450	+	486	113460153	pepD	HS_0004	-	M20C family Xaa-His dipeptidase
5	 38.90	0	5598..8168	-	856	113460154	mutS	HS_0005	-	DNA mismatch repair protein
6	 38.24	0	8310..9125	-	271	113460155	aroE	HS_0006	-	shikimate 5-dehydrogenase
7	 35.23	0	9129..9707	-	192	113460156	-	HS_0007	-	Sua5 family translation factor
8	 36.79	0	9677..10225	-	182	113460157	-	HS_0008	-	DNA topoisomerase I-related protein
9	 35.11	0	10359..10922	+	187	113460158	-	HS_0009	-	hypothetical protein
10	 38.97	0	10922..11347	+	141	113460159	-	HS_0010	-	Holliday junction resolvase-like protein
11	 32.15	-1	11348..12106	-	252	113460160	-	HS_0011	-	sugar metabolism transcriptional regulator
12	 39.38	0	12277..13185	+	302	113460161	-	HS_0012	-	3-hydroxyisobutyrate dehydrogenase family protein
13	 41.55	+1	13187..14428	+	413	113460162	-	HS_0013	-	secretion system component
14	 40.13	0	14425..15057	+	210	113460163	fucA	HS_0014	-	putative aldolase
15	 41.57	+1	15060..15836	+	258	113460164	-	HS_0015	-	hydroxypyruvate isomerase
16	 35.97	0	15963..16910	+	315	113460165	-	HS_0016	-	hypothetical protein
17	 41.34	+1	16926..18398	+	490	113460166	gntP	HS_0017	-	GntP family permease
18	 36.16	0	18540..18716	-	58	113461929	-	HS_0017a	-	hypothetical protein
19	 24.52	-2	19007..20050	+	347	113460167	-	HS_0018	-	hypothetical protein
20	 36.82	0	20037..21212	+	391	113460168	-	HS_0019	-	major facilitator superfamily permease
21	 34.89	0	21510..22280	-	256	113460169	uxuR	HS_0020	-	GntR family transcriptional regulator
22	 35.98	0	22388..23446	+	352	113460170	-	HS_0021	-	Zn-binding dehydrogenase
23	 33.54	-1	23475..24458	+	327	113460171	-	HS_0022	-	dicarboxylate-binding protein
24	 33.54	-1	24523..25002	+	159	113460172	-	HS_0023	-	permease (transport protein)
25	 36.00	0	24999..26273	+	424	113460173	-	HS_0024	-	permease (transport protein)
26	 41.67	+1	26460..27107	+	215	113460174	-	HS_0025	-	allophanate hydrolase, subunit 1
27	 42.04	+1	27104..28033	+	309	113460175	-	HS_0026	-	allophanate hydrolase, subunit 2
28	 42.47	+1	28020..28763	+	247	113460176	-	HS_0027	-	hypothetical protein
29	 40.82	+1	28889..30076	+	395	113460177	-	HS_0028	-	permease (transport protein)
30	 32.65	-1	30320..31048	+	242	113460178	araC	HS_0029	-	DNA-binding transcriptional regulator AraC
31	 36.62	0	31236..32210	+	324	113460179	-	HS_0030	-	sugar ABC transporter, sugar-binding protein
32	 34.76	0	32278..33753	+	491	113460180	-	HS_0031	-	sugar ABC transporter, ATP-binding
33	 35.90	0	33722..34696	+	324	113460181	-	HS_0032	-	sugar ABC transporter, permease
34	 33.12	-1	34699..35649	+	316	113460182	-	HS_0033	-	sugar ABC transporter, permease
35	 36.41	0	35662..37254	+	530	113460183	-	HS_0034	-	sugar kinase
36	 38.63	0	37376..38092	-	238	113460184	-	HS_0035	-	peroxiredoxin
37	 36.17	0	38221..39135	+	304	113460185	oxyR	HS_0036	-	DNA-binding transcriptional regulator OxyR
38	 32.07	-1	39262..39657	-	131	113460186	mscL	HS_0037	-	large-conductance mechanosensitive channel
39	 37.25	0	39742..41118	-	458	113460187	trkA	HS_0038	-	potassium transporter peripheral membrane component
40	 40.17	0	41203..42591	-	462	113460188	rsmB	HS_0039	-	ribosomal RNA small subunit methyltransferase B
41	 40.04	0	42588..43541	-	317	113460189	fmt	HS_0040	-	methionyl-tRNA formyltransferase
42	 35.48	0	43616..44128	-	170	113460190	def	HS_0041	-	peptide deformylase
43	 36.98	0	44316..44945	-	209	113460191	narP	HS_0042	-	nitrate/nitrite response regulator protein
44	 35.44	0	44960..47470	-	836	113460192	cyaA	HS_0043	-	adenylate cyclase
45	 39.96	0	47625..48590	+	321	113460193	hemC	HS_0044	-	porphobilinogen deaminase
46	 37.52	0	48677..49345	+	222	113460194	hemD	HS_0045	-	uroporphyrinogen-III synthase
47	 34.67	0	49546..50745	+	399	113460195	hemX	HS_0046	-	uroporphyrin-III C-methyltransferase
48	 37.32	0	50760..52037	+	425	113460196	hemY	HS_0047	-	porphyrin biosynthesis protein
49	 39.41	0	52092..53078	-	328	113460197	dusA	HS_0048	-	tRNA-dihydrouridine synthase A
50	 40.03	0	53491..55044	-	517	113460198	-	HS_0049	-	autoinducer-2 (AI-2) kinase
51	 40.52	0	55098..56057	-	319	113460199	-	HS_0050	-	sorbitol operon transcriptional regulator
52	 39.10	0	56274..57782	+	502	113460200	ego	HS_0051	-	ABC transporter, ATP-binding, sugar transport
53	 37.34	0	57791..58789	+	332	113460201	-	HS_0052	-	ABC transporter, permease, sugar transport
54	 40.55	0	58786..59769	+	327	113460202	-	HS_0053	-	ABC transporter, permease, sugar transport
55	 40.10	0	59882..60901	+	339	113460203	-	HS_0054	-	ABC transporter, solute-binding, sugar transport
56	 41.52	+1	60920..61798	+	292	113460204	-	HS_0055	-	aldolase
57	 34.32	0	61864..62166	+	100	113460205	-	HS_0056	-	autoinducer-2 (AI-2) modifying protein LsrG
58	 34.74	0	62159..62869	+	236	113460206	rpe	HS_0057	-	ribulose-phosphate 3-epimerase
59	 41.03	+1	63132..63443	+	103	113460207	rpsJ	HS_0058	-	SSU ribosomal protein S10P
60	 39.71	0	63460..64086	+	208	113460208	rplC	HS_0059	-	50S ribosomal protein L3
61	 41.46	+1	64102..64704	+	200	113460209	rplD	HS_0060	-	50S ribosomal protein L4
62	 37.58	0	64701..65006	+	101	113460210	rplW	HS_0061	-	50S ribosomal protein L23
63	 42.46	+1	65027..65848	+	273	113460211	rplB	HS_0062	-	50S ribosomal protein L2
64	 44.57	+2	65875..66150	+	91	113460212	rpsS	HS_0063	-	30S ribosomal protein S19
65	 41.14	+1	66161..66493	+	110	113460213	rplV	HS_0064	-	50S ribosomal protein L22
66	 42.37	+1	66510..67217	+	235	113460214	rpsC	HS_0065	-	30S ribosomal protein S3
67	 42.34	+1	67231..67641	+	136	113460215	rplP	HS_0066	-	50S ribosomal protein L16
68	 41.67	+1	67641..67832	+	63	113460216	rpmC	HS_0067	-	50S ribosomal protein L29
69	 38.43	0	67832..68086	+	84	113460217	rpsQ	HS_0068	-	SSU ribosomal protein S17P
70	 39.74	0	68283..70889	+	868	113460218	irp	HS_0069	-	iron-regulated outer membrane protein
71	 43.28	+1	71086..71457	+	123	113460219	rplN	HS_0070	-	50S ribosomal protein L14
72	 35.58	0	71470..71781	+	103	113460220	rplX	HS_0071	-	50S ribosomal protein L24
73	 40.56	0	71799..72338	+	179	113460221	rplE	HS_0072	-	50S ribosomal protein L5
74	 42.16	+1	72350..72655	+	101	113460222	rpsN	HS_0073	-	SSU ribosomal protein S14P
75	 41.48	+1	72692..73084	+	130	113460223	rpsH	HS_0074	-	30S ribosomal protein S8
76	 41.01	+1	73101..73634	+	177	113460224	rplF	HS_0075	-	50S ribosomal protein L6
77	 42.94	+1	73648..74001	+	117	113460225	rplR	HS_0076	-	50S ribosomal protein L18
78	 43.51	+1	74017..74517	+	166	113460226	rpsE	HS_0077	-	30S ribosomal protein S5
79	 37.70	0	74521..74703	+	60	113460227	rpmD	HS_0078	-	50S ribosomal protein L30
80	 41.84	+1	74708..75142	+	144	113460228	rplO	HS_0079	-	50S ribosomal protein L15
81	 36.35	0	75150..76475	+	441	113460229	secY	HS_0080	-	preprotein translocase subunit SecY
82	 37.72	0	76503..76616	+	37	113461930	rpmJ	HS_0080a	-	50S ribosomal protein L36
83	 42.86	+1	76760..77116	+	118	113460230	rpsM	HS_0081	-	30S ribosomal protein S13
84	 43.85	+1	77132..77521	+	129	113460231	rpsK	HS_0082	-	30S ribosomal protein S11
85	 40.26	0	77551..78171	+	206	113460232	rpsD	HS_0083	-	30S ribosomal protein S4
86	 40.10	0	78204..79193	+	329	113460233	rpoA	HS_0084	-	DNA-directed RNA polymerase subunit alpha
87	 41.09	+1	79235..79621	+	128	113460234	rplQ	HS_0085	-	50S ribosomal protein L17
88	 34.35	0	79692..80378	-	228	113460235	-	HS_0086	-	hypothetical protein
89	 33.72	-1	80383..81660	-	425	113460236	nadR	HS_0087	-	nicotinamide-nucleotide adenylyltransferase
90	 30.58	-1	81736..82026	-	96	113460237	-	HS_0088	-	hypothetical protein
91	 43.04	+1	82323..82961	+	212	113460238	ribB	HS_0089	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
92	 42.49	+1	83118..83783	-	221	113460239	thiE	HS_0090	-	thiamine-phosphate pyrophosphorylase
93	 41.70	+1	83783..84595	-	270	113460240	thiD	HS_0091	-	phosphomethylpyrimidine kinase
94	 41.20	+1	84588..85388	-	266	113460241	thiM	HS_0092	-	hydroxyethylthiazole kinase
95	 37.44	0	85961..86569	+	202	113460242	recO	HS_0093	-	DNA repair protein RecO
96	 37.05	0	86590..87909	+	439	113460243	rumA	HS_0094	-	23S rRNA 5-methyluridine methyltransferase
97	 37.98	0	87921..90158	+	745	113460244	relA	HS_0095	-	GTP diphosphokinase (GTP pyrophosphokinase)
98	 36.41	0	90183..90539	+	118	113460245	dgkA	HS_0096	-	diacylglycerol kinase
99	 28.29	-2	92709..92966	+	85	113460246	-	HS_0099	-	hypothetical protein
100	 27.78	-2	93052..93987	+	311	113460247	-	HS_0100	-	transcriptional regulator
37.21	MEAN

3.48	STD DEV
