IslandPath Analysis: Haemophilus somnus 129PT

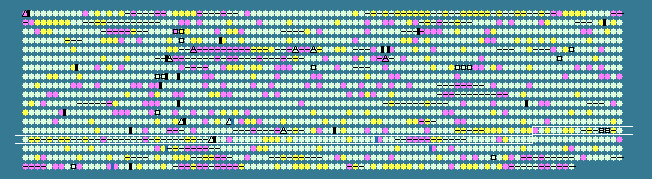

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48
Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1386	 31.69	-1	1571100..1571282	-	60	113461522	-	HS_1379	-	hypothetical protein
1387	 40.26	0	1571380..1571682	-	100	113461523	-	HS_1380	-	transcription regulator
1388	 41.01	+1	1572189..1580201	-	2670	113461524	-	HS_1381	-	hypothetical protein
1389	 39.79	0	1580282..1580668	-	128	113461525	-	HS_1382	-	phage-related protein
1390	 36.69	0	1580465..1580851	+	128	113461526	-	HS_1383	-	hypothetical protein
1391	 42.09	+1	1581207..1583273	-	688	113461527	-	HS_1384	-	hypothetical protein
1392	 41.54	+1	1583386..1584933	-	515	113461528	-	HS_1385	-	hypothetical protein
1393	 38.79	0	1584933..1585628	-	231	113461529	-	HS_1386	-	terminase small subunit
1394	 40.06	0	1585825..1586151	-	108	113461530	-	HS_1387	-	hypothetical protein
1395	 42.27	+1	1586124..1586660	-	178	113461531	-	HS_1388	-	lysozyme, phage-related lysozyme
1396	 39.66	0	1586653..1586889	-	78	113461532	-	HS_1389	-	hypothetical protein
1397	 39.54	0	1587177..1588223	-	348	113461533	-	HS_1390	-	transposase
1398	 36.45	0	1588360..1588776	+	138	113461534	-	HS_1391	-	transposase
1399	 40.85	+1	1588836..1589234	-	132	113461535	-	HS_1392	-	hypothetical protein
1400	 35.80	0	1589385..1589789	-	134	113461536	-	HS_1393	-	hypothetical protein
1401	 39.54	0	1589779..1590390	-	203	113461537	-	HS_1394	-	NinG recombination protein
1402	 41.94	+1	1590548..1590733	+	61	113461538	-	HS_1395	-	hypothetical protein
1403	 43.48	+1	1590756..1591169	+	137	113461539	-	HS_1396	-	hypothetical protein
1404	 38.23	0	1591256..1592215	-	319	113461540	-	HS_1397	-	hypothetical protein
1405	 42.76	+1	1592579..1593193	+	204	113461541	-	HS_1398	-	prophage antirepressor
1406	 37.75	0	1593245..1593697	-	150	113461542	-	HS_1399	-	hypothetical protein
1407	 41.39	+1	1593710..1594243	-	177	113461543	-	HS_1400	-	DNA methylase
1408	 42.71	+1	1594258..1594950	-	230	113461544	-	HS_1401	-	replication protein P
1409	 39.27	0	1594947..1595738	-	263	113461545	-	HS_1402	-	hypothetical protein
1410	 37.75	0	1595735..1595983	-	82	113461546	-	HS_1403	-	hypothetical protein
1411	 43.27	+1	1596026..1596478	-	150	113461547	-	HS_1404	-	hypothetical protein
1412	 34.78	0	1596523..1596729	-	68	113461548	-	HS_1405	-	hypothetical protein
1413	 36.32	0	1596868..1597503	+	211	113461549	-	HS_1406	-	repressor protein
1414	 33.05	-1	1597622..1598665	+	347	113461550	-	HS_1407	-	hypothetical protein
1415	 34.85	0	1598658..1598921	+	87	113461551	-	HS_1408	-	hypothetical protein
1416	 34.97	0	1598911..1599276	+	121	113461552	-	HS_1409	-	hypothetical protein
1417	 39.70	0	1599786..1600052	+	88	113461553	-	HS_1410	-	hypothetical protein
1418	 35.98	0	1600415..1600603	-	62	113461554	-	HS_1411	-	hypothetical protein
1419	 35.95	0	1600832..1601518	+	228	113461555	-	HS_1412	-	hypothetical protein
1420	 39.39	0	1601521..1601718	+	65	113461556	-	HS_1413	-	hypothetical protein
1421	 30.67	-1	1602088..1602576	+	162	113461557	-	HS_1414	-	hypothetical protein
1422	 34.38	0	1602930..1603595	+	221	113461558	-	HS_1415	-	prophage antirepressor
1423	 42.46	+1	1603682..1603966	+	94	113461559	-	HS_1416	-	hypothetical protein
1424	 36.30	0	1603963..1604400	+	145	113461560	-	HS_1417	-	hypothetical protein
1425	 37.67	0	1604397..1604696	+	99	113461561	-	HS_1418	-	hypothetical protein
1426	 40.06	0	1604708..1605643	+	311	113461562	-	HS_1419	-	phage recombinase
1427	 40.66	0	1605636..1606304	+	222	113461563	-	HS_1420	-	hypothetical protein
1428	 41.83	+1	1606354..1607412	+	352	113461564	-	HS_1421	-	hypothetical protein
1429	 44.44	+2	1607441..1608538	+	365	113461565	-	HS_1422	-	DNA-cytosine methyltransferase
1430	 36.72	0	1608571..1609368	+	265	113461566	-	HS_1423	-	hypothetical protein
1431	 39.25	0	1609378..1609563	+	61	113461567	-	HS_1424	-	phage transcriptional regulator, AlpA
1432	 35.91	0	1609525..1610766	-	413	113461568	-	HS_1425	-	integrase
1433	 39.37	0	1611223..1612962	+	579	113461569	ychM	HS_1426	-	putative sulfate transporter YchM
1434	 39.43	0	1613005..1614381	-	458	113461570	ffh	HS_1427	-	signal recognition particle subunit FFH/SRP54 (srp54)
1435	 31.45	-1	1614531..1615328	+	265	113461571	-	HS_1428	-	permease
1436	 34.52	0	1615398..1616657	+	419	113461572	-	HS_1429	-	transporter
1437	 37.22	0	1616691..1618106	-	471	113461573	pilB	HS_1430	-	pilin/fimbriae biogenesis protein
1438	 37.34	0	1618465..1619763	+	432	113461574	tig	HS_1431	-	trigger factor
1439	 38.32	0	1619849..1620430	+	193	161486690	clpP	HS_1432	-	ATP-dependent Clp protease proteolytic subunit
1440	 36.14	0	1620446..1621690	+	414	113461576	clpX	HS_1433	-	ATP-dependent protease ATP-binding subunit
1441	 46.30	+2	1622188..1623375	-	395	113461577	amaA	HS_1434	-	N-acyl-L-amino acid amidohydrolase
1442	 41.11	+1	1623908..1624357	-	149	113461578	rplI	HS_1435	-	50S ribosomal protein L9
1443	 41.23	+1	1624376..1624603	-	75	113461579	rpsR	HS_1436	-	30S ribosomal protein S18
1444	 34.86	0	1624616..1624942	-	108	113461580	priB	HS_1437	-	primosomal replication protein N
1445	 42.86	+1	1624929..1625306	-	125	113461581	rpsF	HS_1438	-	30S ribosomal protein S6
1446	 36.65	0	1625558..1626280	-	240	113461582	-	HS_1439	-	MgtC family membrane protein
1447	 37.33	0	1626397..1627398	-	333	113461583	asnA	HS_1440	-	asparagine synthetase AsnA
1448	 34.22	0	1627573..1628025	+	150	113461584	asnC	HS_1441	-	DNA-binding transcriptional regulator AsnC
1449	 37.76	0	1628080..1628892	-	270	113461585	-	HS_1442	-	hypothetical protein
1450	 35.77	0	1628939..1630171	-	410	113461586	-	HS_1443	-	hypothetical protein
1451	 39.26	0	1630263..1631594	-	443	113461587	-	HS_1444	-	hypothetical protein
1452	 39.04	0	1631734..1632417	-	227	113461588	gpmA	HS_1445	-	phosphoglycerate mutase
1453	 35.59	0	1632653..1633405	+	250	113461589	fucR	HS_1446	-	L-fucose operon activator
1454	 36.35	0	1633660..1634952	+	430	113461590	fucP	HS_1447	-	L-fucose permease
1455	 41.26	+1	1635148..1636914	+	588	113461591	fucI	HS_1448	-	L-fucose isomerase
1456	 37.79	0	1636996..1638453	+	485	113461592	fucK	HS_1449	-	L-fuculokinase
1457	 37.70	0	1638447..1638881	+	144	113461593	fucU	HS_1450	-	fucose operon fucU protein
1458	 35.03	0	1638895..1639542	+	215	113461594	fucA	HS_1451	-	L-fuculose phosphate aldolase
1459	 35.79	0	1639764..1640048	+	94	113461595	-	HS_1452	-	hypothetical protein
1460	 33.08	-1	1645935..1646738	-	267	113461596	murI	HS_1453	-	glutamate racemase
1461	 39.63	0	1646808..1648889	-	693	113461597	recG	HS_1454	-	ATP-dependent DNA helicase
1462	 39.31	0	1648889..1651012	-	707	113461598	spoT	HS_1455	-	guanosine-3'5'-bis(diphosphate) 3'- pyrophosphohydrolase
1463	 37.36	0	1651093..1651365	-	90	113461599	rpoZ	HS_1456	-	DNA-directed RNA polymerase subunit omega
1464	 34.90	0	1651420..1652058	-	212	113461600	gmk	HS_1457	-	guanylate kinase
1465	 31.46	-1	1652155..1652955	-	266	113461601	licD	HS_1458	-	lipopolysaccharide choline phosphotransferase
1466	 27.47	-2	1652957..1653655	-	232	113461602	licC	HS_1459	-	LicC protein
1467	 29.69	-2	1653652..1654584	-	310	113461603	licB	HS_1460	-	lic-1 operon protein (LicB)
1468	 26.12	-2	1654571..1655374	-	267	113461604	licA	HS_1461	-	LicA protein
1469	 46.35	+2	1656140..1656331	+	63	113461605	-	HS_1464	-	hypothetical protein
1470	 44.76	+2	1656163..1656372	+	69	113461606	-	HS_1465	-	hypothetical protein
1471	 38.51	0	1656605..1657609	+	334	113461607	gapA	HS_1466	-	glyceraldehyde-3-phosphate dehydrogenase
1472	 38.68	0	1657785..1658252	-	155	113461608	nrdG	HS_1467	-	anaerobic ribonucleotide reductase-activating protein
1473	 37.14	0	1658268..1660394	-	708	113461609	nrdD	HS_1468	-	anaerobic ribonucleoside triphosphate reductase
1474	 35.61	0	1660679..1662475	-	598	113461610	-	HS_1469	-	ABC transporter, ATP-binding/permease protein
1475	 38.94	0	1662669..1664327	+	552	113461611	-	HS_1470	-	hypothetical protein
1476	 36.32	0	1664281..1664481	-	66	113461612	-	HS_1471	-	hypothetical protein
1477	 38.46	0	1664502..1664735	+	77	113461613	rpmE	HS_1472	-	50S ribosomal protein L31P
1478	 38.99	0	1664811..1665500	-	229	113461614	pfs	HS_1473	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
1479	 38.79	0	1665695..1667416	-	573	113461615	recJ	HS_1474	-	single-strand DNA-specific exonuclease
1480	 32.19	-1	1667409..1668107	-	232	113461616	dsbC	HS_1475	-	thiol:disulfide interchange protein
1481	 41.51	+1	1668554..1669336	+	260	113461617	prfB	HS_1476	-	peptide chain release factor 2
1482	 39.17	0	1669414..1670922	+	502	113461618	lysS	HS_1477	-	lysyl-tRNA synthetase
1483	 36.80	0	1670973..1671203	-	76	113461619	-	HS_1478	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
1484	 36.93	0	1671213..1672325	-	370	113461620	bcr	HS_1479	-	bicyclomycin/multidrug efflux system
1485	 39.65	0	1672855..1673424	+	189	113461621	-	HS_1480	-	permease
37.21	MEAN

3.48	STD DEV
