IslandPathversion 1.0

IslandPath Analysis: Haemophilus somnus 129PT

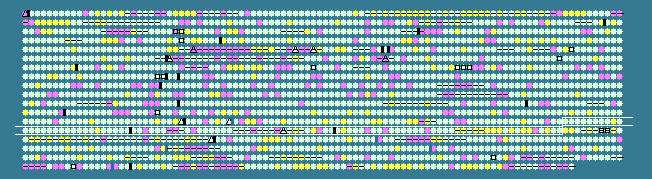

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48
Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1291	 39.75	0	1472517..1473716	-	399	113461427	hcaT	HS_1284	-	putative 3-phenylpropionic acid transporter
1292	 40.07	0	1473717..1474532	-	271	113461428	proC	HS_1285	-	pyrroline-5-carboxylate reductase
1293	 37.31	0	1474595..1475500	+	301	113461429	rdgC	HS_1286	-	recombination associated protein
1294	 37.47	0	1475568..1476776	-	402	113461430	oapA	HS_1287	-	opacity associated protein A
1295	 35.40	0	1476826..1477839	-	337	113461431	-	HS_1288	-	L-lysine 2,3-aminomutase
1296	 40.39	0	1477875..1478441	+	188	113461432	efp	HS_1289	-	elongation factor P
1297	 38.92	0	1478488..1479417	-	309	113461433	dusC	HS_1290	-	tRNA-dihydrouridine synthase C
1298	 38.28	0	1479422..1480291	-	289	113461434	djlA	HS_1291	-	DNA-J like membrane chaperone protein
1299	 42.68	+1	1480384..1481100	-	238	113461435	rph	HS_1292	-	ribonuclease PH
1300	 39.00	0	1481221..1482084	+	287	113461436	-	HS_1293	-	hypothetical protein
1301	 35.01	0	1482093..1482926	+	277	113461437	-	HS_1294	-	aminomethyl transferase
1302	 40.42	0	1482970..1484295	-	441	113461438	srmB	HS_1295	-	ATP-dependent RNA helicase SrmB
1303	 35.86	0	1484389..1485099	+	236	113461439	-	HS_1296	-	SAM-dependent methyltransferase
1304	 38.17	0	1485116..1485694	-	192	113461440	-	HS_1297	-	acyl-phosphate glycerol-3-phosphate acyltransferase
1305	 35.50	0	1485793..1486161	+	122	113461441	folB	HS_1298	-	dihydroneopterin aldolase
1306	 37.10	0	1486210..1487085	-	291	113461442	xerC	HS_1299	-	site-specific tyrosine recombinase XerC
1307	 38.98	0	1487393..1488277	+	294	113461443	psd	HS_1300	-	phosphatidylserine decarboxylase
1308	 39.18	0	1488304..1488936	+	210	113461444	fklB	HS_1301	-	FKBP-type peptidyl-prolyl cis-trans isomerase
1309	 37.66	0	1489174..1491093	+	639	113461445	-	HS_1302	-	ABC transporter, ATP-binding protein
1310	 39.70	0	1491217..1492284	+	355	113461446	recA	HS_1303	-	recombinase A
1311	 34.41	0	1492393..1492857	+	154	113461447	recX	HS_1304	-	recombination regulator RecX
1312	 39.39	0	1492960..1494675	+	571	113461448	proS	HS_1305	-	prolyl-tRNA synthetase
1313	 44.40	+2	1494813..1496891	+	692	113461449	frpB	HS_1306	-	iron-regulated outer membrane protein
1314	 37.63	0	1497083..1498270	+	395	113461450	tyrS	HS_1307	-	tyrosyl-tRNA synthetase
1315	 40.43	0	1498316..1498921	-	201	113461451	recR	HS_1308	-	recombination protein RecR
1316	 40.00	0	1498984..1499313	-	109	113461452	-	HS_1309	-	hypothetical protein
1317	 37.81	0	1499439..1501337	+	632	113461453	topB	HS_1310	-	DNA topoisomerase III
1318	 39.13	0	1501475..1501819	+	114	113461454	secG	HS_1311	-	preprotein translocase subunit SecG
1319	 36.62	0	1502393..1503334	-	313	113461455	secF	HS_1312	-	preprotein translocase subunit SecF
1320	 37.44	0	1503374..1505224	-	616	113461456	secD	HS_1313	-	preprotein translocase subunit SecD
1321	 33.70	-1	1505256..1505525	-	89	113461457	yajC	HS_1314	-	preprotein translocase subunit YajC
1322	 38.64	0	1505711..1506841	-	376	113461458	tgt	HS_1315	-	queuine tRNA-ribosyltransferase
1323	 39.68	0	1506892..1507962	-	356	113461459	queA	HS_1316	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1324	 36.49	0	1508094..1509362	-	422	113461460	dctM	HS_1317	-	C4-dicarboxylate transport system, large subunit (permease)
1325	 31.13	-1	1509380..1509832	-	150	113461461	dctQ	HS_1318	-	C4-dicarboxylate transport system, small subunit
1326	 32.59	-1	1509829..1510899	-	356	113461462	dctP	HS_1319	-	C4-dicarboxylate transport system, C4-dicarboxylate-binding protein
1327	 39.51	0	1511236..1511850	-	204	113461463	-	HS_1320	-	hypothetical protein
1328	 35.16	0	1512130..1512402	+	90	113461464	-	HS_1321	-	hypothetical protein
1329	 29.10	-2	1512411..1512599	+	62	113461465	-	HS_1322	-	hypothetical protein
1330	 37.18	0	1512910..1514286	-	458	113461466	prtC	HS_1323	-	collagenase prtC
1331	 34.07	0	1514428..1515237	-	269	113461467	ligA	HS_1324	-	DNA ligase
1332	 38.93	0	1515405..1516940	-	511	113461468	engA	HS_1325	-	GTP-binding protein EngA
1333	 35.58	0	1517071..1517604	-	177	113461469	-	HS_1326	-	hypothetical protein
1334	 37.47	0	1517751..1519103	+	450	113461470	pmbA	HS_1327	-	antibiotic maturation factor
1335	 39.11	0	1519169..1520467	-	432	113461471	purA	HS_1328	-	adenylosuccinate synthetase
1336	 38.10	0	1520967..1521995	+	342	113461472	kdgK	HS_1329	-	2-keto-3-deoxygluconate kinase
1337	 37.13	0	1522017..1523807	+	596	113461473	uidA	HS_1330	-	beta-D-glucuronidase
1338	 38.69	0	1525271..1525699	-	142	113461474	-	HS_1331	-	hypothetical protein
1339	 28.89	-2	1525748..1525927	-	59	113461475	-	HS_1332	-	hypothetical protein
1340	 36.64	0	1525943..1526275	-	110	113461476	-	HS_1333	-	hypothetical protein
1341	 34.59	0	1526268..1526666	-	132	113461477	-	HS_1334	-	terminase small subunit
1342	 40.58	0	1526741..1526947	-	68	113461478	-	HS_1335	-	prophage CP4-57 regulatory protein
1343	 27.49	-2	1527311..1528012	-	233	113461479	-	HS_1336	-	hypothetical protein
1344	 39.14	0	1528094..1529350	-	418	113461480	int	HS_1337	-	integrase
1345	 37.22	0	1530177..1530716	-	179	113461481	-	HS_1338	-	hypothetical protein
1346	 41.04	+1	1531121..1532470	+	449	113461482	gdhA	HS_1339	-	glutamate dehydrogenase
1347	 36.23	0	1532664..1533491	+	275	113461483	-	HS_1340	-	hypothetical protein
1348	 38.44	0	1533632..1534258	+	208	113461484	upp	HS_1341	-	uracil phosphoribosyltransferase
1349	 40.98	+1	1534360..1535601	+	413	113461485	uraA	HS_1342	-	uracil permease
1350	 30.89	-1	1535688..1536383	+	231	113461486	-	HS_1343	-	DNA replication initiation factor
1351	 34.88	0	1536501..1536824	-	107	113461487	trxA	HS_1344	-	thioredoxin
1352	 37.57	0	1536989..1538098	-	369	113461488	metB	HS_1345	-	cystathionine gamma-synthase
1353	 40.48	0	1538796..1539662	+	288	113461489	-	HS_1346	-	chromosome partitioning-related protein
1354	 41.98	+1	1539655..1541031	+	458	113461490	dnaB	HS_1347	-	replicative DNA helicase
1355	 40.07	0	1541021..1542727	+	568	113461491	-	HS_1348	-	hypothetical protein
1356	 37.77	0	1543110..1543763	+	217	113461492	-	HS_1349	-	hypothetical protein
1357	 36.82	0	1543827..1544285	+	152	113461493	mgsA	HS_1350	-	methylglyoxal synthase
1358	 32.18	-1	1544310..1546475	+	721	113461494	-	HS_1351	-	hypothetical protein
1359	 35.90	0	1546477..1546983	-	168	113461495	-	HS_1352	-	hypothetical protein
1360	 35.95	0	1547068..1548021	+	317	113461496	-	HS_1353	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1361	 32.48	-1	1548092..1549144	-	350	113461497	-	HS_1354	-	permease
1362	 37.76	0	1549144..1549482	-	112	113461498	glnB	HS_1355	-	nitrogen regulatory protein p-II
1363	 40.17	0	1549525..1550109	-	194	113461499	mogA	HS_1356	-	molybdenum cofactor biosynthesis protein
1364	 39.47	0	1550170..1550805	-	211	113461500	rnhB	HS_1357	-	ribonuclease HII
1365	 37.78	0	1550806..1551975	-	389	113461501	lpxB	HS_1358	-	lipid-A-disaccharide synthase
1366	 38.91	0	1552058..1552846	-	262	113461502	lpxA	HS_1359	-	UDP-N-acetylglucosamine acyltransferase
1367	 37.94	0	1552860..1553315	-	151	113461503	fabZ	HS_1360	-	3-hydroxyacyl-[acyl-carrier-protein] dehydratase
1368	 31.67	-1	1553399..1554358	-	319	113461504	-	HS_1361	-	hypothetical protein
1369	 40.52	0	1554396..1555730	-	444	113461505	argG	HS_1362	-	argininosuccinate synthase
1370	 39.47	0	1555823..1556653	-	276	113461506	-	HS_1363	-	hypothetical protein
1371	 38.42	0	1556720..1557565	-	281	113461507	purC	HS_1364	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1372	 38.60	0	1558147..1558773	-	208	113461508	-	HS_1365	-	hypothetical protein
1373	 42.88	+1	1558773..1559306	-	177	113461509	-	HS_1366	-	hypothetical protein
1374	 42.90	+1	1559325..1560641	-	438	113461510	-	HS_1367	-	hypothetical protein
1375	 39.62	0	1560645..1560962	-	105	113461511	-	HS_1368	-	hypothetical protein
1376	 40.87	+1	1560979..1562226	-	415	113461512	-	HS_1369	-	hypothetical protein
1377	 45.61	+2	1562322..1562606	-	94	113461513	-	HS_1370	-	hypothetical protein
1378	 48.82	+2	1562582..1563130	-	182	113461514	-	HS_1371	-	hypothetical protein
1379	 44.78	+2	1563261..1565549	-	762	113461515	-	HS_1372	-	phage-related tail fiber protein
1380	 42.12	+1	1565542..1567521	-	659	113461516	-	HS_1373	-	hypothetical protein
1381	 35.56	0	1567585..1568034	-	149	113461517	-	HS_1374	-	hypothetical protein
1382	 42.31	+1	1568244..1568633	-	129	113461518	-	HS_1375	-	hypothetical protein
1383	 37.81	0	1568630..1569076	-	148	113461519	-	HS_1376	-	hypothetical protein
1384	 43.27	+1	1569138..1570133	-	331	113461520	-	HS_1377	-	hypothetical protein
1385	 43.17	+1	1570159..1571022	-	287	113461521	-	HS_1378	-	hypothetical protein
1386	 31.69	-1	1571100..1571282	-	60	113461522	-	HS_1379	-	hypothetical protein
1387	 40.26	0	1571380..1571682	-	100	113461523	-	HS_1380	-	transcription regulator
1388	 41.01	+1	1572189..1580201	-	2670	113461524	-	HS_1381	-	hypothetical protein
1389	 39.79	0	1580282..1580668	-	128	113461525	-	HS_1382	-	phage-related protein
1390	 36.69	0	1580465..1580851	+	128	113461526	-	HS_1383	-	hypothetical protein
37.21	MEAN

3.48	STD DEV
