IslandPathversion 1.0

IslandPath Analysis: Haemophilus somnus 129PT

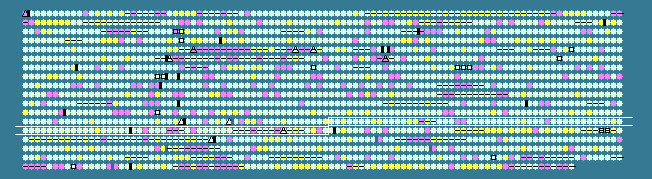

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.21 STD DEV: 3.48
Haemophilus somnus 129PT, complete genome - 1..2007700
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1252	 36.74	0	1426702..1427406	-	234	113461388	pepE	HS_1245	-	peptidase E
1253	 39.88	0	1427713..1428369	+	218	113461389	-	HS_1246	-	hypothetical protein
1254	 41.90	+1	1428263..1430725	+	820	113461390	-	HS_1247	-	autotransporter protein YapE
1255	 38.39	0	1430933..1431940	-	335	113461391	fbp	HS_1248	-	fructose-1,6-bisphosphatase
1256	 40.09	0	1432081..1433457	+	458	113461392	mpl	HS_1249	-	UDP-N-acetylmuramate:L-alanyl-gamma-d-glutamayl-medo-diaminopimelate
1257	 36.43	0	1433554..1434069	-	171	113461393	mtlR	HS_1250	-	mannitol repressor protein
1258	 40.02	0	1434151..1435302	-	383	113461394	mtlD	HS_1251	-	mannitol-1-phosphate 5-dehydrogenase
1259	 41.11	+1	1435375..1437252	-	625	113461395	mtlA	HS_1252	-	mannitol-specific IIABC component, PTS system
1260	 45.54	+2	1437618..1438526	+	302	113461396	-	HS_1253	-	fructokinase
1261	 38.83	0	1438800..1439891	+	363	161486691	mltA	HS_1254	-	murein transglycosylase A
1262	 37.24	0	1439891..1440658	+	255	113461398	-	HS_1255	-	hypothetical protein
1263	 36.73	0	1440751..1441869	+	372	113461399	znuA	HS_1256	-	high-affinity zinc transporter periplasmic component
1264	 37.83	0	1442591..1443502	+	303	113461400	cdd	HS_1257	-	cytidine deaminase
1265	 40.99	+1	1443533..1444342	+	269	113461401	truA	HS_1258	-	tRNA pseudouridine synthase A
1266	 44.01	+1	1444398..1447244	-	948	113461402	valS	HS_1259	-	valyl-tRNA synthetase
1267	 28.33	-2	1447281..1448399	-	372	113461403	-	HS_1260	-	hypothetical protein
1268	 41.54	+1	1448680..1448874	-	64	113461404	-	HS_1261	-	hypothetical protein
1269	 36.00	0	1448876..1449625	-	249	113461405	-	HS_1262	-	hypothetical protein
1270	 35.31	0	1449789..1450244	-	151	113461406	-	HS_1263	-	hypothetical protein
1271	 38.51	0	1450266..1450709	-	147	113461407	holC	HS_1264	-	DNA polymerase III subunit chi
1272	 37.14	0	1450879..1451508	-	209	113461408	ompW	HS_1265	-	outer membrane protein precursor
1273	 33.06	-1	1451784..1452524	+	246	113461409	-	HS_1266	-	hypothetical protein
1274	 32.59	-1	1452524..1453063	+	179	113461410	ispZ	HS_1267	-	intracellular septation protein A
1275	 40.22	0	1453073..1453537	+	154	113461411	yciA	HS_1268	-	acyl-CoA hydrolase
1276	 35.69	0	1453560..1453856	+	98	113461412	-	HS_1269	-	YciI-like protein
1277	 40.43	0	1454031..1456637	+	868	113461413	acnB	HS_1270	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1278	 40.01	0	1456960..1458546	+	528	113461414	-	HS_1271	-	ABC transporter, periplasmic binding protein
1279	 39.83	0	1458684..1459637	+	317	113461415	-	HS_1272	-	ABC transporter, permease component
1280	 38.40	0	1459637..1461589	+	650	113461416	-	HS_1273	-	ABC transporter, ATP-binding/permease
1281	 39.37	0	1461605..1462399	+	264	113461417	-	HS_1274	-	ABC transporter, ATP-binding protein
1282	 34.53	0	1462480..1464066	+	528	113461418	-	HS_1275	-	FAD flavoprotein oxidase
1283	 39.51	0	1464120..1465091	-	323	113461419	lysS	HS_1276	-	lysyl-tRNA synthetase
1284	 43.06	+1	1465404..1467203	+	599	113461420	frdA	HS_1277	-	fumarate reductase flavoprotein subunit
1285	 39.17	0	1467196..1467966	+	256	113461421	frdB	HS_1278	-	fumarate reductase iron-sulfur subunit
1286	 34.81	0	1467977..1468381	+	134	113461422	frdC	HS_1279	-	fumarate reductase subunit C
1287	 35.92	0	1468392..1468739	+	115	113461423	frdD	HS_1280	-	fumarate reductase subunit D
1288	 29.63	-2	1468858..1469667	-	269	113461424	-	HS_1281	-	permease
1289	 40.04	0	1469974..1471449	-	491	113461425	-	HS_1282	-	major facilitator superfamily permease
1290	 40.27	0	1471627..1472520	-	297	113461426	xerD	HS_1283	-	site-specific tyrosine recombinase XerD
1291	 39.75	0	1472517..1473716	-	399	113461427	hcaT	HS_1284	-	putative 3-phenylpropionic acid transporter
1292	 40.07	0	1473717..1474532	-	271	113461428	proC	HS_1285	-	pyrroline-5-carboxylate reductase
1293	 37.31	0	1474595..1475500	+	301	113461429	rdgC	HS_1286	-	recombination associated protein
1294	 37.47	0	1475568..1476776	-	402	113461430	oapA	HS_1287	-	opacity associated protein A
1295	 35.40	0	1476826..1477839	-	337	113461431	-	HS_1288	-	L-lysine 2,3-aminomutase
1296	 40.39	0	1477875..1478441	+	188	113461432	efp	HS_1289	-	elongation factor P
1297	 38.92	0	1478488..1479417	-	309	113461433	dusC	HS_1290	-	tRNA-dihydrouridine synthase C
1298	 38.28	0	1479422..1480291	-	289	113461434	djlA	HS_1291	-	DNA-J like membrane chaperone protein
1299	 42.68	+1	1480384..1481100	-	238	113461435	rph	HS_1292	-	ribonuclease PH
1300	 39.00	0	1481221..1482084	+	287	113461436	-	HS_1293	-	hypothetical protein
1301	 35.01	0	1482093..1482926	+	277	113461437	-	HS_1294	-	aminomethyl transferase
1302	 40.42	0	1482970..1484295	-	441	113461438	srmB	HS_1295	-	ATP-dependent RNA helicase SrmB
1303	 35.86	0	1484389..1485099	+	236	113461439	-	HS_1296	-	SAM-dependent methyltransferase
1304	 38.17	0	1485116..1485694	-	192	113461440	-	HS_1297	-	acyl-phosphate glycerol-3-phosphate acyltransferase
1305	 35.50	0	1485793..1486161	+	122	113461441	folB	HS_1298	-	dihydroneopterin aldolase
1306	 37.10	0	1486210..1487085	-	291	113461442	xerC	HS_1299	-	site-specific tyrosine recombinase XerC
1307	 38.98	0	1487393..1488277	+	294	113461443	psd	HS_1300	-	phosphatidylserine decarboxylase
1308	 39.18	0	1488304..1488936	+	210	113461444	fklB	HS_1301	-	FKBP-type peptidyl-prolyl cis-trans isomerase
1309	 37.66	0	1489174..1491093	+	639	113461445	-	HS_1302	-	ABC transporter, ATP-binding protein
1310	 39.70	0	1491217..1492284	+	355	113461446	recA	HS_1303	-	recombinase A
1311	 34.41	0	1492393..1492857	+	154	113461447	recX	HS_1304	-	recombination regulator RecX
1312	 39.39	0	1492960..1494675	+	571	113461448	proS	HS_1305	-	prolyl-tRNA synthetase
1313	 44.40	+2	1494813..1496891	+	692	113461449	frpB	HS_1306	-	iron-regulated outer membrane protein
1314	 37.63	0	1497083..1498270	+	395	113461450	tyrS	HS_1307	-	tyrosyl-tRNA synthetase
1315	 40.43	0	1498316..1498921	-	201	113461451	recR	HS_1308	-	recombination protein RecR
1316	 40.00	0	1498984..1499313	-	109	113461452	-	HS_1309	-	hypothetical protein
1317	 37.81	0	1499439..1501337	+	632	113461453	topB	HS_1310	-	DNA topoisomerase III
1318	 39.13	0	1501475..1501819	+	114	113461454	secG	HS_1311	-	preprotein translocase subunit SecG
1319	 36.62	0	1502393..1503334	-	313	113461455	secF	HS_1312	-	preprotein translocase subunit SecF
1320	 37.44	0	1503374..1505224	-	616	113461456	secD	HS_1313	-	preprotein translocase subunit SecD
1321	 33.70	-1	1505256..1505525	-	89	113461457	yajC	HS_1314	-	preprotein translocase subunit YajC
1322	 38.64	0	1505711..1506841	-	376	113461458	tgt	HS_1315	-	queuine tRNA-ribosyltransferase
1323	 39.68	0	1506892..1507962	-	356	113461459	queA	HS_1316	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1324	 36.49	0	1508094..1509362	-	422	113461460	dctM	HS_1317	-	C4-dicarboxylate transport system, large subunit (permease)
1325	 31.13	-1	1509380..1509832	-	150	113461461	dctQ	HS_1318	-	C4-dicarboxylate transport system, small subunit
1326	 32.59	-1	1509829..1510899	-	356	113461462	dctP	HS_1319	-	C4-dicarboxylate transport system, C4-dicarboxylate-binding protein
1327	 39.51	0	1511236..1511850	-	204	113461463	-	HS_1320	-	hypothetical protein
1328	 35.16	0	1512130..1512402	+	90	113461464	-	HS_1321	-	hypothetical protein
1329	 29.10	-2	1512411..1512599	+	62	113461465	-	HS_1322	-	hypothetical protein
1330	 37.18	0	1512910..1514286	-	458	113461466	prtC	HS_1323	-	collagenase prtC
1331	 34.07	0	1514428..1515237	-	269	113461467	ligA	HS_1324	-	DNA ligase
1332	 38.93	0	1515405..1516940	-	511	113461468	engA	HS_1325	-	GTP-binding protein EngA
1333	 35.58	0	1517071..1517604	-	177	113461469	-	HS_1326	-	hypothetical protein
1334	 37.47	0	1517751..1519103	+	450	113461470	pmbA	HS_1327	-	antibiotic maturation factor
1335	 39.11	0	1519169..1520467	-	432	113461471	purA	HS_1328	-	adenylosuccinate synthetase
1336	 38.10	0	1520967..1521995	+	342	113461472	kdgK	HS_1329	-	2-keto-3-deoxygluconate kinase
1337	 37.13	0	1522017..1523807	+	596	113461473	uidA	HS_1330	-	beta-D-glucuronidase
1338	 38.69	0	1525271..1525699	-	142	113461474	-	HS_1331	-	hypothetical protein
1339	 28.89	-2	1525748..1525927	-	59	113461475	-	HS_1332	-	hypothetical protein
1340	 36.64	0	1525943..1526275	-	110	113461476	-	HS_1333	-	hypothetical protein
1341	 34.59	0	1526268..1526666	-	132	113461477	-	HS_1334	-	terminase small subunit
1342	 40.58	0	1526741..1526947	-	68	113461478	-	HS_1335	-	prophage CP4-57 regulatory protein
1343	 27.49	-2	1527311..1528012	-	233	113461479	-	HS_1336	-	hypothetical protein
1344	 39.14	0	1528094..1529350	-	418	113461480	int	HS_1337	-	integrase
1345	 37.22	0	1530177..1530716	-	179	113461481	-	HS_1338	-	hypothetical protein
1346	 41.04	+1	1531121..1532470	+	449	113461482	gdhA	HS_1339	-	glutamate dehydrogenase
1347	 36.23	0	1532664..1533491	+	275	113461483	-	HS_1340	-	hypothetical protein
1348	 38.44	0	1533632..1534258	+	208	113461484	upp	HS_1341	-	uracil phosphoribosyltransferase
1349	 40.98	+1	1534360..1535601	+	413	113461485	uraA	HS_1342	-	uracil permease
1350	 30.89	-1	1535688..1536383	+	231	113461486	-	HS_1343	-	DNA replication initiation factor
1351	 34.88	0	1536501..1536824	-	107	113461487	trxA	HS_1344	-	thioredoxin
37.21	MEAN

3.48	STD DEV
