IslandPath Analysis: Haloarcula marismortui ATCC 43049

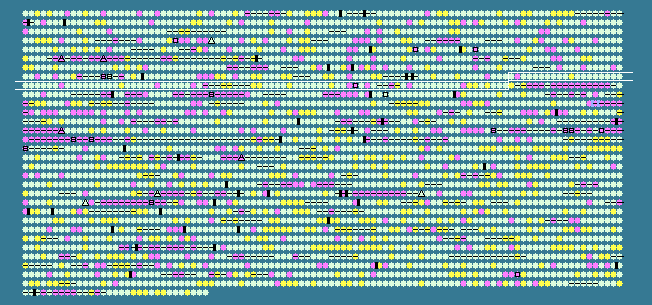

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
782	 59.81	0	768390..768929	+	179	55377724	frt	rrnAC0890	-	ferritin
783	 58.67	0	769070..769219	-	49	55377725	-	rrnAC0891	-	hypothetical protein
784	 61.37	0	769368..769952	+	194	55377726	-	rrnAC0892	-	hypothetical protein
785	 62.71	0	770031..770510	+	159	55377727	-	rrnAC0893	-	hypothetical protein
786	 63.04	0	770600..772171	+	523	55377728	cpdB2	rrnAC0894	-	2'3'-cyclic-nucleotide 2'-phosphodiesterase
787	 62.73	0	772172..772552	-	126	55377729	-	rrnAC0895	-	hypothetical protein
788	 62.95	0	772549..773841	-	430	55377730	acaB3	rrnAC0896	-	3-ketoacyl-CoA thiolase
789	 64.73	0	773765..774592	-	275	55377731	-	rrnAC0897	-	hypothetical protein
790	 62.21	0	774811..775977	-	388	55377732	-	rrnAC0899	-	hypothetical protein
791	 59.68	0	776121..776306	+	61	55377733	-	rrnAC0900	-	hypothetical protein
792	 68.27	+1	776303..776614	-	103	55377734	-	rrnAC0901	-	hypothetical protein
793	 63.19	0	776616..778199	-	527	55377735	accA	rrnAC0903	-	acetyl-CoA carboxylase alpha subunit
794	 60.48	0	778201..778944	-	247	55377736	fabG1	rrnAC0904	-	3-oxoacyl-[acyl-carrier protein] reductase
795	 60.82	0	779163..780326	+	387	55377737	-	rrnAC0905	-	hypothetical protein
796	 63.18	0	780364..781569	+	401	55377738	ibp	rrnAC0906	-	iron-binding protein
797	 64.45	0	781571..783193	+	540	55377739	sfuB	rrnAC0907	-	iron ABC transporter permease protein
798	 63.04	0	783193..784323	+	376	55377740	potA4	rrnAC0908	-	spermidine/putrescine ABC transporter ATP-binding protein
799	 65.52	0	784320..786326	+	668	55377741	-	rrnAC0910	-	hypothetical protein
800	 63.93	0	786336..786920	+	194	55377742	-	rrnAC0911	-	hypothetical protein
801	 62.75	0	786951..787664	-	237	55377743	gtr-3	rrnAC0912	-	glycosyltransferase
802	 59.46	0	787714..788490	-	258	55377744	-	rrnAC0913	-	hypothetical protein
803	 60.40	0	788924..789976	-	350	55377745	trmB1	rrnAC0914	-	sugar-specific transcriptional regulator TrmB
804	 62.09	0	790150..791526	-	458	55377746	-	rrnAC0915	-	hypothetical protein
805	 62.37	0	791803..792942	-	379	55377747	sorD	rrnAC0917	-	sorbitol dehydrogenase
806	 63.60	0	792908..793984	-	358	55377748	gfo4	rrnAC0918	-	oxidoreductase
807	 53.43	-2	794010..794213	-	67	55377749	-	rrnAC0919	-	hypothetical protein
808	 60.40	0	794215..795411	-	398	55377750	msmX-2	rrnAC0920	-	sugar ABC transporter ATP-binding protein
809	 62.48	0	795416..796417	-	333	55377751	malFG-4	rrnAC0921	-	putative sugar ABC transporter permease protein
810	 59.84	0	796419..797399	-	326	55377752	malFG-5	rrnAC0922	-	putative ABC transporter permease protein
811	 63.99	0	797478..799007	-	509	55377753	rbsB-2	rrnAC0923	-	sugar ABC transporter substrate binding protein
812	 60.72	0	799240..800316	-	358	55377754	-	rrnAC0924	-	hypothetical protein
813	 60.68	0	800377..801411	-	344	55377755	yajO2	rrnAC0925	-	aldo/keto reductase family oxidoreductase
814	 62.56	0	801426..802301	+	291	55377756	-	rrnAC0926	-	hypothetical protein
815	 64.01	0	802638..803276	+	212	55377757	pyrE2	rrnAC0927	-	orotate phosphoribosyltransferase
816	 59.60	0	803392..803589	+	65	55377758	-	rrnAC0928	-	hypothetical protein
817	 66.50	0	803743..804909	+	388	55377759	acaB4	rrnAC0929	-	3-ketoacyl-CoA thiolase
818	 65.63	0	804906..805292	+	128	55377760	-	rrnAC0930	-	hypothetical protein
819	 65.29	0	805296..806237	-	313	55377761	-	rrnAC0931	-	hypothetical protein
820	 64.78	0	806345..807403	-	352	55377762	argK	rrnAC0933	-	ArgK protein
821	 61.57	0	807400..807870	-	156	55377763	mcmA3	rrnAC0934	-	putative methylmalonyl-CoA mutase
822	 61.39	0	808413..808772	+	119	55377764	gtr-8	rrnAC0935	-	putative glycosyltransferase
823	 58.66	-1	808775..809161	+	128	55377765	-	rrnAC0936	-	hypothetical protein
824	 64.10	0	809154..810011	+	285	55377766	ybaN	rrnAC0937	-	polysaccharide deacetylase
825	 65.36	0	810344..811030	+	228	55377767	-	rrnAC0938	-	hypothetical protein
826	 64.21	0	811059..812846	-	595	55377768	dpm6	rrnAC0939	-	dolichyl-phosphate-mannose-protein mannosyltransferase
827	 63.32	0	812889..813575	-	228	55377769	-	rrnAC0940	-	glycosyl transferase
828	 62.22	0	813711..815126	-	471	55377770	htr	rrnAC0942	-	MCP domain-containing signal transducer
829	 58.82	0	815318..815674	-	118	55377771	-	rrnAC0943	-	hypothetical protein
830	 64.52	0	815778..817127	-	449	55377772	-	rrnAC0944	-	putative sugar transporter
831	 58.63	-1	817426..817761	-	111	55377773	-	rrnAC0945	-	hypothetical protein
832	 60.26	0	817802..818347	-	181	55377774	-	rrnAC0946	-	hypothetical protein
833	 63.73	0	819125..820654	+	509	55377775	-	rrnAC0948	-	hypothetical protein
834	 67.85	+1	820651..821577	+	308	55377776	-	rrnAC0949	-	hypothetical protein
835	 69.67	+1	821577..822908	+	443	55377777	-	rrnAC0950	-	hypothetical protein
836	 64.64	0	822909..824336	+	475	55377778	-	rrnAC0951	-	glycosyl transferase
837	 64.01	0	824444..825649	+	401	55377779	moxR1	rrnAC0952	-	methanol dehydrogenase regulatory protein
838	 65.66	0	825701..826096	+	131	55377780	-	rrnAC0953	-	hypothetical protein
839	 66.89	+1	826166..828901	+	911	55377781	hel	rrnAC0954	-	DNA helicase
840	 68.09	+1	828902..830584	-	560	55377782	-	rrnAC0955	-	hypothetical protein
841	 63.69	0	830581..831117	-	178	55377783	-	rrnAC0956	-	hypothetical protein
842	 59.63	0	831192..831518	+	108	55377784	-	rrnAC0957	-	hypothetical protein
843	 63.22	0	831544..832182	-	212	55377785	icfA2	rrnAC0958	-	carbonic anhydrase
844	 63.21	0	832276..835026	-	916	55377786	yprA3	rrnAC0959	-	ATP-dependent helicase
845	 67.58	+1	835123..835998	+	291	55377787	dapA2	rrnAC0960	-	dihydrodipicolinate synthase
846	 64.85	0	836069..836893	+	274	55377788	-	rrnAC0961	-	hypothetical protein
847	 64.23	0	836916..837530	-	204	55377789	pcm3	rrnAC0962	-	protein-L-isoaspartate O-methyltransferase
848	 63.35	0	837814..838566	+	250	55377790	-	rrnAC0963	-	hypothetical protein
849	 62.69	0	838563..839720	-	385	55377791	kinA7	rrnAC0964	-	signal-transducing histidine kinase-like
850	 63.39	0	839839..840906	-	355	55377792	pelA	rrnAC0965	-	cell division protein pelota
851	 65.83	0	840992..841711	-	239	55377793	-	rrnAC0966	-	hypothetical protein
852	 68.12	+1	841850..842881	-	343	55377794	hypE	rrnAC0967	-	hydrogenase expression/formation protein
853	 65.09	0	842927..845080	-	717	55377795	-	rrnAC0969	-	hypothetical protein
854	 65.89	0	845117..846151	-	344	55377796	aor3	rrnAC0970	-	flavin-containing amine-oxidoreductase
855	 58.97	0	846419..850486	-	1355	55377797	csg4	rrnAC0971	-	cell surface glycoprotein related protein
856	 58.08	-1	850638..851522	+	294	55377798	tnp	rrnAC0972	-	putative ISH4 transposase
857	 62.44	0	851843..853498	-	551	55377799	-	rrnAC0974	-	hypothetical protein
858	 57.78	-1	853606..853740	+	44	55377800	-	rrnAC0975	-	hypothetical protein
859	 60.12	0	854107..855999	+	630	55377801	htr8	rrnAC0976	-	MCP domain-containing signal transducer
860	 65.64	0	856004..856492	-	162	55377802	-	rrnAC0977	-	hypothetical protein
861	 65.66	0	856533..858713	-	726	55377803	-	rrnAC0979	-	putative nuclease
862	 54.17	-2	858778..859041	-	87	55377804	-	rrnAC0980	-	hypothetical protein
863	 66.67	0	859068..859298	-	76	55377805	-	rrnAC0981	-	hypothetical protein
864	 63.56	0	859853..860431	-	192	55377806	ssuE1	rrnAC0982	-	NADPH-dependent FMN reductase
865	 56.14	-1	860540..860710	-	56	55377807	-	rrnAC0983	-	hypothetical protein
866	 61.97	0	860839..861285	-	148	55377808	mamA2	rrnAC0984	-	methylaspartate mutase subunit S
867	 63.33	0	861534..862073	+	179	55377809	-	rrnAC0985	-	hypothetical protein
868	 60.81	0	862147..863154	-	335	55377810	nce2	rrnAC0986	-	Na+/Ca2+-exchanging protein
869	 65.71	0	863202..864137	-	311	55377811	mutY	rrnAC0987	-	A/G-specific adenine glycosylase
870	 62.20	0	864262..866253	-	663	55377812	htlD	rrnAC0988	-	HTR-like protein
871	 61.16	0	866267..866593	+	108	55377813	-	rrnAC0989	-	hypothetical protein
872	 62.93	0	866590..867873	-	427	55377814	mgtC1	rrnAC0990	-	magnesium transporter accessory protein
873	 59.64	0	868447..870381	+	644	55377815	htlD	rrnAC0991	-	HTR-like protein
874	 59.06	0	870541..870816	-	91	55377816	-	rrnAC0992	-	DNA binding domain-containing protein
875	 67.50	+1	871745..872464	+	239	55377817	-	rrnAC0994	-	hypothetical protein
876	 67.91	+1	872468..872950	-	160	55377818	mutT6	rrnAC0995	-	Mut/nudix family protein
877	 63.87	0	872951..873844	-	297	55377819	folD1	rrnAC0996	-	methylenetetrahydrofolate dehydrogenase
878	 66.50	0	873920..874510	-	196	55377820	-	rrnAC0998	-	hypothetical protein
879	 64.42	0	874586..875833	-	415	55377821	glyA	rrnAC0999	-	serine hydroxymethyltransferase
880	 64.13	0	875987..878074	+	695	55377822	-	rrnAC1000	-	hypothetical protein
881	 62.64	0	878453..879271	+	272	55377823	-	rrnAC1001	-	hypothetical protein
62.75	MEAN

4.09	STD DEV
