IslandPath Analysis: Haloarcula marismortui ATCC 43049

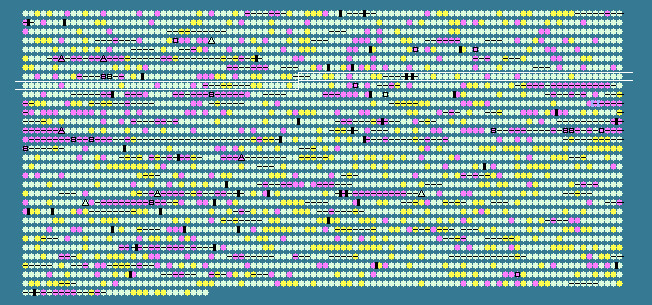

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
747	 64.80	0	737498..738463	-	321	55377689	-	rrnAC0852	-	hypothetical protein
748	 65.50	0	738592..738762	-	56	55377690	-	rrnAC0853	-	hypothetical protein
749	 64.49	0	739189..739878	+	229	55377691	pebP	rrnAC0854	-	phosphatidylethanolamine-binding protein
750	 61.49	0	739887..740813	-	308	55377692	galE4	rrnAC0855	-	UDP-glucose 4-epimerase
751	 66.52	0	740931..741599	+	222	55377693	-	rrnAC0856	-	hypothetical protein
752	 67.40	+1	741596..742138	+	180	55377694	-	rrnAC0857	-	tRNA 2'-O-methylase
753	 65.56	0	742194..743546	+	450	55377695	-	rrnAC0858	-	arylsulfatase
754	 64.34	0	743543..744100	+	185	55377696	folA1	rrnAC0859	-	dihydrofolate reductase
755	 56.04	-1	744172..744444	+	90	55377697	-	rrnAC0860	-	hypothetical protein
756	 60.08	0	744632..745162	+	176	55377698	tfeA	rrnAC0861	-	transcription initiation factor IIE alpha subunit
757	 65.78	0	745162..745836	+	224	55377699	-	rrnAC0862	-	hypothetical protein
758	 64.50	0	745846..746628	+	260	55377700	-	rrnAC0863	-	hypothetical protein
759	 69.40	+1	746710..747552	+	280	55377701	nop56/58	rrnAC0864	-	nucleolar protein-like
760	 67.30	+1	747549..748181	+	210	55377702	fib	rrnAC0865	-	fibrillarin
761	 65.46	0	748289..749368	+	359	55377703	gcs2	rrnAC0866	-	carboxylate-amine ligase
762	 62.77	0	749480..750043	+	187	55377704	-	rrnAC0867	-	transcription regulator
763	 65.85	0	750114..750602	+	162	55377705	coaD2	rrnAC0868	-	phosphopantetheine adenylyltransferase
764	 65.37	0	750603..750911	-	102	55377706	-	rrnAC0869	-	transcription factor TFIIB
765	 60.32	0	751531..751719	+	62	55377707	-	rrnAC0871	-	hypothetical protein
766	 63.69	0	752072..752575	+	167	55377708	-	rrnAC0872	-	DNA binding domain-containing protein
767	 63.74	0	752613..753740	+	375	55377709	acdA	rrnAC0874	-	acyl-CoA dehydrogenase
768	 65.68	0	753927..754331	+	134	55377710	-	rrnAC0875	-	putative haloacid dehalogenase-like hydrolase
769	 67.23	+1	754310..754486	-	58	55377711	-	rrnAC0876	-	hypothetical protein
770	 65.01	0	754662..755444	+	260	55377712	panB	rrnAC0878	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
771	 62.52	0	755467..756189	-	240	55377713	coxB3	rrnAC0879	-	cytochrome c oxidase subunit II
772	 61.37	0	756366..758648	+	760	55377714	coxA4	rrnAC0880	-	cytochrome C oxidase subunit I
773	 66.48	0	758652..759176	+	174	55377715	-	rrnAC0881	-	hypothetical protein
774	 65.81	0	759199..760014	-	271	55377716	coxC	rrnAC0882	-	cytochrome c oxidase subunit III
775	 64.29	0	760732..761235	+	167	55377717	bioB	rrnAC0883	-	biotin synthase
776	 65.25	0	761238..762365	+	375	55377718	-	rrnAC0884	-	hypothetical protein
777	 65.17	0	762387..763589	+	400	55377719	bioF	rrnAC0885	-	8-amino-7-oxononanoate synthase
778	 57.50	-1	764201..764320	+	39	55377720	-	rrnAC0886	-	hypothetical protein
779	 63.88	0	764517..765593	-	358	55377721	cbiA1	rrnAC0887	-	cobyrinic acid ac-diamide synthase
780	 62.96	0	765590..767695	-	701	55377722	scs	rrnAC0888	-	succinyl-CoA synthetase
781	 60.72	0	767828..768214	+	128	55377723	-	rrnAC0889	-	hypothetical protein
782	 59.81	0	768390..768929	+	179	55377724	frt	rrnAC0890	-	ferritin
783	 58.67	0	769070..769219	-	49	55377725	-	rrnAC0891	-	hypothetical protein
784	 61.37	0	769368..769952	+	194	55377726	-	rrnAC0892	-	hypothetical protein
785	 62.71	0	770031..770510	+	159	55377727	-	rrnAC0893	-	hypothetical protein
786	 63.04	0	770600..772171	+	523	55377728	cpdB2	rrnAC0894	-	2'3'-cyclic-nucleotide 2'-phosphodiesterase
787	 62.73	0	772172..772552	-	126	55377729	-	rrnAC0895	-	hypothetical protein
788	 62.95	0	772549..773841	-	430	55377730	acaB3	rrnAC0896	-	3-ketoacyl-CoA thiolase
789	 64.73	0	773765..774592	-	275	55377731	-	rrnAC0897	-	hypothetical protein
790	 62.21	0	774811..775977	-	388	55377732	-	rrnAC0899	-	hypothetical protein
791	 59.68	0	776121..776306	+	61	55377733	-	rrnAC0900	-	hypothetical protein
792	 68.27	+1	776303..776614	-	103	55377734	-	rrnAC0901	-	hypothetical protein
793	 63.19	0	776616..778199	-	527	55377735	accA	rrnAC0903	-	acetyl-CoA carboxylase alpha subunit
794	 60.48	0	778201..778944	-	247	55377736	fabG1	rrnAC0904	-	3-oxoacyl-[acyl-carrier protein] reductase
795	 60.82	0	779163..780326	+	387	55377737	-	rrnAC0905	-	hypothetical protein
796	 63.18	0	780364..781569	+	401	55377738	ibp	rrnAC0906	-	iron-binding protein
797	 64.45	0	781571..783193	+	540	55377739	sfuB	rrnAC0907	-	iron ABC transporter permease protein
798	 63.04	0	783193..784323	+	376	55377740	potA4	rrnAC0908	-	spermidine/putrescine ABC transporter ATP-binding protein
799	 65.52	0	784320..786326	+	668	55377741	-	rrnAC0910	-	hypothetical protein
800	 63.93	0	786336..786920	+	194	55377742	-	rrnAC0911	-	hypothetical protein
801	 62.75	0	786951..787664	-	237	55377743	gtr-3	rrnAC0912	-	glycosyltransferase
802	 59.46	0	787714..788490	-	258	55377744	-	rrnAC0913	-	hypothetical protein
803	 60.40	0	788924..789976	-	350	55377745	trmB1	rrnAC0914	-	sugar-specific transcriptional regulator TrmB
804	 62.09	0	790150..791526	-	458	55377746	-	rrnAC0915	-	hypothetical protein
805	 62.37	0	791803..792942	-	379	55377747	sorD	rrnAC0917	-	sorbitol dehydrogenase
806	 63.60	0	792908..793984	-	358	55377748	gfo4	rrnAC0918	-	oxidoreductase
807	 53.43	-2	794010..794213	-	67	55377749	-	rrnAC0919	-	hypothetical protein
808	 60.40	0	794215..795411	-	398	55377750	msmX-2	rrnAC0920	-	sugar ABC transporter ATP-binding protein
809	 62.48	0	795416..796417	-	333	55377751	malFG-4	rrnAC0921	-	putative sugar ABC transporter permease protein
810	 59.84	0	796419..797399	-	326	55377752	malFG-5	rrnAC0922	-	putative ABC transporter permease protein
811	 63.99	0	797478..799007	-	509	55377753	rbsB-2	rrnAC0923	-	sugar ABC transporter substrate binding protein
812	 60.72	0	799240..800316	-	358	55377754	-	rrnAC0924	-	hypothetical protein
813	 60.68	0	800377..801411	-	344	55377755	yajO2	rrnAC0925	-	aldo/keto reductase family oxidoreductase
814	 62.56	0	801426..802301	+	291	55377756	-	rrnAC0926	-	hypothetical protein
815	 64.01	0	802638..803276	+	212	55377757	pyrE2	rrnAC0927	-	orotate phosphoribosyltransferase
816	 59.60	0	803392..803589	+	65	55377758	-	rrnAC0928	-	hypothetical protein
817	 66.50	0	803743..804909	+	388	55377759	acaB4	rrnAC0929	-	3-ketoacyl-CoA thiolase
818	 65.63	0	804906..805292	+	128	55377760	-	rrnAC0930	-	hypothetical protein
819	 65.29	0	805296..806237	-	313	55377761	-	rrnAC0931	-	hypothetical protein
820	 64.78	0	806345..807403	-	352	55377762	argK	rrnAC0933	-	ArgK protein
821	 61.57	0	807400..807870	-	156	55377763	mcmA3	rrnAC0934	-	putative methylmalonyl-CoA mutase
822	 61.39	0	808413..808772	+	119	55377764	gtr-8	rrnAC0935	-	putative glycosyltransferase
823	 58.66	-1	808775..809161	+	128	55377765	-	rrnAC0936	-	hypothetical protein
824	 64.10	0	809154..810011	+	285	55377766	ybaN	rrnAC0937	-	polysaccharide deacetylase
825	 65.36	0	810344..811030	+	228	55377767	-	rrnAC0938	-	hypothetical protein
826	 64.21	0	811059..812846	-	595	55377768	dpm6	rrnAC0939	-	dolichyl-phosphate-mannose-protein mannosyltransferase
827	 63.32	0	812889..813575	-	228	55377769	-	rrnAC0940	-	glycosyl transferase
828	 62.22	0	813711..815126	-	471	55377770	htr	rrnAC0942	-	MCP domain-containing signal transducer
829	 58.82	0	815318..815674	-	118	55377771	-	rrnAC0943	-	hypothetical protein
830	 64.52	0	815778..817127	-	449	55377772	-	rrnAC0944	-	putative sugar transporter
831	 58.63	-1	817426..817761	-	111	55377773	-	rrnAC0945	-	hypothetical protein
832	 60.26	0	817802..818347	-	181	55377774	-	rrnAC0946	-	hypothetical protein
833	 63.73	0	819125..820654	+	509	55377775	-	rrnAC0948	-	hypothetical protein
834	 67.85	+1	820651..821577	+	308	55377776	-	rrnAC0949	-	hypothetical protein
835	 69.67	+1	821577..822908	+	443	55377777	-	rrnAC0950	-	hypothetical protein
836	 64.64	0	822909..824336	+	475	55377778	-	rrnAC0951	-	glycosyl transferase
837	 64.01	0	824444..825649	+	401	55377779	moxR1	rrnAC0952	-	methanol dehydrogenase regulatory protein
838	 65.66	0	825701..826096	+	131	55377780	-	rrnAC0953	-	hypothetical protein
839	 66.89	+1	826166..828901	+	911	55377781	hel	rrnAC0954	-	DNA helicase
840	 68.09	+1	828902..830584	-	560	55377782	-	rrnAC0955	-	hypothetical protein
841	 63.69	0	830581..831117	-	178	55377783	-	rrnAC0956	-	hypothetical protein
842	 59.63	0	831192..831518	+	108	55377784	-	rrnAC0957	-	hypothetical protein
843	 63.22	0	831544..832182	-	212	55377785	icfA2	rrnAC0958	-	carbonic anhydrase
844	 63.21	0	832276..835026	-	916	55377786	yprA3	rrnAC0959	-	ATP-dependent helicase
845	 67.58	+1	835123..835998	+	291	55377787	dapA2	rrnAC0960	-	dihydrodipicolinate synthase
846	 64.85	0	836069..836893	+	274	55377788	-	rrnAC0961	-	hypothetical protein
62.75	MEAN

4.09	STD DEV
