IslandPath Analysis: Haloarcula marismortui ATCC 43049

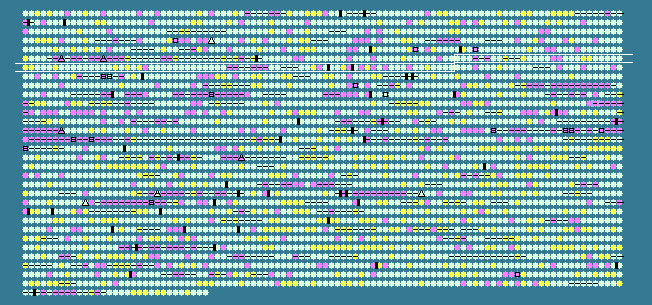

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
573	 60.43	0	568014..568670	-	218	55377515	-	rrnAC0655	-	hypothetical protein
574	 60.96	0	568812..569144	-	110	55377516	ferA3	rrnAC0656	-	ferredoxin
575	 62.72	0	569330..570748	+	472	55377517	-	rrnAC0657	-	P-hydroxybenzoate hydroxylase
576	 55.19	-1	570989..571441	+	150	55377518	-	rrnAC0658	-	hypothetical protein
577	 64.31	0	571447..572718	-	423	55377519	ama	rrnAC0659	-	N-acyl-L-amino acid amidohydrolase
578	 57.31	-1	572774..573190	-	138	55377520	rps10p-2	rrnAC0660	-	ribosomal protein S10p
579	 61.11	0	573202..573633	+	143	55377521	apa	rrnAC0661	-	diadenosine tetraphosphate pyrophosphohydrolase
580	 61.29	0	573657..574028	-	123	55377522	-	rrnAC0662	-	hypothetical protein
581	 69.58	+1	575072..575311	+	79	55377523	-	rrnAC0663	-	hypothetical protein
582	 62.71	0	575335..575814	-	159	55377524	-	rrnAC0664	-	hypothetical protein
583	 64.97	0	575867..577102	-	411	55377525	abcP-2	rrnAC0665	-	ABC transporter permease protein
584	 67.87	+1	577102..577683	-	193	55377526	-	rrnAC0666	-	ABC transporter ATP-binding protein
585	 63.14	0	577925..578944	+	339	55377527	-	rrnAC0667	-	hypothetical protein
586	 64.73	0	578969..579433	-	154	55377528	-	rrnAC0668	-	hypothetical protein
587	 66.09	0	579426..581162	-	578	55377529	polX	rrnAC0669	-	DNA polymerase IV
588	 60.48	0	581845..583929	+	694	55377530	-	rrnAC0672	-	hypothetical protein
589	 49.24	-2	583993..584124	-	43	55377531	-	rrnAC0673	-	hypothetical protein
590	 58.84	0	584532..585476	+	314	55377532	htlD	rrnAC0674	-	HTR-like protein
591	 62.12	0	585695..586639	+	314	55377533	-	rrnAC0675	-	hypothetical protein
592	 64.83	0	586636..587451	+	271	55377534	nfi	rrnAC0676	-	endonuclease V
593	 63.64	0	587507..588331	+	274	55377535	yusZ4	rrnAC0677	-	short-chain dehydrogenase/oxidoreductase
594	 66.57	0	588349..589437	-	362	55377536	arsA2	rrnAC0678	-	arsenical pump-driving ATPase
595	 67.11	+1	589709..592162	-	817	55377537	rad3a	rrnAC0680	-	helicase
596	 60.43	0	592303..592863	-	186	55377538	tbpE	rrnAC0681	-	transcription factor
597	 60.77	0	593067..593507	-	146	55377539	-	rrnAC0682	-	hypothetical protein
598	 64.70	0	593578..594795	-	405	55377540	-	rrnAC0683	-	hypothetical protein
599	 63.82	0	594875..595330	+	151	55377541	mamA1	rrnAC0684	-	methylaspartate mutase subunit S
600	 65.78	0	595333..596796	+	487	55377542	mamB	rrnAC0685	-	methylaspartate mutase
601	 68.15	+1	596708..598054	+	448	55377543	mal	rrnAC0687	-	methylaspartate ammonia-lyase
602	 66.84	+1	597969..599123	+	384	55377544	-	rrnAC0688	-	hypothetical protein
603	 64.36	0	599120..600160	+	346	55377545	citE1	rrnAC0690	-	citrate lyase beta chain
604	 65.77	0	600176..601294	-	372	55377546	aspC4	rrnAC0691	-	aspartate aminotransferase
605	 61.11	0	601333..601476	-	47	55377547	-	rrnAC0692	-	hypothetical protein
606	 66.47	0	601555..602064	+	169	55377548	cinA	rrnAC0693	-	competence/damage-inducible protein CinA
607	 59.76	0	602101..602607	+	168	55377549	-	rrnAC0695	-	putative membrane-bound metal-dependent hydrolase
608	 60.44	0	602604..603503	-	299	55377550	-	rrnAC0696	-	hypothetical protein
609	 63.24	0	604112..604549	-	145	55377551	nusG	rrnAC0698	-	transcription antitermination protein NusG
610	 59.44	0	604554..604733	-	59	55377552	secE	rrnAC0700	-	preprotein translocase subunit SecE
611	 62.47	0	604883..607336	-	817	55377553	htr18	rrnAC0701	-	MCP domain-containing signal transducer
612	 62.71	0	607333..608571	-	412	55377554	-	rrnAC0702	-	leucine/isoleucine/valine-binding protein
613	 63.39	0	608700..609860	-	386	55377555	ftsZ1	rrnAC0703	-	cell division protein FtsZ
614	 64.68	0	609964..611319	-	451	55377556	-	rrnAC0704	-	hypothetical protein
615	 62.65	0	611319..612788	-	489	55377557	nce1	rrnAC0706	-	Na+/Ca2+-exchanging protein
616	 66.29	0	612814..613611	+	265	55377558	aroE	rrnAC0707	-	shikimate 5-dehydrogenase
617	 62.24	0	613662..614249	+	195	55377559	-	rrnAC0708	-	hypothetical protein
618	 66.94	+1	614320..615789	+	489	55377560	trpE1	rrnAC0709	-	anthranilate synthase component I
619	 64.63	0	615786..616520	+	244	55377561	trpD2	rrnAC0710	-	anthranilate synthase component II
620	 68.38	+1	616505..617377	+	290	55377562	ilvE2	rrnAC0711	-	branched-chain amino acid aminotransferase
621	 57.04	-1	617461..617886	+	141	55377563	-	rrnAC0713	-	oxidoreductase
622	 59.80	0	617924..618229	-	101	55377564	-	rrnAC0715	-	hypothetical protein
623	 63.09	0	618346..619212	+	288	55377565	usp6	rrnAC0716	-	universal stress protein
624	 65.81	0	619284..619982	-	232	55377566	-	rrnAC0717	-	FAD/NAD binding oxidoreductase
625	 63.15	0	620125..621885	+	586	55377567	porA	rrnAC0718	-	pyruvate ferredoxin oxidoreductase subunit alpha
626	 62.96	0	621882..622745	+	287	55377568	porB	rrnAC0719	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
627	 63.90	0	622995..623789	+	264	55377569	ubiE3	rrnAC0720	-	hypothetical protein
628	 63.23	0	623869..625263	+	464	55377570	phr1	rrnAC0721	-	photolyase/cryptochrome
629	 61.90	0	625293..625502	-	69	55377571	mop	rrnAC0722	-	molybdenum-pterin binding protein
630	 63.98	0	625588..626070	-	160	55377572	-	rrnAC0723	-	putative membrane-bound metal-dependent hydrolase
631	 64.12	0	626070..626618	-	182	55377573	-	rrnAC0724	-	hypothetical protein
632	 64.10	0	626687..627856	-	389	55377574	-	rrnAC0725	-	hypothetical protein
633	 61.89	0	627968..629203	+	411	55377575	-	rrnAC0726	-	hypothetical protein
634	 64.99	0	629258..629971	+	237	55377576	-	rrnAC0727	-	ATP-NAD kinase
635	 56.71	-1	630013..630474	+	153	55377577	-	rrnAC0728	-	hypothetical protein
636	 59.26	0	630930..631199	-	89	55377578	-	rrnAC0729	-	hypothetical protein
637	 61.00	0	631210..631509	-	99	55377579	-	rrnAC0730	-	hypothetical protein
638	 62.88	0	631621..632385	-	254	55377580	-	rrnAC0731	-	cytochrome b(C-terminal)/b6
639	 58.71	0	632390..633193	-	267	55377581	petB1	rrnAC0732	-	cytochrome b6
640	 58.82	0	633197..634063	-	288	55377582	-	rrnAC0733	-	Rieske (2Fe-2S) domain-containing protein
641	 58.57	-1	634065..634484	-	139	55377583	-	rrnAC0734	-	hypothetical protein
642	 65.75	0	634484..635140	-	218	55377584	hcp8	rrnAC0735	-	halocyanin precursor-like
643	 64.61	0	635205..636128	-	307	55377585	-	rrnAC0736	-	hypothetical protein
644	 61.28	0	636216..636698	+	160	55377586	-	rrnAC0737	-	hypothetical protein
645	 61.93	0	636786..637292	+	168	55377587	usp29	rrnAC0738	-	universal stress protein
646	 62.57	0	637309..637992	-	227	55377588	nthA	rrnAC0739	-	endonuclease III
647	 61.00	0	638329..638628	+	99	55377589	hat1	rrnAC0740	-	acetyltransferase
648	 61.48	0	638684..639223	+	179	55377590	hat2	rrnAC0741	-	acetyltransferase
649	 66.45	0	639224..639679	-	151	55377591	top2	rrnAC0742	-	topoisomerase DNA binding C4 zinc finger
650	 59.15	0	639877..640182	+	101	55377592	-	rrnAC0743	-	PRC-barrel domain-containing protein
651	 61.96	0	640179..641645	-	488	55377593	-	rrnAC0744	-	hypothetical protein
652	 60.32	0	642329..642769	-	146	55377594	yyaI	rrnAC0745	-	acetyltransferase
653	 65.52	0	643286..644770	-	494	55377595	guaB3	rrnAC0748	-	inosine-5'-monophosphate dehydrogenase
654	 69.93	+1	645184..646071	+	295	55377596	-	rrnAC0749	-	hypothetical protein
655	 58.77	0	646113..646340	+	75	55377597	-	rrnAC0750	-	hypothetical protein
656	 61.25	0	646930..647631	+	233	55377598	icfA1	rrnAC0751	-	carbonic anhydrase
657	 57.14	-1	647707..648000	-	97	55377599	-	rrnAC0752	-	hypothetical protein
658	 67.20	+1	647997..648932	-	311	55377600	aroK	rrnAC0753	-	shikimate kinase
659	 59.06	0	649263..649946	+	227	55377601	trkA1	rrnAC0754	-	Trk potassium uptake system protein
660	 62.83	0	649948..651642	+	564	55377602	trkH3	rrnAC0755	-	TRK potassium uptake system protein
661	 57.98	-1	651666..652022	-	118	55377603	-	rrnAC0756	-	hypothetical protein
662	 59.70	0	652096..653631	-	511	55377604	trkH2	rrnAC0757	-	potassium uptake protein TrkH
663	 61.62	0	653900..654355	+	151	55377605	usp17	rrnAC0758	-	universal stress protein
664	 61.63	0	654352..656616	+	754	55377606	cat	rrnAC0759	-	cationic amino acid transporter
665	 59.10	0	656629..657051	-	140	55377607	-	rrnAC0760	-	hypothetical protein
666	 59.35	0	657115..659274	-	719	55377608	-	rrnAC0761	-	hypothetical protein
667	 60.05	0	659534..659956	-	140	55377609	-	rrnAC0762	-	hypothetical protein
668	 67.88	+1	659973..660713	-	246	55377610	csg3	rrnAC0764	-	cell surface protein
669	 61.74	0	660757..663435	-	892	55377611	-	rrnAC0766	-	putative cell surface protein
670	 65.97	0	663727..664014	-	95	55377612	-	rrnAC0767	-	hypothetical protein
671	 63.92	0	664101..664391	+	96	55377613	-	rrnAC0768	-	DNA binding putative transcriptional regulator
672	 65.10	0	664481..664735	+	84	55377614	-	rrnAC0769	-	hypothetical protein
62.75	MEAN

4.09	STD DEV
