IslandPathversion 1.0

IslandPath Analysis: Haloarcula marismortui ATCC 43049

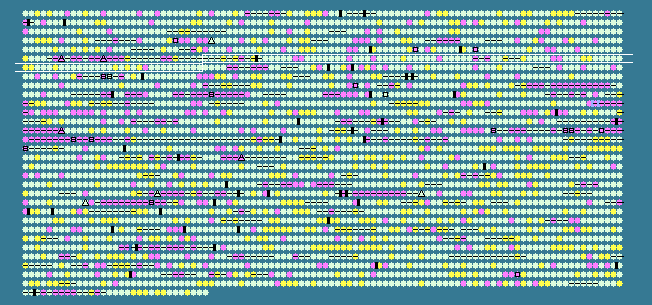

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
531	 64.64	0	527946..528686	-	246	55377473	-	rrnAC0606	-	hypothetical protein
532	 65.85	0	528967..529212	-	81	55377474	-	rrnAC0607	-	hypothetical protein
533	 61.95	0	529209..529781	-	190	55377475	-	rrnAC0608	-	hypothetical protein
534	 66.84	+1	529786..530346	-	186	55377476	-	rrnAC0609	-	hypothetical protein
535	 65.53	0	530340..530954	-	204	55377477	-	rrnAC0610	-	hypothetical protein
536	 66.97	+1	530951..531928	-	325	55377478	-	rrnAC0612	-	hypothetical protein
537	 56.55	-1	532386..532553	-	55	55377479	-	rrnAC0613	-	hypothetical protein
538	 62.28	0	532546..533001	-	151	55377480	-	rrnAC0614	-	hypothetical protein
539	 66.67	0	533141..533695	-	184	55377481	-	rrnAC0615	-	hypothetical protein
540	 61.80	0	534032..535162	-	376	55377482	pecE	rrnAC0616	-	pectinesterase
541	 65.18	0	535189..536601	+	470	55377483	rad25	rrnAC0617	-	DNA repair protein Rad25
542	 64.49	0	537048..538010	+	320	55377484	-	rrnAC0619	-	hypothetical protein
543	 64.64	0	538224..539654	+	476	55377485	-	rrnAC0620	-	hypothetical protein
544	 62.75	0	539732..540955	-	407	55377486	-	rrnAC0622	-	hypothetical protein
545	 61.56	0	540949..541908	-	319	55377487	-	rrnAC0623	-	hypothetical protein
546	 51.52	-2	542097..542195	-	32	55377488	-	rrnAC0624	-	hypothetical protein
547	 57.58	-1	542706..543002	-	98	55377489	-	rrnAC0625	-	hypothetical protein
548	 60.81	0	543151..544959	+	602	55377490	msbA-1	rrnAC0626	-	ABC transporter ATP-binding protein
549	 63.47	0	544992..545492	-	166	55377491	-	rrnAC0627	-	hypothetical protein
550	 64.16	0	545489..546445	-	318	55377492	sun	rrnAC0628	-	tRNA and rRNA cytosine-C5-methylase
551	 63.31	0	546452..547225	+	257	55377493	-	rrnAC0629	-	hypothetical protein
552	 64.96	0	547225..548220	+	331	55377494	sppA	rrnAC0630	-	putative signal peptide peptidase SppA
553	 65.58	0	548742..549383	+	213	55377495	-	rrnAC0631	-	hypothetical protein
554	 64.86	0	549419..550138	+	239	55377496	-	rrnAC0632	-	hypothetical protein
555	 59.03	0	550167..551174	-	335	55377497	rffH2	rrnAC0633	-	glucose-1-phosphate thymidylyltransferase
556	 62.04	0	551220..551867	+	215	55377498	nudB	rrnAC0634	-	NTP pyrophosphohydrolase
557	 63.08	0	551887..552276	-	129	55377499	gloA2	rrnAC0635	-	lactoylglutathione lyase and related lyase
558	 63.70	0	552359..554041	-	560	55377501	mcmA1	rrnAC0637	-	methylmalonyl-CoA mutase subunit alpha
559	 58.42	-1	554040..554645	+	201	55377500	ppiB2	rrnAC0638	-	peptidylprolyl isomerase
560	 63.93	0	554668..555252	-	194	55377502	-	rrnAC0639	-	acetyltransferase
561	 60.85	0	555360..556064	+	234	55377503	-	rrnAC0640	-	transcription regulator
562	 63.28	0	556090..556827	-	245	55377504	livF-3	rrnAC0641	-	branched-chain amino acid ABC transporter ATP-binding protein
563	 62.70	0	556820..557575	-	251	55377505	livG-3	rrnAC0642	-	branched-chain amino acid ABC transporter ATP-binding protein
564	 66.84	+1	557577..558725	-	382	55377506	livM-3	rrnAC0645	-	branched-chain amino acid ABC transporter permease protein
565	 63.60	0	558725..559669	-	314	55377507	livH-3	rrnAC0646	-	branched-chain amino acid ABC transporter permease protein
566	 64.15	0	559679..561028	-	449	55377508	abcS-1	rrnAC0647	-	ABC transporter substrate-binding protein
567	 64.14	0	561275..562144	+	289	55377509	bdhA	rrnAC0648	-	D-beta-hydroxybutyrate dehydrogenase
568	 63.50	0	562289..564310	+	673	55377510	acs1	rrnAC0650	-	acyl-coenzyme A synthetase
569	 66.01	0	564311..565369	-	352	55377511	-	rrnAC0651	-	sugar transporter
570	 52.63	-2	565622..565735	-	37	55377512	-	rrnAC0652	-	hypothetical protein
571	 61.15	0	566204..567181	-	325	55377513	cysH	rrnAC0653	-	phospho-adenylyl-sulfate reductase
572	 60.36	0	567315..567932	+	205	55377514	-	rrnAC0654	-	hypothetical protein
573	 60.43	0	568014..568670	-	218	55377515	-	rrnAC0655	-	hypothetical protein
574	 60.96	0	568812..569144	-	110	55377516	ferA3	rrnAC0656	-	ferredoxin
575	 62.72	0	569330..570748	+	472	55377517	-	rrnAC0657	-	P-hydroxybenzoate hydroxylase
576	 55.19	-1	570989..571441	+	150	55377518	-	rrnAC0658	-	hypothetical protein
577	 64.31	0	571447..572718	-	423	55377519	ama	rrnAC0659	-	N-acyl-L-amino acid amidohydrolase
578	 57.31	-1	572774..573190	-	138	55377520	rps10p-2	rrnAC0660	-	ribosomal protein S10p
579	 61.11	0	573202..573633	+	143	55377521	apa	rrnAC0661	-	diadenosine tetraphosphate pyrophosphohydrolase
580	 61.29	0	573657..574028	-	123	55377522	-	rrnAC0662	-	hypothetical protein
581	 69.58	+1	575072..575311	+	79	55377523	-	rrnAC0663	-	hypothetical protein
582	 62.71	0	575335..575814	-	159	55377524	-	rrnAC0664	-	hypothetical protein
583	 64.97	0	575867..577102	-	411	55377525	abcP-2	rrnAC0665	-	ABC transporter permease protein
584	 67.87	+1	577102..577683	-	193	55377526	-	rrnAC0666	-	ABC transporter ATP-binding protein
585	 63.14	0	577925..578944	+	339	55377527	-	rrnAC0667	-	hypothetical protein
586	 64.73	0	578969..579433	-	154	55377528	-	rrnAC0668	-	hypothetical protein
587	 66.09	0	579426..581162	-	578	55377529	polX	rrnAC0669	-	DNA polymerase IV
588	 60.48	0	581845..583929	+	694	55377530	-	rrnAC0672	-	hypothetical protein
589	 49.24	-2	583993..584124	-	43	55377531	-	rrnAC0673	-	hypothetical protein
590	 58.84	0	584532..585476	+	314	55377532	htlD	rrnAC0674	-	HTR-like protein
591	 62.12	0	585695..586639	+	314	55377533	-	rrnAC0675	-	hypothetical protein
592	 64.83	0	586636..587451	+	271	55377534	nfi	rrnAC0676	-	endonuclease V
593	 63.64	0	587507..588331	+	274	55377535	yusZ4	rrnAC0677	-	short-chain dehydrogenase/oxidoreductase
594	 66.57	0	588349..589437	-	362	55377536	arsA2	rrnAC0678	-	arsenical pump-driving ATPase
595	 67.11	+1	589709..592162	-	817	55377537	rad3a	rrnAC0680	-	helicase
596	 60.43	0	592303..592863	-	186	55377538	tbpE	rrnAC0681	-	transcription factor
597	 60.77	0	593067..593507	-	146	55377539	-	rrnAC0682	-	hypothetical protein
598	 64.70	0	593578..594795	-	405	55377540	-	rrnAC0683	-	hypothetical protein
599	 63.82	0	594875..595330	+	151	55377541	mamA1	rrnAC0684	-	methylaspartate mutase subunit S
600	 65.78	0	595333..596796	+	487	55377542	mamB	rrnAC0685	-	methylaspartate mutase
601	 68.15	+1	596708..598054	+	448	55377543	mal	rrnAC0687	-	methylaspartate ammonia-lyase
602	 66.84	+1	597969..599123	+	384	55377544	-	rrnAC0688	-	hypothetical protein
603	 64.36	0	599120..600160	+	346	55377545	citE1	rrnAC0690	-	citrate lyase beta chain
604	 65.77	0	600176..601294	-	372	55377546	aspC4	rrnAC0691	-	aspartate aminotransferase
605	 61.11	0	601333..601476	-	47	55377547	-	rrnAC0692	-	hypothetical protein
606	 66.47	0	601555..602064	+	169	55377548	cinA	rrnAC0693	-	competence/damage-inducible protein CinA
607	 59.76	0	602101..602607	+	168	55377549	-	rrnAC0695	-	putative membrane-bound metal-dependent hydrolase
608	 60.44	0	602604..603503	-	299	55377550	-	rrnAC0696	-	hypothetical protein
609	 63.24	0	604112..604549	-	145	55377551	nusG	rrnAC0698	-	transcription antitermination protein NusG
610	 59.44	0	604554..604733	-	59	55377552	secE	rrnAC0700	-	preprotein translocase subunit SecE
611	 62.47	0	604883..607336	-	817	55377553	htr18	rrnAC0701	-	MCP domain-containing signal transducer
612	 62.71	0	607333..608571	-	412	55377554	-	rrnAC0702	-	leucine/isoleucine/valine-binding protein
613	 63.39	0	608700..609860	-	386	55377555	ftsZ1	rrnAC0703	-	cell division protein FtsZ
614	 64.68	0	609964..611319	-	451	55377556	-	rrnAC0704	-	hypothetical protein
615	 62.65	0	611319..612788	-	489	55377557	nce1	rrnAC0706	-	Na+/Ca2+-exchanging protein
616	 66.29	0	612814..613611	+	265	55377558	aroE	rrnAC0707	-	shikimate 5-dehydrogenase
617	 62.24	0	613662..614249	+	195	55377559	-	rrnAC0708	-	hypothetical protein
618	 66.94	+1	614320..615789	+	489	55377560	trpE1	rrnAC0709	-	anthranilate synthase component I
619	 64.63	0	615786..616520	+	244	55377561	trpD2	rrnAC0710	-	anthranilate synthase component II
620	 68.38	+1	616505..617377	+	290	55377562	ilvE2	rrnAC0711	-	branched-chain amino acid aminotransferase
621	 57.04	-1	617461..617886	+	141	55377563	-	rrnAC0713	-	oxidoreductase
622	 59.80	0	617924..618229	-	101	55377564	-	rrnAC0715	-	hypothetical protein
623	 63.09	0	618346..619212	+	288	55377565	usp6	rrnAC0716	-	universal stress protein
624	 65.81	0	619284..619982	-	232	55377566	-	rrnAC0717	-	FAD/NAD binding oxidoreductase
625	 63.15	0	620125..621885	+	586	55377567	porA	rrnAC0718	-	pyruvate ferredoxin oxidoreductase subunit alpha
626	 62.96	0	621882..622745	+	287	55377568	porB	rrnAC0719	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
627	 63.90	0	622995..623789	+	264	55377569	ubiE3	rrnAC0720	-	hypothetical protein
628	 63.23	0	623869..625263	+	464	55377570	phr1	rrnAC0721	-	photolyase/cryptochrome
629	 61.90	0	625293..625502	-	69	55377571	mop	rrnAC0722	-	molybdenum-pterin binding protein
630	 63.98	0	625588..626070	-	160	55377572	-	rrnAC0723	-	putative membrane-bound metal-dependent hydrolase
62.75	MEAN

4.09	STD DEV
