IslandPath Analysis: Haloarcula marismortui ATCC 43049

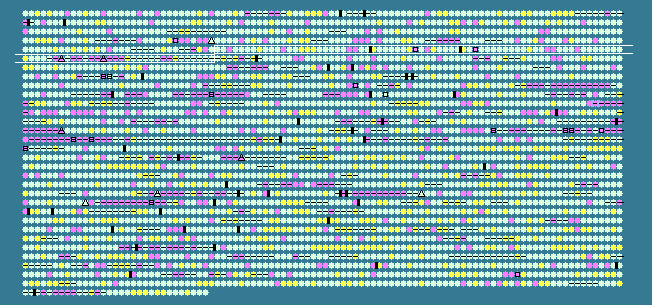

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
433	 64.21	0	436614..437306	+	230	55377375	sirR	rrnAC0496	-	transcription repressor
434	 62.42	0	437540..438010	+	156	55377376	-	rrnAC0497	-	hypothetical protein
435	 57.89	-1	438071..438469	+	132	55377377	-	rrnAC0498	-	hypothetical protein
436	 61.95	0	438545..439519	-	324	55377378	zurM	rrnAC0500	-	ABC transporter permease protein
437	 64.43	0	439516..440319	-	267	55377379	zurA	rrnAC0501	-	zinc uptake system ATP-binding protein ZurA
438	 62.71	0	440322..441407	-	361	55377380	ycdH	rrnAC0502	-	adhesion protein
439	 63.28	0	441562..442152	+	196	55377381	-	rrnAC0503	-	transcription regulator
440	 67.24	+1	442282..444903	+	873	55377382	copA4	rrnAC0504	-	copper-transporting ATPase CopA
441	 63.37	0	445220..446704	+	494	55377383	-	rrnAC0505	-	hypothetical protein
442	 62.60	0	446740..448314	-	524	55377384	phr2	rrnAC0506	-	cryptochrome/photolyase
443	 63.00	0	448437..449009	+	190	55377385	hcp2	rrnAC0508	-	halocyanin precursor-like protein
444	 58.75	0	449031..449333	-	100	55377386	-	rrnAC0509	-	hypothetical protein
445	 61.07	0	449936..450829	+	297	55377387	hcp9	rrnAC0510	-	halocyanin precursor-like
446	 63.44	0	450854..451627	-	257	55377388	hpcEa	rrnAC0511	-	2-hydroxyhepta-24-diene-1,7-dioate isomerase
447	 66.26	0	451791..452525	+	244	55377389	tyrA	rrnAC0512	-	prephenate dehydrogenase
448	 66.53	0	452522..453997	+	491	55377390	-	rrnAC0513	-	hypothetical protein
449	 68.52	+1	454034..454843	+	269	55377391	surE	rrnAC0514	-	acid phosphatase SurE
450	 62.77	0	454851..455774	+	307	55377392	-	rrnAC0516	-	hypothetical protein
451	 66.03	0	455777..457036	-	419	55377393	alaS2	rrnAC0517	-	alanyl-tRNA synthetase
452	 65.12	0	457258..457386	+	42	55377394	-	rrnAC0518	-	hypothetical protein
453	 60.71	0	457504..457671	+	55	55377395	-	rrnAC0519	-	hypothetical protein
454	 60.95	0	458004..458423	-	139	55377396	-	rrnAC0520	-	hypothetical protein
455	 57.93	-1	458465..459277	-	270	55377397	-	rrnAC0521	-	hypothetical protein
456	 58.76	0	459325..459792	-	155	55377398	bcp-1	rrnAC0522	-	peroxiredoxin
457	 59.76	0	459852..460097	-	81	55377399	-	rrnAC0523	-	hypothetical protein
458	 60.81	0	460608..460880	+	90	55377400	-	rrnAC0524	-	putative sec-independent transolcation prot
459	 66.79	0	461613..463244	+	543	55377401	-	rrnAC0525	-	glucose-methanol-choline family oxidoreductase
460	 63.04	0	463241..463819	-	192	55377402	-	rrnAC0526	-	putative membrane-bound metal-dependent hydrolase
461	 63.36	0	463904..464356	-	150	55377403	-	rrnAC0527	-	hypothetical protein
462	 60.66	0	464405..465103	-	232	55377404	cheC1	rrnAC0528	-	chemotaxis protein CheC
463	 66.11	0	465360..466442	+	360	55377405	hisC2	rrnAC0529	-	histidinol-phosphate aminotransferase
464	 62.02	0	466817..466945	+	42	55377406	-	rrnAC0531	-	hypothetical protein
465	 68.97	+1	466942..467550	+	202	55377407	pgsA	rrnAC0532	-	CDP-diacylglycerol-glycerol-3-phosphate 3-phosphatidyltransferase
466	 53.46	-2	467714..468841	+	375	55377408	tnp	rrnAC0534	-	transposase
467	 60.98	0	469022..469549	+	175	55377409	-	rrnAC0535	-	HTH DNA-binding protein
468	 56.60	-1	469551..470156	-	201	55377410	hlx4	rrnAC0536	-	HoxA-like transcriptional regulator
469	 68.06	+1	470253..470900	+	215	55377411	tpiA	rrnAC0537	-	triosephosphate isomerase
470	 63.11	0	470928..472865	-	645	55377412	-	rrnAC0538	-	hypothetical protein
471	 62.64	0	473013..473360	+	115	55377413	-	rrnAC0539	-	hypothetical protein
472	 65.05	0	473367..474728	-	453	55377414	dinB	rrnAC0540	-	DNA polymerase IV
473	 60.28	0	474865..475428	+	187	55377415	-	rrnAC0541	-	hypothetical protein
474	 70.43	+1	475840..476529	-	229	55377416	-	rrnAC0542	-	methyltransferase
475	 65.13	0	476542..477582	-	346	55377417	tyrS	rrnAC0543	-	tyrosyl-tRNA synthetase
476	 47.64	-2	477698..478333	+	211	55377418	tnp	rrnAC0544	-	transposase
477	 62.29	0	478474..479433	+	319	55377419	pfk1	rrnAC0545	-	phosphofructokinase
478	 63.45	0	479492..481324	+	610	55377420	pykA	rrnAC0546	-	pyruvate kinase
479	 61.11	0	481377..482348	+	323	55377421	glcK	rrnAC0547	-	glucokinase
480	 62.07	0	482379..483554	-	391	55377422	cdc6j	rrnAC0548	-	cell division control protein 6 homolog 6
481	 61.98	0	483617..484705	-	362	55377423	-	rrnAC0549	-	hypothetical protein
482	 62.43	0	484709..486241	-	510	55377424	glpK	rrnAC0550	-	glycerol kinase
483	 61.54	0	486370..488922	-	850	55377425	htr	rrnAC0552	-	MCP domain-containing signal transducer
484	 64.12	0	489273..491003	+	576	55377426	gpdA	rrnAC0554	-	glycerol-3-phosphate dehydrogenase
485	 66.98	+1	490993..492267	+	424	55377427	gpdB	rrnAC0555	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
486	 63.11	0	492264..493640	+	458	55377428	glpC	rrnAC0556	-	sn-glycerol-3-phosphate dehydrogenase subunit C
487	 60.86	0	493684..494148	-	154	55377429	-	rrnAC0557	-	hypothetical protein
488	 58.20	-1	494219..494773	-	184	55377430	-	rrnAC0558	-	HAMP domain-containing protein
489	 57.80	-1	494845..495543	-	232	55377431	xop2	rrnAC0559	-	opsin of unknown function
490	 63.80	0	495693..496145	-	150	55377432	usp14	rrnAC0561	-	universal stress protein
491	 63.33	0	496243..498939	-	898	55377433	pepC	rrnAC0562	-	phosphoenolpyruvate carboxylase
492	 62.70	0	499093..499797	+	234	55377434	-	rrnAC0564	-	hypothetical protein
493	 49.85	-2	500214..500546	+	110	55377435	-	rrnAC0565	-	hypothetical protein
494	 64.83	0	500927..502339	+	470	55377436	livK-1	rrnAC0566	-	branched chain amino acid ABC transporter branched chain amino acid-binding protein
495	 65.07	0	502342..503154	+	270	55377437	livG-2	rrnAC0567	-	branched-chain amino acid ABC transporter ATP-binding protein
496	 65.98	0	503415..503849	+	144	55377438	livF-2	rrnAC0568	-	branched-chain amino acid ABC transporter ATP-binding protein
497	 65.15	0	503846..504835	+	329	55377439	livH-2	rrnAC0569	-	branched-chain amino acid ABC transporter permease protein
498	 63.90	0	505017..506138	+	373	55377440	livM-2	rrnAC0570	-	branched-chain amino acid ABC transporter permease protein
499	 60.67	0	506135..506284	+	49	55377441	-	rrnAC0571	-	hypothetical protein
500	 63.16	0	506281..507135	+	284	55377442	catD	rrnAC0572	-	3-oxoadipate enol-lactone hydrolase
501	 66.48	0	507128..508771	+	547	55377443	fadD1	rrnAC0573	-	long-chain fatty-acid-CoA ligase
502	 60.71	0	508802..510697	+	631	55377444	htlD	rrnAC0574	-	HTR-like protein
503	 63.23	0	510779..512029	-	416	55377445	dgoA4	rrnAC0575	-	mandelate racemase/muconate lactonizing family protein
504	 64.89	0	512137..513603	-	488	55377446	-	rrnAC0576	-	hypothetical protein
505	 60.93	0	513938..514216	+	92	55377447	-	rrnAC0578	-	putative DNA binding
506	 58.16	-1	514277..514558	+	93	55377448	-	rrnAC0579	-	hypothetical protein
507	 58.84	0	514712..515746	-	344	55377449	tnp	rrnAC0581	-	phage integrase/site-specific recombinase
508	 64.62	0	515739..516080	-	113	55377450	-	rrnAC0582	-	hypothetical protein
509	 54.59	-1	516167..516373	-	68	55377451	-	rrnAC0583	-	CopG family protein
510	 48.74	-2	516491..516808	+	105	55377452	phrH1	rrnAC0584	-	PhiH1 repressor-like
511	 59.90	0	518122..518313	-	63	55377453	-	rrnAC0585	-	hypothetical protein
512	 53.97	-2	518343..518594	-	83	55377454	-	rrnAC0586	-	hypothetical protein
513	 54.17	-2	518745..518960	-	71	55377455	-	rrnAC0588	-	hypothetical protein
514	 58.87	0	519012..519857	-	281	55377457	-	rrnAC0589	-	putative phage integrase
515	 42.06	-2	519848..520351	+	167	55377456	-	rrnAC0590	-	hypothetical protein
516	 39.76	-2	520435..521274	-	279	55377458	-	rrnAC0591	-	hypothetical protein
517	 42.94	-2	521276..521785	-	169	55377459	-	rrnAC0592	-	hypothetical protein
518	 68.25	+1	521807..521932	-	41	55377460	-	rrnAC0593	-	hypothetical protein
519	 62.04	0	522350..522565	-	71	55377461	-	rrnAC0594	-	hypothetical protein
520	 63.58	0	522562..523014	-	150	55377462	-	rrnAC0595	-	hypothetical protein
521	 62.62	0	523002..523544	-	180	55377463	-	rrnAC0596	-	hypothetical protein
522	 63.82	0	523541..524383	-	280	55377464	-	rrnAC0597	-	hypothetical protein
523	 64.68	0	524385..524888	-	167	55377465	-	rrnAC0598	-	hypothetical protein
524	 58.33	-1	525127..525222	-	31	55377466	-	rrnAC0599	-	hypothetical protein
525	 56.57	-1	525212..525409	-	65	55377467	-	rrnAC0600	-	hypothetical protein
526	 67.25	+1	525409..525921	-	170	55377468	-	rrnAC0601	-	hypothetical protein
527	 60.98	0	525921..526184	-	87	55377469	-	rrnAC0602	-	hypothetical protein
528	 65.56	0	526199..526924	-	241	55377470	-	rrnAC0603	-	hypothetical protein
529	 64.22	0	526930..527460	-	176	55377471	-	rrnAC0604	-	hypothetical protein
530	 59.57	0	527809..527949	-	46	55377472	-	rrnAC0605	-	hypothetical protein
531	 64.64	0	527946..528686	-	246	55377473	-	rrnAC0606	-	hypothetical protein
532	 65.85	0	528967..529212	-	81	55377474	-	rrnAC0607	-	hypothetical protein
62.75	MEAN

4.09	STD DEV
