IslandPath Analysis: Haloarcula marismortui ATCC 43049

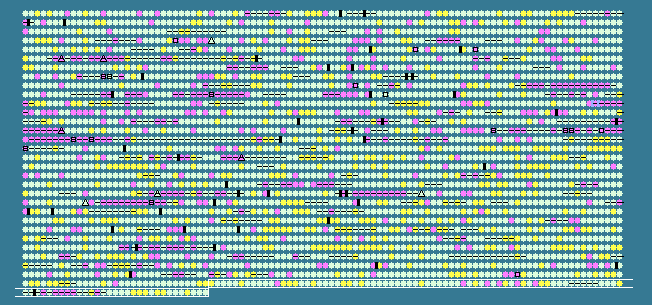

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 62.75   STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3032	 67.03	+1	3041639..3041917	+	92	55379974	-	rrnAC3439	-	hypothetical protein
3033	 62.68	0	3041936..3043591	-	551	55379975	-	rrnAC3440	-	hypothetical protein
3034	 65.32	0	3043643..3044536	-	297	55379976	hat5	rrnAC3441	-	GNAT family acetyltransferase
3035	 64.18	0	3044630..3045877	-	415	55379977	asbA	rrnAC3442	-	glutamyl-tRNA(Gln) amidotransferase subunit D
3036	 64.33	0	3046073..3046672	+	199	55379978	-	rrnAC3443	-	hypothetical protein
3037	 66.67	0	3046746..3047255	+	169	55379979	-	rrnAC3445	-	hypothetical protein
3038	 60.79	0	3047605..3049170	+	521	55379980	-	rrnAC3446	-	hypothetical protein
3039	 60.96	0	3049204..3049851	-	215	55379981	arsR	rrnAC3447	-	transcription regulator
3040	 63.10	0	3049921..3051153	-	410	55379982	-	rrnAC3448	-	hypothetical protein
3041	 61.40	0	3051250..3051894	-	214	55379983	-	rrnAC3449	-	hypothetical protein
3042	 60.90	0	3052011..3052409	+	132	55379984	-	rrnAC3450	-	hypothetical protein
3043	 57.36	-1	3052925..3053590	+	221	55379985	-	rrnAC3451	-	putative DNA binding protein
3044	 66.98	+1	3053605..3054555	+	316	55379986	-	rrnAC3452	-	hypothetical protein
3045	 67.26	+1	3054631..3055641	+	336	55379987	-	rrnAC3454	-	hypothetical protein
3046	 68.11	+1	3055638..3056675	+	345	55379988	ykfB3	rrnAC3455	-	chloromuconate cycloisomerase
3047	 65.40	0	3056720..3057193	-	157	55379989	bcp1	rrnAC3456	-	bacterioferritin comigrating protein
3048	 64.04	0	3057279..3059222	-	647	55379990	-	rrnAC3457	-	hypothetical protein
3049	 66.47	0	3059279..3059791	-	170	55379991	-	rrnAC3458	-	anhydrase family 3 protein
3050	 62.27	0	3059903..3060334	-	143	55379992	usp26	rrnAC3460	-	universal stress protein
3051	 59.79	0	3060516..3061082	+	188	55379993	-	rrnAC3461	-	hypothetical protein
3052	 61.81	0	3061051..3063069	+	672	55379994	thrS	rrnAC3462	-	threonyl-tRNA synthetase
3053	 61.48	0	3063164..3064204	+	346	55379995	-	rrnAC3463	-	hypothetical protein
3054	 66.45	0	3064248..3065156	+	302	55379996	-	rrnAC3464	-	hypothetical protein
3055	 67.99	+1	3065229..3067190	+	653	55379997	arsB	rrnAC3466	-	arsenite transport protein
3056	 60.02	0	3067210..3068052	-	280	55379998	pspA1	rrnAC3467	-	transcription regulator
3057	 69.87	+1	3068113..3068706	+	197	55379999	-	rrnAC3468	-	hypothetical protein
3058	 66.09	0	3068841..3069014	+	57	55380000	-	rrnAC3469	-	hypothetical protein
3059	 63.54	0	3069081..3069272	+	63	55380001	-	rrnAC3470	-	hypothetical protein
3060	 61.37	0	3069350..3071011	+	553	55380002	pyrG	rrnAC3471	-	CTP synthetase
3061	 64.49	0	3071011..3071928	+	305	55380003	guaA1	rrnAC3472	-	GMP synthase subunit B
3062	 64.74	0	3071925..3072236	+	103	55380004	-	rrnAC3473	-	hypothetical protein
3063	 64.74	0	3072260..3072934	-	224	55380005	-	rrnAC3474	-	metallo-beta-lactamase superfamily protein
3064	 65.15	0	3073004..3073597	-	197	55380006	-	rrnAC3475	-	hypothetical protein
3065	 64.00	0	3074347..3075171	-	274	55380007	yafB-5	rrnAC3476	-	aldo/keto reductase family oxidoreductase
3066	 62.55	0	3075428..3075937	+	169	55380008	-	rrnAC3477	-	hypothetical protein
3067	 67.08	+1	3076047..3077012	-	321	55380009	-	rrnAC3479	-	hypothetical protein
3068	 64.70	0	3077219..3078184	-	321	55380010	moaB2	rrnAC3480	-	molybdenum cofactor biosynthesis protein B
3069	 63.86	0	3078588..3078908	+	106	55380011	-	rrnAC3481	-	hypothetical protein
3070	 62.47	0	3078951..3080690	+	579	55380012	ark-6	rrnAC3482	-	putative signal-transducing histidine kinase
3071	 65.95	0	3080700..3081398	-	232	55380013	fabG2	rrnAC3483	-	3-oxoacyl-[acyl-carrier protein] reductase
3072	 63.48	0	3081524..3082087	-	187	55380014	idi	rrnAC3484	-	isopentenyl-diphosphate delta-isomerase
3073	 61.43	0	3082135..3082821	-	228	55380016	-	rrnAC3486	-	hypothetical protein
3074	 57.71	-1	3082820..3083377	+	185	55380015	-	rrnAC3487	-	hypothetical protein
3075	 63.73	0	3083490..3083795	+	101	55380017	-	rrnAC3488	-	hypothetical protein
3076	 67.50	+1	3083796..3084869	+	357	55380018	pqqE	rrnAC3489	-	coenzyme PQQ synthesis protein
3077	 64.20	0	3084935..3085582	+	215	55380019	boa2	rrnAC3490	-	bacterio-opsin activator-like protein
3078	 59.11	0	3085604..3085894	+	96	55380020	-	rrnAC3491	-	hypothetical protein
3079	 62.96	0	3085997..3086293	-	98	55380021	-	rrnAC3493	-	hypothetical protein
3080	 57.35	-1	3086346..3086624	-	92	55380022	-	rrnAC3494	-	ArsR family regulatory protein
3081	 66.93	+1	3086827..3087948	-	373	55380023	aspB2	rrnAC3495	-	aspartate aminotransferase
3082	 65.72	0	3088061..3089224	-	387	55380024	yqeF	rrnAC3497	-	acetyl-CoA acetyltransferase
3083	 57.69	-1	3089280..3089435	-	51	55380025	-	rrnAC3499	-	hypothetical protein
3084	 68.10	+1	3089482..3090249	-	255	55380026	-	rrnAC3501	-	transcription regulator
3085	 66.12	0	3090331..3091068	+	245	55380027	-	rrnAC3502	-	hypothetical protein
3086	 55.77	-1	3091106..3091261	+	51	55380028	-	rrnAC3503	-	hypothetical protein
3087	 67.38	+1	3091300..3092553	-	417	55380029	-	rrnAC3504	-	flavin-containing amine-oxidoreductase
3088	 69.91	+1	3092637..3093809	+	390	55380030	thrC1	rrnAC3505	-	threonine synthase
3089	 65.29	0	3093916..3094929	+	337	55380031	adh2	rrnAC3506	-	alcohol dehydrogenase
3090	 61.19	0	3094978..3095397	-	139	55380032	usp3	rrnAC3507	-	universal stress protein 3
3091	 59.93	0	3095636..3096526	+	296	55380033	usp7	rrnAC3508	-	universal stress protein
3092	 64.97	0	3096545..3097015	-	156	55380034	dnaJ1	rrnAC3509	-	chaperone
3093	 63.50	0	3097311..3098069	-	252	55380035	-	rrnAC3510	-	hypothetical protein
3094	 61.75	0	3098075..3098257	-	60	55380036	nop10P	rrnAC3511	-	H/ACA RNA-protein complex component Nop10p
3095	 61.92	0	3098288..3099088	-	266	55380037	eif2A	rrnAC3512	-	translation initiation factor IF-2 subunit alpha
3096	 63.22	0	3099090..3099263	-	57	55380038	rps27e	rrnAC3513	-	30S ribosomal protein S27e
3097	 62.37	0	3099266..3099544	-	92	55380039	rpl44e	rrnAC3514	-	50S ribosomal protein L44e
3098	 60.23	0	3099684..3099947	-	87	55380040	-	rrnAC3515	-	hypothetical protein
3099	 63.37	0	3100133..3100405	+	90	55380041	-	rrnAC3516	-	hypothetical protein
3100	 66.58	0	3100463..3102781	-	772	55380042	-	rrnAC3517	-	hypothetical protein
3101	 63.80	0	3102899..3103666	+	255	55380043	dgs	rrnAC3518	-	dolichol-P-glucose transferase
3102	 61.73	0	3103663..3104148	+	161	55380044	-	rrnAC3519	-	GtrA-like family protein
3103	 62.59	0	3104569..3104838	-	89	55380045	-	rrnAC3522	-	hypothetical protein
3104	 58.95	0	3105139..3105708	-	189	55380046	apt1	rrnAC3523	-	adenine phosphoribosyltransferase
3105	 63.32	0	3105753..3107666	-	637	55380047	-	rrnAC3524	-	hypothetical protein
3106	 59.10	0	3107663..3108151	-	162	55380048	-	rrnAC3525	-	hypothetical protein
3107	 50.11	-2	3108242..3108712	-	156	55380049	-	rrnAC3526	-	hypothetical protein
3108	 58.72	0	3108977..3109555	-	192	55380050	-	rrnAC3527	-	hypothetical protein
3109	 52.62	-2	3109668..3110144	-	158	55380051	-	rrnAC3528	-	hypothetical protein
3110	 63.08	0	3110321..3112102	-	593	55380052	-	rrnAC3529	-	putative monovalent cation/H+ antiporter subunit D
3111	 65.14	0	3112102..3113799	-	565	55380053	nuoL1	rrnAC3530	-	putative monovalent cation/H+ antiporter subunit D
3112	 66.53	0	3113796..3115289	-	497	55380054	ndhG2	rrnAC3531	-	putative monovalent cation/H+ antiporter subunit D
3113	 56.30	-1	3115282..3115638	-	118	55380055	-	rrnAC3532	-	putative monovalent cation/H+ antiporter subunit C
3114	 62.66	0	3115638..3116111	-	157	55380056	mnhG1	rrnAC3533	-	putative monovalent cation/H+ antiporter subunit B
3115	 63.00	0	3116108..3116653	-	181	55380057	-	rrnAC3534	-	putative monovalent cation/H+ antiporter subunit B
3116	 62.93	0	3116650..3116970	-	106	55380058	mnhG2	rrnAC3535	-	putative monovalent cation/H+ antiporter subunit G
3117	 60.14	0	3116967..3117242	-	91	161723230	-	rrnAC3536	-	putative monovalent cation/H+ antiporter subunit F
3118	 62.99	0	3117235..3118323	-	362	161723229	mnhE	rrnAC3537	-	putative monovalent cation/H+ antiporter subunit E
3119	 66.58	0	3118428..3119594	-	388	55380061	dfp	rrnAC3539	-	pantothenate metabolism flavoprotein
3120	 66.54	0	3119645..3121210	-	521	55380062	-	rrnAC3540	-	hypothetical protein
3121	 66.26	0	3121207..3122436	-	409	55380063	-	rrnAC3541	-	hypothetical protein
3122	 63.98	0	3122529..3123272	-	247	55380064	-	rrnAC3542	-	hypothetical protein
3123	 67.32	+1	3123272..3123733	-	153	55380065	-	rrnAC3543	-	hypothetical protein
3124	 67.14	+1	3124480..3125541	+	353	55380066	htpX4	rrnAC3544	-	protease heat shock protein HtpX
3125	 64.60	0	3125533..3126306	-	257	55380067	trxB4	rrnAC3545	-	thioredoxin reductase
3126	 60.82	0	3126429..3127643	+	404	55380068	pan2	rrnAC3546	-	proteasome-activating nucleotidase
3127	 62.37	0	3127771..3128352	+	193	55380069	-	rrnAC3548	-	hypothetical protein
3128	 67.08	+1	3128405..3129628	+	407	55380070	-	rrnAC3549	-	HD family metal dependent phosphohydrolase
3129	 65.07	0	3129926..3130675	+	249	55380071	trzA4	rrnAC3551	-	chlorohydrolase family protein
3130	 60.71	0	3130709..3131161	+	150	55380072	-	rrnAC3552	-	hypothetical protein
3131	 64.17	0	3131234..3131713	+	159	55380073	usp18	rrnAC3553	-	universal stress protein
62.75	MEAN

4.09	STD DEV
