IslandPath Analysis: Haloarcula marismortui ATCC 43049

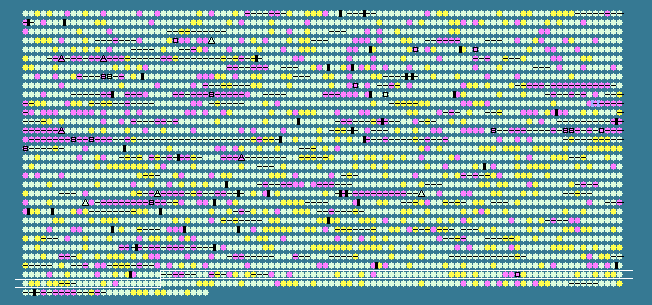

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2924	 61.81	0	2936421..2937017	+	198	55379866	rnhA	rrnAC3320	-	ribonuclease H-like protein
2925	 60.36	0	2937010..2937564	+	184	55379867	-	rrnAC3321	-	hypothetical protein
2926	 54.44	-2	2937649..2938008	-	119	55379868	-	rrnAC3322	-	transcription regulator
2927	 57.68	-1	2938306..2938839	+	177	55379869	ipp	rrnAC3323	-	inorganic pyrophosphatase
2928	 61.90	0	2938971..2939096	+	41	55379870	-	rrnAC3324	-	hypothetical protein
2929	 61.90	0	2939184..2940527	+	447	55379871	-	rrnAC3325	-	sulfatase arylsulfatase A-like
2930	 64.99	0	2940567..2941640	-	357	55379872	ftsZ4	rrnAC3326	-	cell division protein
2931	 61.96	0	2941768..2942043	-	91	55379873	-	rrnAC3327	-	hypothetical protein
2932	 58.45	-1	2942095..2942715	+	206	55379874	-	rrnAC3328	-	hypothetical protein
2933	 67.27	+1	2942731..2943390	-	219	55379875	hcp3	rrnAC3329	-	halocyanin precursor-like
2934	 65.47	0	2943519..2944268	+	249	55379876	-	rrnAC3330	-	hypothetical protein
2935	 57.53	-1	2945079..2945264	-	61	55379877	-	rrnAC3331	-	hypothetical protein
2936	 67.73	+1	2945414..2946163	-	249	55379878	-	rrnAC3332	-	hypothetical protein
2937	 60.16	0	2946164..2946547	+	127	55379879	-	rrnAC3333	-	hypothetical protein
2938	 66.32	0	2946548..2947702	-	384	55379880	dnaJ2	rrnAC3334	-	chaperone protein DnaJ
2939	 67.82	+1	2947814..2948332	+	172	55379881	-	rrnAC3335	-	hypothetical protein
2940	 59.87	0	2948419..2948727	-	102	55379882	-	rrnAC3336	-	hypothetical protein
2941	 60.12	0	2949358..2950167	+	269	55379883	-	rrnAC3337	-	putative transcriptional regulator
2942	 59.12	0	2950204..2950521	-	105	55379884	-	rrnAC3338	-	hypothetical protein
2943	 63.47	0	2950969..2952876	-	635	55379885	dnaK	rrnAC3339	-	chaperone protein DnaK
2944	 64.32	0	2953042..2953722	-	226	55379886	grpE	rrnAC3340	-	heat shock protein GrpE protein
2945	 55.88	-1	2954115..2954735	-	206	55379887	-	rrnAC3341	-	hypothetical protein
2946	 65.50	0	2954829..2955773	-	314	55379888	truB	rrnAC3342	-	H/ACA RNA-protein complex component Cbf5p
2947	 63.39	0	2955724..2956302	-	192	55379889	cmk	rrnAC3343	-	cytidylate kinase
2948	 62.40	0	2956348..2957238	-	296	55379890	htlB	rrnAC3344	-	HTR-like protein
2949	 62.98	0	2957326..2957976	-	216	55379891	adk	rrnAC3346	-	adenylate kinase
2950	 64.03	0	2958004..2958534	+	176	55379892	bcp2	rrnAC3345	-	bacterioferritin comigratory protein
2951	 60.57	0	2958606..2959655	-	349	55379893	kinA3	rrnAC3347	-	signal-transducing histidine kinase-like
2952	 62.68	0	2959917..2963231	+	1104	55379894	kinA5	rrnAC3349	-	signal-transducing histidine kinase-like
2953	 66.67	0	2960004..2960966	-	320	55379895	thrB	rrnAC3348	-	homoserine kinase
2954	 63.66	0	2963243..2964604	+	453	55379896	-	rrnAC3351	-	hypothetical protein
2955	 62.22	0	2964710..2965474	-	254	55379898	-	rrnAC3352	-	hypothetical protein
2956	 63.07	0	2965440..2966690	+	416	55379897	noxA2	rrnAC3353	-	NADH oxidase
2957	 70.22	+1	2966739..2966963	+	74	55379899	-	rrnAC3354	-	hypothetical protein
2958	 64.51	0	2967016..2967432	+	138	55379900	-	rrnAC3355	-	hypothetical protein
2959	 56.98	-1	2967507..2968280	+	257	55379901	-	rrnAC3356	-	hypothetical protein
2960	 61.42	0	2968335..2968868	+	177	55379902	-	rrnAC3357	-	hypothetical protein
2961	 64.96	0	2968918..2969679	+	253	55379903	-	rrnAC3358	-	hypothetical protein
2962	 61.47	0	2969767..2969997	+	76	55379904	-	rrnAC3359	-	hypothetical protein
2963	 63.59	0	2970154..2973405	+	1083	55379905	carB	rrnAC3360	-	carbamoyl phosphate synthase large subunit
2964	 61.11	0	2973516..2976536	+	1006	55379906	htlD	rrnAC3361	-	HTR-like protein
2965	 61.56	0	2976761..2977387	+	208	55379907	-	rrnAC3362	-	hypothetical protein
2966	 65.81	0	2977674..2978720	-	348	55379908	carA	rrnAC3363	-	carbamoyl phosphate synthase small subunit
2967	 60.39	0	2978823..2979236	+	137	55379909	trh3	rrnAC3365	-	transcription regulator
2968	 65.79	0	2979236..2979349	+	37	55379910	-	rrnAC3366	-	hypothetical protein
2969	 65.18	0	2979380..2980255	+	291	55379911	-	rrnAC3368	-	hypothetical protein
2970	 61.25	0	2980337..2981443	+	368	55379912	htlA	rrnAC3369	-	hypothetical protein
2971	 61.95	0	2981576..2982763	+	395	55379913	-	rrnAC3370	-	signal transducing histidine kinase
2972	 68.09	+1	2982789..2984759	-	656	55379914	yprA2	rrnAC3371	-	ATP-dependant helicase
2973	 70.44	+1	2985223..2986494	-	423	55379915	btuD	rrnAC3372	-	corrinoid ABC transporter ATPase
2974	 67.79	+1	2986491..2987561	-	356	55379917	btuC	rrnAC3374	-	corrinoid ABC transporter permease
2975	 64.58	0	2987560..2988708	+	382	55379916	btuF	rrnAC3375	-	corrinoid ABC transporter substrate-binding protein
2976	 67.08	+1	2988713..2989441	+	242	55379918	-	rrnAC3378	-	5-formyltetrahydrofolate cyclo-ligase
2977	 61.71	0	2989478..2991493	+	671	55379919	htlD	rrnAC3379	-	HTR-like protein
2978	 63.95	0	2991494..2992894	-	466	55379920	lpdA1	rrnAC3381	-	dihydrolipoamide dehydrogenase
2979	 62.85	0	2992992..2995508	-	838	55379921	-	rrnAC3382	-	hypothetical protein
2980	 61.53	0	2995512..2997458	-	648	55379922	-	rrnAC3383	-	hypothetical protein
2981	 55.56	-1	2997642..2998262	+	206	55379923	-	rrnAC3384	-	DNA binding protein putative transcriptional regulator
2982	 56.57	-1	2998259..2998654	-	131	55379924	ntrC	rrnAC3385	-	signal receiver domain-containing protein
2983	 52.36	-2	2998938..2999573	+	211	55379925	tnp	rrnAC3387	-	transposase
2984	 67.00	+1	2999630..3000238	+	202	55379926	-	rrnAC3388	-	hypothetical protein
2985	 59.72	0	3000315..3000602	+	95	55379927	-	rrnAC3390	-	hypothetical protein
2986	 66.20	0	3000599..3001450	-	283	55379928	ppnK	rrnAC3391	-	inorganic polyphosphate/ATP-NAD kinase
2987	 61.62	0	3001559..3002728	+	389	55379929	kaiC2	rrnAC3392	-	circadian regulator
2988	 61.76	0	3002725..3003438	-	237	55379930	-	rrnAC3393	-	hypothetical protein
2989	 60.57	0	3003515..3004039	+	174	55379931	usp4	rrnAC3394	-	universal stress protein
2990	 60.77	0	3004042..3004482	-	146	55379932	usp24	rrnAC3395	-	universal stress protein
2991	 64.07	0	3004543..3006393	-	616	55379933	-	rrnAC3396	-	hypothetical protein
2992	 65.23	0	3006439..3007272	+	277	55379934	-	rrnAC3397	-	hypothetical protein
2993	 68.75	+1	3007316..3007651	+	111	55379935	-	rrnAC3398	-	hypothetical protein
2994	 62.10	0	3007703..3008074	+	123	55379936	-	rrnAC3399	-	DNA binding protein putative transcriptional regulator
2995	 60.73	0	3008074..3008376	+	100	55379937	-	rrnAC3400	-	hypothetical protein
2996	 66.51	0	3008382..3009632	-	416	55379938	-	rrnAC3401	-	hypothetical protein
2997	 62.08	0	3009688..3010188	-	166	55379939	-	rrnAC3402	-	hypothetical protein
2998	 67.37	+1	3010252..3011811	+	519	55379940	pgm	rrnAC3403	-	phosphoglyceromutase
2999	 66.37	0	3011829..3012497	-	222	55379941	kptA	rrnAC3404	-	RNA 2'-phosphotransferase
3000	 64.76	0	3012684..3013418	+	244	55379942	-	rrnAC3405	-	acetyltransferase
3001	 59.35	0	3013510..3014001	+	163	55379943	-	rrnAC3406	-	hypothetical protein
3002	 67.15	+1	3014009..3014830	-	273	55379944	nadC1	rrnAC3408	-	nicotinate-nucleotide pyrophosphorylase
3003	 69.23	+1	3014830..3016389	-	519	55379945	nadB	rrnAC3409	-	L-aspartate oxidase
3004	 63.73	0	3016392..3017516	-	374	55379946	nadA	rrnAC3410	-	quinolinate synthetase
3005	 67.33	+1	3017786..3019282	-	498	55379947	-	rrnAC3411	-	metal dependent amidohydrolase superfamily protein
3006	 68.97	+1	3019364..3020581	+	405	55379948	mvaA	rrnAC3412	-	3-hydroxy-3-methylglutaryl-coenzyme A reductase
3007	 69.21	+1	3020603..3020956	-	117	55379949	-	rrnAC3413	-	hypothetical protein
3008	 68.00	+1	3020953..3021477	-	174	55379950	-	rrnAC3414	-	hypothetical protein
3009	 61.65	0	3021570..3021908	+	112	55379951	-	rrnAC3415	-	hypothetical protein
3010	 63.41	0	3021946..3022743	+	265	55379952	-	rrnAC3416	-	hypothetical protein
3011	 65.33	0	3022765..3022989	-	74	55379953	-	rrnAC3417	-	hypothetical protein
3012	 62.72	0	3023071..3023298	+	75	55379954	-	rrnAC3418	-	hypothetical protein
3013	 62.47	0	3023496..3024758	-	420	55379955	icd	rrnAC3419	-	isocitrate dehydrogenase
3014	 68.36	+1	3024867..3025751	+	294	55379956	ans	rrnAC3420	-	asparaginase family protein
3015	 64.66	0	3025794..3026690	+	298	55379957	map	rrnAC3421	-	methionine aminopeptidase
3016	 53.75	-2	3026907..3027146	-	79	55379958	-	rrnAC3422	-	hypothetical protein
3017	 60.71	0	3027348..3027884	+	178	55379959	hit1	rrnAC3423	-	histidine triad protein
3018	 61.71	0	3028018..3028905	+	295	55379960	-	rrnAC3424	-	Rieske (2Fe-2S) domain-containing protein
3019	 64.92	0	3028952..3029866	+	304	55379961	cef	rrnAC3425	-	cation efflux system protein (zinc/cadmium)
3020	 63.31	0	3029900..3030286	+	128	55379962	doxD2	rrnAC3427	-	terminal quinol oxidase subunit
3021	 63.63	0	3030324..3031607	-	427	55379963	-	rrnAC3428	-	hypothetical protein
3022	 64.94	0	3031658..3032353	-	231	55379964	deoC1	rrnAC3429	-	deoxyribose-phosphate aldolase
3023	 63.20	0	3032518..3033354	+	278	55379965	-	rrnAC3430	-	hypothetical protein
62.75	MEAN

4.09	STD DEV
