IslandPathversion 1.0

IslandPath Analysis: Haloarcula marismortui ATCC 43049

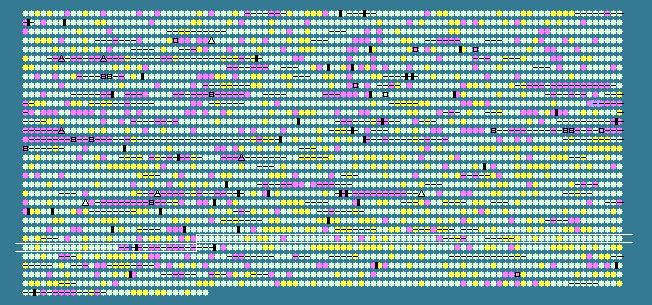

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2530	 64.60	0	2545505..2545891	+	128	55379472	-	rrnAC2866	-	hypothetical protein
2531	 65.71	0	2545916..2547268	-	450	55379473	dip1	rrnAC2867	-	DNA damage-inducible protein
2532	 62.48	0	2547473..2548546	+	357	55379474	potD2	rrnAC2868	-	spermidine/putrescine ABC transporter spermidine/putrescine binding protein
2533	 66.04	0	2548687..2549637	+	316	55379475	potA2	rrnAC2870	-	spermidine/putrescine ABC transporter ATP-binding protein
2534	 63.11	0	2549624..2550466	+	280	55379476	potB2	rrnAC2872	-	spermidine/putrescine ABC transporter permease protein
2535	 64.31	0	2550460..2551266	+	268	55379477	potC2	rrnAC2873	-	spermidine/putrescine ABC transporter permease
2536	 61.74	0	2551339..2551785	+	148	55379478	phaJ1	rrnAC2874	-	(R)-specific enoyl -CoA hydratase
2537	 61.38	0	2551775..2552020	-	81	55379479	-	rrnAC2875	-	hypothetical protein
2538	 67.83	+1	2552136..2554535	+	799	55379480	rad24-2	rrnAC2876	-	ski2-like helicase
2539	 64.20	0	2554535..2555062	+	175	55379481	-	rrnAC2877	-	hypothetical protein
2540	 68.75	+1	2555101..2555388	+	95	55379482	-	rrnAC2878	-	hypothetical protein
2541	 66.85	+1	2555595..2556689	+	364	55379483	yqjM2	rrnAC2880	-	NADH-dependent flavin oxidoreductase
2542	 64.65	0	2556766..2557608	+	280	55379484	-	rrnAC2881	-	hypothetical protein
2543	 60.08	0	2557609..2558352	-	247	55379485	maoC1	rrnAC2882	-	MaoC family protein
2544	 56.67	-1	2558455..2558754	+	99	55379486	-	rrnAC2883	-	hypothetical protein
2545	 60.04	0	2558762..2559319	+	185	55379487	-	rrnAC2884	-	hypothetical protein
2546	 60.62	0	2559365..2559910	+	181	55379488	-	rrnAC2885	-	hypothetical protein
2547	 61.97	0	2559913..2561340	+	475	55379489	phaC	rrnAC2886	-	poly(3-hydroxyalkanoate) synthase
2548	 65.80	0	2561380..2561838	+	152	55379490	-	rrnAC2888	-	hypothetical protein
2549	 64.44	0	2561847..2562071	-	74	55379491	-	rrnAC2889	-	hypothetical protein
2550	 65.60	0	2562382..2564154	-	590	55379492	cctA2	rrnAC2891	-	thermosome alpha subunit
2551	 62.75	0	2564211..2565206	-	331	55379493	-	rrnAC2892	-	hypothetical protein
2552	 65.98	0	2565353..2566225	-	290	55379494	-	rrnAC2893	-	hypothetical protein
2553	 56.90	-1	2566482..2566655	+	57	55379495	-	rrnAC2894	-	hypothetical protein
2554	 63.81	0	2566642..2567376	-	244	55379496	-	rrnAC2895	-	hypothetical protein
2555	 66.99	+1	2567373..2568311	-	312	55379497	-	rrnAC2896	-	hypothetical protein
2556	 62.89	0	2568387..2569391	-	334	55379498	galE2	rrnAC2897	-	UDP-glucose 4-epimerase
2557	 55.38	-1	2569813..2570007	-	64	55379499	cspD2	rrnAC2900	-	cold shock protein
2558	 64.24	0	2570619..2571896	+	425	55379500	uvrB	rrnAC2901	-	putative uvrB
2559	 67.11	+1	2572070..2573206	-	378	55379501	-	rrnAC2902	-	putative methyltransferase
2560	 65.79	0	2573157..2574296	-	379	55379502	nmd3	rrnAC2903	-	putative nonsense mediated mRNA decay protein
2561	 66.44	0	2574383..2575276	-	297	55379503	galE6	rrnAC2904	-	UDP-glucose 4-epimerase
2562	 62.91	0	2575404..2576282	+	292	55379504	htpX1	rrnAC2906	-	heat shock protein HtpX
2563	 64.56	0	2576700..2577317	+	205	55379505	-	rrnAC2907	-	hypothetical protein
2564	 66.23	0	2577319..2577777	+	152	55379506	-	rrnAC2908	-	hypothetical protein
2565	 62.78	0	2577913..2578968	+	351	55379507	radA	rrnAC2910	-	DNA repair and recombination protein RadA
2566	 64.48	0	2579400..2580452	-	350	55379508	gsp	rrnAC2912	-	general stress protein 69
2567	 66.17	0	2580477..2581490	-	337	55379509	-	rrnAC2913	-	hypothetical protein
2568	 63.69	0	2581629..2582534	+	301	55379510	yvaI	rrnAC2914	-	acetyltransferase-like
2569	 64.15	0	2582595..2583308	+	237	55379511	-	rrnAC2916	-	hypothetical protein
2570	 57.42	-1	2583355..2584068	+	237	55379512	-	rrnAC2917	-	hypothetical protein
2571	 63.02	0	2584065..2584475	+	136	55379513	-	rrnAC2918	-	hypothetical protein
2572	 61.46	0	2584589..2584876	-	95	55379514	-	rrnAC2919	-	hypothetical protein
2573	 68.47	+1	2585023..2585799	+	258	55379515	-	rrnAC2920	-	hypothetical protein
2574	 57.58	-1	2585854..2586018	+	54	55379516	-	rrnAC2922	-	hypothetical protein
2575	 64.57	0	2586112..2586588	+	158	55379517	-	rrnAC2923	-	hypothetical protein
2576	 64.57	0	2586612..2587328	-	238	55379518	guaA3	rrnAC2924	-	GMP synthase
2577	 60.75	0	2587713..2587898	-	61	55379519	-	rrnAC2925	-	hypothetical protein
2578	 62.26	0	2587905..2588699	-	264	55379520	yafB-4	rrnAC2927	-	oxidoreductase
2579	 64.63	0	2588816..2589799	-	327	55379521	gfo1	rrnAC2929	-	glucose-fructose oxidoreductase
2580	 65.80	0	2589830..2590870	-	346	55379522	-	rrnAC2930	-	hypothetical protein
2581	 66.67	0	2591229..2591516	-	95	55379523	-	rrnAC2931	-	hypothetical protein
2582	 68.72	+1	2591704..2592141	+	145	55379524	-	rrnAC2932	-	hypothetical protein
2583	 67.64	+1	2592151..2592870	+	239	161723232	-	rrnAC2933	-	hypothetical protein
2584	 60.12	0	2593047..2593214	+	55	55379526	-	rrnAC2935	-	hypothetical protein
2585	 59.86	0	2593286..2594020	+	244	55379527	boa	rrnAC2936	-	bacterio-opsin activator-like protein
2586	 67.29	+1	2594052..2596946	-	964	55379528	mutS1	rrnAC2937	-	DNA mismatch repair protein
2587	 61.03	0	2597000..2597389	+	129	55379529	-	rrnAC2938	-	hypothetical protein
2588	 65.24	0	2597564..2599243	+	559	55379530	cctB	rrnAC2939	-	thermosome beta subunit
2589	 65.39	0	2599725..2600588	-	287	55379531	-	rrnAC2940	-	hypothetical protein
2590	 66.57	0	2600665..2601660	+	331	55379532	ocd2	rrnAC2941	-	ornithine cyclodeaminase
2591	 62.61	0	2601661..2601882	-	73	55379533	-	rrnAC2942	-	hypothetical protein
2592	 64.29	0	2601926..2602093	-	55	55379534	-	rrnAC2943	-	hypothetical protein
2593	 60.00	0	2602093..2602377	-	94	55379535	-	rrnAC2944	-	hypothetical protein
2594	 61.49	0	2602611..2604002	+	463	55379536	-	rrnAC2945	-	signal-transducing histidine kinase
2595	 65.40	0	2604154..2606841	+	895	55379537	leuS	rrnAC2947	-	leucyl-tRNA synthetase
2596	 64.02	0	2606874..2607326	-	150	55379538	bcp3	rrnAC2948	-	bacterioferritin comigratory protein
2597	 63.97	0	2607329..2607736	-	135	55379539	hsp20a	rrnAC2949	-	small heat shock protein
2598	 65.56	0	2607799..2608614	-	271	55379540	pheA	rrnAC2950	-	prephenate dehydratase
2599	 64.40	0	2608690..2609529	-	279	55379541	yccK	rrnAC2951	-	oxidoreductase
2600	 63.33	0	2609607..2610236	-	209	55379542	-	rrnAC2952	-	hypothetical protein
2601	 65.19	0	2610383..2611801	-	472	55379543	lpdA2	rrnAC2953	-	dihydrolipoamide dehydrogenase
2602	 65.62	0	2611859..2612239	-	126	55379544	-	rrnAC2954	-	hypothetical protein
2603	 68.01	+1	2612295..2613932	-	545	55379545	pdhC2	rrnAC2955	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2604	 64.46	0	2613936..2614934	-	332	55379546	pdhB1	rrnAC2956	-	pyruvate dehydrogenase
2605	 63.96	0	2614931..2616037	-	368	55379547	pdhA3	rrnAC2957	-	pyruvate dehydrogenase E1 component alpha subunit
2606	 65.16	0	2616210..2617139	-	309	55379548	lipA	rrnAC2959	-	lipoyl synthase
2607	 64.81	0	2617295..2617672	-	125	55379549	-	rrnAC2960	-	hypothetical protein
2608	 65.86	0	2618215..2620686	+	823	55379550	brr2	rrnAC2961	-	Pre-mRNA splicing helicase
2609	 65.60	0	2621314..2621970	-	218	55379551	-	rrnAC2962	-	putative haloacid dehalogenase-like hydrolase
2610	 65.42	0	2622089..2622811	+	240	55379552	top1	rrnAC2963	-	topoisomerase DNA binding C4 zinc finger
2611	 66.47	0	2622899..2623906	+	335	55379553	endA	rrnAC2964	-	tRNA splicing endonuclease
2612	 66.12	0	2624037..2625686	+	549	55379554	trpS	rrnAC2965	-	tryptophanyl-tRNA synthetase
2613	 65.48	0	2625962..2627473	+	503	55379555	pheS	rrnAC2966	-	phenylalanyl-tRNA synthetase subunit alpha
2614	 64.79	0	2627473..2629227	+	584	55379556	pheT	rrnAC2967	-	phenylalanyl-tRNA synthetase subunit beta
2615	 62.29	0	2629261..2629740	-	159	55379557	-	rrnAC2968	-	hypothetical protein
2616	 63.72	0	2629780..2630832	-	350	55379558	pyrD	rrnAC2969	-	dihydroorotate dehydrogenase 2
2617	 50.51	-2	2630938..2631135	-	65	55379559	-	rrnAC2970	-	hypothetical protein
2618	 58.69	0	2631342..2631692	+	116	55379560	-	rrnAC2971	-	hypothetical protein
2619	 59.30	0	2637498..2637755	+	85	55379561	-	rrnAC2973	-	hypothetical protein
2620	 55.40	-1	2637950..2639209	+	419	55379562	-	rrnAC2974	-	hypothetical protein
2621	 61.38	0	2639220..2640524	-	434	55379563	-	rrnAC2976	-	hypothetical protein
2622	 50.74	-2	2640597..2641205	-	202	55379564	-	rrnAC2977	-	hypothetical protein
2623	 55.46	-1	2641378..2642046	+	222	55379565	-	rrnAC2978	-	hypothetical protein
2624	 60.47	0	2642714..2643052	+	112	55379566	-	rrnAC2979	-	hypothetical protein
2625	 49.15	-2	2643049..2644584	+	511	55379567	-	rrnAC2980	-	hypothetical protein
2626	 58.35	-1	2644866..2646092	+	408	55379568	-	rrnAC2981	-	hypothetical protein
2627	 57.39	-1	2646332..2647474	+	380	55379569	-	rrnAC2982	-	hypothetical protein
2628	 61.81	0	2648121..2648429	+	102	55379570	-	rrnAC2983	-	hypothetical protein
2629	 55.00	-1	2648542..2648721	+	59	55379571	-	rrnAC2984	-	hypothetical protein
62.75	MEAN

4.09	STD DEV
