IslandPath Analysis: Haloarcula marismortui ATCC 43049

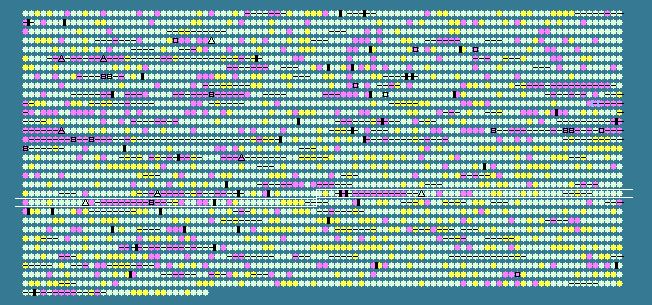

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2050	 65.92	0	2059778..2060044	+	88	55378992	-	rrnAC2312	-	hypothetical protein
2051	 66.44	0	2060050..2060493	-	147	55378993	-	rrnAC2313	-	hypothetical protein
2052	 62.82	0	2060621..2062543	-	640	55378994	trp3	rrnAC2314	-	ABC transport protein
2053	 65.31	0	2062583..2063170	-	195	55378995	-	rrnAC2315	-	hypothetical protein
2054	 58.33	-1	2063746..2063865	+	39	55378996	-	rrnAC2316	-	hypothetical protein
2055	 64.60	0	2064377..2064667	+	96	55378997	-	rrnAC2317	-	hypothetical protein
2056	 57.72	-1	2064879..2066924	+	681	55378998	mcm1	rrnAC2318	-	MCM / cell division control protein 21
2057	 43.82	-2	2068626..2069159	+	177	55378999	-	rrnAC2319	-	hypothetical protein
2058	 52.08	-2	2069430..2070293	-	287	55379000	-	rrnAC2320	-	hypothetical protein
2059	 55.33	-1	2070444..2071043	+	199	55379001	boa	rrnAC2321	-	bacterio-opsin activator-like protein
2060	 52.68	-2	2071051..2071572	-	173	55379002	-	rrnAC2322	-	hypothetical protein
2061	 57.47	-1	2071751..2072359	-	202	55379003	-	rrnAC2323	-	hypothetical protein
2062	 46.13	-2	2073356..2073730	+	124	55379004	-	rrnAC2324	-	hypothetical protein
2063	 51.62	-2	2073736..2075616	+	626	55379005	repC	rrnAC2325	-	replication factor C
2064	 48.00	-2	2075686..2075910	-	74	55379006	-	rrnAC2326	-	hypothetical protein
2065	 59.44	0	2076803..2076982	-	59	55379007	-	rrnAC2327	-	hypothetical protein
2066	 60.32	0	2077024..2077212	+	62	55379008	-	rrnAC2328	-	hypothetical protein
2067	 61.54	0	2077225..2078472	-	415	55379009	tnp	rrnAC2329	-	phage integrase
2068	 63.86	0	2078665..2079234	+	189	55379010	-	rrnAC2331	-	hypothetical protein
2069	 60.98	0	2079339..2079584	+	81	55379011	-	rrnAC2332	-	hypothetical protein
2070	 59.20	0	2079871..2080593	-	240	55379013	hspC	rrnAC2333	-	small heat shock protein
2071	 65.75	0	2080592..2083657	+	1021	55379012	glcD2	rrnAC2334	-	putative oxidoreductase
2072	 65.90	0	2083649..2084173	-	174	55379014	-	rrnAC2335	-	hypothetical protein
2073	 62.85	0	2084226..2085455	-	409	55379015	-	rrnAC2337	-	histidine kinase
2074	 57.44	-1	2085646..2085840	+	64	55379016	cspD4	rrnAC2338	-	cold shock protein
2075	 58.97	0	2085843..2086037	+	64	55379017	cspD3	rrnAC2339	-	cold shock protein
2076	 65.86	0	2086165..2086905	-	246	55379018	-	rrnAC2340	-	hypothetical protein
2077	 60.75	0	2087013..2087198	-	61	55379019	-	rrnAC2341	-	hypothetical protein
2078	 64.15	0	2087240..2087398	-	52	55379020	-	rrnAC2342	-	hypothetical protein
2079	 66.25	0	2087461..2088180	+	239	55379021	rfbA	rrnAC2343	-	glucose-1-phosphate thymidylyltransferase
2080	 68.35	+1	2088260..2088853	+	197	55379022	-	rrnAC2345	-	hypothetical protein
2081	 62.04	0	2088850..2089929	-	359	55379023	malG	rrnAC2346	-	maltose ABC transporter permease protein
2082	 61.68	0	2089929..2090891	-	320	55379024	malFG-6	rrnAC2347	-	ABC-type sugar transport systems permease components
2083	 64.87	0	2090901..2092181	-	426	55379025	malE1	rrnAC2349	-	maltose ABC transporter maltose-binding protein
2084	 67.34	+1	2092393..2094480	+	695	55379026	amy	rrnAC2350	-	alpha amylase
2085	 64.65	0	2094552..2095739	+	395	55379027	ugpC1	rrnAC2352	-	sugar ABC transporter ATP-binding protein
2086	 67.95	+1	2095847..2097865	-	672	55379028	cga-2	rrnAC2353	-	glucan 14-alpha-glucosidase
2087	 64.29	0	2098039..2099091	+	350	55379029	-	rrnAC2354	-	transcription regulator
2088	 59.92	0	2099123..2099626	-	167	55379030	-	rrnAC2355	-	hypothetical protein
2089	 62.19	0	2099705..2100955	-	416	55379032	gst1	rrnAC2356	-	glutathione S-transferase
2090	 62.17	0	2100921..2101454	+	177	55379031	rpl10e	rrnAC2357	-	50S ribosomal protein L10e
2091	 64.66	0	2101641..2101889	+	82	55379033	-	rrnAC2358	-	hypothetical protein
2092	 62.78	0	2101947..2102126	-	59	55379034	usp16	rrnAC2359	-	universal stress protein
2093	 66.90	+1	2102555..2103418	+	287	55379035	rimK	rrnAC2360	-	ribosomal protein S6 modification protein
2094	 62.02	0	2103470..2103856	-	128	55379036	hsp20b	rrnAC2361	-	putative heat shock protein
2095	 63.78	0	2104058..2105062	+	334	55379037	gapA	rrnAC2363	-	glyceraldehyde 3-phosphate dehydrogenase
2096	 63.09	0	2105367..2106569	+	400	55379038	pgk	rrnAC2364	-	phosphoglycerate kinase
2097	 65.31	0	2106566..2106712	-	48	55379039	-	rrnAC2365	-	hypothetical protein
2098	 62.00	0	2106841..2107419	+	192	55379040	ribC	rrnAC2367	-	riboflavin synthase subunit alpha
2099	 60.87	0	2107416..2108450	-	344	55379041	-	rrnAC2368	-	hypothetical protein
2100	 65.82	0	2108616..2109209	+	197	55379042	hisH1	rrnAC2369	-	glutamine amidotransferase subunit PdxT
2101	 56.90	-1	2109246..2109542	+	98	55379043	hisI1	rrnAC2371	-	phosphoribosyl-ATP pyrophosphatase
2102	 62.38	0	2109606..2111540	+	644	55379044	htlD	rrnAC2372	-	HTR-like protein
2103	 62.89	0	2111564..2111881	-	105	55379045	-	rrnAC2373	-	hypothetical protein
2104	 64.96	0	2111976..2112971	+	331	55379046	gbp4	rrnAC2374	-	GTP-binding protein
2105	 66.39	0	2113134..2113844	-	236	55379047	-	rrnAC2375	-	hypothetical protein
2106	 64.83	0	2113906..2114829	-	307	55379048	-	rrnAC2377	-	hypothetical protein
2107	 61.17	0	2115334..2115951	+	205	55379049	engB	rrnAC2378	-	GTP-binding protein
2108	 60.29	0	2116114..2117337	+	407	55379050	-	rrnAC2379	-	hypothetical protein
2109	 63.91	0	2117671..2119518	+	615	55379051	-	rrnAC2380	-	putative serine/threonine phosphatase
2110	 61.02	0	2119515..2120843	+	442	55379052	-	rrnAC2381	-	hypothetical protein
2111	 60.70	0	2121198..2122220	-	340	55379053	tnp	rrnAC2382	-	phage integrase
2112	 56.67	-1	2122646..2122945	+	99	55379054	phrH3	rrnAC2383	-	PhiH1 repressor-like
2113	 60.76	0	2122953..2123189	-	78	55379055	-	rrnAC2384	-	hypothetical protein
2114	 59.26	0	2124334..2125386	-	350	55379056	cdc6e	rrnAC2385	-	ORC / cell division control protein 6
2115	 40.27	-2	2126270..2127004	-	244	55379057	-	rrnAC2386	-	hypothetical protein
2116	 51.39	-2	2127411..2127770	+	119	55379058	-	rrnAC2387	-	hypothetical protein
2117	 54.65	-1	2128312..2128569	-	85	55379059	-	rrnAC2389	-	hypothetical protein
2118	 47.69	-2	2128950..2130461	+	503	55379060	-	rrnAC2390	-	hypothetical protein
2119	 49.64	-2	2130467..2131153	-	228	55379061	-	rrnAC2391	-	hypothetical protein
2120	 48.69	-2	2131282..2132916	+	544	55379062	-	rrnAC2392	-	hypothetical protein
2121	 50.80	-2	2132919..2133479	+	186	55379063	-	rrnAC2393	-	hypothetical protein
2122	 58.04	-1	2133578..2134852	+	424	55379064	tnp	rrnAC2394	-	putative ISH8 transposase
2123	 45.99	-2	2135176..2135649	+	157	55379065	-	rrnAC2395	-	hypothetical protein
2124	 56.08	-1	2137394..2137582	-	62	55379066	-	rrnAC2396	-	hypothetical protein
2125	 60.19	0	2137705..2138136	+	143	55379067	-	rrnAC2397	-	hypothetical protein
2126	 67.10	+1	2138142..2138372	+	76	55379068	-	rrnAC2398	-	hypothetical protein
2127	 55.33	-1	2138540..2140171	+	543	55379069	-	rrnAC2399	-	hypothetical protein
2128	 63.41	0	2140179..2140730	+	183	55379070	-	rrnAC2400	-	hypothetical protein
2129	 62.89	0	2140727..2141521	+	264	55379071	-	rrnAC2401	-	hypothetical protein
2130	 58.43	-1	2141514..2142023	+	169	55379072	-	rrnAC2402	-	hypothetical protein
2131	 57.37	-1	2142115..2142684	+	189	55379073	-	rrnAC2403	-	hypothetical protein
2132	 62.03	0	2144200..2145816	-	538	55379074	-	rrnAC2404	-	hypothetical protein
2133	 64.42	0	2146818..2147129	-	103	55379075	rps10p	rrnAC2405	-	30S ribosomal protein S10P
2134	 62.80	0	2147133..2148398	-	421	55379076	eef1a	rrnAC2406	-	elongation factor 1-alpha
2135	 55.64	-1	2148655..2149044	-	129	55379077	-	rrnAC2407	-	hypothetical protein
2136	 66.35	0	2149158..2150102	-	314	55379078	hom	rrnAC2408	-	homoserine dehydrogenase
2137	 65.17	0	2150099..2150632	-	177	55379079	-	rrnAC2410	-	hypothetical protein
2138	 59.66	0	2150712..2151125	-	137	55379080	-	rrnAC2411	-	hypothetical protein
2139	 65.55	0	2151421..2152137	+	238	55379081	-	rrnAC2412	-	putative peptidase
2140	 62.78	0	2152334..2154520	-	728	55379082	fusA	rrnAC2413	-	elongation factor EF-2
2141	 62.38	0	2154682..2155917	+	411	55379083	metB	rrnAC2414	-	cystathionine gamma-synthase
2142	 65.79	0	2155984..2156778	+	264	55379084	-	rrnAC2415	-	hypothetical protein
2143	 61.90	0	2156932..2160075	+	1047	55379085	-	rrnAC2416	-	putative light and redox sensing histidine kinase
2144	 69.76	+1	2160091..2160801	-	236	55379086	cbiQ2	rrnAC2417	-	cobalt transport protein
2145	 67.38	+1	2160795..2161499	-	234	55379087	cbiO	rrnAC2418	-	cobalt transport ATP-binding protein
2146	 66.67	0	2161496..2162077	-	193	55379088	bioY	rrnAC2420	-	dethiobiotin synthesis protein
2147	 68.26	+1	2162152..2163534	-	460	55379089	-	rrnAC2421	-	hypothetical protein
2148	 62.16	0	2163584..2164204	-	206	55379090	rps7P	rrnAC2423	-	30S ribosomal protein S7P
2149	 61.77	0	2164207..2164635	-	142	55379091	rps12P	rrnAC2424	-	30S ribosomal protein S12P
62.75	MEAN

4.09	STD DEV
