IslandPath Analysis: Haloarcula marismortui ATCC 43049

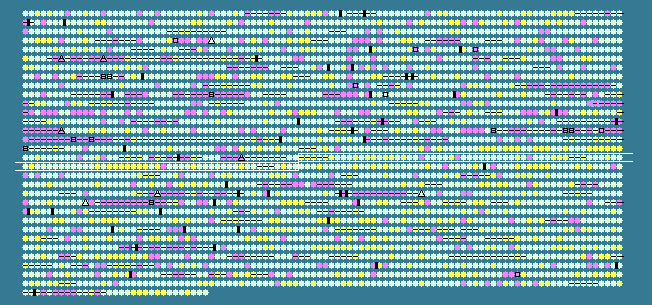

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1647	 66.41	0	1649015..1649779	+	254	55378589	virB11	rrnAC1848	-	type IV secretion system protein
1648	 69.25	+1	1650439..1651521	+	360	55378590	-	rrnAC1849	-	hypothetical protein
1649	 66.45	0	1651556..1652017	+	153	55378591	-	rrnAC1850	-	hypothetical protein
1650	 65.15	0	1651998..1652393	+	131	55378592	-	rrnAC1851	-	hypothetical protein
1651	 68.27	+1	1652390..1653262	+	290	55378593	-	rrnAC1852	-	hypothetical protein
1652	 67.16	+1	1653637..1656252	+	871	55378594	-	rrnAC1853	-	hypothetical protein
1653	 62.53	0	1656297..1656731	+	144	55378595	-	rrnAC1854	-	hypothetical protein
1654	 60.91	0	1657289..1657618	+	109	55378596	-	rrnAC1855	-	hypothetical protein
1655	 65.40	0	1657667..1658851	+	394	55378597	-	rrnAC1856	-	putative RNA binding protein
1656	 66.39	0	1658924..1660009	+	361	55378598	-	rrnAC1858	-	aldo/keto reductase
1657	 63.74	0	1660010..1660180	-	56	55378599	-	rrnAC1859	-	hypothetical protein
1658	 66.75	0	1660300..1661436	+	378	55378600	-	rrnAC1860	-	sugar transporter
1659	 66.88	+1	1661469..1661939	+	156	55378601	-	rrnAC1861	-	hypothetical protein
1660	 63.93	0	1662031..1662651	+	206	55378602	mutT4	rrnAC1863	-	Mut/nudix family protein
1661	 67.05	+1	1662722..1663507	+	261	55378603	-	rrnAC1864	-	hypothetical protein
1662	 69.84	+1	1663508..1664611	+	367	55378604	soxB	rrnAC1865	-	sarcosine oxidase
1663	 63.36	0	1664642..1665397	-	251	55378605	-	rrnAC1867	-	putative Hsp20
1664	 67.17	+1	1665426..1666223	+	265	55378606	-	rrnAC1868	-	hypothetical protein
1665	 64.33	0	1666293..1668215	+	640	55378607	trp1	rrnAC1869	-	ABC transporter ATP-binding protein
1666	 64.27	0	1668741..1669949	+	402	55378608	nhaC3	rrnAC1870	-	Na+/H+ antiporter
1667	 58.26	-1	1670010..1670354	-	114	55378609	-	rrnAC1871	-	hypothetical protein
1668	 64.69	0	1670497..1672215	+	572	55378610	-	rrnAC1872	-	radical HhH
1669	 64.63	0	1672284..1674101	+	605	55378611	dpg	rrnAC1873	-	dolichol-P-glucose synthetase
1670	 64.91	0	1674419..1675384	+	321	55378612	tfbD	rrnAC1875	-	transcription initiation factor IIB
1671	 65.11	0	1675884..1676912	+	342	55378613	zim	rrnAC1876	-	CTAG modification methylase
1672	 69.57	+1	1676949..1677638	+	229	55378614	aroD	rrnAC1877	-	3-dehydroquinate dehydratase
1673	 57.55	-1	1677723..1678139	+	138	55378615	-	rrnAC1878	-	hypothetical protein
1674	 63.67	0	1678175..1679341	-	388	55378616	aroB	rrnAC1879	-	3-dehydroquinate synthase
1675	 62.93	0	1679536..1680819	+	427	55378617	minD6	rrnAC1880	-	septum site-determining protein MinD
1676	 64.05	0	1680816..1681619	-	267	55378618	deoC2	rrnAC1881	-	fructose-bisphosphate aldolase
1677	 64.51	0	1681646..1682527	-	293	55378619	trpA	rrnAC1884	-	tryptophan synthase subunit alpha
1678	 63.97	0	1682527..1683789	-	420	55378620	trpB	rrnAC1885	-	tryptophan synthase subunit beta
1679	 65.56	0	1683786..1684601	-	271	55378621	trpC	rrnAC1886	-	indole-3-glycerol phosphate synthase
1680	 60.76	0	1684705..1685229	+	174	55378622	hat5	rrnAC1887	-	putative acetyltransferase
1681	 62.12	0	1685330..1686517	+	395	55378623	gbp5	rrnAC1888	-	translation-associated GTPase
1682	 62.22	0	1686562..1687101	-	179	55378624	-	rrnAC1890	-	hypothetical protein
1683	 67.17	+1	1687206..1687805	-	199	55378625	-	rrnAC1891	-	hypothetical protein
1684	 63.47	0	1687802..1688458	-	218	55378626	-	rrnAC1892	-	DSBA-like thioredoxin domain-containing protein
1685	 57.25	-1	1688796..1689857	-	353	55378627	ldc	rrnAC1893	-	LD-carboxypeptidase
1686	 62.33	0	1690454..1691098	+	214	55378628	-	rrnAC1895	-	putative DNA binding
1687	 62.89	0	1691219..1692808	+	529	55378629	-	rrnAC1896	-	hypothetical protein
1688	 64.20	0	1692865..1694244	+	459	55378630	-	rrnAC1898	-	hypothetical protein
1689	 67.76	+1	1694359..1695549	-	396	55378631	-	rrnAC1899	-	hypothetical protein
1690	 67.98	+1	1695628..1696692	-	354	55378632	brp	rrnAC1901	-	bacteriorhodopsin related protein
1691	 67.19	+1	1696842..1698365	+	507	55378633	crtI1	rrnAC1902	-	phytoene dehydrogenase
1692	 61.75	0	1698484..1699032	+	182	55378634	apt2	rrnAC1903	-	adenine phosphoribosyltransferase
1693	 64.36	0	1699052..1699354	-	100	55378635	-	rrnAC1904	-	hypothetical protein
1694	 66.31	0	1699622..1699900	+	92	55378636	dsbB1	rrnAC1905	-	disulfide bond formation protein
1695	 65.50	0	1700008..1701039	+	343	55378637	tas	rrnAC1906	-	oxidoreductase
1696	 62.79	0	1701151..1702464	-	437	55378638	-	rrnAC1907	-	putative sugar transporter
1697	 65.71	0	1702587..1703423	-	278	55378639	nthD	rrnAC1908	-	endonuclease III
1698	 68.04	+1	1703863..1706334	-	823	55378640	fbr1	rrnAC1910	-	cytochrome-like protein Fbr
1699	 64.62	0	1706411..1707190	-	259	55378641	-	rrnAC1911	-	hypothetical protein
1700	 61.02	0	1707190..1707756	-	188	55378642	nadM	rrnAC1913	-	nicotinamide-nucleotide adenylyltransferase
1701	 63.76	0	1707927..1710056	+	709	55378643	lon	rrnAC1914	-	ATP-dependent protease Lon
1702	 66.91	+1	1710057..1710878	+	273	55378644	-	rrnAC1915	-	putative protease
1703	 63.89	0	1710875..1711378	-	167	55378645	-	rrnAC1916	-	6-O-methylguanine DNA methyltransferase
1704	 63.07	0	1711395..1712396	-	333	55378646	glpQ2	rrnAC1917	-	glycerophosphoryl diester phosphodiesterase
1705	 64.00	0	1712508..1713521	-	337	55378647	dhs	rrnAC1918	-	putative deoxyhypusine synthase
1706	 65.66	0	1713655..1714347	+	230	55378648	azlC	rrnAC1920	-	branched-chain amino acid transport protein AzlC
1707	 64.85	0	1714337..1714666	+	109	55378649	-	rrnAC1921	-	hypothetical protein
1708	 65.96	0	1714667..1715230	-	187	55378650	-	rrnAC1922	-	hypothetical protein
1709	 65.10	0	1715235..1715999	-	254	55378651	nif3	rrnAC1923	-	NGG1p interacting factor 3
1710	 64.29	0	1716051..1716848	-	265	55378652	-	rrnAC1924	-	hypothetical protein
1711	 65.71	0	1717981..1719030	-	349	55378653	mhpC	rrnAC1925	-	2-hydroxy-6-ketonona-24-dienedioic acid hydrolase
1712	 63.94	0	1719055..1720080	+	341	55378654	trzA2	rrnAC1926	-	N-ethylammeline chlorohydrolase
1713	 68.41	+1	1720116..1720919	-	267	55378655	speB1	rrnAC1927	-	agmatinase
1714	 59.58	0	1720922..1721302	-	126	55378656	eif5A	rrnAC1929	-	translation initiation factor IF-5A
1715	 72.95	+2	1722690..1723055	+	121	55378657	-	rrnAC1930	-	putative CobD/Cbib protein
1716	 72.22	+2	1723346..1723849	+	167	55378658	cobS	rrnAC1931	-	cobalamin-5-phosphate synthase
1717	 66.30	0	1723849..1724388	+	179	55378659	ispD	rrnAC1932	-	4-diphosphocytidyl-2C-methyl-D-erythritol synthase
1718	 69.31	+1	1724453..1725511	+	352	55378660	hisC1	rrnAC1934	-	histidinol-phosphate aminotransferase
1719	 69.83	+1	1725495..1726220	+	241	55378661	-	rrnAC1935	-	hypothetical protein
1720	 67.28	+1	1726290..1726940	+	216	55378662	cobI	rrnAC1936	-	cobalamin adenosyltransferase
1721	 66.33	0	1727311..1728789	+	492	55378663	cobQ	rrnAC1938	-	cobyric acid synthase
1722	 65.36	0	1728850..1729617	+	255	55378664	minD1	rrnAC1939	-	cell division inhibitor
1723	 68.11	+1	1729614..1730168	+	184	55378665	-	rrnAC1940	-	hypothetical protein
1724	 58.55	-1	1730243..1730476	-	77	55378666	-	rrnAC1941	-	hypothetical protein
1725	 60.52	0	1730772..1731584	-	270	55378667	-	rrnAC1942	-	hypothetical protein
1726	 64.92	0	1731653..1733257	-	534	55378668	phrB2	rrnAC1943	-	deoxyribodipyrimidine photolyase
1727	 62.18	0	1733409..1733921	+	170	55378669	-	rrnAC1944	-	hypothetical protein
1728	 63.11	0	1733981..1734514	-	177	55378670	-	rrnAC1945	-	hypothetical protein
1729	 66.67	0	1734511..1734915	-	134	55378671	-	rrnAC1946	-	hypothetical protein
1730	 65.96	0	1734908..1735612	-	234	55378672	-	rrnAC1947	-	hypothetical protein
1731	 63.18	0	1735609..1736010	-	133	55378673	-	rrnAC1948	-	hypothetical protein
1732	 66.13	0	1736770..1738449	-	559	55378674	-	rrnAC1950	-	hypothetical protein
1733	 63.70	0	1738652..1740910	-	752	55378675	gspE1	rrnAC1951	-	type II secretion system protein
1734	 59.54	0	1741089..1741790	+	233	55378676	-	rrnAC1952	-	hypothetical protein
1735	 61.50	0	1741876..1742553	+	225	55378677	-	rrnAC1953	-	DNA binding protein
1736	 63.06	0	1742678..1743454	+	258	55378678	yusZ1	rrnAC1954	-	oxidoreductase
1737	 68.14	+1	1743702..1744922	+	406	55378679	glpA	rrnAC1955	-	glycerol-3-phosphate dehydrogenase subunit A
1738	 61.97	0	1745011..1745862	+	283	55378680	eif2BD2	rrnAC1956	-	translation initiation factor eIF-2B subunit delta
1739	 64.21	0	1745869..1747539	-	556	55378681	malQ	rrnAC1957	-	4-alpha-glucanotransferase
1740	 62.59	0	1747548..1748627	+	359	55378682	lpg1	rrnAC1958	-	LPS glycosyltransferase
1741	 61.82	0	1748642..1748971	-	109	55378683	-	rrnAC1959	-	hypothetical protein
1742	 62.33	0	1749101..1750045	-	314	55378684	graD4b	rrnAC1960	-	glucose-1-phosphate thymidylyltransferase
1743	 66.14	0	1750096..1754637	-	1513	55378685	cga-1	rrnAC1961	-	glucoamylase
1744	 67.62	+1	1754759..1756750	-	663	55378686	malA	rrnAC1962	-	putative alpha-D-14-glucosidase
1745	 64.66	0	1756935..1757183	+	82	55378687	-	rrnAC1963	-	hypothetical protein
1746	 62.09	0	1757669..1758433	-	254	55378688	arcR6	rrnAC1964	-	transcription regulator
62.75	MEAN

4.09	STD DEV
