IslandPath Analysis: Haloarcula marismortui ATCC 43049

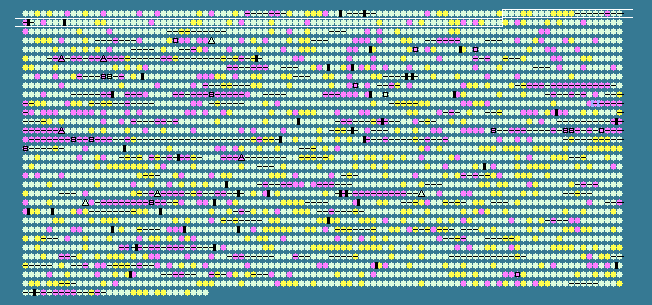

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
81	 61.82	0	74953..75282	+	109	55377023	ferB	rrnAC0089	-	ferredoxin
82	 61.75	0	75487..76341	+	284	55377024	etfB2	rrnAC0090	-	electron transfer flavoprotein beta subunit
83	 62.28	0	76344..78008	+	554	55377025	etfA1	rrnAC0091	-	electron transfer flavoprotein alpha subunit
84	 67.39	+1	78001..79662	+	553	55377026	ydiS	rrnAC0094	-	flavoprotein
85	 66.94	+1	79674..80033	+	119	55377027	-	rrnAC0095	-	hypothetical protein
86	 62.30	0	80102..80833	+	243	55377028	hat-1	rrnAC0096	-	acetyl transferase
87	 64.21	0	80830..81804	-	324	55377029	mer3	rrnAC0097	-	N5N10-methylenetetrahydromethanopterin reductase
88	 62.73	0	81880..83481	-	533	55377030	alkK1	rrnAC0098	-	medium-chain acyl-CoA ligase
89	 67.88	+1	83605..83769	-	54	55377031	-	rrnAC0099	-	hypothetical protein
90	 67.47	+1	83766..84263	-	165	55377032	-	rrnAC0100	-	hypothetical protein
91	 68.64	+1	84260..86587	-	775	55377034	-	rrnAC0101	-	hypothetical protein
92	 69.53	+1	86586..87599	+	337	55377033	npd	rrnAC0102	-	2-nitropropane dioxygenase-related protein
93	 63.36	0	87813..88175	+	120	55377035	rpl7ae	rrnAC0103	-	50S ribosomal protein L7Ae
94	 65.81	0	88417..88767	+	116	55377036	rpl24E	rrnAC0104	-	50S ribosomal protein L24e
95	 63.23	0	88767..89231	+	154	55377037	ndk	rrnAC0106	-	nucleoside diphosphate kinase
96	 62.79	0	89297..89554	+	85	55377038	-	rrnAC0107	-	glutaredoxin-like
97	 62.41	0	89527..89667	-	46	55377039	-	rrnAC0108	-	hypothetical protein
98	 59.01	0	90289..90693	-	134	55377040	msrB	rrnAC0109	-	peptide methionine sulfoxide reductase msrB
99	 60.19	0	90823..92505	-	560	55377041	betA	rrnAC0110	-	GMC family oxidoreductase
100	 59.81	0	92502..93128	-	208	55377042	-	rrnAC0111	-	hypothetical protein
101	 58.62	-1	93088..94032	-	314	55377043	-	rrnAC0112	-	hypothetical protein
102	 59.28	0	94378..94824	-	148	55377044	pai1	rrnAC0113	-	sporulation regulator-like
103	 60.51	0	94928..95512	-	194	55377045	guaB5	rrnAC0114	-	inosine-5'-monophosphate dehydrogenase related protein V
104	 58.64	-1	95571..96479	-	302	55377046	-	rrnAC0115	-	GTP cyclohydrolase III
105	 61.06	0	96454..96792	-	112	55377047	-	rrnAC0116	-	hypothetical protein
106	 61.00	0	96848..97147	-	99	55377048	-	rrnAC0117	-	hypothetical protein
107	 60.59	0	97193..98575	-	460	55377049	-	rrnAC0119	-	hypothetical protein
108	 62.95	0	99064..99816	-	250	55377050	-	rrnAC0120	-	hypothetical protein
109	 64.27	0	99917..100459	+	180	55377051	-	rrnAC0121	-	hypothetical protein
110	 62.04	0	100460..101086	-	208	55377052	udg2	rrnAC0123	-	uracil DNA glycosylase superfamily protein
111	 65.08	0	101088..102287	-	399	55377053	aroC	rrnAC0124	-	chorismate synthase
112	 62.55	0	102336..102578	-	80	55377054	-	rrnAC0126	-	hypothetical protein
113	 67.29	+1	102834..104123	-	429	55377055	aroA	rrnAC0127	-	3-phosphoshikimate 1-carboxyvinyltransferase
114	 66.67	0	104218..104922	+	234	55377056	sdr	rrnAC0128	-	short chain dehydrogenase
115	 65.63	0	104968..105834	+	288	55377057	zip	rrnAC0129	-	zinc transporter
116	 60.09	0	105849..107246	-	465	55377058	htl	rrnAC0130	-	signal-transducing histidine kinase-like
117	 61.77	0	107253..108743	-	496	55377059	-	rrnAC0131	-	RecA/helicase-like
118	 63.33	0	109004..110293	-	429	55377060	-	rrnAC0132	-	lysine-ketoglutarate reductase/saccharopine dehydrogenase
119	 65.63	0	110356..110742	-	128	55377061	-	rrnAC0133	-	hypothetical protein
120	 63.70	0	110908..112557	+	549	55377062	ilvB1	rrnAC0134	-	acetolactate synthase large subunit
121	 62.11	0	112592..113293	+	233	55377063	-	rrnAC0135	-	hypothetical protein
122	 57.94	-1	113302..113427	-	41	55377064	-	rrnAC0136	-	hypothetical protein
123	 65.66	0	113484..114476	+	330	55377065	cysK2	rrnAC0137	-	cysteine synthase
124	 64.22	0	114511..115122	-	203	55377066	eif2B1	rrnAC0138	-	translation initiation factor IF-2 subunit beta
125	 61.68	0	115220..115600	+	126	55377067	-	rrnAC0139	-	hypothetical protein
126	 64.31	0	115611..116330	+	239	55377068	-	rrnAC0140	-	hypothetical protein
127	 66.06	0	116463..118286	-	607	55377069	sdhA2	rrnAC0141	-	succinate dehydrogenase flavoprotein subunit
128	 63.89	0	118418..119893	-	491	55377070	nhaC2	rrnAC0143	-	Na+/H+ antiporter
129	 67.62	+1	120096..120938	-	280	55377071	potA3	rrnAC0145	-	spermidine/putrescine ABC transporter ATP-binding protein
130	 66.78	0	121246..123054	-	602	55377072	cysT2	rrnAC0146	-	sulfate transport system permease protein
131	 64.44	0	123115..124239	-	374	55377073	tppA	rrnAC0147	-	thiamine-binding periplasmic protein precursor-like
132	 63.31	0	124304..124720	-	138	55377074	-	rrnAC0148	-	hypothetical protein
133	 63.79	0	124819..125931	+	370	55377075	pdhA1	rrnAC0149	-	pyruvate dehydrogenase E1 component alpha subunit
134	 63.81	0	126250..126774	-	174	55377076	-	rrnAC0150	-	hypothetical protein
135	 67.32	+1	126829..128196	+	455	55377077	-	rrnAC0151	-	hypothetical protein
136	 63.05	0	128785..129033	-	82	55377078	-	rrnAC0153	-	hypothetical protein
137	 58.97	0	129044..129199	-	51	55377079	-	rrnAC0154	-	hypothetical protein
138	 63.17	0	129273..131189	-	638	55377080	epf2b	rrnAC0155	-	mRNA 3'-end processing factor-like
139	 62.11	0	131455..131937	+	160	55377081	-	rrnAC0157	-	hypothetical protein
140	 64.54	0	132661..133740	-	359	55377082	-	rrnAC0158	-	hypothetical protein
141	 63.27	0	133799..134386	-	195	55377083	-	rrnAC0159	-	hypothetical protein
142	 66.96	+1	134479..135162	-	227	55377084	-	rrnAC0160	-	hypothetical protein
143	 62.70	0	135237..135740	-	167	55377085	-	rrnAC0161	-	putative transcriptional regulator
144	 62.33	0	136046..136876	+	276	55377086	-	rrnAC0163	-	hypothetical protein
145	 63.87	0	136971..137756	+	261	55377087	-	rrnAC0165	-	hypothetical protein
146	 63.78	0	137879..139333	+	484	55377088	proS	rrnAC0166	-	prolyl-tRNA synthetase
147	 64.05	0	139491..140447	-	318	55377089	-	rrnAC0167	-	putative patatin-like phospholipase
148	 56.41	-1	140905..141333	+	142	55377090	-	rrnAC0168	-	hypothetical protein
149	 64.07	0	141488..146035	+	1515	55377091	gltB	rrnAC0169	-	glutamate synthase large subunit
150	 60.91	0	146216..147187	+	323	55377092	-	rrnAC0170	-	hypothetical protein
151	 65.83	0	147255..148334	+	359	55377093	-	rrnAC0171	-	hypothetical protein
152	 63.40	0	148338..149408	-	356	55377094	-	rrnAC0172	-	transcription regulator
153	 64.76	0	149592..152156	-	854	55377095	bglX-1	rrnAC0173	-	beta-glucosidase
154	 65.72	0	152308..153366	+	352	55377096	gldA	rrnAC0175	-	glycerol-1-phosphate dehydrogenase [NAD(P)]
155	 65.96	0	153363..153926	-	187	55377097	-	rrnAC0176	-	hypothetical protein
156	 65.97	0	153999..155723	-	574	55377098	pop	rrnAC0178	-	prolyl oligopeptidase family protein
157	 64.21	0	155890..156948	+	352	55377099	rfbU	rrnAC0179	-	LPS biosynthesis protein
158	 64.11	0	156997..159150	-	717	55377100	nhaC5	rrnAC0180	-	Na+/H+ antiporter
159	 65.68	0	159292..160704	+	470	55377101	rad25-1	rrnAC0181	-	DNA repair helicase
160	 67.82	+1	160717..161325	-	202	55377102	ubiE2	rrnAC0182	-	ubiquinone/menaquinone biosynthesis methyltransferase UbiE
161	 59.37	0	161427..162920	-	497	55377103	htr	rrnAC0183	-	heme-based aerotactic transducer HemAT
162	 66.05	0	163058..165502	-	814	55377104	folP	rrnAC0184	-	dihydropteroate synthase
163	 65.55	0	165617..166333	-	238	55377105	-	rrnAC0185	-	hypothetical protein
164	 61.90	0	166949..167935	-	328	55377106	-	rrnAC0187	-	putative transporter
165	 53.76	-2	167925..168017	-	30	55377107	-	rrnAC0188	-	hypothetical protein
166	 64.20	0	168089..169669	-	526	55377108	purH	rrnAC0189	-	bifunctional purine biosynthesis protein PurH
167	 67.03	+1	169815..170369	+	184	55377109	-	rrnAC0190	-	hypothetical protein
168	 62.73	0	170616..171683	+	355	55377110	adh3	rrnAC0191	-	zinc-binding dehydrogenase
169	 64.50	0	171814..173196	+	460	55377111	purB	rrnAC0192	-	adenylosuccinate lyase
170	 64.91	0	173290..174597	+	435	55377112	yfmO2	rrnAC0194	-	multidrug resistance protein-like
171	 64.03	0	174690..175334	+	214	55377113	-	rrnAC0195	-	hypothetical protein
172	 66.49	0	175360..176487	-	375	55377114	argE	rrnAC0196	-	succinyl-diaminopimelate desuccinylase
173	 68.20	+1	176487..177791	-	434	55377115	odc	rrnAC0198	-	ornithine decarboxylase
174	 57.73	-1	177927..178463	-	178	55377116	-	rrnAC0199	-	putative transcriptional regulator
175	 64.49	0	178528..178803	-	91	55377117	-	rrnAC0200	-	hypothetical protein
176	 57.96	-1	178901..180427	-	508	55377118	aldY2	rrnAC0201	-	aldehyde dehydrogenase
177	 69.16	+1	180912..182033	+	373	55377119	-	rrnAC0202	-	hypothetical protein
178	 65.37	0	182062..182679	-	205	55377120	-	rrnAC0203	-	hypothetical protein
179	 65.22	0	182873..183703	-	276	55377122	dapD	rrnAC0204	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
180	 62.77	0	183702..187136	+	1144	55377121	aglA2	rrnAC0205	-	alpha-glucosidase
62.75	MEAN

4.09	STD DEV
