IslandPath Analysis: Haloarcula marismortui ATCC 43049

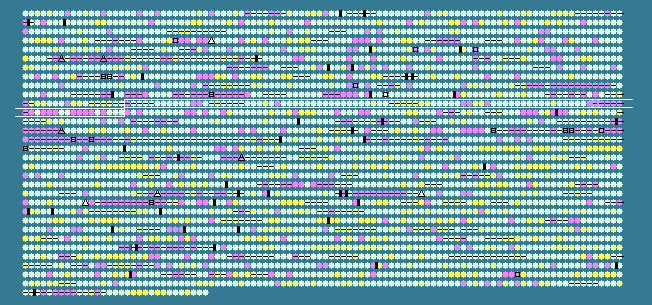

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.75 STD DEV: 4.09
Haloarcula marismortui ATCC 43049 chromosome I, complete sequence - 1..3131724
3131 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1018	 58.12	-1	1029078..1029650	+	190	55377960	coxB2	rrnAC1153	-	cytochrome c oxidase subunit II
1019	 62.34	0	1029650..1031338	+	562	55377961	coxA3	rrnAC1154	-	cytochrome c oxidase polypeptide I
1020	 62.30	0	1031362..1031910	+	182	55377962	-	rrnAC1155	-	hypothetical protein
1021	 63.44	0	1031916..1033187	-	423	55377963	-	rrnAC1156	-	hypothetical protein
1022	 62.26	0	1033228..1034361	-	377	55377964	-	rrnAC1157	-	DNA-binding protein
1023	 62.12	0	1034422..1035630	-	402	55377965	-	rrnAC1158	-	protein phosphatase 2C like phosphatase
1024	 60.29	0	1035627..1036865	-	412	55377966	pknA1	rrnAC1159	-	serine/threonine-protein kinase PknA
1025	 63.12	0	1036922..1038106	-	394	55377967	-	rrnAC1160	-	von Willebrand factor type A like metal binding protein
1026	 64.23	0	1038228..1038842	-	204	55377968	-	rrnAC1161	-	hypothetical protein
1027	 62.54	0	1038832..1039947	-	371	55377969	-	rrnAC1162	-	hypothetical protein
1028	 63.22	0	1040044..1040682	-	212	55377970	estA	rrnAC1163	-	phospholipase/carboxylesterase
1029	 54.43	-2	1041238..1041474	+	78	55377971	-	rrnAC1164	-	hypothetical protein
1030	 57.81	-1	1041611..1042084	-	157	55377972	-	rrnAC1165	-	hypothetical protein
1031	 61.94	0	1042335..1043243	+	302	55377973	ogg	rrnAC1166	-	8-oxoguanine DNA glycosylase
1032	 63.04	0	1043297..1043572	+	91	55377974	acyP	rrnAC1167	-	acylphosphatase
1033	 68.54	+1	1043619..1045061	+	480	55377975	-	rrnAC1168	-	hypothetical protein
1034	 63.44	0	1045069..1045935	-	288	55377976	hflX	rrnAC1169	-	GTP-binding protein HflX
1035	 62.23	0	1046564..1048837	-	757	55377977	katG2	rrnAC1171	-	peroxidase/catalase HPI
1036	 62.93	0	1048964..1049311	+	115	55377978	-	rrnAC1172	-	hypothetical protein
1037	 61.04	0	1049327..1050055	-	242	55377979	-	rrnAC1173	-	putative RNA-associated protein
1038	 65.77	0	1050143..1050925	-	260	55377980	psmA4	rrnAC1174	-	proteasome subunit alpha
1039	 64.20	0	1050928..1051413	-	161	55377981	rpp14	rrnAC1175	-	RNaseP subunit 14
1040	 60.99	0	1051524..1051946	-	140	55377982	-	rrnAC1176	-	hypothetical protein
1041	 66.53	0	1052092..1052799	-	235	55377983	rnp30	rrnAC1177	-	ribonuclease P subunit p30
1042	 62.91	0	1052799..1053224	-	141	55377984	-	rrnAC1178	-	hypothetical protein
1043	 59.14	0	1053232..1053417	-	61	55377985	-	rrnAC1179	-	hypothetical protein
1044	 63.86	0	1054055..1054624	+	189	55377986	mutT1	rrnAC1180	-	Mut/nudix family protein
1045	 65.70	0	1054644..1055468	-	274	55377987	-	rrnAC1181	-	hypothetical protein
1046	 63.76	0	1055766..1057208	-	480	55377988	thiC	rrnAC1182	-	thiamine biosynthesis protein ThiC
1047	 63.83	0	1057326..1058207	+	293	55377989	-	rrnAC1183	-	hypothetical protein
1048	 65.67	0	1058182..1058982	+	266	55377990	cysT1	rrnAC1184	-	sulfate transport system permease protein
1049	 64.13	0	1059014..1059841	-	275	55377991	moaE	rrnAC1186	-	molybdenum cofactor biosynthesis protein
1050	 61.39	0	1059915..1060388	-	157	55377992	moaC	rrnAC1187	-	putative molybdenum cofactor biosynthesis protein C
1051	 66.19	0	1060433..1061068	-	211	55377993	moaB1	rrnAC1188	-	molybdenum cofactor biosynthesis protein B
1052	 62.18	0	1061176..1061688	-	170	55377994	-	rrnAC1189	-	hypothetical protein
1053	 59.43	0	1061828..1062145	-	105	55377995	-	rrnAC1190	-	hypothetical protein
1054	 61.86	0	1062201..1062866	-	221	55377996	-	rrnAC1191	-	metal-dependent phosphohydrolase
1055	 62.27	0	1062952..1063611	-	219	55377997	boa	rrnAC1193	-	bacterio-opsin activator-like protein
1056	 64.24	0	1063791..1064366	+	191	55377998	-	rrnAC1194	-	hypothetical protein
1057	 65.91	0	1064363..1065019	+	218	55377999	petA	rrnAC1195	-	putative Rieske iron-sulfur protein
1058	 65.59	0	1065019..1066413	+	464	55378000	petB2	rrnAC1196	-	cytochrome B6
1059	 66.67	0	1066410..1066592	+	60	55378001	-	rrnAC1197	-	hypothetical protein
1060	 64.64	0	1066585..1069443	+	952	55378002	narG	rrnAC1199	-	nitrate reductase alpha chain
1061	 64.35	0	1069440..1070516	+	358	55378003	narH	rrnAC1200	-	nitrate reductase beta chain
1062	 64.47	0	1070509..1070736	+	75	55378004	-	rrnAC1202	-	hypothetical protein
1063	 69.18	+1	1070729..1071562	+	277	55378005	-	rrnAC1203	-	hypothetical protein
1064	 66.37	0	1071562..1072242	+	226	55378006	narJ	rrnAC1204	-	chaperone protein
1065	 73.47	+2	1072239..1073090	+	283	55378007	-	rrnAC1205	-	putative ABC-type phosphate transport system permease component
1066	 69.60	+1	1073087..1073938	+	283	55378008	prp	rrnAC1206	-	protein phosphatase
1067	 68.28	+1	1073941..1075179	+	412	55378009	mrp2	rrnAC1208	-	Mrp protein
1068	 66.67	0	1075373..1075984	+	203	55378010	-	rrnAC1209	-	hypothetical protein
1069	 61.85	0	1075992..1077029	-	345	55378011	rbnBN1	rrnAC1210	-	ribonuclease BN-like
1070	 62.07	0	1077252..1077839	-	195	55378012	-	rrnAC1211	-	hypothetical protein
1071	 62.27	0	1077836..1079131	-	431	55378013	moz	rrnAC1213	-	molybdopterin oxidoreductase
1072	 62.33	0	1079131..1079961	-	276	55378014	hmoA	rrnAC1214	-	molybdopterin oxidoreductase
1073	 61.98	0	1079964..1082459	-	831	55378015	dmsA	rrnAC1215	-	dimethylsulfoxide reductase
1074	 57.61	-1	1082452..1082694	-	80	55378016	-	rrnAC1216	-	hypothetical protein
1075	 58.06	-1	1082947..1083585	-	212	55378017	-	rrnAC1217	-	transcription regulator
1076	 67.00	+1	1083795..1085615	+	606	55378018	-	rrnAC1218	-	hypothetical protein
1077	 67.17	+1	1085615..1087981	+	788	55378019	-	rrnAC1219	-	hypothetical protein
1078	 56.60	-1	1088035..1088640	+	201	55378020	-	rrnAC1220	-	hypothetical protein
1079	 64.47	0	1088640..1089593	+	317	55378021	-	rrnAC1221	-	hypothetical protein
1080	 63.80	0	1089590..1090531	+	313	55378022	moxR4	rrnAC1222	-	methanol dehydrogenase regulatory protein
1081	 63.49	0	1090572..1091453	+	293	55378023	-	rrnAC1223	-	hypothetical protein
1082	 61.32	0	1091475..1091942	-	155	55378024	pyrI	rrnAC1224	-	aspartate carbamoyltransferase regulatory subunit
1083	 64.37	0	1091939..1092853	-	304	55378025	pyrB	rrnAC1225	-	aspartate carbamoyltransferase catalytic subunit
1084	 63.13	0	1093012..1094169	-	385	55378026	-	rrnAC1226	-	hypothetical protein
1085	 65.55	0	1094363..1094989	+	208	55378027	minD2	rrnAC1227	-	cell division inhibitor MinD-like
1086	 62.38	0	1095018..1095647	+	209	55378028	-	rrnAC1228	-	hypothetical protein
1087	 64.18	0	1095650..1095850	-	66	55378029	-	rrnAC1229	-	hypothetical protein
1088	 61.80	0	1096017..1096961	-	314	55378030	slyD	rrnAC1230	-	peptidyl-prolyl cis-trans isomerase
1089	 67.15	+1	1097041..1098069	-	342	55378031	ilvA1	rrnAC1231	-	threonine dehydratase
1090	 60.22	0	1098150..1098692	+	180	55378032	cytH	rrnAC1232	-	adenylate cyclase
1091	 60.68	0	1098752..1099954	+	400	55378033	metK	rrnAC1233	-	S-adenosylmethionine synthetase
1092	 63.55	0	1100002..1101189	+	395	55378034	thiI	rrnAC1234	-	thiamine biosynthesis protein ThiI
1093	 62.04	0	1101217..1101756	+	179	55378035	-	rrnAC1235	-	hypothetical protein
1094	 62.28	0	1101790..1102701	-	303	55378036	cysK1	rrnAC1236	-	cysteine synthase
1095	 56.19	-1	1102802..1103221	-	139	55378037	nikR	rrnAC1238	-	putative nickel responsive regulator
1096	 51.04	-2	1107450..1107545	+	31	55378038	-	rrnAC1240	-	hypothetical protein
1097	 58.33	-1	1109077..1109340	-	87	55378039	eif1A2	rrnAC1241	-	translation initiation factor IF-1A
1098	 55.27	-1	1109527..1109763	-	78	55378040	-	rrnAC1242	-	hypothetical protein
1099	 47.46	-2	1110044..1110220	+	58	55378041	-	rrnAC1243	-	hypothetical protein
1100	 57.58	-1	1110480..1111040	-	186	55378042	-	rrnAC1244	-	hypothetical protein
1101	 58.28	-1	1111037..1111501	-	154	55378043	-	rrnAC1245	-	hypothetical protein
1102	 58.59	-1	1111498..1112388	-	296	55378044	-	rrnAC1246	-	hypothetical protein
1103	 61.55	0	1112382..1112948	-	188	55378045	-	rrnAC1247	-	hypothetical protein
1104	 58.10	-1	1112951..1113487	-	178	55378046	-	rrnAC1248	-	hypothetical protein
1105	 58.76	0	1113545..1115581	-	678	55378047	-	rrnAC1249	-	hypothetical protein
1106	 56.44	-1	1115578..1118070	-	830	55378048	gspE2	rrnAC1250	-	type II secretion system protein
1107	 62.91	0	1118208..1119353	-	381	55378049	aspB1	rrnAC1251	-	aspartate aminotransferase
1108	 59.80	0	1119350..1119844	-	164	55378050	lrp	rrnAC1252	-	leucine responsive regulatory protein
1109	 56.61	-1	1119917..1120294	+	125	55378051	-	rrnAC1253	-	hypothetical protein
1110	 59.05	0	1120368..1120958	+	196	55378052	-	rrnAC1254	-	hypothetical protein
1111	 49.69	-2	1121202..1121360	-	52	55378053	-	rrnAC1255	-	hypothetical protein
1112	 59.11	0	1121498..1122595	+	365	55378054	-	rrnAC1256	-	hypothetical protein
1113	 63.98	0	1122646..1123314	+	222	55378055	-	rrnAC1257	-	caffeoyl-CoA O-methyltransferase
1114	 55.89	-1	1123415..1124017	+	200	55378056	cheC2	rrnAC1258	-	chemotaxis protein CheC
1115	 61.46	0	1124120..1125772	+	550	55378057	alkK2	rrnAC1259	-	medium-chain-fatty-acid-CoA ligase
1116	 61.11	0	1125806..1126579	-	257	55378058	-	rrnAC1260	-	hypothetical protein
1117	 62.27	0	1126679..1127860	+	393	55378059	acdD	rrnAC1261	-	acyl-CoA dehydrogenase
62.75	MEAN

4.09	STD DEV
