IslandPath Analysis: Haemophilus influenzae 86-028NP

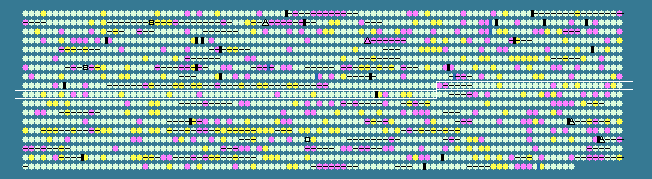

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.35   STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
870	 34.42	-1	942711..943445	+	244	68249420	-	NTHI0990	-	hypothetical protein
871	 34.05	-1	943451..944008	+	185	68249421	ispZ	NTHI0991	-	intracellular septation protein A
872	 41.29	0	944008..944472	+	154	68249422	-	NTHI0992	-	putative acyl-CoA thioester hydrolase
873	 40.74	0	944489..944785	+	98	68249423	-	NTHI0994	-	YciI-like protein
874	 35.47	0	944801..946582	+	593	68249424	slt	NTHI0995	-	putative soluble lytic murein transglycosylase
875	 35.95	0	946620..946925	+	101	68249425	trpR	NTHI0996	-	Trp operon repressor
876	 35.49	0	946912..947652	+	246	161761275	mtgA	NTHI0997	-	monofunctional biosynthetic peptidoglycan transglycosylase
877	 38.26	0	947758..948102	-	114	68249427	frdD	NTHI0998	-	fumarate reductase subunit D
878	 36.01	0	948115..948525	-	136	68249428	frdC	NTHI0999	-	fumarate reductase subunit C
879	 39.43	0	948536..949306	-	256	68249429	frdB	NTHI1000	-	fumarate reductase iron-sulfur subunit
880	 42.22	+1	949299..951098	-	599	68249430	frdA	NTHI1002	-	fumarate reductase flavoprotein subunit
881	 39.20	0	951309..952280	+	323	161761274	genX	NTHI1003	-	lysyl-tRNA synthetase
882	 35.23	0	952546..953229	-	227	68249432	cpxR	NTHI1004	-	transcriptional regulatory protein CpxR
883	 38.16	0	953283..953696	-	137	68249433	smpA	NTHI1005	-	small protein A
884	 35.09	0	953762..954787	-	341	68249434	ndpA	NTHI1006	-	nucleoid-associated protein NdpA
885	 36.99	0	954904..955122	+	72	68249435	-	NTHI1007	-	hypothetical protein
886	 36.69	0	955124..956881	+	585	68249436	-	NTHI1008	-	hydrolase of alkaline phosphatase superfamily
887	 39.58	0	957079..958071	+	330	68249437	-	NTHI1009	-	hypothetical protein
888	 36.27	0	958210..958788	-	192	68249438	mobA	NTHI1010	-	molybdopterin-guanine dinucleotide biosynthesis protein A
889	 31.09	-2	958853..959119	+	88	68249439	-	NTHI1011	-	hypothetical protein
890	 35.60	0	959130..959747	+	205	68249440	dsbA	NTHI1012	-	thiol:disulfide interchange protein DsbA
891	 42.86	+1	959809..960144	+	111	68249441	-	NTHI1013	-	hypothetical protein
892	 38.46	0	960288..961379	+	363	68249442	trmA	NTHI1014	-	tRNA (uracil-5-)-methyltransferase
893	 42.50	+1	961568..962134	+	188	68249443	-	NTHI1015	-	hypothetical protein
894	 36.55	0	962128..962562	+	144	68249444	-	NTHI1016	-	positive regulator of sigma E
895	 39.11	0	962963..963499	+	178	68249445	mobB	NTHI1019	-	molybdopterin-guanine dinucleotide biosynthesis protein B
896	 39.08	0	963496..964887	+	463	68249446	-	NTHI1020	-	hypothetical protein
897	 37.58	0	965028..966677	+	549	68249447	hbpA	NTHI1021	-	heme-binding protein A
898	 33.46	-1	966853..967614	+	253	68249448	-	NTHI1022	-	putative heme iron utilization protein
899	 41.95	+1	967751..968098	-	115	68249449	-	NTHI1023	-	hypothetical protein
900	 40.53	0	968113..970905	-	930	68249450	polA	NTHI1024	-	DNA polymerase I
901	 34.98	0	971054..971356	+	100	68249451	-	NTHI1025	-	hypothetical protein
902	 37.06	0	971679..972242	+	187	68249452	-	NTHI1027	-	5-formyltetrahydrofolate cyclo-ligase
903	 41.70	0	972370..974940	+	856	68249453	clpB	NTHI1028	-	ClpB
904	 43.72	+1	974978..975718	-	246	68249454	-	NTHI1029	-	23S rRNA (guanosine-2'-O-)-methyltransferase
905	 40.78	0	975774..978122	-	782	68249455	vacB	NTHI1030	-	ribonuclease R
906	 40.25	0	978314..979021	-	235	68249456	-	NTHI1031	-	hypothetical protein
907	 42.34	+1	979214..979846	+	210	161761273	pdxH	NTHI1032	-	pyridoxamine 5'-phosphate oxidase
908	 40.41	0	979933..981783	-	616	68249458	typA	NTHI1033	-	GTP-binding protein TypA/ BipA
909	 27.62	-2	981910..982890	-	326	68249459	lic3A2	NTHI1034	-	CMP-neu5Ac--lipooligosaccharide alpha 2-3 sialyltransferase
910	 38.78	0	983047..984459	+	470	68249460	glnA	NTHI1036	-	glutamine synthetase
911	 34.67	-1	984546..985589	+	347	68249461	rmlB	NTHI1037	-	dTDP-glucose 4,6-dehydratase
912	 38.54	0	985666..986970	+	434	68249462	pepB	NTHI1038	-	aminopeptidase B
913	 36.15	0	986977..987402	+	141	68249463	ndk	NTHI1039	-	nucleoside diphosphate kinase
914	 41.26	0	987472..988644	-	390	68249464	obgE	NTHI1040	-	GTPase ObgE
915	 35.50	0	988672..989592	-	306	68249465	-	NTHI1041	-	putative transport protein
916	 41.47	0	989672..989929	-	85	68249466	rpmA	NTHI1042	-	50S ribosomal protein L27
917	 43.59	+1	989950..990261	-	103	68249467	rplU	NTHI1043	-	50S ribosomal protein L21
918	 40.61	0	990474..991463	+	329	68249468	ispB	NTHI1044	-	octaprenyl-diphosphate synthase
919	 37.94	0	991514..992251	+	245	68249469	-	NTHI1045	-	hypothetical protein
920	 39.97	0	992311..993681	-	456	68249470	-	NTHI1046	-	putative Na+/alanine symporter
921	 36.15	0	994081..994791	-	236	68249471	arcA	NTHI1047	-	two-component response regulator
922	 37.93	0	994983..996722	+	579	68249472	dipZ	NTHI1048	-	thiol:disulfide interchange protein precursor
923	 37.04	0	996839..997243	+	134	68249473	-	NTHI1049	-	hypothetical protein
924	 41.34	0	997432..999030	+	532	68249474	purH	NTHI1051	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
925	 44.57	+1	999126..1000415	+	429	68249475	purD	NTHI1052	-	phosphoribosylamine--glycine ligase
926	 39.81	0	1002261..1003526	+	421	68249476	glyA	NTHI1054	-	serine hydroxymethyltransferase
927	 38.55	0	1003585..1004217	+	210	68249477	coaE	NTHI1055	-	dephospho-CoA kinase
928	 41.55	0	1004210..1004416	+	68	68249478	-	NTHI1056	-	zinc-binding protein
929	 40.49	0	1004525..1005781	+	418	68249479	rhlB	NTHI1057	-	ATP-dependent RNA helicase RhlB
930	 33.16	-1	1006023..1006586	+	187	68249480	-	NTHI1058	-	transcriptional regulator
931	 38.93	0	1006618..1007814	+	398	68249481	-	NTHI1059	-	putative membrane-fusion protein
932	 38.82	0	1007814..1010912	+	1032	68249482	-	NTHI1060	-	cation/multidrug efflux pump
933	 36.52	0	1011447..1011917	+	156	68249483	-	NTHI1061	-	cell division protein
934	 39.33	0	1011930..1013462	-	510	68249484	emrB	NTHI1062	-	multidrug resistance protein
935	 38.28	0	1013472..1014644	-	390	68249485	emrA	NTHI1063	-	multidrug resistance protein A
936	 36.85	0	1014817..1015299	-	160	68249486	folA	NTHI1065	-	dihydrofolate reductase
937	 38.48	0	1015401..1016507	+	368	68249487	proB	NTHI1066	-	gamma-glutamyl kinase
938	 39.42	0	1016588..1017178	+	196	68249488	nudH	NTHI1068	-	dinucleoside polyphosphate hydrolase
939	 39.50	0	1017178..1017972	+	264	68249489	-	NTHI1069	-	permease
940	 39.90	0	1017981..1018787	+	268	68249490	lgt	NTHI1071	-	prolipoprotein diacylglyceryl transferase
941	 40.61	0	1018797..1019648	+	283	68249491	thyA	NTHI1072	-	thymidylate synthase
942	 40.42	0	1019648..1020169	+	173	68249492	-	NTHI1073	-	hypothetical protein
943	 33.33	-1	1020197..1020511	-	104	68249493	-	NTHI1074	-	hypothetical protein
944	 38.46	0	1020582..1020893	+	103	68249494	-	NTHI1075	-	hypothetical protein
945	 40.58	0	1021018..1023723	+	901	68249495	secA	NTHI1076	-	preprotein translocase subunit SecA
946	 38.44	0	1023788..1024198	+	136	68249496	mutT	NTHI1077	-	mutator protein MutT
947	 37.75	0	1024307..1026163	+	618	68249497	kefB	NTHI1078	-	glutathione-regulated potassium-efflux system protein
948	 35.56	0	1026264..1027028	+	254	68249498	-	NTHI1079	-	hypothetical protein
949	 42.05	+1	1027206..1027928	+	240	161761272	rpsB	NTHI1080	-	30S ribosomal protein S2
950	 40.02	0	1028062..1028913	+	283	68249500	tsf	NTHI1081	-	elongation factor Ts
951	 39.08	0	1029093..1030118	-	341	68249501	lpxD	NTHI1082	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
952	 35.19	0	1030131..1030724	-	197	68249502	omp26	NTHI1083	-	Outer membrane protein 26
953	 37.25	0	1030832..1033234	-	800	68249503	-	NTHI1084	-	protective surface antigen D15
954	 35.74	0	1033254..1034585	-	443	68249504	-	NTHI1085	-	zinc metalloprotease
955	 37.95	0	1034595..1035461	-	288	68249505	cdsA	NTHI1087	-	phosphatidate cytidylyltransferase
956	 37.50	0	1035479..1036198	-	239	68249506	uppS	NTHI1088	-	undecaprenyl pyrophosphate synthetase
957	 41.53	0	1036447..1039032	+	861	68249507	leuS	NTHI1090	-	leucyl-tRNA synthetase
958	 35.70	0	1039082..1039630	+	182	68249508	-	NTHI1091	-	lipoprotein
959	 36.04	0	1039630..1040664	+	344	68249509	holA	NTHI1092	-	DNA polymerase III subunit delta
960	 44.08	+1	1040898..1043066	-	722	68249510	glyS	NTHI1093	-	glycyl-tRNA synthetase subunit beta
961	 28.30	-2	1043112..1043528	-	138	68249511	-	NTHI1094	-	hypothetical protein
962	 35.52	0	1043668..1044033	-	121	68249512	-	NTHI1095	-	hypothetical protein
963	 37.16	0	1044063..1044323	-	86	68249513	-	NTHI1097	-	glutaredoxin-related protein
964	 43.23	+1	1044382..1045290	-	302	68249514	glyQ	NTHI1098	-	glycyl-tRNA synthetase subunit alpha
965	 42.76	+1	1045553..1047079	+	508	68249515	hktE	NTHI1099	-	catalase
966	 37.23	0	1047311..1048492	-	393	68249516	-	NTHI1100	-	hypothetical protein
967	 41.24	0	1048493..1049074	-	193	68249517	-	NTHI1101	-	hypothetical protein
968	 37.53	0	1049087..1049539	-	150	68249518	-	NTHI1102	-	hypothetical protein
969	 41.11	0	1049590..1050900	-	436	68249519	eno	NTHI1103	-	phosphopyruvate hydratase
38.35	MEAN

3.58	STD DEV
