IslandPath Analysis: Haemophilus influenzae 86-028NP

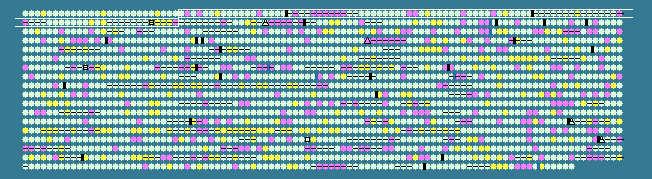

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.35   STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
27	 38.34	0	29231..29869	-	212	68248578	lipB	NTHI0034	-	lipoyltransferase
28	 32.26	-1	29871..30149	-	92	68248579	-	NTHI0035	-	hypothetical protein
29	 35.36	0	30205..31386	-	393	68248580	dacA	NTHI0036	-	penicillin-binding protein 5 precursor
30	 34.72	-1	31402..32265	-	287	68248581	rlpA	NTHI0037	-	RlpA-like protein
31	 38.53	0	32318..33433	-	371	68248582	mrdB	NTHI0038	-	rod shape-determining protein
32	 38.70	0	33423..35378	-	651	68248583	mrdA	NTHI0039	-	penicillin-binding protein 2
33	 44.44	+1	35400..35867	-	155	68248584	-	NTHI0041	-	SPOUT methyltransferase superfamily protein
34	 37.54	0	35921..36229	-	102	68248585	-	NTHI0042	-	hypothetical protein
35	 41.61	0	36354..38009	-	551	68248586	-	NTHI0043	-	hypothetical protein
36	 36.99	0	38215..39993	+	592	68248587	-	NTHI0044	-	ABC transporter ATP-binding protein
37	 39.84	0	40042..41178	+	378	68248588	mreB	NTHI0045	-	rod shape-determining protein MreB
38	 37.50	0	41258..42313	+	351	68248589	mreC	NTHI0046	-	rod shape-determining protein MreC
39	 34.97	0	42313..42801	+	162	68248590	mreD	NTHI0047	-	rod shape-determining protein MreD
40	 32.05	-1	42852..43628	-	258	68248591	-	NTHI0048	-	hypothetical protein
41	 36.82	0	43638..44441	-	267	68248592	xthA	NTHI0049	-	exonuclease III
42	 35.41	0	44489..45163	-	224	68248593	rluA2	NTHI0050	-	putative pseudouridine synthase
43	 36.15	0	45163..46227	-	354	68248594	-	NTHI0051	-	hypothetical protein
44	 36.05	0	46287..46949	-	220	68248595	-	NTHI0052	-	FtsH-interacting integral membrane protein
45	 36.58	0	47276..47830	-	184	68248596	-	NTHI0053	-	hypothetical protein
46	 33.61	-1	47897..48259	+	120	68248597	phnA	NTHI0054	-	PhnA-like protein
47	 38.34	0	48312..48950	-	212	68248598	eda	NTHI0055	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
48	 35.61	0	48959..50362	-	467	68248599	uxuC	NTHI0056	-	glucuronate isomerase
49	 33.92	-1	50372..51229	-	285	68248600	-	NTHI0057	-	D-mannonate oxidoreductase
50	 34.04	-1	52192..53463	-	423	68248601	-	NTHI0060	-	putative TRAP-type C4-dicarboxylate transport system, large permease component
51	 30.52	-2	53473..53970	-	165	68248602	-	NTHI0061	-	putative TRAP-type C4-dicarboxylate transport system, small permease component
52	 28.98	-2	54009..54995	-	328	68248603	-	NTHI0062	-	putative TRAP-type C4-dicarboxylate transport system, periplasmic component
53	 34.60	-1	55022..56050	-	342	68248604	-	NTHI0063	-	hypothetical protein
54	 31.09	-2	56160..56960	+	266	68248605	uxuR	NTHI0064	-	uxu operon regulator
55	 38.48	0	56988..58172	+	394	68248606	uxuA	NTHI0065	-	mannonate dehydratase
56	 35.99	0	58225..58938	-	237	68248607	-	NTHI0066	-	putative membrane protein TerC
57	 39.34	0	59036..60865	-	609	68248608	uvrC	NTHI0067	-	excinuclease ABC subunit C
58	 41.83	0	60867..61631	-	254	68248609	kdsB	NTHI0068	-	3-deoxy-manno-octulosonate cytidylyltransferase
59	 40.14	0	61702..62700	-	332	68248610	lpxK	NTHI0069	-	tetraacyldisaccharide 4'-kinase
60	 38.10	0	62773..64536	-	587	68248611	msbA	NTHI0072	-	lipid transporter ATP-binding/permease protein
61	 38.32	0	64577..66943	-	788	68248612	rec2	NTHI0073	-	recombination protein 2
62	 40.18	0	67202..67639	+	145	68248613	dksA	NTHI0074	-	DnaK suppressor protein
63	 40.69	0	67887..69245	+	452	68248614	pcnB	NTHI0076	-	poly polymerase
64	 38.92	0	69254..69736	+	160	68248615	folK	NTHI0077	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
65	 34.17	-1	69812..70288	+	158	68248616	-	NTHI0078	-	hypothetical protein
66	 32.64	-1	70296..71594	+	432	68248617	amiB	NTHI0079	-	N-acetylmuramoyl-L-alanine amidase AmiB precursor
67	 39.58	0	71595..73484	+	629	68248618	mutL	NTHI0080	-	DNA mismatch repair protein
68	 43.59	+1	73492..74427	+	311	68248619	miaA	NTHI0081	-	tRNA delta(2)-isopentenylpyrophosphate transferase
69	 38.22	0	74433..77378	+	981	68248620	glnE	NTHI0082	-	glutamate-ammonia-ligase adenylyltransferase
70	 38.04	0	77463..79139	-	558	68248621	recN	NTHI0083	-	DNA repair protein RecN
71	 37.73	0	79251..80069	-	272	68248622	ppnK	NTHI0084	-	inorganic polyphosphate/ATP-NAD kinase
72	 38.87	0	80133..80837	+	234	68248623	grpE	NTHI0085	-	hypothetical protein
73	 37.68	0	80850..81194	-	114	68248624	-	NTHI0086	-	hypothetical protein
74	 31.97	-1	81187..81627	-	146	68248625	-	NTHI0087	-	hypothetical protein
75	 41.76	0	81908..84031	+	707	68248626	nrdD	NTHI0088	-	anaerobic ribonucleoside triphosphate reductase
76	 39.61	0	84150..85010	+	286	68248627	tesB	NTHI0089	-	Acyl-CoA thioesterase II
77	 40.43	0	85171..86550	-	459	68248628	cysS	NTHI0091	-	cysteinyl-tRNA synthetase
78	 36.47	0	86653..87162	+	169	68248629	ppiB	NTHI0092	-	peptidyl-prolyl cis-trans isomerase B
79	 32.18	-1	87166..87597	+	143	68248630	-	NTHI0093	-	hypothetical protein
80	 38.66	0	87739..88527	+	262	68248631	-	NTHI0095	-	putative deoxyribonuclease
81	 44.57	+1	88589..88846	+	85	68248632	-	NTHI0096	-	hypothetical protein
82	 36.23	0	88857..89132	+	91	68248633	-	NTHI0097	-	hypothetical protein
83	 36.11	0	89182..89505	-	107	68248634	trxA	NTHI0098	-	thioredoxin
84	 39.46	0	89625..90620	-	331	68248635	ddh	NTHI0099	-	D-lactate dehydrogenase
85	 38.48	0	90633..91778	-	381	68248636	metB	NTHI0100	-	cystathionine gamma-synthase
86	 36.44	0	92334..93170	+	278	68248637	-	NTHI0101	-	ATPase involved in chromosome partitioning
87	 38.20	0	93172..94527	+	451	68248638	dnaB2	NTHI0102	-	replicative DNA helicase
88	 37.10	0	94520..96220	+	566	68248639	-	NTHI0103	-	hypothetical protein
89	 39.31	0	96220..96771	+	183	68248640	-	NTHI0104	-	hypothetical protein
90	 36.85	0	96921..98144	+	407	68248641	-	NTHI0106	-	hypothetical protein
91	 38.36	0	98441..99196	+	251	68248642	-	NTHI0107	-	hypothetical protein
92	 38.65	0	99196..99684	+	162	68248643	-	NTHI0108	-	hypothetical protein
93	 41.84	0	99930..100352	+	140	68248644	ssb2	NTHI0109	-	single-strand DNA-binding protein
94	 38.15	0	100379..100897	+	172	68248645	-	NTHI0110	-	putative lipoprotein
95	 35.48	0	101113..101670	-	185	68248646	-	NTHI0111	-	hypothetical protein
96	 38.86	0	101746..103806	+	686	68248647	topB2	NTHI0112	-	DNA topoisomerase III
97	 36.60	0	104691..105119	+	142	68248648	-	NTHI0113	-	hypothetical protein
98	 36.56	0	105131..105223	+	30	68248649	-	NTHI0114	-	hypothetical protein
99	 37.85	0	105234..105875	+	213	68248650	-	NTHI0115	-	hypothetical protein
100	 34.31	-1	105910..106317	+	135	68248651	-	NTHI0116	-	hypothetical protein
101	 33.76	-1	106418..106888	+	156	68248652	radC2	NTHI0117	-	putative DNA repair radC-like protein
102	 37.86	0	106981..107577	+	198	68248653	-	NTHI0118	-	hypothetical protein
103	 34.90	0	107635..108399	+	254	68248654	-	NTHI0119	-	hypothetical protein
104	 40.63	0	108498..109127	+	209	68248655	pilL	NTHI0120	-	putative lipoprotein
105	 39.68	0	109131..109871	+	246	68248656	-	NTHI0121	-	hypothetical protein
106	 41.24	0	109850..110608	+	252	68248657	-	NTHI0122	-	hypothetical protein
107	 39.25	0	110624..111130	+	168	68248658	-	NTHI0123	-	hypothetical protein
108	 41.82	0	111127..113376	+	749	68248659	-	NTHI0125	-	hypothetical protein
109	 39.16	0	113695..114381	+	228	68248660	-	NTHI0126	-	hypothetical protein
110	 39.60	0	114512..114862	+	116	68248661	-	NTHI0127	-	hypothetical protein
111	 37.81	0	115131..115532	+	133	68248662	-	NTHI0128	-	hypothetical protein
112	 41.94	+1	115552..115923	+	123	68248663	-	NTHI0129	-	hypothetical protein
113	 39.84	0	115935..116579	+	214	68248664	-	NTHI0130	-	hypothetical protein
114	 42.07	+1	116579..117448	+	289	68248665	-	NTHI0131	-	hypothetical protein
115	 41.40	0	117459..118859	+	466	68248666	-	NTHI0132	-	hypothetical protein
116	 41.18	0	118869..119276	+	135	68248667	-	NTHI0133	-	putative lipoprotein
117	 41.27	0	119292..122162	+	956	68248668	-	NTHI0134	-	hypothetical protein
118	 38.73	0	122170..122577	+	135	68248669	-	NTHI0135	-	hypothetical protein
119	 35.49	0	122587..122910	+	107	68248670	-	NTHI0136	-	hypothetical protein
120	 40.09	0	122919..124412	+	497	68248671	-	NTHI0137	-	hypothetical protein
121	 38.79	0	124468..124797	-	109	68248672	-	NTHI0139	-	hypothetical protein
122	 51.60	+2	124955..127960	-	1001	68248673	tnpA	NTHI0141	-	transposon Tn3 transposase
123	 52.14	+2	126925..127041	+	38	68248674	-	NTHI0140	-	hypothetical protein
124	 51.18	+2	128088..128681	+	197	162960936	tnpR	NTHI0142	-	transposon Tn3 resolvase
125	 49.01	+2	128729..129589	+	286	162960937	-	NTHI2055	-	beta-lactamase TEM precursor
126	 26.67	-2	129813..129992	+	59	68248676	-	NTHI0143	-	hypothetical protein
38.35	MEAN

3.58	STD DEV
