IslandPath Analysis: Haemophilus influenzae 86-028NP

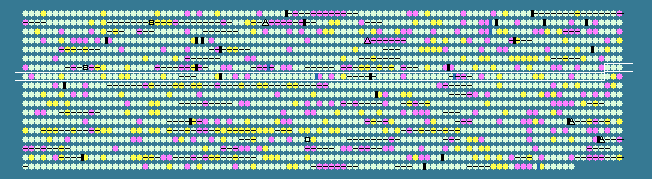

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.35 STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
698	 39.00	0	746109..746549	+	146	68249248	mioC	NTHI0791	-	flavodoxin
699	 38.62	0	746546..746980	+	144	68249249	dtd	NTHI0792	-	D-tyrosyl-tRNA deacylase
700	 41.09	0	747287..747763	-	158	68249250	ispF	NTHI0793	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
701	 40.56	0	747760..748437	-	225	68249251	ispD	NTHI0794	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
702	 31.54	-1	748437..748715	-	92	68249252	ftsB	NTHI0795	-	cell division protein FtsB
703	 41.45	0	748838..749305	-	155	68249253	gpt	NTHI0796	-	xanthine-guanine phosphoribosyltransferase
704	 40.62	0	749416..750870	+	484	68249254	pepD	NTHI0797	-	aminoacyl-histidine dipeptidase
705	 40.20	0	750923..751810	-	295	68249255	xerC	NTHI0798	-	site-specific tyrosine recombinase XerC
706	 37.41	0	751804..752244	-	146	68249256	-	NTHI0799	-	hypothetical protein
707	 42.80	+1	752410..753201	+	263	68249257	tpiA	NTHI0800	-	triosephosphate isomerase
708	 37.42	0	753283..753600	-	105	68249258	glpE	NTHI0801	-	thiosulfate sulfurtransferase GlpE
709	 35.04	0	753601..754479	-	292	68249259	-	NTHI0802	-	hypothetical protein
710	 40.16	0	754511..755389	-	292	68249260	ilvY	NTHI0803	-	DNA-binding transcriptional regulator IlvY
711	 40.09	0	756073..757551	+	492	68249261	ilvC	NTHI0804	-	ketol-acid reductoisomerase
712	 36.14	0	757662..758942	-	426	68249262	glpC	NTHI0805	-	sn-glycerol-3-phosphate dehydrogenase subunit C
713	 39.65	0	758953..760251	-	432	68249263	glpB	NTHI0806	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
714	 43.97	+1	760241..761932	-	563	68249264	glpA	NTHI0808	-	sn-glycerol-3-phosphate dehydrogenase subunit A
715	 41.23	0	762225..763667	+	480	68249265	glpT	NTHI0809	-	glycerol-3-phosphate transporter
716	 35.98	0	763771..764865	+	364	68249266	glpQ	NTHI0811	-	glycerophosphodiester phosphodiesterase
717	 43.52	+1	765095..765889	+	264	68249267	glpF	NTHI0812	-	glycerol uptake facilitator protein
718	 42.66	+1	765910..767421	+	503	68249268	glpK	NTHI0813	-	glycerol kinase
719	 41.03	0	767505..767972	-	155	68249269	gpt2	NTHI0814	-	xanthine-guanine phosphoribosyltransferase
720	 40.36	0	768257..769081	+	274	68249270	hel	NTHI0816	-	Outer membrane protein P4, NADP phosphatase
721	 37.57	0	769248..769931	+	227	68249271	rluE	NTHI0817	-	hypothetical protein
722	 38.02	0	771036..774920	-	1294	68249272	-	NTHI0820	-	hypothetical protein
723	 39.44	0	774930..776666	-	578	68249273	-	NTHI0821	-	hypothetical protein
724	 43.80	+1	776817..777389	-	190	68249274	slyD	NTHI0822	-	FKBP-type peptidyl-prolyl cis-trans isomerase SlyD
725	 37.12	0	777467..777889	-	140	68249275	-	NTHI0823	-	hypothetical protein
726	 40.10	0	777998..779017	+	339	68249276	truD	NTHI0824	-	tRNA pseudouridine synthase D
727	 40.00	0	779027..779776	+	249	68249277	surE	NTHI0825	-	stationary phase survival protein SurE
728	 41.80	0	779785..780363	+	192	68249278	-	NTHI0826	-	hypothetical protein
729	 37.63	0	780372..780557	+	61	68249279	-	NTHI0827	-	hypothetical protein
730	 40.48	0	780592..781809	+	405	68249280	lppB	NTHI0830	-	lipoprotein
731	 40.03	0	782177..783595	+	472	68249281	tnaA	NTHI0831	-	tryptophanase
732	 35.60	0	783679..784911	+	410	68249282	tnaB	NTHI0832	-	tryptophan-specific transport protein
733	 42.34	+1	785052..787637	+	861	68249283	mutS	NTHI0834	-	DNA mismatch repair protein
734	 38.60	0	787843..789228	+	461	68249284	selA	NTHI0835	-	selenocysteine synthase
735	 38.87	0	789225..791084	+	619	68249285	selB	NTHI0836	-	selenocysteine-specific elongation factor
736	 30.88	-2	791103..791957	+	284	68249286	-	NTHI0837	-	hypothetical protein
737	 35.69	0	792077..792373	+	98	68249287	relB	NTHI0838	-	DNA-damage-inducible protein J, negative regulator of translation
738	 33.33	-1	792373..792681	+	102	68249288	-	NTHI0839	-	hypothetical protein
739	 36.49	0	796227..797525	+	432	68249289	tig	NTHI0843	-	trigger factor
740	 40.72	0	797648..798229	+	193	68249290	clpP	NTHI0844	-	ATP-dependent Clp protease proteolytic subunit
741	 36.00	0	798239..799474	+	411	68249291	clpX	NTHI0846	-	ATP-dependent protease ATP-binding subunit
742	 37.17	0	799619..800035	+	138	68249292	secE	NTHI0847	-	preprotein translocase subunit SecE
743	 37.10	0	800037..800594	+	185	68249293	nusG	NTHI0848	-	transcription antitermination protein NusG
744	 39.84	0	800745..801497	+	250	68249294	vacJ	NTHI0849	-	VacJ lipoprotein
745	 40.71	0	801551..801943	+	130	68249295	-	NTHI0851	-	YjgF family translation initiation inhibitor
746	 41.08	0	802111..802962	+	283	68249296	htpX	NTHI0852	-	heat shock protein HtpX
747	 37.08	0	803004..803243	-	79	161761277	sirA	NTHI0853	-	cell developmental protein SirA
748	 40.42	0	803359..803979	+	206	68249298	-	NTHI0854	-	hypothetical protein
749	 36.75	0	803982..805445	+	487	68249299	trkH	NTHI0855	-	Trk system potassium uptake protein TrkH
750	 34.76	-1	811880..812299	+	139	68249300	psiE	NTHI0856	-	phosphate-starvation-inducible protein PsiE
751	 36.60	0	812363..813649	-	428	68249301	hemY	NTHI0857	-	HemY
752	 34.16	-1	813660..814871	-	403	68249302	hemX	NTHI0858	-	putative uroporphyrin-III C-methyltransferase
753	 38.74	0	815177..817708	+	843	68249303	cyaA	NTHI0859	-	adenylate cyclase
754	 42.26	+1	817782..818789	+	335	68249304	gpsA	NTHI0860	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
755	 40.92	0	818806..819609	+	267	68249305	cysE	NTHI0861	-	serine acetyltransferase
756	 39.34	0	819619..820434	+	271	68249306	aroE	NTHI0862	-	shikimate 5-dehydrogenase
757	 35.21	0	820572..821957	+	461	68249307	-	NTHI0863	-	putative di- and tricarboxylate transporter
758	 39.69	0	822095..822943	-	282	68249308	folD	NTHI0864	-	FolD bifunctional protein
759	 38.62	0	823471..824757	-	428	68249309	fucP	NTHI0865	-	L-fucose permease
760	 38.56	0	824796..825446	-	216	68249310	fucA	NTHI0866	-	L-fuculose phosphate aldolase
761	 39.31	0	825466..825900	-	144	68249311	fucU	NTHI0867	-	fucose operon protein FucU
762	 38.22	0	825914..827326	-	470	68249312	fucK	NTHI0870	-	L-fuculokinase
763	 41.19	0	827399..829168	-	589	161761276	fucI	NTHI0871	-	L-fucose isomerase
764	 33.60	-1	829398..830147	-	249	68249314	fucR	NTHI0872	-	L-fucose operon activator
765	 40.66	0	830346..833117	+	923	68249315	hepA	NTHI0873	-	ATP-dependent helicase HepA
766	 40.61	0	833120..833779	+	219	68249316	rluA	NTHI0874	-	hypothetical protein
767	 36.44	0	833806..834384	+	192	68249317	glpG	NTHI0875	-	hypothetical protein
768	 39.58	0	834414..835181	+	255	68249318	glpR	NTHI0876	-	glycerol-3-phosphate regulon repressor
769	 35.40	0	835483..836304	-	273	68249319	metQ	NTHI0877	-	putative D-methionine-binding lipoprotein MetQ
770	 41.30	0	836343..837032	-	229	68249320	metI	NTHI0878	-	D-methionine transport system permease protein
771	 38.34	0	837022..838059	-	345	68249321	metN	NTHI0879	-	DL-methionine transporter ATP-binding subunit
772	 36.76	0	838235..838789	+	184	68249322	-	NTHI0880	-	D,D-heptose 1,7-bisphosphate phosphatase
773	 32.62	-1	845041..845601	+	186	68249323	-	NTHI0881	-	hypothetical protein
774	 32.88	-1	845605..846045	+	146	68249324	-	NTHI0882	-	hypothetical protein
775	 36.36	0	846107..846733	-	208	68249325	narP	NTHI0883	-	nitrate/nitrite response regulator protein
776	 39.82	0	846939..848186	-	415	68249326	lysA	NTHI0884	-	diaminopimelate decarboxylase
777	 33.33	-1	848234..848365	-	43	68249327	-	NTHI0885	-	hypothetical protein
778	 38.56	0	848448..848753	+	101	68249328	cyaY	NTHI0886	-	frataxin-like protein
779	 39.84	0	848755..850614	+	619	68249329	recQ	NTHI0887	-	ATP-dependent DNA helicase RecQ
780	 42.87	+1	850699..852417	+	572	68249330	proS	NTHI0888	-	prolyl-tRNA synthetase
781	 36.70	0	852505..854853	-	782	68249331	ostA	NTHI0889	-	organic solvent tolerance protein
782	 40.85	0	854976..856385	-	469	68249332	sufI	NTHI0890	-	hypothetical protein
783	 38.31	0	856387..857109	-	240	68249333	plsC	NTHI0891	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
784	 35.99	0	857195..857908	+	237	68249334	lpxH	NTHI0892	-	UDP-2,3-diacylglucosamine hydrolase
785	 41.26	0	858138..859664	-	508	68249335	-	NTHI0893	-	putative sodium-dependent transporter
786	 43.22	+1	859911..860537	+	208	68249336	ilvG	NTHI0894	-	acetolactate synthase isozyme II large subunit
787	 43.77	+1	860579..862417	+	612	68249337	ilvD	NTHI0895	-	dihydroxy-acid dehydratase
788	 40.60	0	862497..864038	+	513	68249338	thd1	NTHI0896	-	threonine dehydratase
789	 41.81	0	864076..867555	-	1159	68249339	dnaE	NTHI0897	-	DNA polymerase III subunit alpha
790	 41.61	0	867794..869437	+	547	68249340	pgmB	NTHI0899	-	phosphoglucomutase
791	 37.06	0	869604..870113	-	169	68249341	secB	NTHI0900	-	preprotein translocase subunit SecB
792	 33.78	-1	870127..870573	-	148	68249342	-	NTHI0901	-	rhodanese-related sulfurtransferase
793	 40.06	0	870821..872143	+	440	68249343	dcuB	NTHI0902	-	anaerobic C4-dicarboxylate transporter
794	 36.33	0	872347..873681	+	444	68249344	ndhA	NTHI0903	-	NADH dehydrogenase
795	 35.96	0	873761..876193	-	810	68249345	plsB	NTHI0904	-	glycerol-3-phosphate acyltransferase
796	 38.25	0	876442..877071	+	209	68249346	lexA	NTHI0905	-	LexA repressor
797	 39.39	0	877214..878038	+	274	68249347	dapF	NTHI0906	-	diaminopimelate epimerase
38.35	MEAN

3.58	STD DEV
