IslandPath Analysis: Haemophilus influenzae 86-028NP

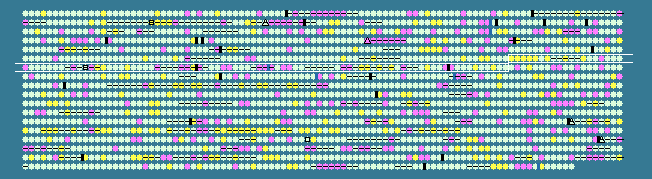

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.35 STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
582	 43.75	+1	627260..628075	-	271	68249132	ureH	NTHI0661	-	urease accessory protein UreH
583	 43.81	+1	628150..628827	-	225	68249133	ureG	NTHI0662	-	urease accessory protein
584	 47.60	+2	628930..629637	-	235	68249134	ureF	NTHI0663	-	urease accessory protein UreF
585	 42.83	+1	629622..630179	-	185	68249135	ureE	NTHI0664	-	urease accessory protein UreE
586	 44.21	+1	630307..632025	-	572	68249136	ureC	NTHI0665	-	urease subunit alpha
587	 41.18	0	632037..632342	-	101	68249137	ureB	NTHI0666	-	urease subunit beta
588	 43.89	+1	632419..632721	-	100	68249138	ureA	NTHI0667	-	urease subunit gamma
589	 40.21	0	632884..633174	+	96	68249139	groES	NTHI0668	-	co-chaperonin GroES
590	 41.51	0	633197..634834	+	545	68249140	groEL	NTHI0669	-	chaperonin GroEL
591	 42.89	+1	635008..635457	-	149	68249141	rplI	NTHI0670	-	50S ribosomal protein L9
592	 41.67	0	635474..635701	-	75	68249142	rpsR	NTHI0671	-	30S ribosomal protein S18
593	 35.47	0	635714..636040	-	108	68249143	priB	NTHI0672	-	primosomal replication protein N
594	 43.39	+1	636027..636404	-	125	68249144	rpsF	NTHI0673	-	30S ribosomal protein S6
595	 38.82	0	636596..636850	-	84	68249145	infA	NTHI0674	-	translation initiation factor IF-1
596	 40.97	0	638183..639046	+	287	68249146	ksgA	NTHI0676	-	dimethyladenosine transferase
597	 28.22	-2	639086..640024	-	312	68249147	lic2A	NTHI0677	-	UDP-Gal--lipooligosaccharide galactosyltransferase
598	 39.49	0	640077..640904	+	275	68249148	apaH	NTHI0679	-	diadenosine tetraphosphatase
599	 37.82	0	640914..641537	+	207	68249149	-	NTHI0680	-	hypothetical protein
600	 41.44	0	641663..643117	-	484	68249150	gnd	NTHI0681	-	6-phosphogluconate dehydrogenase
601	 30.57	-2	643233..643775	-	180	68249151	-	NTHI0683	-	hypothetical protein
602	 40.74	0	643858..644046	-	62	68249152	-	NTHI0684	-	hypothetical protein
603	 38.91	0	644116..644814	-	232	161761278	devB	NTHI0685	-	6-phosphogluconolactonase
604	 41.28	0	644957..646441	-	494	68249154	zwf	NTHI0686	-	glucose-6-phosphate 1-dehydrogenase
605	 38.89	0	646517..647326	-	269	68249155	cysQ	NTHI0687	-	CysQ
606	 38.13	0	647331..647747	-	138	68249156	-	NTHI0688	-	hypothetical protein
607	 40.54	0	647804..649786	-	660	68249157	-	NTHI0689	-	hypothetical protein
608	 38.89	0	650015..650410	+	131	68249158	hslR	NTHI0690	-	heat shock protein 15-like protein
609	 34.44	-1	650436..650888	-	150	68249159	asnC	NTHI0691	-	DNA-binding transcriptional regulator AsnC
610	 38.47	0	651042..652034	+	330	68249160	asnA	NTHI0692	-	asparagine synthetase AsnA
611	 35.59	0	652097..652450	-	117	68249161	-	NTHI0693	-	putative transposase-like protein
612	 32.52	-1	653063..653920	+	285	68249162	-	NTHI0694	-	hypothetical protein
613	 42.74	+1	654077..654193	-	38	68249163	-	NTHI0695	-	hypothetical protein
614	 46.81	+2	654485..654625	+	46	68249164	-	NTHI0696	-	hypothetical protein
615	 39.11	0	654805..655479	-	224	68249165	gph	NTHI0697	-	phosphoglycolate phosphatase
616	 40.85	0	655525..656229	-	234	68249166	rpe	NTHI0698	-	ribulose-phosphate 3-epimerase
617	 41.26	0	656351..658771	-	806	68249167	gyrB	NTHI0699	-	DNA gyrase subunit B
618	 42.24	+1	658897..661209	-	770	68249168	-	NTHI0701	-	transcriptional accessory protein
619	 40.25	0	661305..661781	+	158	68249169	greB	NTHI0702	-	transcription elongation factor GreB
620	 41.26	0	661851..662468	-	205	68249170	-	NTHI0703	-	DNA-binding transcriptional repressor FabR
621	 40.07	0	662468..663373	-	301	68249171	oxyR	NTHI0704	-	DNA-binding transcriptional regulator OxyR
622	 39.94	0	663496..664221	+	241	68249172	pdgX	NTHI0705	-	peroxiredoxin/glutaredoxin
623	 32.88	-1	664313..664534	-	73	68249173	slyX	NTHI0706	-	hypothetical protein
624	 35.95	0	664632..665357	+	241	68249174	fkbY	NTHI0707	-	FKBP-type peptidyl-prolyl cis-trans isomerase
625	 37.39	0	665447..666112	+	221	68249175	-	NTHI0708	-	hypothetical protein
626	 37.53	0	666112..666492	+	126	68249176	-	NTHI0709	-	hypothetical protein
627	 33.33	-1	666489..666848	+	119	68249177	-	NTHI0710	-	hypothetical protein
628	 30.21	-2	666857..667144	+	95	68249178	-	NTHI0711	-	hypothetical protein
629	 43.21	+1	667275..668459	-	394	68249179	tuf	NTHI0712	-	elongation factor Tu
630	 33.01	-1	669165..670088	+	307	68249180	coaA	NTHI0713	-	pantothenate kinase
631	 35.02	0	670179..671126	-	315	68249181	rseB	NTHI0716	-	periplasmic negative regulator of sigmaE
632	 39.93	0	671206..671781	-	191	68249182	rseA	NTHI0718	-	sigma-E factor negative regulatory protein
633	 39.82	0	671806..672375	-	189	68249183	rpoE	NTHI0719	-	RNA polymerase sigma factor RpoE
634	 29.07	-2	672484..672741	-	85	68249184	-	NTHI0720	-	hypothetical protein
635	 33.07	-1	672831..673217	-	128	68249185	mscL	NTHI0721	-	large-conductance mechanosensitive channel
636	 39.22	0	673290..674666	-	458	68249186	trkA	NTHI0722	-	potassium transporter peripheral membrane component
637	 40.35	0	674679..676031	-	450	68249187	sun	NTHI0723	-	SUN protein
638	 38.87	0	676031..676987	-	318	68249188	fmt	NTHI0724	-	methionyl-tRNA formyltransferase
639	 36.86	0	677088..677597	-	169	68249189	def	NTHI0725	-	peptide deformylase
640	 28.08	-2	677787..678224	-	145	68249190	-	NTHI0726	-	hypothetical protein
641	 33.33	-1	678202..678387	-	61	68249191	-	NTHI0727	-	hypothetical protein
642	 31.50	-1	684668..685321	-	217	68249192	sxy	NTHI0728	-	DNA transformation protein TfoX
643	 38.87	0	685693..686757	+	354	68249193	recA	NTHI0729	-	recombinase A
644	 33.55	-1	686836..687294	+	152	68249194	recX	NTHI0730	-	recombination regulator RecX
645	 31.78	-1	687291..687677	-	128	68249195	ccrB	NTHI0731	-	camphor resistance protein CrcB
646	 36.63	0	687677..688495	-	272	68249196	-	NTHI0732	-	HAD superfamily hydrolase
647	 39.00	0	688898..689902	+	334	68249197	argF	NTHI0733	-	ornithine carbamoyltransferase
648	 40.41	0	689912..690844	+	310	68249198	arcC	NTHI0734	-	carbamate kinase
649	 39.67	0	690949..692478	+	509	68249199	-	NTHI0735	-	hypothetical protein
650	 36.31	0	697114..697818	+	234	68249200	pepE	NTHI0738	-	peptidase E
651	 40.20	0	697836..699131	+	431	68249201	-	NTHI0739	-	C4-dicarboxylate transporter
652	 37.50	0	699203..700474	+	423	68249202	abgA	NTHI0740	-	aminobenzoyl-glutamate utilization protein A
653	 38.40	0	700567..702540	+	657	68249203	cpdB	NTHI0741	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
654	 29.41	-2	702649..703056	-	135	68249204	-	NTHI0742	-	HTH-type transcriptional regulator
655	 33.78	-1	703066..703743	-	225	68249205	-	NTHI0743	-	zinc transporter ZitB
656	 40.00	0	704251..706140	+	629	68249206	gidA	NTHI0744	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
657	 43.47	+1	706322..706696	+	124	68249207	rpsL	NTHI0745	-	30S ribosomal protein S12
658	 42.46	+1	706853..707323	+	156	68249208	rpsG,	NTHI0746	-	30S ribosomal protein S7
659	 40.94	0	707407..709509	+	700	68249209	fusA	NTHI0747	-	elongation factor G
660	 43.46	+1	709574..710758	+	394	68249210	tuf	NTHI0748	-	elongation factor Tu
661	 41.74	0	711218..711562	+	114	68249211	-	NTHI0749	-	chloride channel protein
662	 44.81	+1	711553..711735	+	60	68249212	-	NTHI0751	-	chloride channel protein
663	 41.16	0	711738..712721	+	327	68249213	dusA	NTHI0753	-	tRNA-dihydrouridine synthase A
664	 34.71	-1	712769..713059	-	96	68249214	-	NTHI0754	-	hypothetical protein
665	 38.48	0	713082..714092	-	336	68249215	trpS	NTHI0755	-	tryptophanyl-tRNA synthetase
666	 38.35	0	714215..714832	+	205	68249216	-	NTHI0757	-	hypothetical protein
667	 38.51	0	714855..716225	+	456	68249217	purB	NTHI0758	-	adenylosuccinate lyase
668	 42.48	+1	716497..716988	+	163	68249218	rplJ	NTHI0759	-	50S ribosomal protein L10
669	 41.13	0	717043..717414	+	123	68249219	rplL	NTHI0761	-	50S ribosomal protein L7/L12
670	 38.51	0	717573..718943	+	456	68249220	glmU	NTHI0762	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
671	 30.45	-2	718978..719289	-	103	68249221	-	NTHI0763	-	hypothetical protein
672	 33.87	-1	719828..720763	-	311	68249222	pldB	NTHI0764	-	lysophospholipase L2
673	 40.86	0	720817..721932	-	371	68249223	asd	NTHI0765	-	aspartate-semialdehyde dehydrogenase
674	 40.03	0	722098..722814	-	238	68249224	-	NTHI0766	-	hypothetical protein
675	 39.57	0	723006..723662	+	218	68249225	-	NTHI0767	-	2-methylthioadenine synthetase
676	 44.21	+1	723726..724304	-	192	68249226	mdaB	NTHI0768	-	putative NADPH-quinone reductase, modulator of drug activity B
677	 40.74	0	724583..726595	-	670	68249227	rep	NTHI0769	-	ATP-dependent DNA helicase
678	 38.97	0	726601..726813	-	70	68249228	-	NTHI0770	-	periplasmic lipoprotein
679	 42.25	+1	726810..727280	-	156	68249229	coaD	NTHI0771	-	phosphopantetheine adenylyltransferase
680	 40.03	0	727277..728560	-	427	68249230	kdtA	NTHI0772	-	3-deoxy-D-manno-octulosonic-acid transferase
681	 40.13	0	728623..729387	+	254	68249231	lgtF	NTHI0773	-	UDP-glucose--lipooligosaccharide glucosyltransferase
38.35	MEAN

3.58	STD DEV
