IslandPath Analysis: Haemophilus influenzae 86-028NP

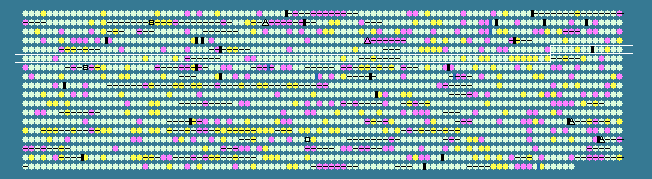

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.35 STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
489	 35.21	0	526370..527167	-	265	68249039	comA	NTHI0566	-	competence protein A
490	 41.43	0	527266..529860	+	864	68249040	mrcA	NTHI0567	-	penicillin-binding protein 1A
491	 39.83	0	529933..530778	+	281	68249041	-	NTHI0568	-	hypothetical protein
492	 39.07	0	530911..531276	+	121	68249042	-	NTHI0569	-	hypothetical protein
493	 43.45	+1	531407..532009	+	200	68249043	recR	NTHI0570	-	recombination protein RecR
494	 40.39	0	532025..533980	+	651	68249044	topB	NTHI0571	-	DNA topoisomerase III
495	 39.47	0	534089..534430	+	113	68249045	secG	NTHI0572	-	preprotein translocase subunit SecG
496	 41.47	0	534975..536645	-	556	68249046	fruA	NTHI0573	-	PTS system, fructose-specific IIBC component
497	 40.45	0	536647..537588	-	313	68249047	fruK	NTHI0574	-	1-phosphofructokinase
498	 41.87	0	537590..539089	-	499	68249048	fruB	NTHI0575	-	bifunctional fructose-specific PTS IIA/HPr protein
499	 37.62	0	539161..539697	-	178	68249049	-	NTHI0576	-	hypothetical protein
500	 36.92	0	539784..540062	-	92	68249050	vapD	NTHI0577	-	virulence-associated protein D
501	 40.10	0	540071..540262	-	63	68249051	vapX	NTHI0578	-	hypothetical protein
502	 37.26	0	540334..541632	-	432	68249052	-	NTHI0579	-	hypothetical protein
503	 37.33	0	541683..542207	-	174	68249053	-	NTHI0580	-	hypothetical protein
504	 41.38	0	542234..543016	-	260	68249054	-	NTHI0581	-	putative deoxyribonuclease
505	 40.65	0	543071..544054	-	327	68249055	holB	NTHI0582	-	DNA polymerase III subunit delta'
506	 24.81	-2	544051..544179	-	42	68249056	-	NTHI0584	-	hypothetical protein
507	 40.63	0	544254..546377	+	707	68249057	lav	NTHI0585	-	autotransported protein Lav
508	 41.67	0	547283..547942	-	219	68249058	tdk	NTHI0586	-	thymidylate kinase
509	 36.40	0	547932..548975	-	347	68249059	-	NTHI0587	-	periplasmic solute-binding protein
510	 36.73	0	549045..549986	-	313	68249060	surA	NTHI0588	-	survival protein SurA-like protein
511	 36.11	0	550056..550595	-	179	68249061	pyrR	NTHI0589	-	pyrimidine regulatory protein PyrR
512	 38.64	0	550727..551518	+	263	68249062	mazG	NTHI0591	-	nucleoside triphosphate pyrophosphohydrolase
513	 36.19	0	551568..552443	-	291	68249063	-	NTHI0592	-	hypothetical protein
514	 40.09	0	552636..555047	+	803	68249064	lon	NTHI0593	-	ATP-dependent protease La
515	 38.54	0	555164..556315	+	383	68249065	-	NTHI0594	-	coproporphyrinogen III oxidase
516	 39.70	0	556449..557108	+	219	68249066	rpiA	NTHI0595	-	ribose-5-phosphate isomerase A
517	 40.55	0	557138..558370	+	410	68249067	serA	NTHI0596	-	D-3-phosphoglycerate dehydrogenase
518	 38.08	0	558413..559255	-	280	68249068	-	NTHI0597	-	aminomethyltransferase related to GcvT
519	 39.58	0	559265..560128	-	287	68249069	-	NTHI0598	-	hypothetical protein
520	 39.69	0	560577..561488	+	303	68249070	hisG	NTHI0599	-	ATP phosphoribosyltransferase
521	 42.52	+1	561581..562864	+	427	68249071	hisD	NTHI0600	-	histidinol dehydrogenase
522	 40.85	0	562933..564036	+	367	68249072	hisC	NTHI0601	-	histidinol-phosphate aminotransferase
523	 40.40	0	564148..565236	+	362	68249073	hisB	NTHI0602	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
524	 38.33	0	565302..565901	+	199	68249074	hisH	NTHI0603	-	imidazole glycerol phosphate synthase subunit HisH
525	 40.67	0	565937..566686	+	249	68249075	hisA	NTHI0604	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
526	 42.47	+1	566668..567444	+	258	68249076	hisF	NTHI0605	-	imidazole glycerol phosphate synthase subunit HisF
527	 37.09	0	567444..568109	+	221	68249077	hisI	NTHI0606	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
528	 20.92	-2	568191..568343	+	50	68249078	-	NTHI0606_1	-	hypothetical protein
529	 39.40	0	568373..569575	+	400	68249079	tyrP	NTHI0607	-	tyrosine-specific transport protein 1
530	 36.60	0	569761..570189	-	142	68249080	atpC	NTHI0608	-	F0F1 ATP synthase subunit epsilon
531	 39.96	0	570219..571592	-	457	68249081	atpD	NTHI0609	-	F0F1 ATP synthase subunit beta
532	 37.47	0	571609..572478	-	289	68249082	atpG	NTHI0610	-	F0F1 ATP synthase subunit gamma
533	 39.88	0	572494..574035	-	513	68249083	atpA	NTHI0611	-	F0F1 ATP synthase subunit alpha
534	 39.51	0	574048..574581	-	177	68249084	atpH	NTHI0612	-	F0F1 ATP synthase subunit delta
535	 37.58	0	574594..575064	-	156	68249085	atpF	NTHI0613	-	F0F1 ATP synthase subunit B
536	 36.47	0	575114..575368	-	84	68249086	atpE	NTHI0614	-	F0F1 ATP synthase subunit C
537	 35.74	0	575424..576212	-	262	68249087	atpB	NTHI0615	-	F0F1 ATP synthase subunit A
538	 28.80	-2	576249..576623	-	124	68249088	-	NTHI0616	-	F0F1 ATP synthase subunit I
539	 32.35	-1	576749..577360	-	203	68249089	gidB	NTHI0617	-	glucose-inhibited division protein B
540	 37.30	0	577500..577877	-	125	68249090	-	NTHI0618	-	hypothetical protein
541	 40.30	0	577993..578595	+	200	68249091	-	NTHI0619	-	putative phosphatase/phosphohexomutase
542	 35.86	0	578595..579068	+	157	68249092	-	NTHI0620	-	hypothetical protein
543	 36.31	0	579253..579756	+	167	68249093	luxS	NTHI0621	-	S-ribosylhomocysteinase
544	 38.42	0	580700..581407	-	235	68249094	aphA	NTHI0623	-	acid phosphatase/phosphotransferase
545	 41.67	0	581627..582154	+	175	68249095	hslV	NTHI0624	-	ATP-dependent protease peptidase subunit
546	 41.80	0	582165..583499	+	444	68249096	hslU	NTHI0625	-	ATP-dependent protease ATP-binding subunit
547	 36.75	0	583569..584621	-	350	68249097	potD2	NTHI0626	-	spermidine/putrescine-binding periplasmic protein 2 precursor
548	 38.73	0	584761..586056	+	431	68249098	ordL	NTHI0627	-	oxidoreductase OrdL
549	 38.18	0	586220..587662	+	480	68249099	rmuC	NTHI0628	-	DNA recombination protein RmuC
550	 36.67	0	587826..588245	+	139	68249100	rbsD	NTHI0629	-	D-ribose pyranase
551	 39.81	0	588259..589740	+	493	68249101	rbsA	NTHI0630	-	D-ribose transporter ATP binding protein
552	 37.35	0	589753..590724	+	323	68249102	rbsC	NTHI0631	-	ribose ABC transporter permease protein
553	 39.93	0	590744..591622	+	292	68249103	rbsB	NTHI0632	-	D-ribose transporter subunit RbsB
554	 43.21	+1	591720..592640	+	306	68249104	rbsK	NTHI0633	-	ribokinase
555	 41.04	0	592668..593666	+	332	68249105	rbsR	NTHI0634	-	ribose operon repressor
556	 36.41	0	593772..594323	+	183	68249106	-	NTHI0635	-	hypothetical protein
557	 41.10	0	594463..594951	-	162	68249107	menG	NTHI0636	-	ribonuclease activity regulator protein RraA
558	 39.23	0	595003..595935	-	310	68249108	menA	NTHI0637	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
559	 42.36	+1	595982..596701	+	239	68249109	-	NTHI0638	-	hypothetical protein
560	 35.66	0	596754..597740	-	328	68249110	tehA	NTHI0639	-	potassium-tellurite ethidium and proflavin transporter
561	 41.40	0	597892..602142	-	1416	68249111	rpoC	NTHI0640	-	DNA-directed RNA polymerase subunit beta'
562	 39.68	0	602349..606380	-	1343	68249112	rpoB	NTHI0641	-	DNA-directed RNA polymerase subunit beta
563	 38.99	0	606764..607453	-	229	68249113	rplA	NTHI0642	-	50S ribosomal protein L1
564	 41.03	0	607458..607886	-	142	68249114	rplK	NTHI0643	-	50S ribosomal protein L11
565	 39.05	0	608059..608775	-	238	68249115	deoD	NTHI0644	-	purine nucleoside phosphorylase
566	 41.23	0	608859..610112	-	417	68249116	-	NTHI0645	-	nucleoside permease
567	 38.91	0	610211..610999	-	262	68249117	-	NTHI0646	-	pyruvate-formate lyase-activating enzyme
568	 41.17	0	611008..612552	-	514	68249118	-	NTHI0647	-	hypothetical protein
569	 39.73	0	612765..613421	+	218	68249119	-	NTHI0648	-	hypothetical protein
570	 38.19	0	613377..614447	-	356	68249120	waaQ	NTHI0649	-	ADP-heptose--lipooligosaccharide heptosyltransferase III
571	 40.65	0	614485..615564	-	359	68249121	fba	NTHI0650	-	fructose-bisphosphate aldolase
572	 40.22	0	615675..616835	-	386	68249122	pgk	NTHI0651	-	phosphoglycerate kinase
573	 37.61	0	616931..617725	-	264	68249123	-	NTHI0652	-	ribonuclease I
574	 42.91	+1	617803..618063	+	86	68249124	-	NTHI0653	-	putative ferredoxin-like protein
575	 40.46	0	618197..619417	-	406	68249125	tyrQ	NTHI0654	-	tyrosine-specific transport protein 2
576	 38.49	0	619454..620035	-	193	68249126	tdk	NTHI0655	-	thymidine kinase
577	 42.08	+1	620044..621072	-	342	68249127	gcp	NTHI0656	-	O-sialoglycoprotein endopeptidase
578	 42.59	+1	621304..621519	+	71	68249128	rpsU	NTHI0657	-	30S ribosomal protein S21
579	 39.56	0	621653..623434	+	593	68249129	dnaG	NTHI0658	-	DNA primase
580	 37.93	0	623505..625376	+	623	68249130	rpoD	NTHI0659	-	RNA polymerase sigma factor RpoD
581	 37.75	0	625686..627113	-	475	68249131	aspA	NTHI0660	-	aspartate ammonia-lyase
582	 43.75	+1	627260..628075	-	271	68249132	ureH	NTHI0661	-	urease accessory protein UreH
583	 43.81	+1	628150..628827	-	225	68249133	ureG	NTHI0662	-	urease accessory protein
584	 47.60	+2	628930..629637	-	235	68249134	ureF	NTHI0663	-	urease accessory protein UreF
585	 42.83	+1	629622..630179	-	185	68249135	ureE	NTHI0664	-	urease accessory protein UreE
586	 44.21	+1	630307..632025	-	572	68249136	ureC	NTHI0665	-	urease subunit alpha
587	 41.18	0	632037..632342	-	101	68249137	ureB	NTHI0666	-	urease subunit beta
588	 43.89	+1	632419..632721	-	100	68249138	ureA	NTHI0667	-	urease subunit gamma
38.35	MEAN

3.58	STD DEV
